Exploring the association between network centralities and passenger flows in metro systems
Applied Network Science volume 8, Article number: 69 (2023)
Abstract
Network science offers valuable tools for planning and managing public transportation systems, with measures such as network centralities proposed as complementary predictors of ridership. This paper explores the relationship between different cases of passenger flows at metro stations and network centralities within both metro and alternative public transport (substitute) networks; such an association can be useful for managing metro system operations when disruptions occur. For that purpose, linear regression and nonparametric machine learning models are developed and compared. The Athens metro system is used as a testbed for developing the proposed methodology. The findings of this study can be used for deriving mediumterm ridership estimates in cases of metro disruptions, as the proposed methodology can support contingency plans for both platform and rail track disruptions.
Introduction
Metro systems are crucial in metropolitan areas since they offer fast, convenient, and reliable transportation services. Information on ridership (often represented by passenger flows between metro stations) is essential for efficient planning and management of metro operations, such as the development of timetables, the allocation of resources, and so on. For that purpose, several econometric and machine/deep learning models have been developed for predicting passenger flows in metro systems (Han et al. 2021). The associated problem of estimating metro passenger flows is usually approached from a spatial–temporal perspective, while the temporal component is treated as a timeseries (Ou et al. 2020). Econometric timeseries models are usually based on autoregressive integrated moving average (ARIMA) and seasonal autoregressive integrated moving average (SARIMA) (Zheng et al. 2020), while machine learning and deep learningbased efforts mainly include neural networks and support vector machine models (Sun et al. 2015; Guo et al. 2019; Li et al. 2019; Yang et al. 2021). Machine learning techniques have also been applied to longterm passenger flow estimates (Toqué et al. 2017) and to ridership predictions of new stations and lines (Gong et al. 2020; Wang et al. 2022a, b).
Complex network theory (CNT) has been used for the analysis of traveler flows, including passenger flows in public transportation systems (Zhang et al. 2022). Since there exist correlations between topological properties and human activities, CNT can be effectively used for that purpose (Leung et al. 2011). Indeed, network properties can be useful passenger flow predictors, and networkbased models can provide fast and efficient decision models for that purpose (Luo et al. 2020). In this context, complex network characteristics of road networks were recognized by the literature as determinants of traffic flow: their degree of association depends on network structure (Zhao and Zhao 2016), topological and angular distancebased centralities seem to be more appropriate for predictions than metric distancebased ones (Omer and Jiang 2015), and multiple centralities can demonstrate better performance than singlevariable ones (Pun et al. 2019). Betweenness is the most frequently used centrality for traffic flow predictions, but most researchers agree that it is not sufficient in its conventional form (Kazerani and Winter 2009b; Leung et al. 2011; Gao et al. 2013; Ye et al. 2016). As such, several modifications of betweenness centrality have been proposed (Kazerani and Winter 2009a; Galafassi and Bazzan 2013; Puzis et al. 2013; Henry et al. 2019; Zhang and Chen 2020; Cogoni et al. 2023). Additional centralities used as traffic flow predictors include closeness (Jayasinghe and Sano 2017), degree, PageRank (Zhao et al. 2017), and stress (Lowry 2014). Similarly, conventional or modified betweenness is the most common centrality used as a flow predictor in the cases of cycling (Cooper 2017; Chan and Cooper 2019; Hochmair et al. 2019) and pedestrian flows (Agryzkov et al. 2019; Cooper et al. 2021; Sevtsuk 2021).
In public transportation, the association between network properties and passenger flows has been investigated, along with the possibility of using the former as efficient passenger flow predictors. Jayasinghe and Munshi (2014) used closeness, straightness, and betweenness centralities and developed linear regression models to estimate boardings and alightings at public transport stops. Senousi et al. (2022) explored the association between conventional and modified centralities with passenger flows in public transport networks, concluding that centralities can be used as passenger flow predictors only when specific network representations are concerned. Wang et al. (2022a, b) explored factors affecting bus ridership considering spatial autocorrelation and found that betweenness centralities within bus and road networks can be significant determinants of bus ridership on specific days and timeslots. Dai et al. (2022) used degree, betweenness, and closeness centralities to investigate the spatial relationship between bus line and temporal bus flow networks and found some timedependent differences among them. Liu et al. (2022) used machine learning models to explore the transfer ridership between bus and metro, with network density and closeness centrality being the most influential factors. When it comes to metro systems, He et al. (2019) suggested that network properties such as degree and betweenness centralities are associated with ridership at metro stations. Luo et al. (2020) showed that both infrastructure and service levelbased network centralities can be exclusively used to estimate passenger flows in public transport systems. In this direction, Kopsidas et al. (2023) identified passenger flow predictors not only among the centralities within the network of metro infrastructures but also in their substitute network, which is the network of alternative public transport options that connect metro stations.
Although CNTbased models can incorporate nontrivial and dynamic properties of transportation networks and thus bring crucial information to light (Zhang et al. 2022), their usage for predictions is still limited. Their accuracy, albeit increasing, is still questionable, and the most efficient predictors are yet to be found. This is because the number of measures that can be used is vast since there are endless capabilities in metro network specifications. Physical, traffic, or service networks can be formed with stations, lines, intersections, etc. as nodes, any form of possible interaction like direct or indirect connections as edges, attributes such as passenger flows and travel times as weights, as well as different network representations (Lspace, Pspace, etc.) (Lin and Ban 2013). At the same time, although CNT measures have been incorporated into predictive models, they are still complementary elements. Only recently has the potential of exclusively networkbased models been investigated.
In this direction, this study aims to further explore CNTbased predictors of passenger flows in metro systems, with focus on fast and reliable estimations in cases of metro disruptions. For this purpose, econometric and machine learning models are developed to associate network centralities with passenger flows at metro stations. Both the options of total flows and origin–destination (OD) flows are investigated since the information extracted from each case is uniquely valuable for disruption management. OD flows account for passenger departures and arrivals from/to metro stations and are mostly related to platform disruptions. Total flows are the sum of OD flows plus passthroughs, i.e., passengers who pass through a metro station without alighting, and are mostly related to rail track disruptions. Indeed, disruptions of the rail track infrastructure near a metro station would affect all passengers at that station, who would either board, alight, or pass through. On the other hand, disruptions of the station platform would affect only the passengers who were willing to board or alight the metro system, but not the ones passing through the station. On this occasion, the disruption could be bypassed by utilizing the closest metro station, but on the occasion of rail track disruptions, it would lead to network segmentation.
The contribution of this work is that it extends the concept of extracting passenger flow predictors from network characteristics by making a clear distinction between total passenger flows and OD flows. To the authors’ knowledge, although the association of the former with metro and substitute network centralities was already explored by Kopsidas et al. (2023), it is the first time that metro/substitute networkbased predictors of the latter are explored in this paper. The structure of this paper is as follows: the methodology is given in the next section. The results emerging from the application of the methodology to a realworld metro network (the one in Athens, Greece) are subsequently presented, followed by a discussion on them. Last, the conclusions of the study are offered in the final section.
Methodology
Overview
The factors associated with passenger flows are selected among network centralities within the metro and substitute networks. The graph of the metro network G is an unweighted, directed, Lspace representation of the metro infrastructure, with stations as nodes and connections between any two consecutive stations of the same line as edges. The graph of the substitute network G_{s}, as defined by Kopsidas and Kepaptsoglou (2022), is a weighted, directed Pspace representation of the alternative options (usually bus routes) connecting any two metro stations outside the metro system. The nodes of the substitute network also correspond to stations, while the edges are alternative public transport travel options between them, weighted by their performance in terms of time. Alternative option performance is estimated as the reciprocal of the difference between the trip duration of the best alternative option and the duration needed for the same trip within the metro system. The idea behind exploring the correlation between centralities within the substitute network and passenger flows is based on the assumption of a twoway causality vector: (i) more passengers can reach a metro station to make a transfer between bus and metro when more efficient alternative bus services reach this station; (ii) more alternative services departing from a metro station can be an incentive for passengers to use the metro as a first mode for reaching their destination. On both occasions, passenger flows at metro stations are expected to increase.
Centrality measures
The centrality measures used in this study are unweighted degree, closeness, and betweenness, as well as weighted degree (also called strength) and weighted betweenness. The degree of a node \(i\) in unweighted graphs measures the number of edges that \(i\) belongs to, and it is calculated by Eq. (1):
where \(e_{ij}\) denotes the edge formed by the nodes \(i\) and \(j\), and \(n\) is the total number of nodes in the network. As degree is highly influenced by the size of the network, it is usually normalized by dividing by n − 1. In directed graphs, node degree is also equal to the sum of node indegree and outdegree. In weighted graphs, weighted degree or strength is calculated as the sum of the weights of the edges \(i\) belongs to, and it is given by Eq. (2):
where \(w_{ij}\) denotes the weight of an edge \(e_{ij}\).
Closeness centrality indicates the proximity of a node to all the other nodes of a network, and it is calculated by Eq. (3):
where \(d_{ij}\) is the distance from any other node \(j\) to node \(i\).
In addition, betweenness centrality expresses the proportion of the total shortest paths of the network that pass through a node \(i\), and it is given by Eq. (4):
where \(\sigma_{st}\) is the number of shortest paths between any nodes \(s\) and \(t\), and \(\sigma_{st}^{i}\) is the number of the shortest paths passing through node \(i\). In weighted graphs, the calculation of shortest paths takes into account the weight and not the number of network edges.
Models
Two linear regression models are developed to explore the potential of network centralities as predictors of total passenger flows and OD flows, respectively. It is noted that in both cases, the share of each station in the total flows is considered, not the respective absolute values. That is, the passenger flows of a station are divided by the sum of the respective flows of all stations. This way, the proposed methodology can be applied to metro systems with different exogenous ridership determinants (e.g., population) by multiplying the estimated shares with the total passenger flows of each system. Henceforth, passenger flows will correspond to the share of a station with respect to total passenger flows.
The dependent variable of the first model is total passenger flows (TPF), that is, the sum of inflows and outflows of a metro station. All boardings, alightings, and passthroughs are incorporated into this measure. The degree, betweenness and closeness of the nodes in the metro network are used as independent variables, along with the strength of the nodes in the substitute network and a dummy variable \(I\) of station importance.
The model specification is presented in Eq. (5):
where \(TPF_{i}\) is the total passenger flows of station \(i\), \(C_{i}^{D}\), \(C_{i}^{B}\), and \(C_{i}^{C}\) are the degree, betweenness, and closeness centralities, respectively, of station \(i\) within the metro network, \(S_{i}\) is the strength of the same station within the substitute network, \(I_{i}\) denotes station importance, \(\varepsilon_{i}\) is the error of the estimation \(i\), \(\beta_{0}\) is the intercept of the model, and \(\beta_{1  5}\) are the coefficients of the independent variables.
When it comes to the OD flow model, the sum of only boardings and alightings constitutes the model’s dependent variable (ODF). Node strength and weighted betweenness centrality within the substitute network, along with the dummy variable of importance, are used as covariates. The specification of the second model is presented in Eq. (6):
where \(ODF_{i}\) is the OD flows of station \(i\), \(S_{i}\) and \(C_{i}^{WB}\) denote the strength and weighted betweenness centrality, respectively, of station \(i\) within the substitute network, \(I_{i}\) represents the station’s importance, \(\beta_{0  3}^{\prime}\) are the intercept and covariate coefficients of the second model, and \(\varepsilon_{i}^{\prime}\) is the estimation error.
It is noted that a different variation of the substitute network is used for calculating node weighted betweenness centrality because, when calculating shortest paths, the higher the weight of an edge, the longer the path. As such, options of higher performance would be misleadingly related to longer paths. For this reason, the edge weights within the substitute network denote travel times (or inverse route performance) for the calculation of weighted betweenness. However, the conventional definition is used for the calculation of node strength.
Finally, on top of regression models, the same independent variables are fed to a machine learning model based on the Extreme Gradient Boosting algorithm (XGBoost) to investigate possible nonlinearities and evaluate the relative performance of the linear models.
Evaluation metrics
The accuracy of the models is evaluated through appropriate statistical metrics, including mean absolute error (MAE), mean absolute percentage error (MAPE), root mean square error (RMSE), and normalized root mean square error (NRMSE). The models are developed in training sets, consisting of 75% of the initial datasets. The evaluation process takes place in test sets comprising 25% of the total data. The metrics are analytically given in Eqs. (7–10).
where \(y_{i}\) denotes the observed passenger flows at station \(i\), \(\widehat{{y_{i} }}\) the predicted flows, and \(\overline{y}\) the average of the observed values.
Results
Application

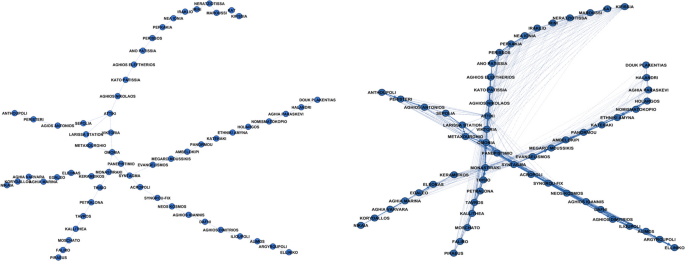

To test the applicability and performance of the abovedescribed methodology, the Athens, Greece, metro system is used as a testbed. The Athens metro system (Fig. 1) consists of three lines that intersect at key transfer stations such as Syntagma, Omonia, Monastiraki, and Attiki, enabling easy transfers between them. At the time of the analysis, the network consisted of 60 operational stations, serving thousands of daily commuters and tourists, and offering access to archaeological sites, universities, and commercial areas. Stations like Syntagma and Monastiraki, located at the heart of the city and near major attractions such as the Acropolis, experience increased passenger activity. In general, the metro system serves as a backbone for the city's public transportation network since it is integrated with other public transport modes (e.g., buses, tram), and its stations often serve as transit hubs, promoting easy transfers between different modes of transportation. Furthermore, the system is operational from early morning until late evening with headways of about 5–10 min, while higher frequencies reaching one train per 3 min are encountered during peak hours.

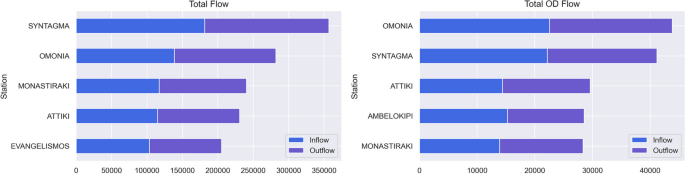

Fare collection data are used for the estimation of total daily passenger flows and OD flows, while travel times between stations are extracted from Google Maps. The data on passenger flows and the performance of the alternative (substitute) public transport options correspond to a working day, representative of the system’s activity. The graph of the Athens metro network G, consisting of 60 nodes and 122 edges, and the graph of the substitute network G_{s}, consisting of 60 nodes and 649 edges, are presented in Fig. 2. Moreover, trip data for the Athens metro system are presented in Table 1 and Fig. 3. In Table 1, both interline and intraline daily ridership is reported, while Fig. 3 illustrates the five stations with the largest total passenger flows and OD flows.
Total flow model
The first linear regression model, presented in Table 2, explores the association between total passenger flows and different centrality measures within both networks. A positive correlation between all independent variables and total passenger flows is observed, while the level of statistical significance of the covariates is at least 0.05 (also 0.01 in most cases). In addition, the standardized coefficients suggest that betweenness centrality in the metro network and strength in the substitute network are the most influential predictors of total passenger flows. According to the model, stations of higher degree, betweenness and closeness in the network of metro infrastructure, higher strength in the substitute network, as well as important stations, are expected to carry more passengers in terms of boardings, alightings, and passthroughs. For instance, important stations are related to a share of total passenger flows that is 0.4% higher than that of regular stations. It is noted that a station is considered important, and the dummy variable takes the value of 1 when at least one of the following conditions is fulfilled (0 in any other case):

i.
The station is a transfer station between the metro and other rail networks (tram, suburban rail, etc.).

ii.
The station is in large commercial areas.

iii.
The station is located near academic institutions.
When it comes to model fit, R^{2} is equal to 0.911, indicating that a large amount of total variance is explained by the model. As for the linear model assumptions, first, there is no evidence of strong multicollinearity since variable inflation factors (VIF) are relatively low and Pearson correlation coefficients do not exceed 0.80 (Fig. 4). Moreover, the DurbinWatson statistic (1.912) indicates that there is no strong evidence of autocorrelation (a value near 2 indicates no autocorrelation). Furthermore, the BreuschPagan test suggests that there is no strong evidence of heteroscedasticity (pvalue = 0.06 > 0.05). Last, the Shapiro–Wilk test (more appropriate for small samples) shows that the errors are normally distributed (pvalue = 0.948 > 0.05). Therefore, a linear model is indeed appropriate for the association of total passenger flows with centrality measures within the metro and substitute networks as predictors.

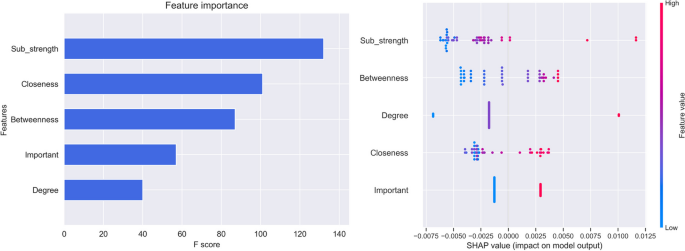

In addition, an XGBoost machine learning model is also developed and fed with the same explanatory variables, so that valuable comparisons can be made about feature importance and model accuracy. Treebased models, such as XGBoost, are accepted as stateoftheart for analyzing tabular data, yielding sound predictions with low computational cost (Grinsztajn et al. 2022). As such, the XGBoost algorithm can be utilized as a benchmark model based on which the performance of the regression model is assessed. The model’s hyperparameters are set after a Grid search kfold cross validation hyperparameter tuning (k = 5) as follows: “colsample_bytree” = 0.2, “eta” = 0.0005, “max_depth” = 1, “n_estimators” = 1100, and “subsample” = 0.05. Fscores, and SHAP values (SHapley Additive exPlanations) are used to evaluate the feature importance in the XGBoost model, as depicted in Fig. 5. These values are widely used for measuring feature importance. Technically, the former count how many times a variable is used for splitting a decision tree (Chen et al. 2019), and the latter indicate the impact of the features on individual predictions (Spadon et al. 2019). Model Fscores suggest that node strength in the substitute network is the most important feature in this model, followed by closeness and betweenness in the metro network, while SHAP values suggest that node strength in the substitute network and betweenness in the metro network are the most influential factors. These findings are rather like those of the linear model since metro betweenness and substitute strength are validated as two of the most critical model components.
The evaluation metrics of the models are presented in Table 3. According to them, both models demonstrate very satisfying levels of accuracy, and therefore, they can also be used to make predictions of total passenger flows at stations. The accuracy of the linear model, albeit lower, is comparable to XGBoost’s, providing evidence that the linear models are appropriate for the purpose of this study.
OD flow model

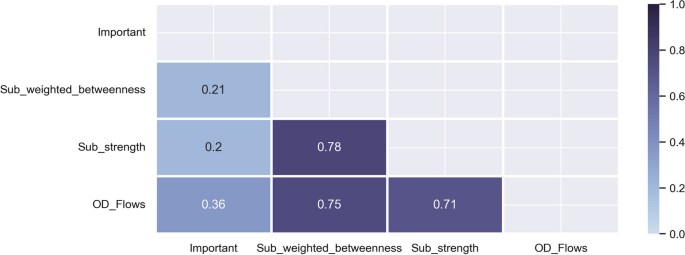

The second model explores the association between OD passenger flows and centrality measures within both metro and substitute networks. In this case, only departures and arrivals from/to metro stations are concerned, i.e., boardings and alightings. The model is presented in Table 4. All the explanatory variables are again positively correlated with the dependent variable. This means that stations with higher centrality measures are expected to be the origin or destination for more passengers than stations with lower centralities. Interestingly, only centralities within the substitute network can be significant determinants of OD flows (considering at least a 0.05 level of statistical significance), along with the dummy variable of station importance, per Table 4. On the contrary, centralities within the metro network cannot stand as significant covariates, highlighting the different underlying mechanisms of this kind of passenger flows. As for feature importance, the standardized beta coefficients suggest that weighted betweenness in the substitute network is by far the most influential determinant of OD flows, followed by strength in the same network.
The fit of this model is quite lower than the previous model’s (R^{2} = 0.645), indicating that there are additional factors, other than centrality measures, that significantly contribute to OD flow generation. The assumptions of the linear model can be validated as follows: Low VIF values and acceptable Pearson correlation coefficients (Fig. 6) validate the absence of strong multicollinearity. The DurbinWatson statistic (1.884) lies in an acceptable range (between 1.5 and 2.5 as a rule of thumb). There is no statistically significant evidence of heteroscedasticity based on the BreuschPagan test (pvalue = 0.107 > 0.05). Last, the errors are normally distributed according to the Shapiro–Wilk test (pvalue = 0.117 > 0.05). It can thus be inferred that a linear model associating network centralities with OD passenger flows can be valid, but its performance in terms of the amount of total variance explained is relatively low due to the existence of other significant determinants (probably nonnetworkbased) omitted by the model.
The corresponding XGBoost model’s hyperparameters are: “colsample_bytree” = 0.2, “eta” = 0.0005, “max_depth” = 1, “n_estimators” = 150, and “subsample” = 0.095. Fscores and SHAP values are again used to evaluate feature importance (Fig. 7). Both Fscores and SHAP values suggest that the weighted betweenness centrality of the stations in the substitute network is the most important feature, followed by strength and station importance. The results are similar to those of the regression, and therefore, there is evidence that centrality measures within the substitute network are significant explanatory variables of OD passenger flows.
Finally, the evaluation metrics for the OD flow models are presented in Table 5; both the linear and XGBoost models demonstrate decent accuracy but are not as satisfying as the ones of the total flow model. The XGBoost seems to provide more accurate predictions, but the linear model’s accuracy is not far from it. Both models can thus be used to associate centralities within the substitute network with OD flows, but it would not be safe to use those models for predictions.
Discussion
The models developed for associating passenger flows with the centralities within the metro network (network of infrastructure) and the substitute network (alternative public transport options) validate the existence of high correlations among those measures and highlight the potential of networkbased predictive models, as first suggested by Luo et al. (2020). Although causation is not implied, the existence of correlation can be valuable regarding fast, costefficient, and reliable predictions during the operation of a metro system. In particular, measures such as node degree, betweenness and closeness within the metro network, and node strength in the substitute network can be appropriate predictors of total passenger flows at stations (all boardings, alightings, and passthroughs). Moreover, node centralities within the substitute network, such as strength and weighted betweenness, can be used as predictors of origin–destination passenger flows (only boardings and alightings). Interestingly, node centralities within the metro network do not seem to be adequate predictors of OD flows. This finding is in line with the literature suggesting that conventional centralities, such as betweenness, are not appropriate predictors of traffic flows (Kazerani and Winter 2009a, b; Gao et al. 2013; Ye et al. 2016). As such, further complex network formulations need to be considered when searching for centralities that can be used as OD flow predictors.
However, the results emerging from model application suggest that the case is not the same for both types of passenger flows when it comes to model performance. The variance of total passenger flows among metro stations can be explained to a great extent by centralities within metro and substitute networks. At the same time, the evaluation metrics for model predictive accuracy are rather satisfying and thus indicate that networkbased models can be used for predictions of total passenger flows. On the other hand, the amount of variance of OD flows explained by the proposed centralitybased model is significantly less, and the evaluation metrics are not good enough to support a satisfying predictive accuracy. Evidently, there are additional significant factors that affect the distribution of OD flows rather than network structure. Demographic characteristics, such as place of residence, work area, place of education, etc. are essential factors affecting travelers’ origin and destination at a microlevel, as well as population and building density, land use, etc. affect total departures and arrivals from/to metro stations at a macrolevel. For instance, He et al. (2019) suggested that, except for network structure, land use, socioeconomics, and intermodal transport accessibility are also significant determinants of metro ridership. As such, centrality measures cannot be solely used for OD flow predictions at this point, but they must be combined with other appropriate socioeconomic variables instead.
But what are the most appropriate centralities to begin with? The findings of this study suggest that node strength and weighted betweenness centrality within the substitute network can be the most appropriate predictors of OD flows among centralities within the metro and substitute networks. In fact, the network of alternative public transport options, such as bus routes, can provide valuable insight about the volumes of departures and arrivals at metro stations due to a reverse engineering association. Since bus route design, in terms of frequency, capacity, and coverage, has already incorporated determinants of travel demand, the substitute network, which accounts for alternative route performance, succeeds in capturing information about metro OD flows related to the same socioeconomic determinants. This finding is in line with the literature, highlighting the superiority of modified centrality measures over conventional ones (Ye et al. 2016; Senousi et al. 2022). The same is also supported by the fact that it is weighted and not conventional betweenness, which is significantly correlated with OD flows.
On the contrary, the findings suggest that total passenger flows can be effectively described by centralities within metro and substitute networks. This measure is different because it also includes passthroughs among metro stations. For a better comprehension of why these are highly correlated with network structure, one can imagine total passenger flows in a metro network as the equivalent of liquids in a system of tubes. It is reasonable that those flows are influenced by the exact structure of the network itself, just as the flows of liquids are influenced by the structure of tubes. Hence, the strong association between centrality measures within the metro network and total passenger flows can be justified in the same way. As for the node strength within the substitute network, not only is it related to total passenger flows, but it is also the most important predictor among the centralities. A similar reverseengineering justification, like for OD flows, can be proposed to explain this association.
In this study, more complex machine learning models (XGBoost) are also developed along with regression models to evaluate the relative performance of the latter through a constructive comparison. The results suggest that both models can be used for this reason as well as for making predictions when appropriate. Although the accuracy of the XGBoost models is higher, the difference is not big enough to exclude statistical models, which may be more appropriate for small datasets and more convenient for researchers. In fact, when small datasets are concerned, more complex machine learning models cannot unfold their full potential, and thus, statistical models can be equally reliable. However, the proposed methodology can also be scalable through more complex machine learning techniques.
Total passenger flows and OD flows are treated separately in this study. According to the results, different explanatory variables are significant for each type, and different model fits are encountered. This suggests that there are different mechanisms behind the birth of each flow type. From a disruption management perspective, there are also distinct implications attached to each flow type. On the one hand, rail track disruptions at/near metro stations would create network segmentation. That is, both the upstream and downstream passenger flows would be entirely disrupted and each of the new segments could not be reached by the other. Practically, a trip would be violently terminated at the point of disruption. Evidently, all metro passengers at the disrupted station would be affected by this situation since they could not board, alight, or pass through that station. On the other hand, station platform disruptions would affect only the exact station, that is, only a node of the network, but the rest of the network would remain unharmed. On such occasions, only passengers who would be willing to board or alight at this station would be affected. The passengers passing through the station would continue their trip freely since the rail would operate normally. Total passenger flows would be affected in the first case, but only OD passenger flows would be affected in the second case. As such, the determinants of each flow type must be researched separately so that predictions can be customized depending on the needs of the operator.
The policy implications of this study mainly focus on ridership estimations in cases of disruption. Through network theory, valuable information about metro system operation can be effectively captured. CNTbased models can be much faster and more economical for making reliable ridership estimations. Public transport operators are expected to be supported by such models during daily operations management, especially when disruptions occur. In cases of disruptions, ridership estimates are essential for assessing the potential impacts of them, as well as for designing, sizing, and budgeting mitigation and contingency plans. For instance, platform disruptions at metro stations could be addressed by enhancing the capacity of bus networks serving the nearest operational stations, or rail track disruptions could be faced by busbridging services connecting the segmented parts of the metro network. The different possibilities for handling disruptions highlight the importance of treating different flow types separately.
As far as study limitations are concerned, the passenger flows considered in the analysis are daily, representative of a workday. Their static nature constitutes a limitation of this work since timedependent dynamic data on passenger flows would further enhance the analysis and be expected to provide more valuable insights. The size of the available dataset is also a limitation, since larger datasets (corresponding to longer time periods) would provide safer conclusions. Last, daily data are appropriate for mediumterm estimations, for example, when disruptions of 1–3 days are concerned. Narrowing down the temporal horizon to smaller timeslots would increase the applicability of the method, including shortterm estimations as well.
Conclusions
In this study, network theorybased determinants of metro ridership are explored among centralities within the network of infrastructure (metro network) and the network of alternative public transport options (substitute network). For this purpose, both linear regression and nonparametric machine learning models are developed. Regarding metro ridership, total passenger flows and origin–destination flows are treated separately since they exhibit distinct characteristics and have different implications. According to modeling results, a centralitybased model can be rather accurate for total passenger flow prediction, but for OD flows, the accuracy is limited. Node degree, betweenness and closeness centralities within the metro network, node strength within the substitute network, as well as a dummy variable of station importance, are significant explanatory variables of total passenger flows. On the other hand, node strength and weighted betweenness centrality within the substitute network, along with station importance, are significant covariates regarding the OD flow models. Metrics of feature importance indicate that node strength and weighted betweenness centralities in the substitute network are the most influential predictors of total and OD passenger flows, respectively. Furthermore, according to the evaluation metrics, the performance of regression models can be like the XGBoost models for passenger flow estimation in metro systems. The fact that only centralities within the substitute network are significant OD flow predictors highlights the importance of utilizing the concept of the substitute network in similar modeling efforts. In addition, the fact that different variables are found to be significant for each passenger flow type indicates different patterns and validates the need for separate handling. The findings of this study can facilitate public transport operators when fast, costefficient, and reliable ridership estimations in metro systems are needed, especially in cases of disruptions. The proposed methodology is optimized for ridership estimations regarding both rail track and platform disruptions. For future research, the association between public transport ridership and additional network theory measures should be explored to discover the most appropriate networkbased ridership predictors. Networkbased predictive models are still at an early stage, and thus, further research in the field is necessary. Dynamic travel demand data, as well as data from different metro systems, should also be utilized for the calibration and enhancement of the proposed methodology.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Abbreviations
 CNT:

Complex network theory
 OD:

Origin–destination
 TPF:

Total passenger flows
 ODF:

Origin–destination passenger flows
 XGBoost:

Extreme Gradient Boosting
 MAE:

Mean absolute error
 MAPE:

Mean absolute percentage error
 RMSE:

Root mean square error
 NRMSE:

Normalized root mean square error
 VIF:

Variable inflation factors
 SHAP:

SHapley Additive exPlanations
