Towards modeling and analysis of longitudinal social networks
Applied Network Science volume 9, Article number: 52 (2024)
Abstract
There are various methods for handling longitudinal data in graphs and social networks, all of which have an impact on the algorithms used in data analysis. This article provides an overview of limitations, potential solutions, and unanswered questions regarding different temporal data schemas in social networks that are comparable to existing techniques. Restricting algorithms to a specific time point or layer has no effect on the results. However, when applying these approaches to a network with multiple time points, adjusted algorithms or reinterpretation becomes necessary. Therefore, using a generic definition of temporal networks as one graph, we aim to explore how we could analyze longitudinal social networks with centrality measures. Additionally, we introduce two new measures, “importance” and “change”, to identify nodes with specific behaviors. We provide case studies featuring three different realworld networks exhibiting both limitations and benefits of the novel approach. Furthermore, we present techniques to estimate variations in importance and degree centrality over time.
Introduction
Network analysis provides a powerful framework to study interrelated data, for example social networks. However, there are several dimensions which do not naturally fit into network structures and can only hardly be represented. This includes spatial information, but also in particular temporal aspects. Thus, studying temporal or longitudinal networks lead to the development of additional visualization and analysis methods. The easiest approach is working with snapshots, but going ‘beyond the snapshot’ (Ryan and D’Angelo 2018) was early identified as research problem. Proposing a generic approach which fits into the multitude of different domains working with network approaches and the diverse set of applications is a gap in research which we will focus on.
This paper builds upon a generic framework for analyzing centrality measures in longitudinal social networks introduced in Dörpinghaus et al. (2023). The framework, including visual analysis tools, which was proposed there is the basis for our research. Here, we will extend and evaluate it in terms of its suitability for longitudinal network analysis. To this end, we add novel analysis and compare groups of actors, provide improved bounds for specific use cases of social networks, and present three complex example use cases on realworld data. Additionally, we present experimental results on random graphs. As a further argument in favor of our approach, we present mathematical bounds for centrality measures. The most important addition to our previous paper is, however, the introduction of two additional measures: importance and change.
Background
Social network analysis (SNA) is an important part of the social sciences and has been used in both theory and practice for several decades. It is important to understand social interactions and networks and how they affect society. In the last few years, there has been a growing interest in the use of social networks in the historical sciences. In religious studies, especially narrative studies and theology, social networks have recently received considerable attention.
Scholars have always seen SNA as part of the humanities, and in recent years there has been a rapid increase in the use of methods from the digital humanities, which includes the humanities and computer science. Most works indicate that the data and source problems are one of the greatest hurdles to establish a network (Leidwanger et al. 2014). Although some preliminary work on how missing data influences a network has been carried out (Valeriola 2021), there are still several open questions regarding the stability of social networks with respect to missing and additional data. The main question is: Can we still use the same algorithms, if we know that the data are incomplete? The need to work with temporal data makes an answer to this question even more urgent.
Research questions
The primary objective of this paper is to investigate the potential for extending the methods introduced in Dörpinghaus et al. (2023) to model longitudinal social networks. To this end, we will address the following subresearch questions: (a) How can we analyze and compare groups of actors? (b) How can we approximate the change of centrality measures over time using more specific properties of social networks? (c) How can we apply these methods to realworld data including visual analysis?
Outline
This paper is divided into five sections. After this introduction, we give an overview of related work and the background of this research. Here, one focus is on historical network analysis (HNA), because it helps to highlight the challenges and is the natural habitat for longitudinal networks.
Our methodological approach is described in the “Method” section, where we discuss the modeling of longitudinal social networks, and their analysis. In the “Experimental results” section we describe the data to carry out our experiments. The “Discussion and outlook” section is dedicated to the experimental results. Our conclusions are presented in the final section.
Related work
Modeling temporal or longitudinal data in SNA is a wellknown problem (Holme and Saramäki 2019). Temporal data lead to complex network structures and Lemercier stated in 2015: “There is no one best way for the analysis or even description of such multidimensional data” (Lemercier 2015). There are several modeling challenges, for example with synchronous and asynchronous events or relations, see (Lehmann 2019).
Several methods, usually introducing a novel graph structure, have been proposed, for example, modeling with

Markov chains (Peixoto and Rosvall 2019; Scholtes et al. 2014),

with network snapshots (Xu et al. 2013), or with a discrete set of time points that may contain snapshots.
Most of these approaches are equivalent (Holme and Saramäki 2012; Dörpinghaus et al. 2023). However, a single graphtheoretic definition covering all these approaches was only introduced in Dörpinghaus et al. (2023), although only tested on random graphs. Consequently, whereas other methodologies necessitate the introduction of novel graph structures or even the conversion of a ‘traditional’ social network or knowledge graph into an alternative graph, a generic solution merely incorporates the requisite data into the network. This represents a gap in the existing research that requires further investigation.
Longitudinal studies represent a central objective in both network science and sociology. In sociology, authors have developed mixed methods approaches to account for the integration of thick qualitative insights with quantitative network analysis. These approaches have been applied by Lazega and Snijders (2015), Lazega (2017), Lazega (2016) and Bellotti (2014). However, these approaches lack generality. For instance, in EspinosaRada et al. (2024), the authors defined micro–macro linkage as another method. Consequently, these approaches do not contribute to a generic approach; rather, they describe specific additional methods that must be integrated into a generic approach.
Scientists are not only careful about how to model temporal networks, but also how to analyze them: “Traditional analyses of temporal networks have addressed mostly pairwise interactions, where links describe dyadic connections among individuals” Cencetti et al. (2021). Concetti et al. thus introduced “temporal hypergraphs” to address this challenge. Other researchers proposed visual analysis (Yi et al. 2010), pattern search (Franzke et al. 2018), or probabilistic discrete temporal models (Hanneke et al. 2010). As previously stated, it is evident that these methodologies do not possess the capacity for generalization; rather, they are typically contingent upon the specific structural characteristics of the graphs in question.
Centrality measures, widely used in SNA, are also challenging in temporal networks. Some researchers have proposed definitions of temporal closeness, betweenness, and eigenvector centrality, see (Pan and Saramäki 2011; Taylor et al. 2017; Sizemore and Bassett 2018). However, these definitions remain limited to the underlying graph topology, e.g. Sizemore and Bassett (2018) work with a contact sequence where nodes remain static; (Naima et al. 2023) propose temporal walks. In addition, the natural extension of centrality to groups and classes (Everett and Borgatti 1999; Rasti and Vogiatzis 2022) is usually omitted. Other authors propose MLI based on network embedding and machine learning (ML) (Yu et al. 2020). In general, ML approaches are widely used in dynamic networks, not only in temporal networks, see (Cinaglia and Cannataro 2022). However, these approaches – although providing significant insights on the networks – are usually not comparable to the results of centrality measures, which makes them difficult to reproduce. Thus, directly related to a generic definition of temporal networks is a second gap: How can algorithms track and use this temporal data, and how does this affect the analysis of networks, e.g., with centrality measures? In this paper, we will try to bridge this gap with the approaches introduced in Dörpinghaus et al. (2023) and apply them to realworld networks.
These issues may be due to the fact that several aspects of knowledge graphs and the semantic web are not widely perceived in the SNA community. They have only recently been brought together (Dörpinghaus et al. 2022). Barats et al. conclude in 2020: FAIR data, a topic directly related to knowledge graphs, “remains a theoretical discussion rather than a shared practice in the field of humanities and social sciences.” Barats et al. (2020) As has been demonstrated previously, social networks and knowledge graphs share not only a common data structure – both are graphs – but knowledge graphs can also be regarded as a generalization of social networks. Categories for nodes and edges can be modeled as (RDF) classes (Dörpinghaus et al. 2022). Consequently, our objective is to address the research questions using knowledge graphs, with the aim of establishing a connection between the two domains.
Method
We will use a definition of a knowledge graph^{Footnote 1} that combines the approaches of Franzke et al. (2018), Dörpinghaus et al. (2022):
Definition 1
(Temporal social network) A Social Network is a graph \(G=(V,E,\mathcal {T})\) with vertices (nodes) \(v\in V\), edges (relations) \(e\in E\) and a time domain \(\mathcal {T}=\{t_0,...,t_k\}\) where \(t_i \in \mathbb {R}\) and \(\mathcal {T}\) is sorted ascending, which means \(t_i < i_j\) \(\forall i < j\).
Every node and edge may exist at one or multiple intervals of timepoints \([ t_s, t_e ] = \{ x \in \mathcal {T}: t_s \le x \le t_e; t_s, t_e \in \mathcal {T}\}\) denoted by t(v) and t(e). Thus, \(t: V \cup E \rightarrow I \subseteq \mathbb {R}\). We denote the graph G at time t by
so that
Both edges and vertices are part of previously welldefined categories \(C_1,..., C_n\), which means \(V \subseteq C_1 \cup C_2 \cup ... \cup C_n\) and \(E \subseteq R_1 \cup R_2 \cup ... \cup R_m\).
Is is important to notice, that – in contrast to other definitions, e.g. Santoro and Sarpe (2022) – both edges and nodes are temporal. Unless otherwise noted, we assume that G is an undirected graph. We will now present examples of the notation introduced above. It should be noted that the desired properties of this network have not yet been defined. However, we will subsequently examine the impact of very unstable or linkstream style networks.
Each vertex \(v\in V\) has a lifetime t(v). In general, any edge connected to v may only exist for times \(t\in t(v)\). But this rule is not strict. For example, we can define categories for successors \(T_s\) and predecessors \(T_p\), so that these edges can indicate a predecessor of a certain position at any time. To illustrate, a company (denoted as a) may be acquired by another company (denoted as b), which suggests that a can be considered a predecessor of b. Similarly, a historical figure may succeed another in a distinct position. The modeling of these relationships relies on the specific context and research questions.
For these edges we set \(t(e)=\emptyset \), they are ‘timeless’. The necessity of these nodes is evident in specific modeling scenarios, such as the representation of locations. Additionally, the construction of a compatible model with certain other approaches necessitates their inclusion. In addition, v can be part of several categories, e.g., it can be an actor \(v\in C_a\) and a politician \(v\in C_p\). Thus, our approach can combine static and temporal information.
It was shown in Dörpinghaus et al. (2023) that this definition is equivalent to stream graphs. Here, the only difficulties are those edges and vertices that are ‘timeless’. However, extending their interval to \(\mathcal {T}\) models their behaviour in the intended way. It is quite easy to see that both approaches are also equivalent to models using snapshots of time points (Yu et al. 2020). For a detailed overview we refer to Holme and Saramäki (2012).
Thus, Definition 1 is well aligned with other approaches. However, it is also compatible with semantic web approaches and makes it easier to integrate analysis approaches. We will now move on to modelling longitudinal social networks with semantic web technologies.
Modelling longitudinal social networks
The initial definition of a social network in Dörpinghaus et al. (2022) corresponds to the definition of a knowledge graph. In particular, the categories for nodes \(C_1,...,C_n\) and edges \(R_1,...,R_m\) can be modelled using RDF classes. So we need to add time intervals to nodes and edges. To do this, Hobbs and Pan introduced the time ontology, see (Hobbs and Pan 2004; Grüninger 2011). Here they use a function duration: Intervals \(\times \) TemporalUnits to express intervals. We can set duration\((v)=t(v)\) and duration\((e)=t(e)\) for any node \(v\in V\) and edge \(e\in E\).
Thus, any social network according to the knowledge graph definition in Dörpinghaus et al. (2022) can be easily transformed into a temporal social network, where time is modelled as a property of nodes and edges.
Example 1
Consider the graph \(G=(V,E,\mathcal {T})\) in Fig. 1 with \(V=\{v_1,v_2,v_3\}\) and \(E=\{e_1,e_2\}\) and a set of time intervals \(t(v_1)=[1,6]\), \(t(v_2)=[2,4]\), \(t(v_3)=[4,6]\), \(t(e_1)=[3,4]\) and \(t(e_2)=[4,4]\). They also provide a visualisation according to Sizemore and Bassett (2018): We visualise time by plotting a sequence of edges on a time scale. However, we extend the latter approach by adding information about the lifetime of nodes. In this case, each lifetime can be mapped according to the temporal duration.
It is worth noting that the general knowledge graph definition of a social network is open to adding a variety of additional data while maintaining the general graph structure. Thus, it is useful for modelling not only temporal social networks, but also any other temporal data, e.g., disease models.
All graph structures naturally extend to temporal graphs, e.g., the degree d(v) of a node v at timepoint t can be denoted by \(d^t(v)\). See Appendix B for details.
Analysing networks
For a detailed overview of centrality measures, we first follow (Dörpinghaus et al. 2023). We can consider the series of a particular measure, e.g., a generic c (centralitym which could refer, for example, to closeness – cc – or betweenness centrality – bc), which is basically a vector in \(\mathbb {R}^{\mathcal {T}}\):
Recall that \(\mathcal {T}=\{t_1,...,t_{\mathcal {T}}\}\) is the time domain. Note that \(c^{t_i}(v)=\emptyset \) if \(t_i\not \in t(v)\).
Definition 2
(Lifespan) For \(x\in V\) or \(x\in E\) we set
where \(l(t_{i1},t_i)\) defines the length of time elapsed between two times \(t_{i1}\) and \(t_i\) as the lifespan of x.
However, if all times are equally distributed, this simplifies to
This allows us to calculate the average temporal centrality of a node v over its lifetime which is normalized by the lifespan of a node:
Definition 3
(Average temporal centrality) The average temporal centrality of a node v is defined by
In “Experimental results” section we will discuss several working examples and offer an interpretation of these values in light of the current state of research on degree and betweenness centrality.

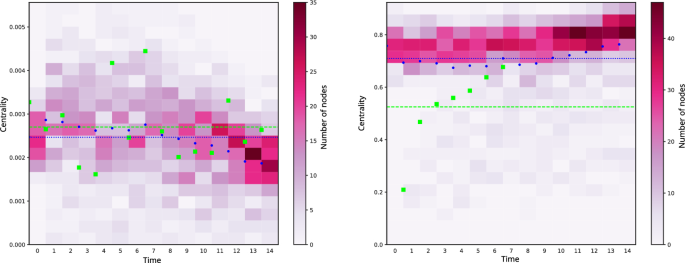

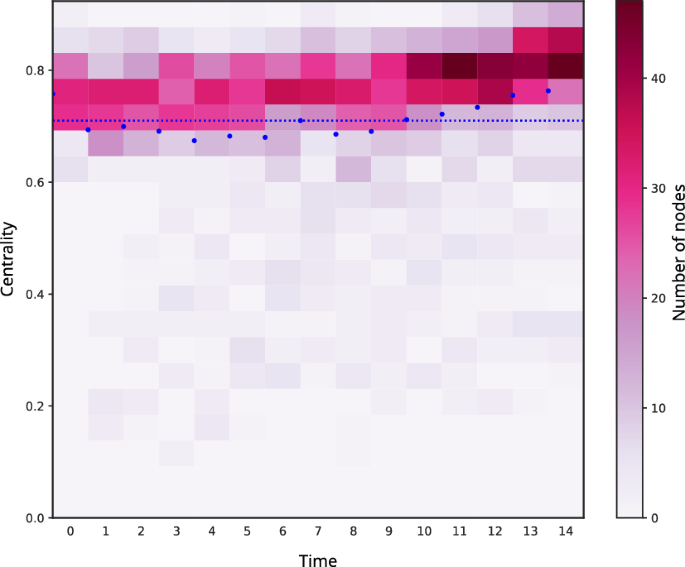

First, we consider how a centrality measure evolves over time. Since we need to plot this for n nodes, we consider a heatmap visualisation that bins the number of nodes in a given interval. Next, we can plot the average centrality measure at a particular time and the average centrality over all time points, as we show in Fig. 2. This and the following two figures are illustrative and based on random graphs; for details, see “Random graphs” section.
This figure gives us a good overview of how many nodes are below and above the average centrality at a given time, and whether the network at a given time is special for the scenario. To analyse and compare a particular node with this overall picture, we can plot \(\widetilde{c}(v)\) and \(\overline{c}(v)\), as we show in Fig. 3.
Some scholars like (Taylor et al. 2017) considered calculating and plotting \(\widetilde{c}(v)\), others added probabilities (Pan and Saramäki 2011). Thus, in addition to the classical approach (e.g. Sizemore and Bassett (2018)), \(\widetilde{c}(v)\) and \(\overline{c}(v)\) allow the study of static centrality measures at a time \(t\in \mathcal {T}\), comparing the individual centrality value of a particular node with the average node degree and the distribution of node degrees. In addition, by plotting the series of centrality over time, we can compare the temporal centrality measures within a given interval or across the entire timeline. While some general measures, such as average temporal centrality, have been studied previously (Holme and Saramäki 2019), their interpretation remains vague. If networks change significantly over time, this value is not comparable.
For large networks, however, we also want to measure the difference between individual actors and the entire network, e.g., which actors have a higher or lower centrality measure. For this we can compute the importance of a node v for a given centrality measure c at a certain time t, which is basically the distance between the centrality value of a node and the average of all nodes:
We can naturally extend this measure over all timepoints to
This allows us to identify those actors in a network that have significantly higher \(importance(v)>0\) or lower \(importance(v)<0\). However, this does not help to identify actors that change over time, because the importance of an actor that starts with a very low importance and gets higher importance over time may sum up to zero. Here we can compute the change of an actor v given a vector \(\hat{\mathcal {T}}=(t\in \mathcal {T}, c^t(v)\ne \emptyset )\) with all lifetimes of v:
With this we can identify those actors that change over time if \(change(v)>0\). We will now continue with some methods that help to evaluate the change of these measures over time.
Approximating the changes over time
Let \(\mathfrak {G}^p=\{G_1,...G_\iota \}\) be a series of graphs and \(p\in \mathbb {R}\) with \(0\le p\le 1\) and
for \(i\in \{1,...,\iota 1\}\). Thus, \(\mathfrak {G}^p\) is a series of graphs with a fixed set of differences and changes from one to the other. We will use this formal framework to make some mathematical observations about the measures introduced above, but also to evaluate networks. Here, we can either use random networks; see Appendix C for several random graph models used in this manuscript. Not only that, but we can also use real networks. In this case, the parameter p is not fixed, but changes individually for each step.
Now we can approximate the changes over time, or the error in the centrality measures that can occur due to these changes. Unless otherwise noted, we will consider \(\mathfrak {G}^p=\{G_1,...G_\iota \}\).
In Dörpinghaus et al. (2023) two bound were introduced for betwenness centrality (bc) and degree centrality (dc):
Theorem 2
Let \(i\in \{1,...\iota 1\}\) so that \(v\in V(G_i)\) and \(v\in V(G_{i+1})\). Then it holds that
For betwenness centrality, they defined
where D(G) is the diameter of G.
Theorem 3
Let \(i\in \{1,...\iota 1\}\) so that \(v\in V(G_i)\) and \(v\in V(G_{i+1})\). Then,
holds.
However, in several social networks, nodes are usually not removed. In citation networks, for example, it is a rare case that publications are retracted. In this case, we set \(V(G_i+1)\subseteq V(G_i)\). With this, we can make bound 2 more sharp:
Theorem 4
Let \(i\in \{1,...\iota 1\}\) so that \(v\in V(G_i)\) and \(v\in V(G_{i+1})\). Then it holds that
Proof
We know that
However, due to the definition of \(\mathfrak {G}^p\), we know that at most \(pV(G_i)\) new connections from v to other nodes can exist in \(G_{i+1}\). In addition, \(d^i(v)\le d^{i+1}(v)\). Thus, in \(G_{i+1}\) it holds that
In addition, we know that for \(G_{i+1}\)
holds. Hence the claim follows. \(\square \)
This allows us to set some bounds for how actors will become more important and change in the future. Here we focus on degree centrality. For the following two lemmas, p does not describe a global change ratio, but the local change ratio to the future time. For Lemma 5 we assume that \(V(G_i+1)\subseteq V(G_i)\), while this restriction is not necessary for the Lemma 6.
Lemma 5
Let \(G=(V,E,\mathcal {T})\) be a social networks with a time domain \(\mathcal {T}=\{t_0,...,t_k\}\). For any additional timepoint \(t_{k+1}\) and a node \(v\in V\) it holds that
here \(importance_{dc}(v)\) denotes the importance in \(\mathcal {T}\) and \(importance^+_{dc}(v)\) for \(\mathcal {T}\cup t_{k+1}\).
Proof
We know by Lemma 4 that
And with this we can find an upper bound for \(importance_c^{t+1}(v)\):
Using this bound for the sum in Formula 4 shows the assumption. \(\square \)
We can show a similar bound for the change of a node in the network:
Lemma 6
Let \(G=(V,E,\mathcal {T})\) be a social networks with a time domain \(\mathcal {T}=\{t_0,...,t_k\}\). For any additional timepoint \(t_{k+1}\) and a node \(v\in V\) it holds that
here \(change_{dc}(v)\) denotes the change in \(\mathcal {T}\) and \(change^+_{dc}(v)\) for \(\mathcal {T}\cup t_{k+1}\).
Proof
We know by the Formula 5 and Lemma 2 that
This shows the assumption. \(\square \)
We will now continue with experimental results on realworld networks and experiments on random graphs showing the results of these bounds.
Experimental results
Before considering random graph scenarios, we will turn to the three realworld networks introduced in “Data” section and begin with Luke’s Gospel.
Data
This section will present the results of three distinct realworld graphs. These networks were selected for their ability to exemplify typical social network use cases while representing the diverse field of applications. The selected networks are comparable to other networks that describe sociopatterns, such as human contact networks. A general overview will be provided in this section, while a more detailed analysis follows.
The first network \(S_1\) is a network of actors in LukeActs (Dörpinghaus 2022; Dörpinghaus and Stenschke 2021). It thus represents both a narrative and a historical network. The exegetical approach best suited to the questions that need to be answered for SNA – and which seeks to examine the social networks represented in biblical literature – is a literary approach and narrative criticism. In this analysis, however, we will focus on the Gospel of Luke and three different time periods: Before Jesus leaves Galilee (up to Lk 9:50, 17 nodes, 37 edges), before Jesus arrives in Jerusalem (Lk 19:27, 57 nodes, 287 edges), and the entire Gospel (57 nodes, 367 edges). Thus, it will provide a narrative evaluation in a simple network at the points where the narrative changes. The density of the whole network is \(d(S_1)\approx 0.23\), the diameter is \(\Delta (S_1)=4\), and the average clustering coefficient is \(C(S_1)\approx 0.26\).
The second network \(S_2\) is a dataset on the development of the assemblies of Brethren in Germany between 2012 and 2023 (Dörpinghaus 2023). The history of the assemblies of the Brethren in Germany is constantly being researched, see for example (Riedel and Runkel 2015; Kessler 2022; Schafer 2004). This dataset contains data points for 939 unique congregations (a maximum of 656 nodes per time step), including changes of affiliation (e.g., from closed to open Brethren). It contains information for most years, but also contains some gaps (2013, 2019, 2022). The dataset presents two challenges that are important to our analysis: First, the data is sparse because information is no longer available or was never published. The relationships were computed using proximal point analysis, i.e. based only on geographic information. Second, the movement soon split into several subgroups, e.g., exclusive and open Brethren, and congregations may have changed their affiliation over time, making the data even more complex. It is therefore necessary to provide an analysis of the groups within the networks. The density of the entire network is \(d(S_2)\approx 0.016\), the network is not connected, and the average clustering coefficient is \(C(S_2)\approx 0.63\).
The third network \(S_3\) is a high energy physics phenomenology citation network extracted from the arXiv eprint from January 1993 to April 2003, see (Gehrke et al. 2003; Leskovec et al. 2005). The network contains 34,546 papers and 421,578 citations within the network. While the data includes timestamps, we will analyze the information categorized by year. The density of the whole network is \(d(S_3)\approx 0.0007\), the network is not connected, and the average clustering coefficient is \(C(S_3)\approx 0.28\).
Our work considers very small (\(S_1\)) and very large (\(S_3\)) networks with very different topologies. While the density of \(S_1\) is high, the other networks have a very low density. The average clustering coefficient is very high for \(S_2\); only \(S_1\) is connected.
Luke’s Gospel
Within New Testament research, the relationship between Jesus, the main figure in Luke’s Gospel, and John the Baptist and his disciples remains an open question. See (Brownlee 1955; Chauchot 2021) for further discussion. Figure 4 displays the degree, closeness, and betweenness centrality development of both figures. No surprises are apparent from the figure. Notably, Jesus exhibits a considerably high centrality value in all three measures. John the Baptist, however, shows minimal significance since he is only a peripheral character in the latter half of Luke’s Gospel. Both actors receive aboveaverage ratings.
This does not really help to understand the longitudinal development of actors in Luke’s Gospel. It also remains an open question: Which actors would be interesting to study? For this, we present an overview of the top five and bottom five nodes in terms of importance and change value in Table 1. Here, we focus on degree centrality, although this analysis could be carried out for other centrality measures as well. For such a small network, however, we found out that the results are similar.
The overall importance is expected: Jesus and John the Baptist are key characters, while the disciples of John are merely supporting roles. It is noteworthy that this perspective overvalues characters who are important solely in the initial stages of the narrative. For instance, Elisabeth and Zacharias hold significance in the early parts of the narrative, but lose prominence as the story progresses. Nevertheless, they remain integral to the larger network.
This major disadvantage is crucial for the overall change: If figures such as Maria and Herod appear later, they cannot attain a higher value. Consequently, it is unsurprising that Jesus and John the Baptist possess a greater change value. In the left panel of Fig. 5, we can contrast Elisabeth, who holds a high importance value, and Simon Peter, who, based on New Testament research, is a significant character in Luke’s Gospel and also boasts a high change value. In Fig. 5(left), we compare Zacharias, who has a high importance value, with James, a disciple of Jesus, who has a change value of 0.10. It’s crucial to note that the network topology doesn’t undergo significant changes from timestep 2 to 3. Therefore, marginal actors continue to have high values, and it’s difficult but not impossible to identify the actors pushing the narrative.
Including more timepoints could have enhanced the results, as we will demonstrate in our next analysis. Thus, to conduct longitudinal analysis, it is essential to account for breaks in the narrative. While this study confirms alignment with New Testament research, there are no significant findings and they are difficult to interpret.

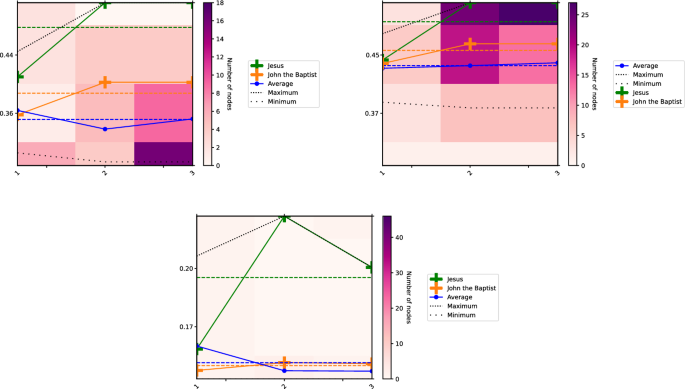

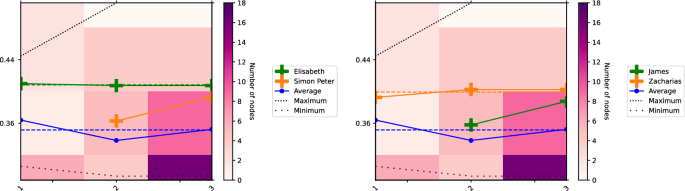

Figures 4 and 5 illustrate that the importance of nodes increases over time. This is due to the fact that more nodes have been observed by the end of the time interval. Consequently, it can be concluded that the notions presented in these plots are heavily biased in time. This is a common issue when dealing with temporal networks. However, these plots clearly demonstrate these biases by plotting the maximum, minimum, and average measures over time.
The assemblies of Brethren in Germany
The development of Brethren assemblies in Germany began in 1849, originating from Ireland. For more on this subject, see (Holthaus et al. 2003; Geldbach 2023). The Brethren movement later divided into subgroups, such as the Exclusive Brethren and the Open Brethren. The international history of the Brethren movement is intricately complex and closely associated with the Baptist church in Germany, as outlined in Liese (2007), Geldbach (2023). In Germany, there are a variety of Brethren churches, including those affiliated with the BEFG, Open Brethren, Exclusive Brethren, and Brethren congregations that have separated themselves from the Exclusive Brethren, known as the “blockfree” or “blockfreie Gemeinden”. The conservative Raven Brethren have only a small number of congregations. Complicating matters further, some congregations may have changed their affiliations over time.

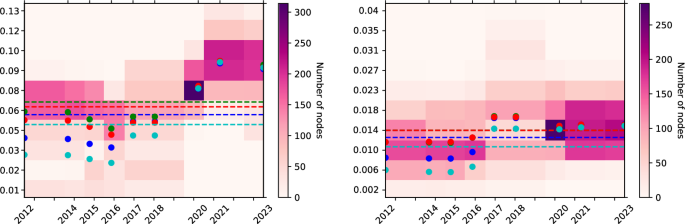

In Fig. 6, we present the closeness and degree centrality evolution of the groups. Notably, only blockfree congregations exhibit belowaverage centrality while exclusive Brethren have the highest values. Another crucial insight is that from 2020 onwards, all groups share a common value, making them indistinguishable from each other.
Table 2 displays the top five and bottom five nodes ordered by importance and change value for individual congregations. The values, in contrast to \(S_1\), are relatively low. Grouping these values by congregation type reveals the following mean importance values: exclusive Brethren 0.012, open Brethren 0.12, and blockfree congregations \(\)0.01; the mean change values for these groups are as follows: exclusive Brethren 0.012, open Brethren 0.011, and blockfree congregations 0.009. These findings are consistent with those in Fig. 6(right): blockfree congregations have lower values, but the overall change appears to be similar across all groups.

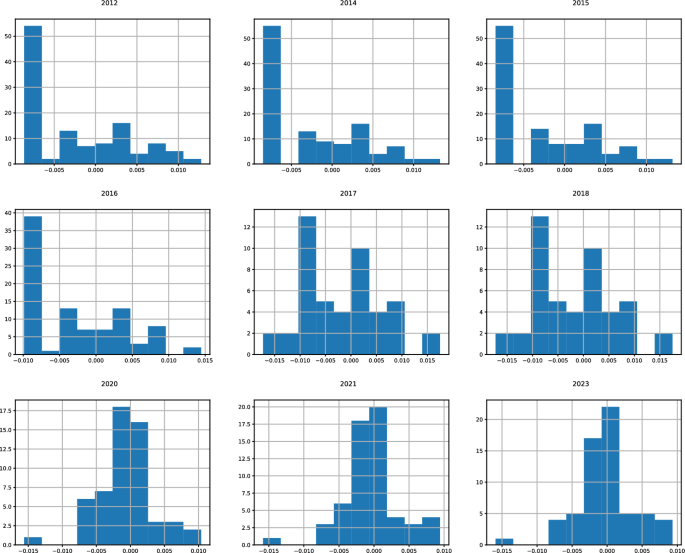

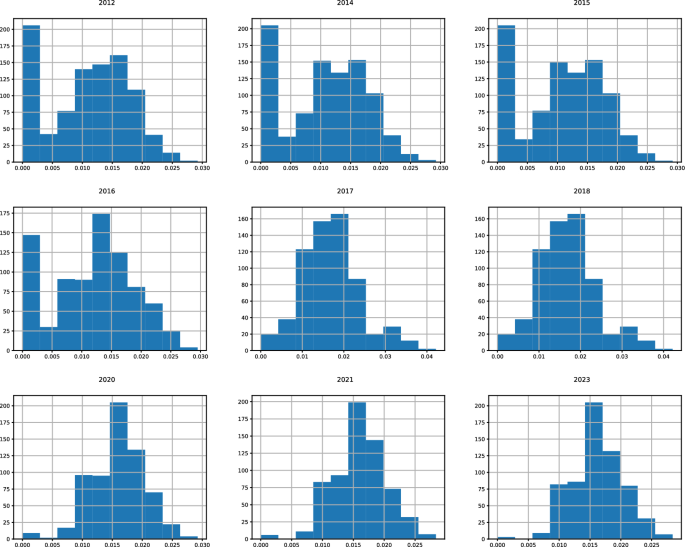

However, an examination of the distribution of importance (Fig. 7) and change (Fig. 8) over time reveals some intriguing findings. While both values begin with a considerable number of low values, they appear to approach a normal distribution over time. However, it is uncertain if this phenomenon is universal to social networks. For both measures, it seems that over time, a greater number of nodes exhibit aboveaverage values, while initially, a greater number of nodes have belowaverage values.
Therefore, for larger networks that possess inherent group data, it is not only reasonable but also insightful to group the data. Although analyzing the total change and importance values can prove difficult, grouping the data simplifies the understanding and summarization of the longitudinal development. Moving forward, let us now examine extremely large networks that lack inherent group data.
High energy physics phenomenology citation network
The high energy physics phenomenology citation network has no inherent groups, but contains 34,546 nodes, making manual data inspection impractical. Comparing randomly selected nodes, such as for betweenness centrality, proves unfruitful in identifying noteworthy actors, see Fig. 9. Nevertheless, these figures facilitate comprehending the overall shift in centrality measures over time. While betweenness only has a few nodes with a high degree, the number of nodes with a low degree increases significantly over time. However, for closeness centrality, the opposite is true. Since the network has a low density, it is expected to find a lot of nodes with a low varying degree.
However, Table 3 allows us to identify nodes that have high importance or have undergone significant changes. We present the results for the top two ranked nodes in Fig. 12. It is apparent that publications 9,302,210 and 9,306,320 are of great importance, their betweenness centrality values have significantly improved and remain close to the maximum value. On the other hand, publications 9,209,262 and 9,303,255 start with high values, but experience a considerable drop, although they still exceed the average betweenness centrality value. Thus, in identifying nodes with unique properties, importance and change are critical considerations for networks that comprise numerous nodes.

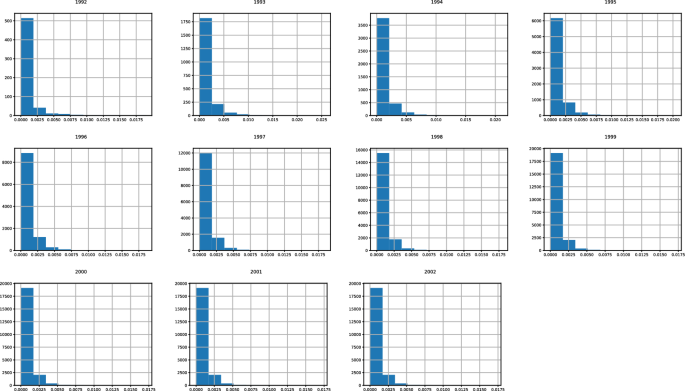

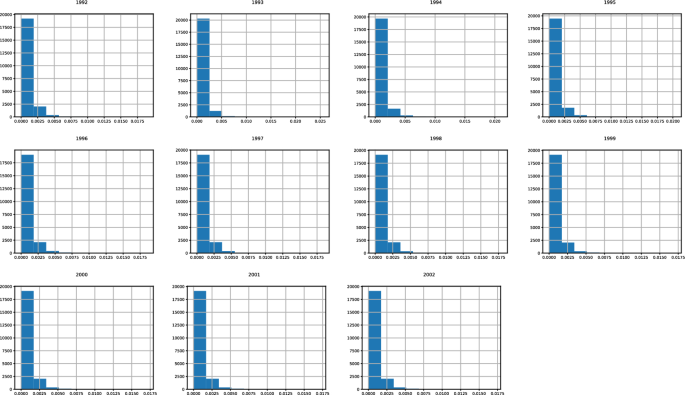

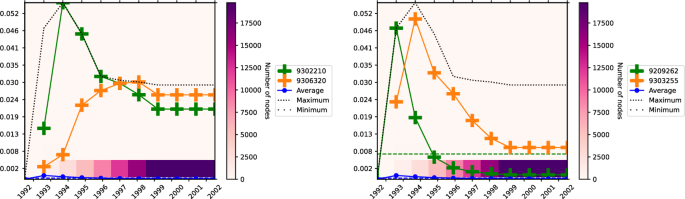

Again we will provide an examination of the distribution of importance (Fig. 10) and change (Fig. 11) over time. The findings on this large network differ from those provided for network \(S_2\). Over all years, there are numerous nodes with a low value for both measures, and this does not appear to be changing. The values appear to follow a powerlaw distribution. This clearly demonstrates that there is no universal solution for analyzing network change and importance. Instead, it is essential to apply visualizations that align with the network topology.
However, it is evident that this method overestimates nodes with a long lifespan, which we will discuss as an open research question. Here, normalizing by the lifespan of a node might help. Its bias or reasonable understanding heavily depends on the initial research question. This issue was problematic for networks with only a few time points, as seen in \(S_1\), but not a concern for \(S_3\) where citations develop over time. However, these networks offer realworld data, and a crucial next step is to assess these methods on random graphs with specific, albeit artificial, properties.
Random graphs
We evaluate the degree centrality and betweenness centrality on random graphs, see Appendix C for details. First, we consider scalefree networks with n nodes, see (Jackson 2010). With this, we create a series of random Graphs \(\mathcal {G}^s(n,i,p)\) which creates one initial scalefree network with n nodes and \(i1\) more random graphs with a probability of p/2 for each node and edge to be deleted and p/2 for each node and edge to be deleted and a new one created. In addition, we consider scalefree networks and create a series of random Graphs \(\mathcal {G}^w(n,i,p)\) which starts with one initial small world network with n nodes and \(i1\) more random graphs with a probability of p/2 for each node and edge to be deleted and p/2 for each node and edge to be deleted and a new one created.
We will evaluate importance and change for degree, closeness and betwenness centrality on the following random graph series:

\(\mathcal {G}^s(n,15,p)\), \(p\in \{0.05,0.1,0.15,0.2,0.25,0.3,0.35,0.4\}\), \(n\in \{50,100,150,200,250,300\}\)

\(\mathcal {G}^w(n,15,p)\), \(p\in \{0.05,0.1,0.15,0.2,0.25,0.3,0.35,0.45\}\), \(n\in \{50,100,150,200,250,300\}\)
However, the overall importance average for all these graphs is close to zero. indicating that both random graphs display an artificial scenario in which the values for all three centrality measures are distributed almost equally without many outliers.

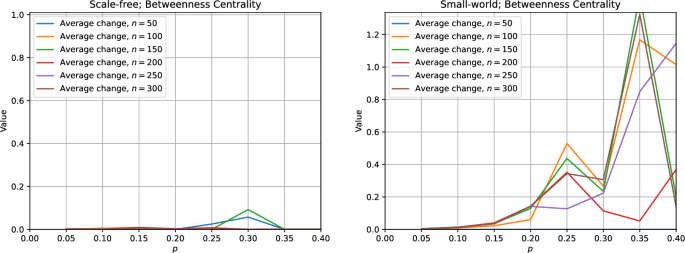

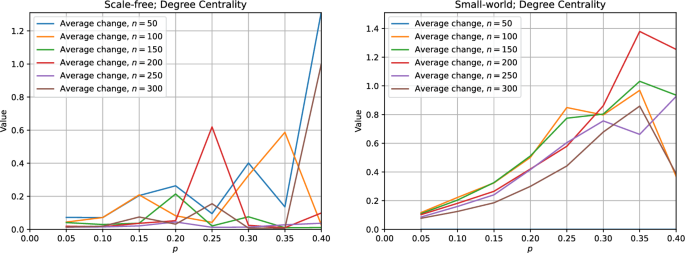

The results for the average change ratio are showcased in Figs. 13, 14, 15. It is worth noting that the two distinct random graphs reveal diverse behaviors, and various centrality measures exhibit different outcomes. Overall, scalefree networks typically have a low change ratio, even for high values of p. Smallworld networks present a clearer view: the average change ratio increases for larger p, but then drops after a certain threshold. Additionally, the change in degree centrality appears to be the least influenced by graph topology.
Further research may be conducted in the direction of random graphs. The extent to which these simple random graph models reflect realworld networks remains unclear, and the differences between these two analytical approaches serve to highlight this question. Furthermore, our findings underscore the necessity for further investigation into graph topology, particularly with regard to the viability of the methodologies proposed in this study.
Summarizing the findings on random graphs underscores the necessity of investigating the impact of graph structures on network robustness and the effects of network changes on centrality measures of other nodes. Our analysis of realworld networks demonstrated the benefits of conducting longitudinal studies across multiple time steps, as analyzing only a few timesteps can hinder identification of the proposed measures’ significance. For larger networks and multiple time steps, nodes with distinct properties, significance, and variability can indeed be identified. Nonetheless, it is important to note that comparing values across various networks is not possible, and analyzing longitudinal social networks still requires manual effort.
Discussion and outlook
Various methods are available for handling longitudinal data in networks. However, all of them result in the algorithms analyzing the data being biased. In accordance with Dörpinghaus et al. (2023), we have proposed an expanded answer to the query of how to universally model longitudinal social networks in a single graph. We have enhanced the techniques through the provision of metrics for analyzing larger networks – specifically node importance and change – in addition to the evaluation and comparison of actor groups. The visual analysis was complemented by the use of histogram plots, which illustrate the evolution of the data over time, should any changes be observed.
The measures naturally extend centrality measures to longitudinal networks, but they require reinterpreting these results and adapting algorithms. It also remains unclear how well these measures work for different types of networks, for example since the proposed method overestimates nodes with a long lifespan and the network topology can vary. Three realworld examples demonstrate that small networks or those with only a few timesteps require significant manual effort and deeper understanding of the network, whereas the proposed measures can be reasonably utilized in larger networks. At this stage, it is not possible to determine whether an universal solution that incorporates additional normalization or other techniques can be established. However, our approach is effective for all centrality measures, but we have only focused on betweenness, closeness, and degree centrality. Further research should explore additional centrality measures and methods such as community detection, as addressing these questions is crucial for comprehending the algorithmic difficulties of temporal data in social network analysis. Nevertheless, we could address the third research question, namely how these analytical methods can be applied to realworld networks. It must be acknowledged that there is no universal solution; rather, the researcher must select the most appropriate methods for the network in question, taking into account its size and topology.
Our second question was whether we could approximate the change in centrality measures, change and importance over time. Our initial investigation (Dörpinghaus et al. 2023) yielded bounds based on degree centrality. Yet, prior knowledge of the change ratio p between different time points is necessary for these limits. As p increases, the sharpness of these boundaries diminishes. Further research should investigate various types of bounds, especially for other centrality measures. Additionally, analyzing graph substructures that impact the temporal behavior of centrality measures could be beneficial, particularly when p is unknown.
In general, it does not appear that larger networks are more easily followed longitudinally. This claim would contradict the prevailing consensus in computer and social sciences, which posits that small, dense networks offer deeper analysis opportunities than large, “poor” networks. Additionally, the dynamic structure of a graph appears to play an important role in its analysis, although this was not explored in this study. For instance, a stable graph with marginal additions over time and an interaction network, where the graph varies considerably from one time step to the next and is typically close to empty at each time t, would yield disparate results. This makes it challenging to assess the generality of our claim and is a question for further research, although most networks appear to follow the first type.
Overall, we have presented evidence that the proposed methods offer a comprehensive understanding and practical measures for examining longitudinal networks. The primary benefit of our approach is that it takes into account the natural extension of centrality measures without relying on specific graphs, such as stream graphs. As demonstrated, this means that our approach can be readily applied to preexisting networks.
Rewriting algorithms for analyzing longitudinal social networks and reinterpreting measures and algorithms requires interdisciplinary discussions between scientific domains. Thus, our paper advocates for more interdisciplinary exchange, especially among mathematics, computer science, social sciences, and the humanities.
Notes
Consequently, in this paper, the terms “social networks” and “knowledge graphs” are used synonymously. In this definition, both share a common notation and a common toolbox.
