Overcoming vaccine hesitancy by multiplex social network targeting: an analysis of targeting algorithms and implications

Abstract

Incorporating social factors into disease prevention and control efforts is an important undertaking of behavioral epidemiology. The interplay between disease transmission and human health behaviors, such as vaccine uptake, results in complex dynamics of biological and social contagions. Maximizing intervention adoptions via network-based targeting algorithms by harnessing the power of social contagion for behavior and attitude changes largely remains a challenge. Here we address this issue by considering a multiplex network setting. Individuals are situated on two layers of networks: the disease transmission network layer and the peer influence network layer. The disease spreads through direct close contacts while vaccine views and uptake behaviors spread interpersonally within a potentially virtual network. The results of our comprehensive simulations show that network-based targeting with pro-vaccine supporters as initial seeds significantly influences vaccine adoption rates and reduces the extent of an epidemic outbreak. Network targeting interventions are much more effective by selecting individuals with a central position in the opinion network as compared to those grouped in a community or connected professionally. Our findings provide insight into network-based interventions to increase vaccine confidence and demand during an ongoing epidemic.

Introduction

Mass vaccination represents a crucial strategy in preventing and mitigating the spread of infectious diseases through the establishment of herd immunity (John and Samuel 2000), protecting even unvaccinated individuals. Despite its demonstrated benefits, vaccine hesitancy remains a persistent issue, compounded by challenges posed by the ongoing COVID-19 pandemic (WHO 2019; Hudson and Montelpare 2021; Cascini et al. 2021; Coustasse et al. 2021; de Miguel-Arribas et al. 2022; Jentsch et al. 2021). Heightened concerns regarding vaccine safety and efficacy have exacerbated the long-standing challenge of voluntary vaccination (Larson 2013; Determann et al. 2014; Kennedy 2020).

Of particular interest, the study of how social networks influence public health behavior and vaccine choices is a significant area of research (Christakis and Fowler 2013). The dynamic spread of changing opinions on vaccination and its impact on disease outbreaks through social networks constitutes a “dueling contagion” process (Fu et al. 2017). It is imperative to recognize that social contagions can also perpetuate non-socially optimal health behaviors. For instance, the diffusion of vaccine scares among parents through social networks has led to a decline in infant vaccination rates, resulting in a surge in childhood diseases (Jansen et al. 2003). Both pro- and anti-vaccine opinions are not only transmitted through personal interactions (Shaham et al. 2020) but also through digital social media platforms (Salathé and Khandelwal 2011; Nayar et al. 2019). A comprehensive understanding of these spreading mechanisms (see, for example, a comprehensive review in Ref. Pastor-Satorras et al. (2015)) is vital to leverage the positive impacts of social contagion and mitigate its adverse effects in public health efforts (Campbell and Salathé 2013; Salathé and Bonhoeffer 2008).

In recent years, the role of social factors in epidemiology has attracted growing attention (Bauch and Galvani 2013; Nayar et al. 2019). Researchers have used behavior-disease interaction models to investigate the impact of various factors, such as vaccine scares or heightened disease awareness, on vaccine compliance (Bauch 2005; Fu et al. 2011; Cardillo et al. 2013; Zhang et al. 2012; Bhattacharyya et al. 2019). We refer to Refs. Bhattacharyya and Bauch (2012), Wang et al. (2016), Bedson et al. (2021) for systematic reviews in this regard. Going beyond interacting diffusion of the same sort (Gomez et al. 2013; Nguyen et al. 2018; Chang and Fu 2019), prior studies have considered the spread of disease, health behavior, and/or information can interact in a close feedback manner, either through the same network (single-layered) (Funk et al. 2009) or through multilayer networks (Granell et al. 2013; Wang et al. 2014; Liu et al. 2016; Pan et al. 2019; Kahana and Yamin 2021). In the latter, spread of infectious disease on one layer interacts with the diffusion of health behavior on the other (Mao and Yang 2012), or coupled with a third layer of information diffusion (Mao 2014).

Motivated by the empirical work using social network targeting for improving public health interventions (Kim et al. 2015), here we propose and compare a number of network-based targeting algorithms that aim to maximize the influence of initial seeds who are early supporters of health intervention (e.g., vaccination). This problem is also known as influence/diffusion maximization: how to select the seed users so that the total number of triggered adopters can be maximized. It is common practice to identify and target influential individuals based on various centrality measures (Masuda 2009; Zhao et al. 2014; Gupta et al. 2016) in both real-life networks and social media (Morone and Makse 2015). Despite that such targeting concept is similar to identify superspreaders and targeted vaccination (Pastor-Satorras and Vespignani 2002; Cohen et al. 2003) in epidemiology, much is unknown about diffusion maximization on multiplex networks. In this work, we fill this theoretical gap and study a variety of targeting algorithms in a multiplex setting and assess their effectiveness of mitigating an ongoing epidemic.

Specifically, we consider a two-layer multiplex, one with a social contagion network of opinion formation and the other with a spatial network of disease transmission. The novelty of our approach is twofold. First, we consider heuristic context-dependent targeting methods explicitly using multiplex networks by coupling the dynamics of social influence and behavior changes with an ongoing epidemic. Second, aside from such interplay of concurrent disease and opinion propagation, we also consider dueling contagions of opposing views on the influence network (not just the pro-vaccine opinion but also the anti-vaccine together with neutral ones) and study how they impact targeting effectiveness. In so doing, our work represents a step forward in the field of network-based interventions, by improving our understanding of how to optimize targeting interventions with potential applications across a wide range of domains.

Our present work extends beyond our previous preliminary study (Fügenschuh and Fu 2023) with two key contributions. First, when measuring targeting effectiveness, we not only consider the final size of the epidemic (how the disease spreading is suppressed overall), but also the peak of the epidemic (how the targeting intervention flattens the epidemic curve). Second, we test the robustness of our targeting algorithms against variations of modeling parameters including initial conditions, network size, and density. Our results help improve our understanding of how to optimize targeting interventions by making them more practical and scalable in the real world.

Model and methods

Model overview The multiplex we study consists of two network layers, each containing the same set of individuals but with different connections between them. The first layer represents an individual’s typical environment, including in-person interactions with family, coworkers, friends, and others during daily activities (including leisure time or hobbies). We assume a degree-regular network of these contacts among all individuals, and represent these relationships using a square lattice graph. On this layer, we simulate the spread of a disease. The second layer represents a virtual social network and provides a platform for opinion exchange (Mastroeni et al. 2019). The connections between individuals on this layer are degree-heterogeneous, generated by the Barabási–Albert network model (Barabási and Albert 1999). Such network structure allows the position of an individual to differently influence the dynamics of opinion dissemination. Past research has shown that single-layered scale-free networks promote both vaccination behavior and effective immunization (Cardillo et al. 2013). In this work we explicitly consider a dueling contagion process (Fu et al. 2017) on two-layered networks as follows.

The simulation alternates probabilistically between disease spread on one layer and opinion formation (and vaccine uptake) on the other. In each iteration, an individual is chosen at random to update their current states. The next step is to determine which layer the process should continue on. As the dynamics of the processes on the two layers are different, the probability of choosing a layer need not be equal. To this end, we introduce the parameter $\omega$ to control the relative time scales of biological and social contagions: with probability $\omega$, a state update of that individual takes place on the disease transmission layer, and otherwise with probability $1- \omega$, an opinion state update occurs on the other network layer (see Algorithm 1). A full overview of all simulation parameters can be found in Table 1. Once a network layer is selected for update, the corresponding process is continued based on the individual’s state in that layer (see Fig. 1), as described in further detail below.

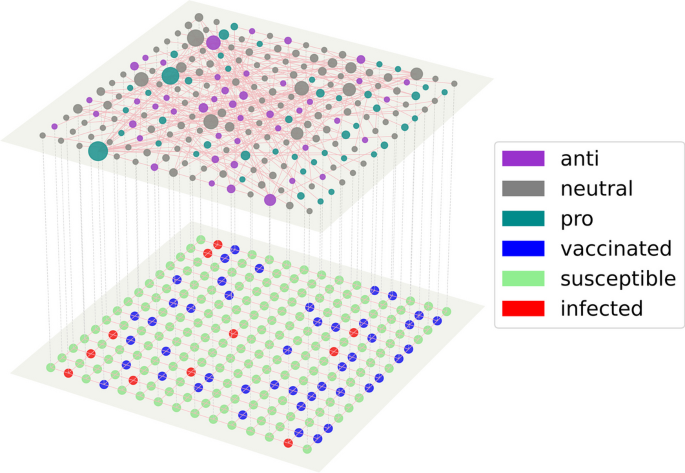

Fig. 1

An example of a multiplex with an opinion (top) and disease (bottom) layer, initialized on a $15\times 15$-square lattice and using default values of model parameters $m, \upsilon ^{-}, \upsilon ^{+}, \mathcal {O}_s$ and $\iota$ as listed in Table 1

Table 1 Default parameters used in the agent-based simulations

The opinion contagion layer and network targeting algorithms

Our objective is to study networks targeting methods that harness the social contagion of pro-vaccine opinions, ultimately increasing the willingness of the population to prevent an epidemic through vaccinations. Therefore, we simulate an exchange of views on the subject of vaccines. Based on the way the individuals represent their opinions, we consider a voter model with a single discrete variable with more—in our case three—states, according to the classification given in Ref. Sîrbu et al. (2017), Jedrzejewski and Sznajd-Weron (2019). In our setting, an individual can have one of the three discrete opinions: anti-, neutral or pro-vaccine, indicated by the values $-1,0$ and 1 respectively. The number of supporters and opponents at the start is given by the parameters $\upsilon ^{+}$ and $\upsilon ^{-}$ respectively. To assess the impact of the supporters’ exact positions in the network on the opinion formation process and consequentially on the epidemic, we consider the following network-based targeting methods for the initial placement of pro-vaccine opinions.

• 1. Hubs: The supporters are chosen from the vertices with the highest degree, referred to as hubs.

• 2. Betweenness: The probability of a vertex being chosen as a supporter is based on its betweenness centrality. The higher the betweenness value, the greater the likelihood of being selected.

• 3. High-degree: Pro-vaccine opinions are assigned according to the degree distribution of the vertices. Again, the higher the degree, the higher the probability of being selected.

• 4. Random: Vertices are randomly selected from the entire population with a uniform probability.

• 5. Hub-community: A heuristic approach is used, starting by filling the supporter set with a vertex of the highest degree and its neighbors. Then, new vertices are repeatedly added to the supporter set by choosing neighbors of supporters with the highest degree in the opinion layer as long as they have not been chosen yet and there are places available to do so.

• 6. Low-degree: The least connected vertices have a higher probability of being chosen as vaccination supporters. Pro-vaccine opinions are assigned based on the degree distribution of the vertices, with the lower the degree, the higher the probability of being selected.

• 7. Hub-neighbors: The individuals selected are those adjacent to hubs, but not themselves hubs.

• 8. Mod-community: Supporters are members of communities determined using the Clauset-Newman-Moore greedy modularity maximization algorithm (Clauset et al. 2004), designed to find communities in scale-free networks, among others. Communities are selected in the order of their size until the desired number of supporters is reached.

• 9. Coworkers: Pro-vaccine opinions are assigned to vertices that form a connected rectangular-shaped sub-grid on the disease layer.

After the initial pro-vaccine opinions are assigned, the individuals with anti-vaccine views are randomly selected from the remaining nodes. The rest of the individuals are set to neutral. We use the parameter $\mathcal {O}_s$ to designate the targeting method used in the simulation.

Figure 2 demonstrates how the placement of vaccine supporters varies with the different targeting methods. The network, which remains constant for all methods, is comprised of vertices arranged on a $25\times 25$ lattice for the disease layer, while the opinion layer is generated using the Barabási–Albert preferential attachment model (Barabási and Albert 1999) (in which each new node is connected to existing nodes with one edge, $m = 1$). Both pro- and anti-vaccine opinions are present at a proportion of $10\%$ of the total population. The sizes of vertices are scaled based on their degree and the edges connecting the vaccine supporters are displayed to give an indication of the strength of connections within the assigned pro-vaccine group. Note that all other edges have been omitted for clarity.

Fig. 2

Network-based targeting. Shown are specific examples of initial supporter placements for each targeting method considered. Individuals are situated on the underlying spatial lattice and highlighted are only the potentially long-range connections between those supporters chosen within the opinion layer according to different targeting methods

Opinion updating rule After the initial views are assigned, the opinion formation process unfolds (Castellano et al. 2009). The opinion of a selected individual is updated using one of the following five updating rules.

The focal individual adopts the opinion

• 1. Of a randomly chosen neighbor (random) Sood and Redner (2005)) or

• 2. Of the majority of the neighbors (max) Fu and Wang (2008) or

• 3. Indicated by the sign of the sum of the opinions of the neighbors (sum) or

• 4. The closest to the average of the neighboring opinions (mean) Kozitsin (2022).

We also implement a hybrid method of opinion adoption that incorporates all above updating rules by randomly choosing one at each iteration step. We use the parameter $\mathcal {O}_a$ to specify the opinion updating rule used in the simulation.

In addition, it is often difficult for individuals to accept opposing opinions (Deffuant et al. 2002), which is why we use the parameter $\rho$ to represent the probability of ultimately accepting the calculated opposing opinion. This assumption of an inertia effect when revisiting contrary opinions aligns with prior experimental observations (Pitz 1969; Traulsen et al. 2010) and modeling studies (Stark et al. 2008; Zhang et al. 2011; Wang et al. 2020).

The disease transmission layer

The epidemic spreading process we consider on the disease layer is based on the Susceptible-Infected-Recovered (SIR) model, with an extension to include the state of immunization (Hens et al. 2012; Newman 2002). Individuals who opt to receive the vaccine, in particular the initial supporters in the opinion layer, once vaccinated, will remain in immunized state throughout the epidemic simulation. Infection seeds are prescribed by a predefined number of individuals in the population—given by the parameter $\iota$—who, of course, are not vaccinated. Once the simulation is started and if it is the turn of the disease layer to update, the state of the chosen individual is updated according to one of the following rules. (At each iteration, an individual can only record at most a single state change at a given time.)

• 1. A susceptible pro-vaccine supporter is vaccinated without hesitancy, whereas a susceptible individual with neutral attitude will get vaccinated with a predefined very low probability $\eta$. In contrast, a susceptible anti-vaccine individual will never choose to be vaccinated.

• 2. If not vaccinated, a susceptible can get infected, provided that there are active infections in the immediate neighborhood. As a matter of fact, the more infected neighbors the higher risk of infection (Pastor-Satorras et al. 2015). Thus, the parameter $\beta$ that represents the base probability of getting infected, increases by the percentage of the infections in the neighborhood: $\beta \left( 1+\frac{I_u}{N_u}\right)$, where $N_u$ is the number of all neighbors of the focal susceptible u and $I_u$ is the number of infectious neighbors.

• 3. An infected recovers with a predefined probability $\gamma$.

• 4. Once vaccinated or recovered, individuals remain in their assumed state until the end of the simulation.

In our simulations, we focus on exploring how the initial pro-vaccine opinion individuals should be placed on the opinion layer in order to achieve the most efficient diffusion of vaccine support views in terms of suppressing the epidemic spreading on the disease layer. Thus we mainly concentrate on varying the parameters that govern social contagion on the opinion layer, including the initial number of individuals holding pro- and anti-vaccine opinions as well as targeting methods for the pro-vaccine supporter placement and specific assumptions of individuals’ view adoption. Simulation results, averaged over 100 realizations, are shown as boxplots. Unless noted otherwise, we use default model parameter values given in Table 1.

Results

To begin with, we show the results of a typical simulation run initialized with the default values as given Table 1, which gives us an intuitive understanding of how the contagion process on the opinion layer can be harnessed to control disease spread (Fig. 3). On the left panels of Fig. 3, we show the simultaneous progression of both social and biological contagions—on the opinion layer (upper left) and on the disease layer (lower left). For comparison, the panels on the right display the epidemic spread with the same initial model parameters as in the left panels but without the influence of the opinion layer: The individuals are either vaccinated only in the initial phase (upper right) or not at all (lower right). To assess the impact of the epidemic and compare various scenarios, we keep track of the number of individuals who contract the illness during each simulation run. Based on the three scenarios of disease transmission provided, we see that when the spread of the disease is suppressed by increasing vaccinations based on opinion formation, 54% of the population becomes infected. On the other hand, 87% of the population becomes infected when the number of immunized individuals remains constant throughout (no social contagion of vaccination), and 99% if there is no vaccination at all. In the latter scenario, the epidemic lasts significantly longer, with a duration of 60,000 iterations compared to 45,000 iterations when vaccinations are administered.

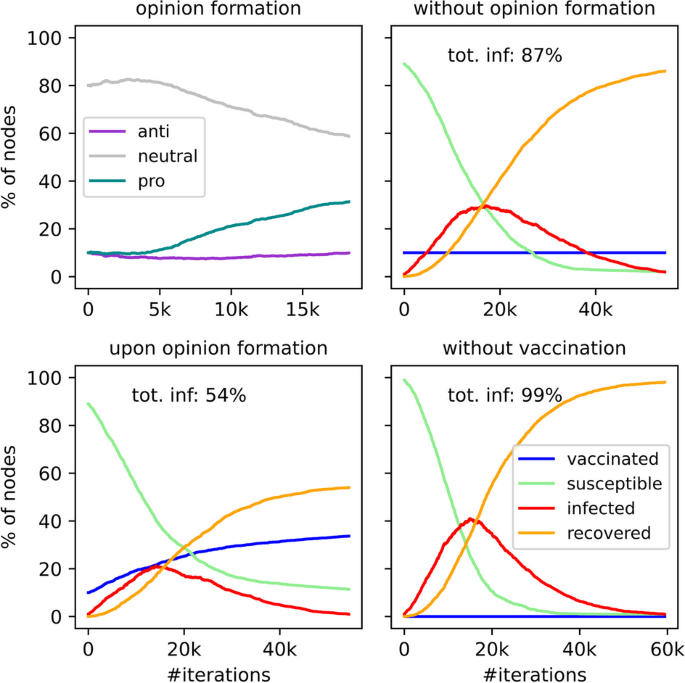

Fig. 3

Impact of dueling contagions. Shown is an example of an opinion formation process (upper left) which is concurrent with a disease spread course (lower left). Such multiplex disease-behavior interactions can lead to the outgrowth of vaccination supporters and thus the suppression of the disease transmission, as compared to scenarios having a constant rate of vaccination (upper right) or absent of any immunized individuals (lower right). All other parameters are set to be default values as given in Table 1

In evaluating the effectiveness of targeted interventions, we not only consider the final size of the epidemic (Fügenschuh and Fu 2023), but also the peak as a measure of disease mitigation effort. In the following, we present a comprehensive analysis of the effectiveness of targeting algorithms, and we validate the robustness of these findings through simulations that take into account varying model parameters such as initial conditions, network size, and density.

Comparison of different network targeting algorithms along with opinion updating rules

Here we investigate and compare the extent to which the spread of the disease can be impacted jointly by the initial placement of pro-vaccine supporters ($\mathcal {O}_s$) and the specific opinion adoption method ($\mathcal {O}_a$) applied to the opinion layer. To this end, we vary the parameter combinations governing $\mathcal {O}_s$ and $\mathcal {O}_a$ and set all others to defaults, as given in Table 1.

The simulation results are presented in Fig. 4. The upper plot displays boxplots of the peak of the epidemic, indicating the maximum percentage of infected individuals during all iterations. In the lower plot, the boxplots show the final epidemic size, i.e. the total percentage of individuals ever infected across all iterations. Corresponding to each initial placement method of vaccine supporters (as ordered on the x-axis), each of the five opinion adoption methods that are grouped together is distinguished by different colors.

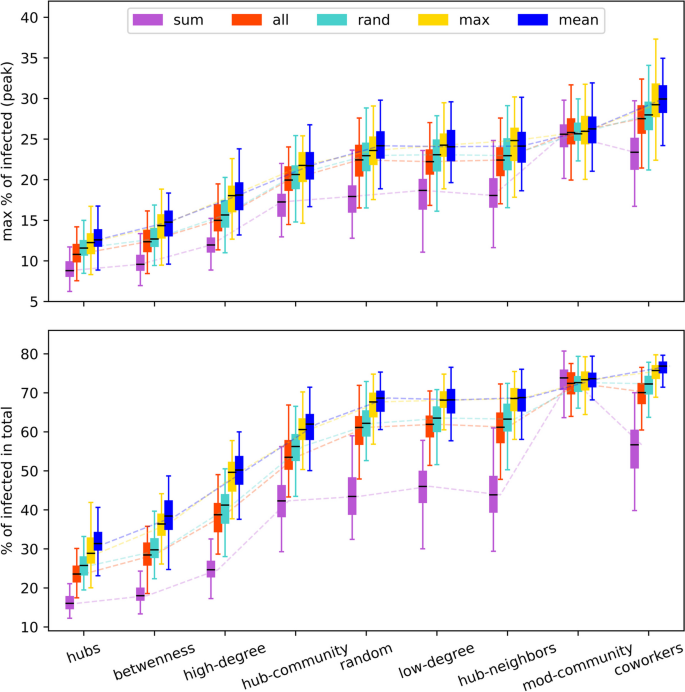

Fig. 4

Comparison of effectiveness of different targeting algorithms. Shown are the peak of infections (the maximum percentage of infections over all iterations of the epidemic spreading process) (top) and the final epidemic size (the total percentage of individuals ever infected (bottom), grouped for each targeting method of initial placement of pro-vaccine supporters (as indicated on the x-axis ) with respect to different opinion updating rules (corresponding to the color map in the legend). Each boxplot is based on 100 independent simulations

The evaluation of the impact of different opinion adoption methods on the spread of pro-vaccine support demonstrates that both the initial placement of vaccine supporters on the opinion layer and the chosen opinion adoption method have a crucial impact on the effectiveness of mitigating the epidemic. It is clear that the vertices with the highest network centrality values are the most influential in this social contagion process, and that the potential number of nodes that a pro-vaccine supporter can influence is a critical factor. However, when the best-connected nodes are part of a like-minded community, as seen in the hub-community and mod-community cases, their performance is similar to or even worse than the completely random approach. The density of connections between the initially placed vaccine supporters does not appear to significantly affect the spread of pro-vaccine opinions. In the case of coworkers, it is apparent that seeding a pro-vaccine opinion within a physically connected group, such as coworkers, does not result in an effective spread of pro-vaccine views. Our simulations also revealed that the scenario where low-degree vertices acting as hub neighbors could spread pro-vaccine opinions to their hub neighbors and trigger a ripple effect through the entire network is unlikely.

The assessment of the opinion adoption methods $\mathcal {O}_a$ reveals a consistent ordering of corresponding results (the colored boxplots in Fig. 4) per initial placement method for pro-vaccine supports, indicated by the x-axis. Among all five different opinion updating rules considered, the one yielding the most impact on disease mitigation appears to be taking the sign of the sum of neighboring opinions (indicated by the purple color Fig. 4). This method is followed by the random approach, which exhibits a noticeable gap in performance. The methods max and mean trail closely behind and perform almost equally with a slight disadvantage compared to the other majority approach.

The exceptional case of mod-community-based targeting highlights the limitation in exchanging or spreading opinions within a closed like-minded community, regardless of the specific opinion adoption method used. This is due to the restricted flow of information, which results in saturation when this method of targeting is applied.

Impact of varying initial conditions of opinion formation

The outcome of an epidemic is shaped by the combination of the initial number of individuals holding pro-vaccine and anti-vaccine opinions at the outbreak. Specifically, we quantify the effect of these initial conditions on the infection curve by altering the parameters $\upsilon ^{+}$ and $\upsilon ^{-}$, which denote the percentage of individuals holding pro- and anti-vaccine opinions, respectively, at the beginning of each simulation. The top and bottom panels of Fig. 5 depict the results of simulations with different targeting methods for the pro-vaccine opinion messengers, with $\mathcal {O}_s$ set to high-degree in the top panel and random in the bottom panel. All parameters other than $\upsilon ^{+}$ and $\upsilon ^{-}$ are fixed to their default values as specified in Table 1, and each simulation run starts with the generation of a fresh pair of networks for both layers.

Fig. 5

Robustness of network-based targeting. Shown is the final epidemic size (the percentage of individuals ever infected) for varying initial proportions of individuals holding pro-vaccine $\upsilon ^{+}$ and anti-vaccine $\upsilon ^{-}$, with the targeting method $\mathcal {O}_s$ set to high-degree in the top panel and random in the bottom. The insets show the case of $\upsilon ^{+} = \upsilon ^{-}$. Degree-based targeting provides more effective interventions than random placement. Each boxplot is based on 100 independent simulations

In Fig. 5, each boxplot corresponds to a combination of initial conditions $\upsilon ^{+}$ and $\upsilon ^{-}$ with values taking from the set $\{5, 20, 15, 20, 25\}\%$, as indicated on the x-axis. On the y-axis, we have the total percentage of infected individuals (final epidemic size). As a comparison, we also show the base case where every individual has neutral attitude towards vaccine, that is, $\upsilon ^{+}$ = $\upsilon ^{-} = 0$. The insets of Fig. 5 show how the final epidemic size decreases with an increasing equal presence of pro- and anti-vaccine individuals, including values of $\upsilon ^{+}=\upsilon ^{-}$ beyond $25\%$.

As expected, for a fixed proportion, $\upsilon ^{+}$, of individuals seeded as pro-vaccine supporters, increases in anti-vaccine opinion individuals $\upsilon ^{-}$ can cause greater final epidemic sizes, suggesting an approximately linear relationship with positive slopes. However, a larger initial presence of pro-vaccine individuals $\upsilon ^{+}$ leads to a greater extent of disease mitigation that strongly counteracts the negative impact due to the increase in $\upsilon ^{-}$. For example, for $\upsilon ^{+} = 20\%$, the increase in total infections for bigger $\upsilon ^{-}$ is limited, exhibiting a much smaller slope compared to the scenario $\upsilon ^{+} = 5\%$. Regarding the symmetric initial conditions $\upsilon ^{+} = \upsilon ^{-}$, the final epidemic size decreases with increasing $\upsilon ^{+} = \upsilon ^{-}$; in particular, as $\upsilon ^{+} = \upsilon ^{-}$ increases beyond $30\%$, the spread of disease will be significantly suppressed. At $\upsilon ^{+} = \upsilon ^{-} = 50\%$ we see that essentially little or no disease outbreaks can unfold. These results hold for both targeting methods: high-degree-based and random. The former is much more effective than the latter, which is inline with Fig. 4. Overall, we confirm similar impact of varying initial conditions for other targeting methods $\mathcal {O}_s$.

Impact of varying couplings of disease transmission and opinion contagion

The time scale parameter $\omega$ controls the relative time scales governing the dynamics of disease transmission and opinion contagion on the two layers. The strength of interlayer coupling determined by $\omega$ may impact the effectiveness of targeting methods. Intuitively, greater $\omega$ values render more frequent updating on the disease layer, thereby representing less favorable conditions for network targeting. We thus evaluate the robustness of our three representative targeting methods $\mathcal {O}_s$, including the most effective “high-degree”, the moderate one “random” and the least effective “coworkers”, by adjusting $\omega$ values beyond its default value, which is $\omega = 0.75$, as used in our simulations. Figure 6 shows that increases in $\omega$ compromise the effectiveness of targeting, resulting in larger sizes of infections. These results confirm that a larger $\omega$ corresponds to a more challenging condition for interventions. We also see that “high-degree”-based targeting is robust to increasing $\omega$ as the increase in disease incidences is slow, exhibiting a concave upward curvature. In contrast, the other two targeting methods are more sensitive to the increase in $\omega$, showing a concave downward curvature. For instance, the least effective “coworkers”-based targeting shows a much sharper rise than others, while the most effective “high-degree”-based targeting starts slowly and steepens at higher $\omega$ values, but still is lower than the other two even at $\omega = 90\%$.

Fig. 6

Comparing the effectiveness of selected $\mathcal {O}_s$-methods by using the total percentage of infections while varying the time scale parameter $\omega$. Each boxplot is based on 100 simulations. Other model parameters as in Table 1

In addition, we vary the disease transmission rate $\beta$ and assess how targeting methods may depend on $\beta$. For a larger $\beta$, the disease is more contagious, making it more difficult to contain. Overall, the effectiveness of the three aforementioned targeting methods shows qualitatively the same pattern in their changes while having their order of effectiveness attained: for each $\mathcal {O}_s$, the total number of infections increases with $\beta$ and is saturated at higher $\beta$ values (Fig. 7). Regarding the opinion layer, we also vary the parameter $\rho$—namely, the probability of adopting a contrary opinion. Accepting the opposite view works both ways; that is, switching from pro-vaccine to anti-vaccine and vice versa is equally likely, both with probability $\rho$. Therefore, as demonstrated in Fig. 8 specifically for the “hubs”-based targeting, the parameter $\rho$ does not significantly influence the effectiveness of targeting methods. Neither does the effect of opinion adoption methods $\mathcal {O}_a$ on containing the disease depend much on $\rho$. For example, we see that “random”-based opinion adoption remains in between the other two opinion updating rules concerning their ultimate impact on disease mitigation. For each $\mathcal {O}_a$, we observe a slight decrease in the total number of infections as $\rho$ increases.

Fig. 7

Comparing the effectiveness of selected $\mathcal {O}_s$-methods by using the total percentage of infections while varying the disease transmission rate $\beta$. Each boxplot is based on 100 simulations. Other model parameters as in Table 1

Fig. 8

Comparing the effectiveness of the “hubs”-based targeting method for selected opinion updating rules $\mathcal {O}_a$ (as indicated in the legend), using the total percentage of infections while varying the probability $\rho$ of adopting a contrary opinion. Each boxplot is based on 100 simulations. Other model parameters as in Table 1

Impact of network size

The previous simulations have been conducted with a fixed network size of 2500 individuals. Figure 9 provides insight into the sensitivity of our simulation to larger network sizes. Beginning with the default $50\times 50$ for the bottom layer of square lattice and top layer of Barabàsi–Albert network, the remaining ticks on the x-axis represent network sizes of 10000, 22500, 40000, and 62500 nodes, respectively. To compare the impact of initial supporter placement methods (denoted as $\mathcal {O}_s$) in these test scenarios, we focus on three targeting algorithms $\mathcal {O}_s$, each of which corresponds to high-degree, random, and coworkers, as indicated by the legend in Fig. 9. Each boxplot summarizes the results of 10 independent simulations.

Fig. 9

Quantifying network size effect. Shown are the epidemic size (the percentage of individuals ever infected) (left panel) and the running times of the simulations (right panel) as a function of the total number of nodes in the network layers. Each boxplot is based on 100 independent simulations

We observe an intriguing finite size effect: as the number of nodes in the layers increases, the final epidemic size decreases with smaller fluctuations, as shown in the left plot of Fig. 9. The relative position between the boxplots of different colors, representing different targeting methods, remains unchanged: high-degree-based targeting remains most effective in mitigating the disease impact, followed by random and then coworkers. This result further underscores the robustness of the simulation with regard to network size in comparing effectiveness of targeting methods. Overall, we confirm that the relative positions of the boxplots obtained for different targeting methods $\mathcal {O}_s$ as well as initial conditions of $(\upsilon ^{-},\upsilon ^{+})$-pairs remain qualitatively the same as in Fig. 4 and 5, respectively.

It is important to consider computing times when working with larger network sizes. The right plot in Fig. 9 shows that the simulation times, which were conducted on a 3.2 GHz 16-Core Intel Xeon W with Turbo Boost up to 4.4 GHz and 768 GB RAM, increase steadily, approximately quadratically with the number of nodes. Starting with approximately one minute for a $50 \times 50$ square lattice/Barabàsi–Albert network, the computation time can reach over three hours for a $250\times 250$ network. We also find that the computation time is less sensitive to the specific targeting method $\mathcal {O}_s$.

Furthermore, we perform a comprehensive comparison of simulation times with respect to specific targeting methods $\mathcal {O}_s$ and opinion update methods $\mathcal {O}_a$ using the same default network size (Fig. 10). Except for betweenness-based targeting, the computation times roughly track the trend of the final epidemic size (total infections) presented in Fig. 4. Generally and intuitively, the fewer infections there will be, the sooner the simulation will end.

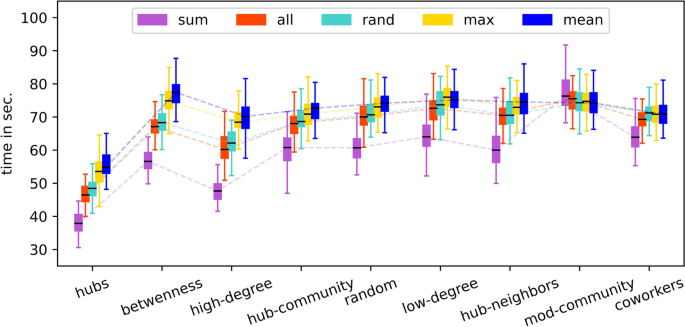

Fig. 10

Comparing the running times of agent-based simulations with respect to specific implementations $\mathcal {O}_a$ of different targeting methods $\mathcal {O}_s$. This plot supplements the final results shown in Fig. 4. Each boxplot is based on 100 independent simulations

Impact of average degree of the opinion layer

Lastly, we investigate the robustness of our simulation results with respect to varying the average degree of the opinion network layer. Keeping all other parameters fixed, we vary the number of edges added from a new node to existing ones (as indicated by the parameter m in Table 1) from $m =1$ (average degree $\langle k \rangle = 2$, density $d=0.0008$) to $m = 4$ ($\langle k \rangle = 8$, density $d=0.0032$) when generating the Barabási–Albert network as the opinion formation layer in our model. As shown in Fig. 11, the effectiveness of disease mitigation by targeting high-degree, random, and coworkers nodes as initial pro-vaccine supporters remains largely unchanged. We also see that increasing the density of the opinion layer (via the parameter m) appears to yield noticeably yet insignificant lesser final epidemic size. Taken together, the density of the opinion layer has little, if any, impact on the social contagion process, whereas it is primarily the very structure of peer influence network and the network-based targeting methods that jointly play an important role in shaping the opinion propagation process.

Fig. 11

Effect of varying average degree of the opinion network layer. Shown is the final epidemic size (percentage of individuals ever infected) for selected targeting methods ($\mathcal {O}_s$ indicated on the x-axis) based on high degree nodes, random choosing, and community coworkers respectively with increasing network parameter, m. The average degree of the opinion layer is approximately 2m, and thus larger m values mean greater density of the network ($d = 8\cdot 10^{-4}m$ for network size 2500)

Discussions and conclusion

In this work we investigate how various centrality-based targeting algorithms seeding the opinion influence network can impact the social contagion of pro-vaccine support as a means to control epidemic spreading on the other disease layer. For simplicity, the disease layer uses regular square lattices to capture the spatial transmission dynamics of local community neighborhoods. However, the use of degree-regular lattices leads to a lack of network heterogeneity, which can impact the threshold for disease outbreaks. On the other hand, by varying the transmission rate $\beta$ in our extended simulations on spatial lattices, the resultant effective basic reproductive ratio can approach values expected in degree-heterogenous networks (cf. the bottom right panel in Fig. 3 which shows a total 99% infection). In this context, our findings offer preliminary insights for studying more nuanced scenarios in multilayer networks (Kivelä et al. 2014). While our model does not explicitly account for interlayer dependence during network generation, our simulations and targeting algorithms, such as those focusing on hub-community and co-workers ones, do incorporate certain aspects of interlayer correlations to some extent (Kivelä et al. 2014). This is qualitatively evidenced by the varying levels of connectivity of selected targeting seeds and their corresponding spatial distributions for each targeting algorithm, as shown in Fig. 2. Nonetheless, future work is needed to quantify how interlayer network characteristics, for example, selection of initial seeds based on a combined centrality measure from both layers, can enhance the efficiency of multiplex targeting strategies.

While we consider a range of widely used opinion updating rules (Sobkowicz 2009), it is helpful for future work to incorporate more realistic contagion models (Dodds and Watts 2004; Campbell and Salathé 2013) and high-order interactions (Iacopini et al. 2019; Barrat et al. 2022), such as hypergraphs (Barrat et al. 2022). The targeting algorithms also need to account for other factors, such as homophily (‘birds of a feather to flock together’) (Centola 2011), and the presence of central top-down campaign influence (Wang et al. 2020) apart from peer influence. By incorporating these extensions, we can enhance public confidence in vaccines at a time when coverage from child vaccinations to COVID-19 vaccinations may be declining or stagnant.

Our model primarily focuses on an ongoing epidemic where healthy and susceptible individuals exchange opinions on vaccine uptake when they are not infected. It is thus important to note that vaccine uptake is only considered for individuals who have not contracted the disease. Once individuals are infected, vaccination is no longer a consideration. However, a meaningful extension of our current model is to incorporate the reciprocal relationship between infection status and vaccine opinion. Specifically, it is not only peer influence that matters, but also an individual’s own experience with the disease, and particularly how their health outcomes, impacted by contracting the disease, shape their opinion about the necessity of vaccinations. Previous research suggests that a higher perceived cost of infection leads to a greater tendency to vaccinate (Fu et al. 2011). Thus, incorporating such experiential learning feedback, beyond just word-of-mouth, into the disease and behavior interactions could provide a more comprehensive understanding of the dueling contagion dynamics.

The present work assumes a challenging scenario where the exchange and acceptance of views is much slower than disease spreading (using the time scale parameter $\omega =0.75$). To verify the robustness of our findings, we conducted a comprehensive sensitivity analysis on key model parameters. These include the disease transmission rates $\beta$, the probability $\rho$ of adopting a contradictory opinion, and the impact of varying the time scale parameter $\omega$. The parameter $\omega$ essentially controls the extent of interdependence (or coupling) of disease transmission and opinion contagion, thereby impacting the effectiveness network-based targeting algorithms (see Fig. 6). It is worth noting that a prompt response from the population (smaller $\omega$ valuers) would create favorable conditions for mitigating the spread of disease (Fu et al. 2017). Moreover, it is promising for future work to consider the impact of external shocks in the form of vaccine scares or skepticism, in order to overcome the hysteresis effect previously discovered in Ref. Chen and Fu (2019). The multiplex network targeting algorithms explored in this study can be further refined to identify individuals that are not only susceptible, but also responsive to, interventions. Keeping these in mind when optimizing network-based targeting methods, we will be able to harness the social contagion of vaccine knowledge and positive attitudes towards vaccination, with the goal of overcoming the hysteresis effect and increasing vaccination rates in areas of need.

In conclusion, our results demonstrate that network-based targeting algorithms seeding the opinion layer with pro-vaccine supporters can greatly enhance attitude and behavior changes that are needed to control the spread of disease. Among those considered, targeting hubs—individuals with the highest degrees in the influence network—yields the most effective intervention that is not only able to flatten the curve with the smallest peak of infections but also able to curb the outbreak of the disease with the least number of total infections. The betweenness-based approach is similarly effective, but slightly lags behind the hub-based method. On the contrary, targeting groups of closely connected individuals either in the influence network (mod-community) or in the physical network (co-workers) leads to the least effective intervention due to the saturation effect, which is similarly observed in the field experiment (Kim et al. 2015). Therefore, our study offers simulation-based insights to enhance the targeting effectiveness for future experiments.
