Comparative evaluation of strategies for improving the robustness of complex networks
Applied Network Science volume 8, Article number: 43 (2023)
Abstract
Designing network systems able to sustain functionality after random failures or targeted attacks is a crucial aspect of networks. This paper investigates several strategies of link selection aiming at enhancing the robustness of a network by optimizing the effective graph resistance. In particular, we study the problem of optimizing this measure through two different strategies: the addition of a nonexisting link to the network and the protection of an existing link whose removal would result in a severe network compromise. For each strategy, we exploit a genetic algorithm as optimization technique, and a computationally efficient technique based on the Moore–Penrose pseudoinverse matrix of the Laplacian of a graph for approximating the effective graph resistance. We compare these strategies to other stateofthe art methods over both realworld and synthetic networks finding that our proposals provide a higher speedup, especially on large networks, and results closer to those provided by the exhaustive search.
Introduction
In the last 2 decades, the study of the organization of complex systems with concepts and methods of network science has been receiving considerable interest because of the ability of networks to well represent different kinds of realworld, natural, and technological systems (Barabási and Pósfai 2016). The Internet, the World Wide Web, transportation and power grid networks, biological, ecological, and social networks are just a few examples of networks deeply studied to understand their underlying arrangement (Girvan and Newman 2002; Lu et al. 2016; Battiston et al. 2020).
A critical aspect of networks is their ability to react to attacks, either targeted or due to random failures (Albert et al. 2000) because of the costs and impairments that damage to the structure could provoke. The research on approaches to enhance the robustness of networks is an active field that has been investigated in several application domains. Existing methods for improving robustness rely on some defense mechanisms that modify network topology, such as edge rewiring, edge addition, and edge protection (Freitas et al. 2022; Wang et al. 2014). Each mechanism has a cost. Edge rewiring, for instance, that changes the connection between two nodes by using several strategies, has a lower cost than adding a new edge (Beygelzimer et al. 2005).
Several measures have been proposed for assessing the modifications to the network topology based on graph properties, such as the connectivity or the average betweenness of nodes or edges, and the spectrum of adjacency or Laplacian matrix (Freitas et al. 2022). However, the detection of the set of links or the single link that enhances the robustness of a network by optimizing the chosen criterion is a combinatorial search problem whose exact solution is computationally intractable. Thus greedy methods that obtain a suboptimal solution have been proposed.
In this paper, an investigation of several strategies of link selection for improving the robustness of a network G, by optimizing the wellknown effective graph resistance measure, in the following denoted \(R_{G}\), proposed by Ellens et al. (2011) is presented. This measure is based on the analogy between graphs and electrical circuits and has been shown to decrease when links are added to the graph and increase when links are removed (Ellens et al. 2011).
We study the problem of optimizing the effective graph resistance from two points of view: (1) adding the link that maximally decreases the effective graph resistance and (2) protecting the link whose removal would cause the maximum network damage, i.e. the link that maximally increases the effective graph resistance.
In Pizzuti and Socievole (2018, 2019), we proposed two methods based on genetic algorithms (Goldberg 1989), named RobGA and RobLPGA respectively, to find the best link in the network to either add or protect in order to optimize \(R_{G}\). As outlined in Pizzuti and Socievole (2023), the main drawback of these methods is that the computation of the effective graph resistance must be repeated each time a new candidate solution is evaluated, thus making the approaches computationally inefficient. A modification to RobGA that improves the computation of \(R_{G}\) has been presented in Pizzuti and Socievole (2023) by introducing an incremental computation of \(R_{G}\). The modified approach, named RobGA{\(L^{+}\)}, provides a good tradeoff between the slightly increased error of the effective graph resistance value obtained with the approximated approach and the simulation time.
In the following, we first recall the concepts introduced in Pizzuti and Socievole (2023) needed to perform the incremental computation of \(R_{G}\) when adding a link and the results obtained by RobGA{\(L^{+}\)}. Then we present the method based on the Moore–Penrose pseudoinverse of the Laplacian matrix for the incremental computation of \(R_{G}\) when a link is deleted and extend RobLPGA to RobLPGA{\(L^{+}\)}, that performs the incremental computation of the effective graph resistance in the case of edge removal.
A comparative analysis with four singlelink addition/removal strategies on both real and synthetically generated networks shows that the evolutionary approaches outperform the other strategies, and that the incremental computation of the effective graph resistance provides a good balancing between the increased percentage error value introduced with the approximate computation and the lower running times.
The paper is organized as follows. In “Related work” section the main works in this research area are described. In “Effective graph resistance R_{G}” and “Incremental computation of R_{G}” sections, the concept of effective graph resistance and of incremental computation of the pseudoinverse of Laplacian are recalled, respectively. In “Optimising the effective graph resistance through link addition or link protection” section the problems we tackle in the paper are defined. In “RobGA{L^{+}}” and “RobLPGA{L^{+}}” sections, the RobGA and RobLPGA methods are briefly described, and the efficient computation of \(R_{G}\) is introduced. In “Experimental setup” section, the realworld and synthetic networks used in the experimentation and the strategies adopted for the comparison are described. In “Results” section the results of the comparative analysis are reported. Finally, “Conclusion and further works” section concludes the paper and discusses the future directions.
Related work
The problem of robustness and how to quantify this measure in complex interconnected systems are extensively discussed by Freitas et al. (2022). In this survey, classical and more recent graph robustness measures are reviewed along with the types of attacks that can affect network robutness, and the defense techniques required to mitigate such attacks. Other works surveying graph measures for network robustness can be found in Oehlers and Fabian (2021) and Ellens and Kooij (2013). Since in this work we are interested in a particular robustness measure, the effective graph resistance, which will be recalled in the next section, in the following subsections we focus on the state of the art in (1) robustness management through link perturbations and (2) evolutionary methods improving robustness.
Robustness management through link perturbations
The improvement of network robustness is usually achieved by inducing a perturbation on its topology. A perturbation is an event occurring on the network which can be decomposed in a temporal sequence of elementary changes affecting its topology (Mieghem et al. 2010). An elementary change is any change occurring at time t that alters the network in terms of the corresponding graph matrix, such as the adjacency or the Laplacian matrix (Van Mieghem 2011). Elementary changes includes: (1) node addition, (2) node removal, (3) link addition, (4) link removal, (5) link rewiring (i.e. changing one of the two end nodes of a link with another node),(6) node weight change and (7) link weight change.
Through targeted perturbations, the robustness of a network can be enhanced or preserved. Focusing on link perturbations and effective graph resistance as indicator of robustness, Wang et al. (2014) demonstrate both experimentally and theoretically that network robustness can be improved by: (1) adding a new link that minimizes the effective graph resistance and (2) protecting a link (i.e. labelling this link as one of the most vulnerable) whose removal would maximize the effective graph resistance. Four methods that select a particular link to add or remove are evaluated on different types of networks, both real and modelled, showing the measurable consequences that the topology changes have on network robustness.
The strategies that add a link for mitigating degreebased targeted attacks appear promising also on interdependent networks and multilayer networks as shown in the work by Kazawa and Tsugawa (2020). Here, the authors analyze the performance of different linkaddition strategies for singlelayer networks like low degree (LD) and random addition (RA), for interdependent networks (i.e., RIDD, random inter degree–degree difference and LIDD, low inter degree–degree difference), and extensions of the aforementioned strategies referred to as lowdegree IDD (LD_IDD), lowdegreeproduct IDD (LDP_IDD), and lowdegreesum IDD (LDS_IDD). The results suggest that methods for interdependent networks are also suitable for multiplex networks.
Schneider et al. (2011) use iterative adhoc rewirings that randomly choose couple of links and make link swaps only if robustness increases. This ensure a good robustness while preserving the number of links. In addition, focusing on the design of robust scalefree networks, an onionlike structure, where at the core there are highdegree nodes and at the adjacent layers there are nodes with decreasing degrees, is proposed.
Buesser et al. (2011) use the simulated annealing optimization heuristic on scalefree networks subject to malicious attacks to hub nodes (i.e. highly connected nodes). The network is properly rewired through the elimination of some existing links and the addition of new links by preserving the degree distribution and node connectivity. As robustness measure, the R value defined by Herrmann et al. (2011) is optimized.
Carchiolo et al. (2019) add a small number of new connections for enhancing the robustness of scalefree networks. Differently from most of the works in this direction that usually target hub nodes, the new links are added between nodes with a secondary role with respect to the most central ones. The aim is to set up longrange connections as backup paths in case of hub failures.
Louzada et al. (2013), present a rewiring method based on a small number of perturbations, which is suitable for realtime actions under budget constrains. The method is based on the evolution of the network largest component during a sequence of targeted attacks. Differently from random rewirings (Schneider et al. 2011), this smart strategy drives the formation of a modular onionlike structure characterized by layers of nodes grouped by degree.
Evolutionary methods improving robustness
Evolutionary computation is a type of optimization technique inspired by biological evolution (Bäck et al. 1997), successfully used for the resolution of many challenging real world complex optimization problems, including robustness optimization. Evolutionary methods initialize a population of individuals/solutions, and evolve it by applying the genetic operators (mainly crossover, mutation, selection) to improve the value of a fitness function, which is the function to optimize, while exploring the solution space. In principle, evolutionary methods are highly flexible since they can be applied to any kind of optimization problem.
Zhou and Liu (2014) propose a memetic algorithm for enhancing the robustness of scalefree networks through the optimization of the R value (Herrmann et al. 2011). Similarly to Buesser et al. (2011), this work focuses on attacks to hub nodes by exploiting a proper link rewiring able to preserve the degree distribution of the network. The method applies a customized crossover operator performing both a global and a local search. In such a way, the algorithm is able to search the network structure which optimizes the robustness.
In another work, Wang and Liu (2017) study how to improve the robustness of Erdős–Rényi networks and scalefree networks subject to attacks to links causing cascading failures. First, a new robustness measure, namely \(R_{ce}\), based on the R value (Herrmann et al. 2011) and adapted to cascading failures is proposed. Then, a memetic algorithm labeled as \(MAR_{ce}\) exploiting the same genetic operators used in Zhou and Liu (2014) and a local search operator employing simulated annealing as in Buesser et al. (2011) is proposed. Also \(MAR_{ce}\) preserves the degree distribution.
In Pizzuti and Socievole (2018), we proposed RobGA, a genetic algorithm that improves network robustness by adding a link that minimizes the effective graph resistance of the network \(R_{G}\) as robustness indicator. Similarly, in another work (Pizzuti and Socievole 2019), we focused on improving robustness through link protection by proposing RobLPGA, a genetic algorithm finding the link whose removal would maximally augment \(R_{G}\). In our last work (Pizzuti and Socievole 2023), we focused on the computational effort necessary to improve robustness through RobGA, by proposing a fast computation of \(R_{G}\) through an approximation based on an incremental computation of the Moore–Penrose pseudoinverse matrix \(L^{+}\) of the Laplacian L of the network graph. Termed as \(RobGA\{L^{+}\}\), this method provides a good speedup with a low percentage error in the computation of the effective graph resistance.
Effective graph resistance \(R_{G}\)
The effective graph resistance \(R_{G}\) is a measure derived from the field of electric circuit analysis (Ellens et al. 2011) and based on the analogy that exists between graphs and resistive electrical circuits measure, which can be used to characterize the overall robustness of a graph G. Intuitively, \(R_{G}\) can be regarded as the overall difficulty of transport in a graph G. More specifically, given an undirected and connected graph G, an equivalent electrical network EEN can be composed by setting an edge \(e_{ij}\) with weight \(w_{ij}\) corresponding to an electrical resistance \(\omega _{ij}= w_{ij}^{1}\) Ohm. The effective resistance \(R_{ij}\), is thus defined as the voltage developed between two nodes i and j when a unit current flows from i to j. A notable feature of effective resistance is that its square root \(\sqrt{R_{ij}}\) is an Euclidean measure.
Since the current from a node i to a node j can spread over multiple paths, Klein and Randić (1993) defined \(R_{G}\) as a measure characterized by the “multipleroute distance diminishment”, differently from the classical distance measures using a single path from i to j. In the context of a graph, if there exists more than one path between two nodes i and j, link failures can be easily managed by selecting alternative paths bypassing the unavailable edge. The smaller \(R_{G}\), the higher the multiple routes and hence, the more robust the network is.
To compute \(R_{G}\), we consider a network described by the undirected and connected graph without selfloops \(G=(V,E)\), where V is the set of n nodes and E is the set of m links between node pairs.
The adjacency matrix A of the graph G is an \(n\times n\) symmetric matrix where an element \(a_{ij}\) is \(w_{ij}\) or 0 depending on whether an edge between nodes i and j is present or not, and \(w_{ij}\) is the weight of the edge representing the affinity between nodes i and j. The Laplacian L of G is defined as the \(n \times n\) symmetric matrix \(L= \Delta A\) where \(\Delta =diag(d_{i})\) represents the \(n \times n\) diagonal matrix containing the nodes’ degrees and \(d_{i}=\sum _{j=1}^n a_{ij}\). Specifically, \(L_{ij}=d_{i}\) if \(i=j\), \(L_{ij}=1\) if \((i,j) \in E\), and \(L_{ij}=0\) otherwise.
For an undirected and connected graph, its Laplacian L is positive semidefinite, with eigenvalues that are all real and nonnegative since the eigenvalues of the symmetric matrices \(\Delta\) and A are real. In particular, the set of eigenvalues \(\{ \lambda _{1}, \lambda _{2}, \ldots , \lambda _{n}\}\), named spectrum of L, has a unique smallest eigenvalue \(\lambda _{1}=0\) with the rest of \(n1\) eigenvalues that are all positives (\(0= \lambda _{1} \le \lambda _{2} \le \ldots \lambda _{n}\)). Fiedler coined the second lowest eigenvalue \(\lambda _{2}\) as algebraic connectivity, for this reason the associated eigenvector is also referred to as the Fielder vector (Fiedler 1973).
The inverse matrix of L can not be computed due to the zero eigenvalue which makes L rank deficient with \(rank(L)=n1<n\). However, it is possible to obtain a matrix which can act as the inverse of L through the Moore–Penrose pseudoinverse matrix of L, denoted with \(L^{+}\). \(L^{+}\) shares with L the property of being positive semidefinite. In addition, the eigendecomposition of the pseudoinverse \(L^{+}=\Psi \Lambda ^{+} \Psi '\) has the same set of orthogonal eigenvectors of L. The eigenvalues of \(L^{+}\), contained in the diagonal matrix \(\Lambda ^{+}\), include \(\lambda _{1}^{+}=0\) and the reciprocals of the positive eigenvalues of L, i.e. \(\lambda _{i}^{+}=\frac{1}{\lambda _{i}}\), \(i=2,\ldots ,n\).
Ranjan et al. (2014) showed that \(R_{ij}\) can be computed through the elements of the Moore–Penrose pseudoinverse as:
Having the effective resistances between pairs of nodes, the formal definition of effective graph resistance is the sum of the effective resistances between all pairs of vertices in the graph. Klein and Randić (1993) have proved that this measure satisfies the following spectral expression:
Several studies consider the effective graph resistance a highly valuable robustness measure. In the work by Ghosh et al. (2008), for example, \(R_{G}\) is seen as a measure of the closeness between nodes indicating how well G is connected. The analogy between effective graph resistance and random walks is shown in Tizghadam and LeonGarcia (2008) and Ellens et al. (2011): the pairwise effective resistance is proportional to the time duration of a random walk between the two nodes. Translated into effective graph resistance, \(R_{G}\) is proportional to the expected commute time averaged on all node pairs. Another interesting property is that \(R_{G}\) strictly decreases when edges are added or weights are increased (Ellens et al. 2011). Intuitively, the complete graph is more robust than a star, for example, due to the existence of more alternative paths.
Incremental computation of \(R_{G}\)
Despite the versatility offered by the Moore–Penrose pseudoinverse matrix of the Laplacian to practically compute the effective graph resistance, the computation of this pseudoinverse matrix is expensive, incurring an \(O(n^{3})\) computational time. In large networks, like online social networks composed of millions of nodes that change their connections over time, the dynamic evolution of the network topology obstacles the utility of this matrix. As the friendships change or user profiles are added or removed, like in Facebook networks for example, the topology of such networks changes and this would require regular and clearly expensive recomputations of the matrix. Similarly, even if a network is relatively small but an algorithm would require regular updates of the Moore–Penrose pseudoinverse matrix, incremental updates in the computations of the matrix would be desirable considering that most of the topology changes happens locally.
In the work by Ranjan et al. (2014), a method for the incremental computation of the Moore–Penrose pseudoinverse of the Laplacian in undirected graphs is proposed. First, they show that \(L^{+}\) can be efficiently computed through a rank(1) perturbation matrix, thus making L invertible, as
where \(J\in R^{n\times n}\) is a matrix of ones. Even if Eq. (3) incurs also \(O(n^{3})\) computational time, on Erdős–Rényi graphs this \(L^{+}\) computation is much faster than the one exploiting the MATLAB pinv standard command, which uses the singular value decomposition (SVD) to compute the pseudoinverse of matrices. Then, based on a divideandconquer approach, Ranjan et al. provide scalar forms for the computation of the elements of the pseudoinverse matrix through a twostage and incremental process, both in case of topology modification through (a) edge addition and (b) edge deletion. In this last case, since the graph breaks up into disjoint components, the approach provides the submatrices pseudoinverse elements as well.
In the following, we recall the equations provided in Ranjan et al. (2014) for computing incrementally the Moore–Penrose pseudoinverse matrix. We will use these expressions for the incremental computation of \(R_{G}\). This will help our algorithm proposal, both in case of link addition and link removal, to efficiently compute \(R_{G}\) when the topology is affected by an edge addition or removal without having to recompute \(L^{+}\) from scratch.
Given the graph G, we indicate with \(G + \{e_{ij}\}\) the modified graph when an edge e(i, j) is added to G and with \(G  \{e_{ij}\}\) the modified graph when a link is removed. The elements of the Moore–Penrose pseudoinverse matrix of the Laplacian of the modified graph can be computed incrementally as follows.
 Edge addition
Let \(l^{+}_{uv}\) and \(l^{+(1)}_{uv}\) denote the general entries of the Moore–Penrose pseudoinverses \(L^{+}\) of the Laplacian of G, and \(L^{+(1)}\) of the Laplacian of the modified graph \(G + \{e_{ij}\}\), respectively. According to Theorem 3 in Ranjan et al. (2014)
where \(\omega _{ij}\) is the resistance of the edge between i and j (i.e. the inverse of its weight \(w_{ij}\)) and \(R_{ij}\) is their effective resistance in G. The general term of \(L^{+(1)}\) is thus a linear combination of the elements of \(L^{+}\), requiring O(1) computations per element in \(L^{+(1)}\) if \(L^{+}\) is known.
 Edge removal
Let \(l^{+}_{uv}\) and \(l^{+(1)}_{uv}\) denote the elements of the Moore–Penrose pseudoinverses \(L^{+}\) of the Laplacian of G, and \(L^{+(1)}\) of the Laplacian of the updated graph \(G  \{e_{ij}\}\) when en edge is removed from G, respectively. In this case, there are two cases to address: the removal of a nonbridge edge which does not split into components the graph, and the removal of a bridgeedge whose removal yields to graph disconnection into two partitions.
According to Theorem 4 in Ranjan et al. (2014), when deleting a nonbridge edge:
According to Theorem 5 in Ranjan et al. (2014), upon deleting a bridgeedge \(e_{ij}\), we obtain two disjoint subgraphs \(G_{1}=(V_{1},E_{1})\) and \(G_{2}=(V_{2},E_{2})\) with pseudoinverses of Laplacians \(L^{+(1)}\) and \(L^{+(2)}\), respectively. The orders of these two subgraphs of the original graph G are \(n_{1}\) and \(n_{2}\), respectively. The expressions of the elements of the two submatrices are:
Optimising the effective graph resistance through link addition or link protection
According to Theorem 2.7 in Ellens et al. (2011), “the effective graph resistance strictly decreases when edges are added or weights are increased”. Conversely, this robustness measure increases upon link removal. Robustness could be thus optimised if the network graph is expanded with a new edge (i.e. minimizing \(R_{G}\)) or also reinforcing the link whose attack would maximize \(R_{G}\). As outlined in Wang et al. (2014), these strategies are suitable when network efficiency needs to be increased with new infrastructural connections.
In this paper, we thus consider the problem of optimizing the effective graph resistance for improving the network robustness from two points of view: (1) adding a link and (2) protecting the link whose removal would cause the maximum network damage. Given a graph G with \(E_{c}\) the set of \(m_{c}\) new links not included in E, we formally define the two distinct problems of enhancing robustness as follows.
Problem 1
(link addition). Find an edge \(e_{ij} \in E_{c}\) such that
for any other possible new edge \(e_{kl} \in E_{c}\).
Problem 2
(link protection). Find an edge \(e_{ij}\in E\) such that
for any other existing edge \(e_{kl}\in E\).
To solve the first optimization problem, in Pizzuti and Socievole (2018) we proposed a genetic algorithm, namely RobGA, a method able to optimize the effective graph resistance. In RobGA, each possible individual of a population P, that is a link, is represented through a vector of 2 elements, where each element represents the ID of the end node of the link. Through this simple representation and adhoc defined crossover and mutation genetics operators, we showed that RobGA is able to provide solutions that in most of the cases match the ones found by the exhaustive search both on realworld and synthetically generated networks. It is worth noting that exhaustive search checks all the solutions space to find which one offers the best effective graph resistance. Moreover, RobGA also showed a very good performance compared to a set of heuristics investigated in Wang et al. (2014). With an analogous methodology, in Pizzuti and Socievole (2019) we solved the problem of link protection through RobLPGA, a genetic algorithm looking for the link to protect for optimizing the effective graph resistance. In this case, we used the same individual representation and fitness function used in RobGA, but crossover and mutation operators were redefined in order to adapt them to existing links.
However, both methods require the computation of the effective graph resistance every time a possible solution, a new link to add or an existing link to protect, is evaluated. In other words, when the genetic algorithm tests an individual \(e_{ij}\), the effective graph resistance needs to be recomputed on \(G + \{e_{ij}\}\) or \(G  \{e_{ij}\}\), for Problem 1 and Problem 2 respectively. This means recomputing the Laplacian of a graph at each generation T for each element e of the population P, requiring \(T \times P\) times. Over these schemes, \(R_{G}\) is computed through Eq. 2 and hence, through the eigenvalues of the Laplacian of the modified graph, which has a complexity order of \(O(n^{3})\). The overall complexity of the methods is thus \(O( T \times P \times n^{3})\), i.e. \(O(n^{3})\). It is worth noting that executing the methods over large networks leads to a notable increase of the computational time especially when using large population sizes. In this case, it would be preferable avoiding recomputing \(R_{G}\) all over again.
To overcome this drawback, the incremental computation of \(R_{G}\), detailed in the previous section, can be a viable alternative to improve the performance of the two methods. In the following subsections, we describe how we solve the two aforementioned robustness optimization problems by using a more computationally efficient implementation of the effective graph resistance, by leveraging on the approach proposed by Ranjan et al. (2014) and the previous schemes RobGA and RobLPGA. We call these two approaches RobGA{\(L^{+}\)} and RobLPGA{\(L^{+}\)}.
RobGA{\(L^{+}\)}
RobGA{\(L^{+}\)} is an improved version of RobGA, initially proposed in Pizzuti and Socievole (2023). Like RobGA, this genetic algorithm creates a population of P individuals where each individual represents a nonexisting edge. Each individual/chromosome that is an edge \(e_{ij}\not \in E\) is represented as a vector of 2 genes where each element contains the value i and j, respectively. The crossover operator, given two parents \(e_{1}=e_{i,j}=(i,j)\) and \(e_{2}=e_{kl}=(k,l)\), combines them to generate a child \(e_3\) such that the corresponding edge obtained by rewiring the parent nodes does not exist. Finally, given an individual \(e_{ij}\), the mutation operator disconnects i from j and connects it to one of its neighbors chosen at random.
Differently from RobGA, the method exploits Eq. 1 and the Moore–Penrose pseudoinverse for computing the effective resistances of the links and then sums them for obtaining \(R_{G}\). Each effective resistance \(R_{ij}\) is computed in terms of the Moore–Penrose pseudoinverse matrix elements through Eq. 4. In this way, the general Laplacian element of the augmented graph, \(l_{uv}^{+(1)}\), is computed using the corresponding Laplacian element previously computed over the graph without the edge (i, j). It is worth noting that when initially computing \(R_{G}\) on the input graph, we do not use the MATLAB pinv function but the approximate formula given by Eq. 3 to further speed up the computation.

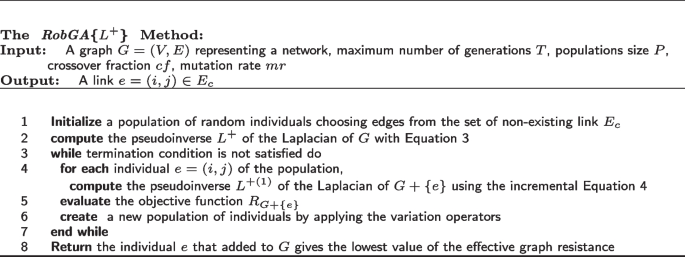

In Fig. 1, the pseudocode of the algorithm is presented. RobGA{\(L^{+}\)} receives in input a graph G, a maximum number of generations T, the populations size P and the genetic parameters crossover fraction cf and mutation rate mr. It initializes the population by randomly choosing P chromosomes that are nonexisting links. Initially, the Laplacian \(L^{+}\) of G is computed. The elements of this matrix will be later used in the incremental computation of the Laplacian. Then, for each of the T generation, for each link e of P, the pseudoinverse of the Laplacian of \(G+\{e\}\) is computed and the fitness function (i.e. \(R_{G+\{e\}}\) computed with Eq. 1) is evaluated. After this, the algorithm creates a new population of individuals by applying crossover and mutation. At the end, the individual with the lowest value of \(R_{G+\{e\}}\) is returned.
RobLPGA{\(L^{+}\)}
With a similar logic, we solve Problem 2 by proposing an improvement of RobLPGA based on the incremental computation of \(R_{G}\). We call this new method RobLPGA{\(L^{+}\)}. RobLPGA{\(L^{+}\)} is a genetic algorithm sharing with RobLPGA individuals representation, adhoc genetic operators and effective graph resistance as the fitness function to maximize. Even when removing a link, the computational complexity depends by the fitness computation. In the case of RobLPGA, it required the computation of the eigenvalues of the Laplacian matrix every time a link to remove was tested and for each generation, that is \(O( T \times P \times n^{3})\). In RobLPGA{\(L^{+}\)}, \(R_{G}\) is computed through Eqs. 5, 6 and 7, if the removed link is a nonbridge edge or a bridgeedge, respectively. In the first case, the elimination of a link does not disconnect the graph into components. In the second case, when a link removal splits the graph into components, the two components have two separate Moore–Penrose pseudoinverse matrices. In this case, for simplifying the search, we consider an infinite value for the effective graph resistance and hence a bridgeedge as the optimal solution. In Fig. 2, the various steps of the algorithm are reported. It is worth noting that from the set of the existing edges, the algorithm only considers the links where nodes i and j have a degree greater or equal to 2 (step 4). This ensures that the evaluated link does not contain leaf nodes and as a result, the network traffic can flow toward other nodes. Protecting a link whose removal would disconnect just one node from the entire network, even if the resulting effective graph resistance is high, does not significantly impact network robustness if we consider that the rest of the network with \(n1\) nodes would still continue working.
Experimental setup
In this section, we describe the experimental setting used for the comparative evaluation of the robustness strategies. As simulation environment to implement and evaluate the strategies, we used MATLAB R2020a. In particular, for RobGA, RobGA{\(L^{+}\)}, RobLPGA and RobLPGA{\(L^{+}\)} we used the Genetic Algorithm solver implemented in the Global Optimization Toolbox by using as genetic parameters: \(P= 100\), \(T=300\), \(cf=0.9\) and \(mr=0.2\). In the following subsections, we describe the datasets, the other robustness strategies in comparison, and the performance indexes used.
Datasets
We consider both real and synthetic networks. The topological characteristics of such networks, alias (ID), number of nodes (n), number of links (m), average degree (<k>), average clustering coefficient (<C>), and density (D) are shown in Tables 1 and 2. Realworld networks are as follows.
Internet backbones:^{Footnote 1} we selected 5 graphs from the Internet Topology Zoo repository, where each node represents a BGP (Border Gateway Protocol) router and the edges between them their physical connections. Such networks often experience network attacks such as traffic reroute or blackholing.
Facebook ego networks: these are three friendship networks of Facebook users, where the Facebook users are the nodes and two users are considered connected if they are friends. Typically, Facebook graphs are composed of several ego networks (i.e. the user with its onehop friends connected to other egos through common friends). We only take into account the largest connected component (LLC) of each network and not the entire topology since there are isolated nodes/small components (i.e. 8 nodes in 3980, 2 nodes in 686 and 2 nodes in 3437). These online social networks are vulnerable to fake news propagation and profile hacking.
US power grid:^{Footnote 2} the nodes represent transformers, substations or generators of the Western States Power Grid while the links are the highvoltage transmission lines. Cascading failures and blackouts are very common on these complex networks.
Figure 3 shows one of the 5 Internet backbones, the ASNETAM, a network composed by 65 nodes and 77 links. The best link to add, in this case, is the link highlighted in green ([32 37]). This link ensures a minimum effective graph resistance of \(R_{G}+e(32,37)=5.38\times 10^{3}\). Without the addition of this link, \(R_{G}=6.005\times 10^{3}\). Figure 4 shows the Facebook Ego 3980: this network has originally 52 nodes (Fig. 4a) distributed over 4 components. We cut the components with few nodes and consider only the largest connected component depicted in Fig. 4b composed by 44 nodes and 138 links. The colored links are examples of links to protect whose removal would maximally increase the effective graph resistance.
In this paper, we also synthetically generated the following graphs.
Erdős–Rényi random graph given n nodes, this graph is created by randomly assigning a link to two nodes with probability or link density \(p_{c}\). The graph is connected if the density is greater than the critical threshold \(p_{c}\approx \ln (n)/n\).
Watts–Strogatz smallworld graph this graph is created through a twosteps process. First, a ring lattice with n nodes and mean degree 2k is generated: at this step each node is connected to k neighbors on either side. Then, each edge is rewired at random with probability p. Here, we use the following generation parameters: for \(n=128\) and \(n=256\), \(k=6\) and \(p=0.5\), for \(n=512\) and \(n=1024\), and \(k=10\) and \(p=0.5\).
Bárabasi–Albert power law graph starting from \(n_{0}\) nodes, this graph is generated by connecting at every time step t a new node j with with \(n_{k} \le n_{0}\) links to k neighbors. This is done with a probability \(p=d_{j}/2m_t\), where \(d_{j}\) is the degree of node j and \(m_t\) are the number of edges at time t. For 128nodes and 256nodes, we use \(n_{0}=5\) and \(n_{k}=2\), \(n_{0}=10\) and \(n_{k}=3\) for the other networks.
All these graph models have features that can be found in realworld networks. Erdős–Rényi graphs, for example, can model adhoc networks, collaboration networks and peertopeer networks. Social networks, contact networks built upon WiFi or Bluetooth encounters are often connected as smallworld Watts–Strogatz graphs. The degree distribution in the World Wide Web, to provide another example, obeys approximately a powerlaw.
Strategies for selecting a link
For analyzing our strategies, we compare them to other stateofthe art methods. We consider 4 strategies of link addition or removal (Wang et al. 2014) that optimize the effective graph resistance and take into account the topological or the spectral features of the graph: \(S_{1}\) Semirandom, \(S_{2}\) Degree Product, \(S_3\) Fiedler vector, \(S_{4}\) Effective resistance. In addition to the above strategies, the exhaustive search, that finds the optimal solution by checking all the possible links. is also evaluated. This can be also considered the worstcase scenario since the optimal link search analyzes all the possible new links, in case of link addition, or all the existing links in case of link removal. The main drawback of this strategy, however, is its complexity order which dramatically increases with n, having \(O(n^{5})\). In this subsection, we briefly describe the strategies adapted to the link addition case. It is worth noting that these strategies can be applied to the link removal as well, just considering as edge set E and not \(E_{c}\), and similarly, m instead of \(m_{c}\) as number of links. Let be e(i, j) the link to select. The contestant strategies work as follows.

\(S_{1}\): node i has the lowest degree and node j is picked at random. The computational cost is \(O(n^{2}n+m_{c}+1)\), with \(O(n(n1))\) the cost for computing the node degrees, \(O(m_{c})\) the cost for searching the node with the minimum degree and O(1) is required for selecting a random node.

\(S_{2}\): the product of the degrees \(d_{i}d_{j}\) between two nodes is the minimum. The complexity for \(S_{2}\) is \(O(n^{2}  n +2m_{c})\), with \(O(n(n1))\) for computing node degrees, \(O(m_{c})\) for their product and \(O(m_{c})\) for searching the minimum value of degree product.

\(S_3\): differently from the previous two strategies based on graph topology, this strategy analyzes the graph spectrum. Nodes i and j have the maximum difference \(y_{i} y_{j}\), where \(y_{i}\) and \(y_{j}\) are the ith and jth elements of the Fiedler vector y. The complexity of \(S_3\) is \(O(n^{3}+2m_{c})\), where \(O(n^{3})\) is required for the Fiedler vector computation, \(O(m_{c})\) for the difference \(y_{i} y_{j}\) of the \(m_{c}\) links, and \(O(m_{c})\) for searching the maximum of the difference.

\(S_{4}\): the nodes i and j have the maximum effective resistance \(R_{ij}\), computed as in Eq. (1). The complexity of \(S_{4}\) is \(O(n^{3}+4m_{c})\), where \(O(n^{3})\) is needed for computing the Moore–Penrose pseudoinverse \(L^{+}\), \(O(3m_{c})\) for \(R_{ij}\) for the \(m_{c}\) links, and \(O(m_{c})\) for finding the highest effective resistance value.
Performance indexes
The strategies are compared by measuring the following performance indexes.

Percentage Error the percentage relative error between strategy \(S_{x}\) and the exhaustive search (*) in terms of effective graph resistance measured on the graph G modified with the addition or the removal of a link.
$$\begin{aligned} \Delta {R_{G}}=\left \frac{R_{G}^{S_{x}}R_{G}^*}{R_{G}^*} \right *100 \end{aligned}$$(10)
Speedup the ratio between the time required to run the strategy \(S_{x}\) and the strategy \(S_{y}\).
$$\begin{aligned} Speedup=\frac{t_{sim}^{S_{x}}}{t_{sim}^{S_{y}}} \end{aligned}$$(11)
If the speedup has a value greater than 1, this means that \(S_{y}\) is faster than \(S_{x}\). More precisely, if the speedup value is n, strategy \(S_{y}\) is characterized by an nfold speedup.
Results
In this section, we report the findings of the comparative evaluation of the different strategies. In the first subsection, we first briefly recall the results of RobGA{\(L^{+}\)} obtained in our previous work (Pizzuti and Socievole 2023) by extending the discussion highlighting the strong points of the proposed scheme. Then, we discuss new results of further simulations carried on the algorithm which investigate the relationship between population size and speedup, and population size and percentage error. In the second subsection, we describe the results obtained with RobLPGA{\(L^{+}\)}.
Link addition
Table 3 shows the results of the performance comparison between the 4 strategies, RobGA and RobGA{\(L^{+}\)}, over the realworld networks in terms of percentage error \(\Delta {R_{G}}\) between a strategy and the exhaustive search. For RobGA and RobGA{\(L^{+}\)}, the results are averaged over 10 runs of the algorithm. We do not report the values of standard deviations since they are negligible. For RobGA{\(L^{+}\)} we report two values between braces, first the minimum value of \(\Delta {R_{G}}\) and then its average value.
The percentage error of RobGA over the Internet backbones BS, AA, ITC, ION and USC is the lowest compared to the other strategies. For the networks BS, AA and ION, in particular, the genetic algorithm has an average \(\Delta {R_{G}}\) value equal to 0 meaning that it is able to find the same optimal link provided by the exhaustive search (see Table 4). The approximation introduced by RobGA{\(L^{+}\)} in the computation of \(R_{G}\) definitely results in a good performance: the average error is always less than any other strategy and in the best case, it matches the exhaustive search performance (UTC, AA, ITC).
A similar behavior has been found over Facebook networks: on network 3980, for example, the exhaustive search finds link [36 42], the same holds for \(S_{4}\), RobGA and RobGA{\(L^{+}\)}. Also on networks 686 and 3437 the approximation of RobGA{\(L^{+}\)} works well being the second best in the strategies ranking.
The values of \(R_{G}\) on the US Power Grid are reported in Table 5. Considering that the number of nonexisting edges is \(1.2\times 10^{7}\), the strategies are compared just using the effective graph resistance value since the computational time required by the exhaustive search is prohibitive. Also, \(S_{4}\) requires high computational time, for this reason, its \({R_{G}}\) is not computed. RobGA is again the top performing method followed by RobGA{\(L^{+}\)}.
The results for the synthetic networks are shown in Tables 6, 7 and 8. For each network type, 10 network samples have been generated and the genetic algorithms have been executed 10 times. Table 6 compares the strategies in terms of average percentage error over the 128nodes networks. The best performance is achieved by RobGA, while its approximation, RobGA{\(L^{+}\)} has an error a bit higher if compared to the other strategies. However, despite the lower performance of RobGA{\(L^{+}\)} over ER_128 and WS_128 networks in terms of error, its computational time is lower, much more lower when compared to \(S_{4}\). Table 7 shows the average speedup as the number of nodes increases: RobGA{\(L^{+}\)} is faster than its contestant strategies, especially over large networks. On the Erdős–Rényi networks with 1024 nodes, for example, RobGA{\(L^{+}\)} is around ten times faster than RobGA and even 1097 times faster than \(S_{4}\). As the network size increases, \(S_{4}\) would not be a suitable choice due to its computational cost, RobGA{\(L^{+}\)}, on the contrary, would be the best compromise between the percentage error value of effective graph resistance and execution time.
In a new experiment (Table 8), we analyzed more in deep the behavior of the speedup of RobGA{\(L^{+}\)} over RobGA. In the experiment of Table 7, one can observe that the advantage of the approximation is more noticeable on the largest networks and with respect to \(S_{4}\). For this reason, we compared RobGA{\(L^{+}\)} and RobGA measuring the speedup and the average percentage error on synthetic networks with 128 nodes as the population size varies. Generally, as the number of individuals of the genetic algorithm increases, the space of the solutions increases thus leading to better results. As expected, on the Erdős–Rényi networks, for example, with a population of 300 individuals, we found that the speedup of RobGA{\(L^{+}\)} over RobGA improves, achieving 2.726 while with a population of 100 the value was 1.984. Moreover, the error improves as well with a value of 0.085, in contrast to the previous value of 0.103. As the population size increases to 500, the speedup and the error improve accordingly. The advantage of increasing the population size is also visible on Watts–Strogatz and Bárabasi–Albert networks. We can thus conclude that the population size parameter has an important impact on the performance of the approximation and can help to improve RobGA{\(L^{+}\)} behavior.
Link protection
Table 9 compares the various strategies in terms of percentage error \(\Delta {R_{G}}\) when robustness is achieved through link protection. In this case, we analyze RobLPGA and RobLPGA{\(L^{+}\)} versus \(S_{1}\), \(S_{2}\), \(S_3\), and \(S_{4}\). For this experiment, we focused only on synthetic networks since the more sparse structure of the realworld networks with many leaf nodes leads the various strategies to often select links that disconnect the network into a main giant component and an isolated node. Theoretically, \(R_{G}\) is maximized since the network is disconnected, but in practice, protecting a link whose removal would result in isolating a node is less meaningful than situations in which the removed links disconnect dense network areas. Note in Tables 1 and 2 that the considered realworld networks have overall a low average node degree around 1 and an average density lower than the realworld networks. ION, for example, has 125 nodes, average degree 1.168 and density 0.019, while 128nodes Erdős–Rényi networks have average density 5.23 and density 0.041.
With the aforementioned network topologies, RobLPGA selected always a link disconnecting the network, resulting in infinite values of the effective graph resistance, as shown in Pizzuti and Socievole (2019). In this case, we can not compute an average percentage error of \(R_{G}\). As such, here we consider only synthetic networks also for this further reason. Differently from the link addition case, the error introduced by the approximation is lower on the Erdős–Rényi networks but sensibly higher on the Bárabasi–Albert networks as it can be observed in Table 9. RobLPGA is always the best performing, with \(S_{4}\) the second best. However, when looking at the speedup of Table 10, RobLPGA{\(L^{+}\)} is faster than RobLPGA and much faster than \(S_{4}\) as in the link addition case. Differently from this last case, the entity of the decrease in simulation time varies.
Compared to RobLPGA, RobLPGA{\(L^{+}\)} is faster but this does not seem to scale with the increase in the number of nodes. This happens because the population size is always 100 even if n increases, and this lets the algorithm work always on a subset of 100 existing links. In the link addition case, the 100 links of the population were nonexisting and, thus, extracted from a wider solution space. As the number of nodes increases, there is more variability in the population and hence, a higher probability of selecting a link giving a better effective graph resistance value.
Compared to \(S_{4}\), RobLPGA{\(L^{+}\)} is much faster and the speedup increases with the number of nodes because \(S_{4}\) does not work only on a subset of 100 existing links and this requires more simulation time as n increases.
Table 11 makes a comparison between RobLPGA and RobLPGA{\(L^{+}\)} in terms of speedup and \(\Delta {R_{G}}\) as the population size varies from 100 to 300 and 500. The approximations benefit from the increment in population size providing faster solutions with lower errors. As the population size increases, both the two performance indexes improve.
Conclusion and further works
We introduced two robustness optimization methods based on the effective graph resistance measure of a graph. The two methods, namely RobGA{\(L^{+}\)} and RobLPGA{\(L^{+}\)}, improve this robustness measure by either adding a link or protecting a link in a computationally efficient way through the Moore–Penrose pseudoinverse matrix of the Laplacian of the graph. We presented a comparative analysis of 6 different singlelink addition/removal strategies on both realworld and synthetically generated networks with the goal of evaluating the more efficient strategy.
The results we obtained are promising: indeed, the proposed methodology of optimizing the effective graph resistance through a genetic algorithm outperforms the other strategies and in some cases equals the exhaustive search. Moreover, computing the effective graph resistance through an approximation based on the Moore–Penrose matrix provides a higher speedup, especially on large networks, and results closer to those provided by the exhaustive search. Reducing computational costs by exploiting the approximate computation of the effective graph resistance value thus provides energyefficient approaches while preserving good performance results. In the context of the very recent research activity of Green Artificial Intelligence that aims to design new methods that must take into account the saving of computation resources, our algorithms can be effectively extended to deal with dynamic networks that change their topology over time.
Further work will be devoted to the study of RobLPGA{\(L^{+}\)} on network topologies where the candidate link to be removed is a bridgeedge. This aspect needs further investigation since an open question is how to compare the value of effective graph resistance of two bridgeedge solutions, since a bridgeedge solution splits the graph into two components providing a graph resistance value for each subgraph. Currently, we randomly choose one of these as the best solution but a more appropriate strategy would be maybe that one combining the values of the robustness of the subgraphs providing a cumulative measure.
