Discovering a change point and piecewise linear structure in a time series of organoid networks via the isomirror
Applied Network Science volume 8, Article number: 45 (2023)
Abstract
Recent advancements have been made in the development of cellbased invitro neuronal networks, or organoids. In order to better understand the network structure of these organoids, a superselective algorithm has been proposed for inferring the effective connectivity networks from multielectrode array data. In this paper, we apply a novel statistical method called spectral mirror estimation to the time series of inferred effective connectivity organoid networks. This method produces a onedimensional isomirror representation of the dynamics of the time series of the networks which exhibits a piecewise linear structure. A classical change point algorithm is then applied to this representation, which successfully detects a change point coinciding with the neuroscientifically significant time inhibitory neurons start appearing and the percentage of astrocytes increases dramatically. This finding demonstrates the potential utility of applying the isomirror dynamic structure discovery method to inferred effective connectivity time series of organoid networks.
Introduction
Detecting structural changes in time series of networks is central to many modern network science applications. However, due to the complexity of temporal network data and the myriad possible aspects for potential structural change, this problem can be daunting. For discovering underlying dynamics in time series of networks, Athreya et al. (2022) proposes theory and methods for representing temporal network structure with a curve, or ‘mirror’, in low dimensional Euclidean space, enabling the use of classical change point detection algorithms. In this paper, we estimate the mirror for a time series of brain organoid connectivity networks and subsequently identify change points. Because the mirror estimation method requires a 11 vertex correspondence for the networks across time, we first demonstrate that the putative 11 correspondence obtained directly from data collection is sufficiently accurate by comparing it to the vertex correspondence obtained via graph matching (Vogelstein et al. 2015). Thence, mirror estimation and manifold learning recovers a 1dimensional piecewise linear ‘isomirror’ representation, with an evident slope change. By using the change point detection algorithm from (Bücher et al. 2021) and break point estimation for piecewise linear models from (Muggeo 2017), we identify a change points neuroscientific significance coinciding with development stages.
We organize this paper as follows. In section "Organoids" we introduce our brain organoids data and the extraction of effective connectivity networks based on extracellular electrophysiology recordings. In section "Graph Matching" we define the graph matching problem and present the fast approximate assignment algorithm. In section "Discovering underlying dynamics in times series of networks" we introduce the mirror estimation method and relevant model assumptions. In the "Results" section we apply these methods to the time series of organoid networks and present the graph matching results and the change point detection results. We conclude the paper with a discussion.
Organoids
The brain organoids we consider are selforganizing structures composed of roughly 2.5 million neural cells. They are generated from human induced pluripotent stem cells (hiPSCs) (Muguruma et al. 2015). After growing for 6 weeks, they are plated in 8 wells of a multielectrode array (MEA) plate (Axion Biosystem, Atlanta,GA, USA). MEA contains 64 lowimpedance (0.04 MU) platinum microelectrodes with 30 µm of diameter spaced by 200 µm. Each well contains two or three organoids. Then, to characterize the functional development of the organoids, extracellular spontaneous electrical activity is recorded weekly using Maestro MEA system and AxIS Software Spontaneous Neural Configuration (Axion Biosystems) with a 0.1Hz to 5kHz bandpass filter. Then spikes are detected with an adaptive threshold crossing set to 5.5 times the standard deviation of the estimated noise for each electrode. Each time series consists of five minutes of recorded neural activity across 10 months and the data are recorded irregularly—not exactly once a week. Cortical organoids show low and sparse activity during the first 2 months with an average firing frequency of 0.5Hz, then they start exhibiting highly synchronized and stereotypical network activity which transitions into 2Hz and 3Hz rhythmic activity by 46 months. At later stages (6 to 9 months), the activity includes highrate spiking with peak of activity reaching a 20Hz pace and highly complex bursting behaviors with crossfrequency coupling (Puppo et al. 2021). A combination of principal component analysis and kmeans clustering is used to spike sort the multiunit activity from the 64 electrodes of each well. The average number of neurons detected in each well increases with the maturation of the organoids onto the electrodes, sometime reaching saturation after 6 months. Similar behavior is observed in all MEA wells. For example, the number of spikesorted neurons in one well is detected as 122, 160, 189, 174, 190 at 2, 4, 6, 8 and 10 months. The other well has 81, 160, 174, 171, 170 neurons detected at 2, 4, 6, 8, and 10 months.
To infer the effective connections between neurons—i.e., the adjacency matrices with neurons as vertices across time from the spike activity data—the algorithm proposed in Puppo et al. (2021) is applied. This algorithm uses a superselection rule to individuate and discard correlation peaks corresponding to apparent and indirect interactions, and reconstructs the effective connectivity of the network considering the remaining correlation delays. In the end, 45 effective connectivity networks on 127 vertices across 244 days are obtained. This is our time series of organoid networks.
Graph matching
Given a time series of networks \(G_1,\cdots ,G_T\) on the same set of vertices V, a 11 vertex correspondence across all the networks facilitates joint spectral embedding, which is a key step in the mirror estimation method we will present in the next section, “Discovering underlying dynamics in time series of networks”. Such a vertex correspondence may be available a priori in labeled networks, or it can be inferred from unlabeled networks. This inference problem—the socalled graph matching problem—is to find an alignment of vertices between two graphs such that the corresponding edge differences are minimized. We denote A, B as two \(n \times n\) adjacency matrices for two graphs with n vertices each. Then the graph matching problem is to find the permutation matrix P that maximizes the objective function
for \(P \in \mathcal {P}\) where \(\mathcal {P} = \{P \in \{0,1\}^{n\times n}: P^{\top }\textbf{1}=P\textbf{1}=\textbf{1} \}\), \(\textbf{1} = (1,1,...1)^{\top }\), and \(\cdot _F\) denotes the Frobenius norm. This formulation is equivalent to maximizing
Because solving this optimization problem is combinatorically difficult, approximation algorithms have been proposed. We use the Fast Approximate Quadratic (FAQ) assignment algorithm (Vogelstein et al. 2015) to obtain an approximate solution. FAQ iteratively finds a local solution to the relaxed problem—expanding the constraint set to the convex hull of \(\mathcal {P}\)—and then projects the solution back to \(\mathcal {P}\), and has been shown empirically to be competitive with or superior to other stateofart methods. In Section Results we use FAQ to demonstrate that the given putative 11 correspondence for each pair of networks is close to the solution to the corresponding graph matching problem.
Discovering underlying dynamics in time series of networks
To discover the underlying dynamics in time series of networks, we use the model and method proposed in Athreya et al. (2022). First we introduce the generative joint model for time series of networks. We consider T networks, each containing n vertices, with adjacency matrices \(A_t\), \(t \in \{1,2,...,T\}\). In the model, each vertex is associated with a time varying ddimensional latent vector. These vectors \(X_t\) are each one realization from a stochastic process, called the latent position process (LPP)—each \(X_t\) is a ddimensional random variable. For n vertices, we generate n i.i.d. samples from the LPP, which collection then forms the latent position matrices \(\{\textbf{X}_t\}\), where \(\textbf{X}_t \in \mathcal {R}^{n \times d}\) for \(t \in \{1,2,...,T\}\). The connection probability between vertex i and vertex j at time t is the inner product of the associated latent vectors at time t. That is \(\mathbb {E}(A_t)=\textbf{X}_t\textbf{X}^T_t\). Note that each network corresponds to a latent position random variable. Thus we can capture the distance between graphs using the corresponding random variables. We define the distance
where \(\mathcal {O}^{d \times d}\) is the set of orthogonal transformation matrices with dimension d. When \(X_t\) and \(X_{t'}\) are centered, the \(d_{MV}\) distance can be interpreted as the maximum directional variation for the random vector \(X_t  WX_{t'}\), where W is an orthogonal transformation used to align \(X_t\) and \(X_{t'}\). We evaluate this distance for every pair of random variables in the LPP and obtain a \(T \times T\) distance matrix \(\mathcal {D}\). Then we apply classical multidimensional scaling (MDS) (Torgerson 1952) to \(\mathcal {D}\) to get a lowdimensional Euclidean representation of underlying network structure, called the \(mirror\), \(\{\psi (t)\}\). In practice, the LPP is unknown and only network realizations \(\{A_t\}\) are observed. For the \(n \times n\) symmetrized adjacency matrix \(A_t\), we use adjacency spectral embedding (ASE) (Athreya et al. 2018) to obtain \(\hat{\textbf{X}}_{t} = U \Sigma ^{1/2}\), where the diagonal matrix \(\Sigma\) contains the top d eigenvalues of \(A_t\) and U contains the associated eigenvectors. Then we use
to estimate the pairwise distance between networks, yielding \(\hat{\mathcal {D}}\). Applying MDS to \(\hat{\mathcal {D}}\) yields the mirror estimate \(\{\hat{\psi }(t)\}\). When the mirror exhibits a manifold structure, we can further simplify the change point detection problem by applying the manifold learning method isometric mapping (ISOMAP) (Tenenbaum et al. 2000) to \(\{\hat{\psi }(t)\}\). This yields the isomirror, which captures the geodesic distance along the mirror and preserves it in lower dimensions with Euclidean distance. Subsequent inference is then performed using the isomirror representation. For convenience, the isomirror representation will also be denoted as \(\{\hat{\psi }(t)\}\).
Results
Time series of organoid networks data
All results in this section are based on data collected from well 8. For analogous results from well 5, please refer to the Appendix. For well 8, the time series of organoid networks consists of 45 time stamps \(\{1,2,...,45\}\); each time stamp corresponds an effective connectivity graph \(G_t\) with adjacency matrix \(A_t\). Each graph is directed, weighted, and hollow. We symmetrize the directed graphs, and use ranks in place of the raw edge weights. All graphs have the same vertex set \(V= \{1,2,...n\}\) with \(n = V=127\), although some of the graphs contain isolated vertices. See Fig. 1.
Putative 11 correspondence
For this time series of organoid networks, inferred neuron location gives a putative 11 vertex correspondence across the graphs. We assess this correspondence via graph matching using the objective function value (OFV) f(A, B; P). The OFV for the putative 11 correspondence is given by f(A, B; I) where I is the identity matrix. We denote the FAQ output for matching adjacency matrices A and B initialized at C as \(P_{A,B;C}\). Typically we choose the barycenter \(b= \frac{\textbf{1}\textbf{1}^T}{n}\) as the initial point. For all times \(i \in \{1,2,...44\}\), we consider \(A_i\), \(A_{i+1}\) and FAQ yields \(P_{A_i,A_{i+1};b}\) (denoted \(P_{i,i+1;b}\) for short). In Fig. 2 we compare \(f(I) = f(A_i,A_{i+1};I)\) and \(f(P_{i,i+1;b}) = f(A_i,A_{i+1};P_{i,i+1;b})\). Although \(f(P_{i,i+1;b})\) is always larger than f(I), the two OFVs are close to each other for all time stamps, indicating that the putative 11 correspondence is close to FAQ’s solution.
To further asses the putative 11 correspondence, we consider a specific pair of adjacency matrices: \(A_{28}\), \(A_{29}\). We uniformly generate 100,000 random permutation matrices R and evaluate \(f(R) = f(A_{28},A_{29};R)\). We plot the histogram in Fig. 3. We also indicate \(f(A_{28},A_{29};I)\), \(f(A_{28},A_{29};P_{28,29;I})\), \(f(A_{28},A_{29};P_{28,29;b})\) and \(f(A_{28},A_{29};P_{28,29;R})\), where R are 100 randomly drawn permutation matrices. We see that the putative 11 correspondence performs better than all 100,000 instantiations of f(R) and is close to \(P_{28,29;b}\), \(P_{28,29;I}\) and \(P_{28,29;R}\). Thus we conclude that the putative 11 correspondence is sufficiently accurate, and we will proceed apace for mirror estimation and change point detection.
Change point detection
For the 45 graphs, time stamps are from 1 to 244, in days. We choose time stamps in [150,230] to avoid growth and death regimes.
For these graphs, we find the largest common connected component, which contains 112 vertices. The average number of edges for the largest common connected component is approximately 6130. We use the putative 11 vertex correspondence across time. We apply our mirror estimation method to this time series of networks, and ISOMAP manifold learning yields the 1dimensional representation of the dynamics \(\{\hat{\psi }_t\}\). We choose 10 time stamps shown in Fig. 4. As we see, the representation is approximately piecewise linear with an evident change of slope at \(t=4\), day 188.
Assuming the true underlying 1dimensional representation \(\psi (t), t \in [0,T]\), is piecewise linear and continuous, it is natural to define the change point \(t^*\) as the point when the slope changes. If we assume there is only one change point, then we can write

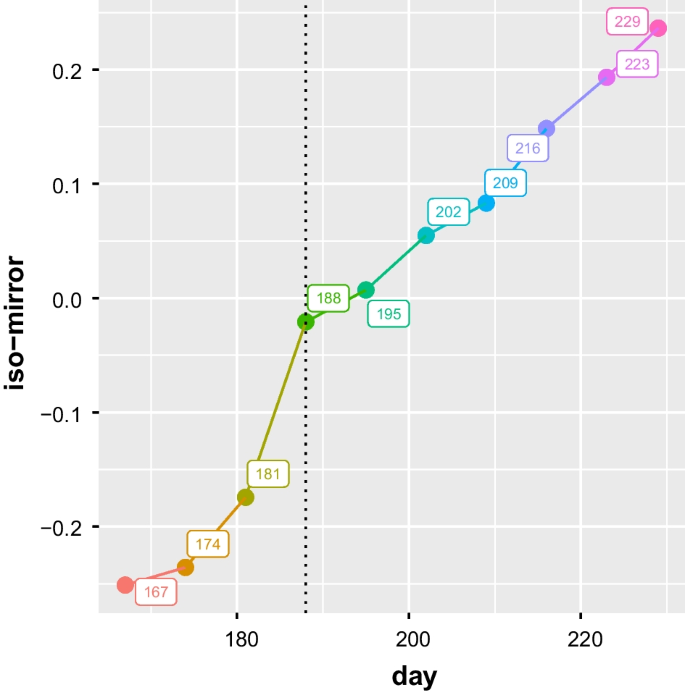

Both the change point detection algorithm from Bücher et al. (2021) and the break point estimation for piecewise linear models from Muggeo (2017) yield an estimated change point \(\hat{t^*}=4\), day 188, which coincides with neuroscientifically significant developmental changes—inhibitory neurons start appearing and the percentage of astrocytes increases dramatically—as described in Trujillo et al. (2019). Note that the emergence of astrocytes does not happen at once but builds over time, so there is no one precise date for the change point and detection of a time coinciding with this change can be but suggestive.
Conclusion
Reconstruction of effective connectivity networks of electrophysiologically active brain organoids reflect their structural (increasing number of neurons (nodes) and connections (edges)) and electrical development over time, as previously demonstrated in Trujillo et al. (2019).
By applying the spectral mirror estimation method to the time series of organoid networks, we obtain a 1dimensional isomirror representation of dynamic inferred effective connectivity organoid networks. Two change point detection algorithms successfully detect a change at day 188. At approximately 188 days (~6 months), cortical organoids start showing inhibitory neurons and the percentage of astrocytes increases from 5% to 30–40% (Trujillo et al. 2019) resulting in added complexity in the activity and network distribution of brain organoids.
There are several change point detection algorithms available for analyzing time series of graphs, including the one proposed in Wang et al. (2021). However, it is important to note that the spectral mirror estimation method used in our study is not restricted to change point detection alone. Instead, it provides a lowdimensional (in our case, onedimensional Euclidean) representation of network dynamics, enabling us to visualize network evolution. As illustrated in Fig. 4, we observe piecewise linear structure and apply segment regression to identify a significant increase in slope after day 188. This suggests that organoid graphs drift continuously over time, but their rate of drift accelerates significantly after day 188. Our method is preferred in this regard as it provides us with more than just one change point. Additionally, since the isomirror represents the underlying LPP, the detected change point in the isomirror reflects a fundamental change in the underlying generative LPP of the time series of networks, which may not necessarily correspond to any specific network measure. Furthermore, the spectral mirror method can be applied to other dynamic graphs that meet our model assumptions, namely that the time series of networks are generated from a time series of latent position random networks whose vertices have independent, identically distributed latent positions given by an LPP.
Future work includes addressing two major theoretical issues of note, to make the change point inference formally principled. First, the theory in Athreya et al. (2022) requires a known 11 vertex correspondence across time. It remains to study the effect of errors in this correspondence, such as those inherent in our putative 11 correspondence deemed sufficiently accurate for practical purposes. In addition, it remains to study the entrywise behavior of the error term \(\epsilon (t)=\hat{\psi }(t)\psi (t)\). For example: in Bücher et al. (2021) the proof of consistency of the change point estimator requires the error process to be stationary; in Muggeo (2017) the \(\epsilon (t)\) are assumed to be i.i.d. normal to construct a confidence interval for \(\hat{t^*}\). For now, Athreya et al. (2022) has shown that \(\hat{\psi }(t)\) converges to \(\psi (t)\) in Frobenius norm, that is \(\sum _{t=1}^T(\epsilon (t))^2 \rightarrow 0\) with high probability, which is insufficient to conclude normality or stationarity. What’s more, this convergence result is for the mirror rather than the isomirror. As for whether the same conclusion can be extended to the isomirror, further investigation is needed.
Availability of data and materials
The organoid data and code are available at https://github.com/youngser/organoid.
Abbreviations
 MEA:

Multielectrode array
 PCA:

Principal component analysis
 FAQ:

Fast approximate quadratic
 LPP:

Latent position process
 MDS:

Multidimensional scaling
 ISOMAP:

Isometric mapping
 ASE:

Adjacency spectral embedding
 OFV:

Objective function value
References
Athreya A, Fishkind DE, Tang M, Priebe CE, Park Y, Vogelstein JT, Levin K, Lyzinski V, Qin Y, Sussman DL (2018) Statistical inference on random dot product graphs: a survey. J Mach Learn Res 18(226):1–92
Athreya A, Lubberts Z, Park Y, Priebe CE (2022) Discovering underlying dynamics in time series of networks. arXiv preprint arXiv:2205.06877
Bücher A, Dette H, Heinrichs F (2021) Are deviations in a gradually varying mean relevant? A testing approach based on supnorm estimators. Ann Stat 49(6):3583–3617
Muggeo VM (2017) Interval estimation for the breakpoint in segmented regression: a smoothed scorebased approach. Aust N Z J Stat 59(3):311–322
Muguruma K, Nishiyama A, Kawakami H, Hashimoto K, Sasai Y (2015) Selforganization of polarized cerebellar tissue in 3d culture of human pluripotent stem cells. Cell Rep 10(4):537–550
Puppo F, Pré D, Bang AG, Silva GA (2021) Superselective reconstruction of causal and direct connectivity with application to in vitro ipsc neuronal networks. Front Neurosci 15:647877
Tenenbaum JB, Silva Vd, Langford JC (2000) A global geometric framework for nonlinear dimensionality reduction. Science 290(5500):2319–2323
Torgerson WS (1952) Multidimensional scaling: I. theory and method. Psychometrika 17(4):401–419
Trujillo CA, Gao R, Negraes PD, Gu J, Buchanan J, Preissl S, Wang A, Wu W, Haddad GG, Chaim IA et al (2019) Complex oscillatory waves emerging from cortical organoids model early human brain network development. Cell Stem Cell 25(4):558–569
Vogelstein JT, Conroy JM, Lyzinski V, Podrazik LJ, Kratzer SG, Harley ET, Fishkind DE, Vogelstein RJ, Priebe CE (2015) Fast approximate quadratic programming for graph matching. PLoS ONE 10(4):0121002
Wang D, Yu Y, Rinaldo A (2021) Optimal change point detection and localization in sparse dynamic networks
Funding
TC’s work is partially supported by the Johns Hopkins Mathematical Institute for Data Science (MINDS) Data Science Fellowship and Azure sponsorship credits granted by Microsoft’s AI for Good Research Lab.
Author information
Authors and Affiliations
Contributions
TC, ZL, AA, CEP developed the theory. ARM, FP, GAS provided the data. TC, YP, AS, BPD designed & implemented the methods. TC, YP conducted the experiments. TC, YP, CEP wrote the manuscript. WY, CW, JTV, CEP guided the whole process. All authors read and approved the manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
Not applicable
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Appendix
Appendix
Time series of organoid networks data for well 5
For well 5, there are 40 graphs with time stamps [1229] and all of them have the same vertex set with \(V=128\), although some of the graphs contain isolated vertices. See Fig. 5. Each graph is directed, weighted, and hollow. We symmetrize the directed graphs, and use ranks in place of the raw edge weights.
Putative 11 correspondence for well 5

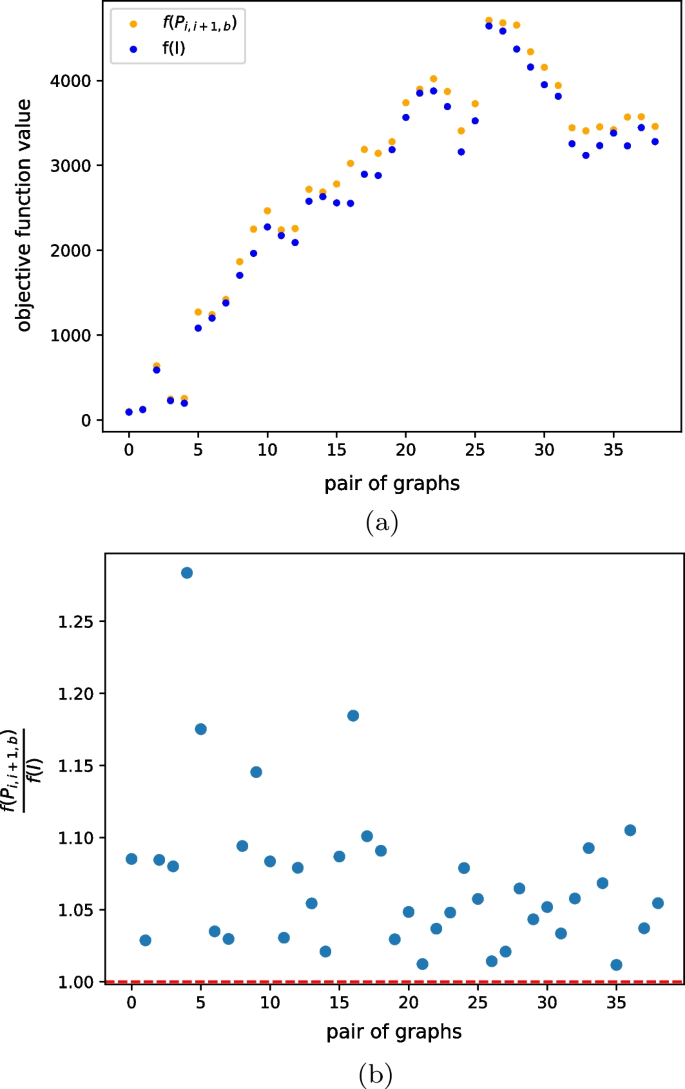

We assess the putative 11 correspondence exactly the same way as in the paper and Fig. 6 indicates that the putative 11 correspondence is close to FAQ’s solution.
