The interplay between communities and homophily in semisupervised classification using graph neural networks
Applied Network Science volume 6, Article number: 80 (2021)
Abstract
Graph Neural Networks (GNNs) are effective in many applications. Still, there is a limited understanding of the effect of common graph structures on the learning process of GNNs. To fill this gap, we study the impact of community structure and homophily on the performance of GNNs in semisupervised node classification on graphs. Our methodology consists of systematically manipulating the structure of eight datasets, and measuring the performance of GNNs on the original graphs and the change in performance in the presence and the absence of community structure and/or homophily. Our results show the major impact of both homophily and communities on the classification accuracy of GNNs, and provide insights on their interplay. In particular, by analyzing community structure and its correlation with node labels, we are able to make informed predictions on the suitability of GNNs for classification on a given graph. Using an informationtheoretic metric for communitylabel correlation, we devise a guideline for model selection based on graph structure. With our work, we provide insights on the abilities of GNNs and the impact of common network phenomena on their performance. Our work improves model selection for node classification in semisupervised settings.
Introduction
Graphs are ubiquitous forms of data, which are encountered in many domains such as social networks, the web, citation networks, molecule interaction networks, and knowledge bases. For many years, machine learning on graphs has been an essential area in research. The developments in this area have resulted in solving or elevating the state of the art of many graphrelated tasks, such as node classification (Kipf and Welling 2017), link prediction (Zhang and Chen 2018), and graph classification (Hamilton et al. 2017). One central task in this context is semisupervised node classification, which consists of predicting unknown node labels from node features and a few known node labels. The stateoftheart models for solving this task have predominantly been graph neural networks (GNNs) (Wu et al. 2019). However, recent works have shown that GNNs are typically limited to work only on homophilic graphs (Zhu et al. 2020), i.e., where adjacent nodes are more likely to share the same label and have similar features. Homophily, which is a common phenomenon in many realworld graphs (Peixoto 2021), yields the rise of community structure in these graphs (Dev 2016). Communities have an impact on information propagation in graphs. For example, community structure can form barriers for information propagation in graphs, which forms the basis of processing with GNNs (HasaniMavriqi et al. 2018). However, neither community structure nor its relationship with homophily is wellstudied in the context of GNNs.
Objective
We aim to extend our previous investigations (Hussain et al. 2020), in which we studied the impact of communities on GNNs. In the present paper, we go beyond community structure to study the impact of homophily, which plays a major role in forming communities in realworld graphs. Hence, we study the relationship between homophily and community structure, and their impact on the performance of GNNs in semisupervised node classification.
Approach
We design an evaluation methodology to study the impact of communities and homophily.^{Footnote 1} Our methodology is based on manipulating a diverse set of realworld graph datasets. We start by defining contributing factors to GNN performance: homophily and community mixing. We quantify these factors (“Contributing factors” section) using measures on structure and node properties. We apply data manipulation (in “Structure manipulation” section) to modify homophily and/or community structure in the graph datasets. To understand the impact of communities and homophily on GNNs, we study the change in classification accuracy of trained GNNs on the original and manipulated graphs.
Based on our observations, we derive a measure to quantify the correlation between communities and node labels, using the uncertainty coefficient (Press et al. 2007). We use this measure to predict whether GNNs are suitable for semisupervised node classification on a given graph dataset.
Findings
Our results show that homophily is the main contributing factor to the high accuracy of GNNs. Moreover, when community structure exists, it contributes to the performance of GNNs as it accelerates propagation between nodes of the same label when homophily exists. Furthermore, our results also suggest that small community structures (or subcommunities) act as barriers for propagation among nodes of the same class, and limit the GNN performance when homophily exists.
Contributions
Our contributions are twofold: (1) we provide an extensive study on the interplay between community structure and homophily and their impact on classification with GNNs, and (2) we propose to quantify the correlation between communities and labels using the uncertainty coefficient (Press et al. 2007), and show that this measure predicts the suitability of GNNs for graph data.
Our paper explains why GNNs do not work for heterophilic datasets and offers a guideline on the applicability of GNNs based on graph structure and node properties in the target graph. With our work highlighting the limitations of GNNs from the point of view of data (that is, homophily and communities), we hope to set the grounds for improved GNN models that account for the properties of the given data.
Communities and Homophily in GNNs
Preliminaries
Notations
Let \(G=(V,E)\) be a graph with a set of nodes V and a set of edges E. Let each node \(u \in V\) have a feature vector \(x_u \in {\mathbb {R}}^d\), where d is the feature vector dimension; and a label \(y_u \in {\mathcal {L}}\), where \({\mathcal {L}}\) is the set of labels.
Graph neural networks
GNNs are multilayer machine learning models, that operate on graphs. They follow a message passing and aggregation scheme where nodes aggregate the messages that are received from their neighbors and update their representation on this basis. In a GNN with K hidden layers (with the input layer denoted as layer 0), each node u has a vector representation \(h_u^{(k)}\) at a certain layer \(k \le K\) of dimension \(d_k\). The transformation from a layer k to the next layer \(k+1\) (as defined in Xu et al. 2019) is performed by updating the representation of each node u as follows:
where \({\mathcal {N}}(u)\) is the set of neighbors of u. The AGGREGATE function takes an unordered set of vectors, each of dimension \(d_k\), as an input and returns a single vector of the same dimension \(d_k\), e.g., elementwise mean or max. The COMBINE function combines the representation of u in layer k with the aggregated representation of its neighbors, e.g., a concatenation followed by ReLU of a linear transformation \(\text {COMBINE}(h,a) = \text {ReLU}(W.[h,a])\). We set the representation of u in the input layer to the input features: \(h_u^{(0)} := x_u\). In classification problems, the dimension of the last layer \(d_K\) equals the number of labels in the graph \({\mathcal {L}}\).
Semisupervised learning on graphs
Semisupervised learning aims to exploit unlabeled data in order to generate predictions given few labeled examples. In node classification, where the groundtruth classes of few nodes are given, semisupervised learning exploits the unlabeled nodes as well as the network structure to obtain accurate predictions. Many semisupervised classification methods on graphs assume that connected nodes are more likely to share their label and features (Li et al. 2018; Zhu et al. 2020), which is referred to as homophily. Based on this assumption, approaches to solving this task usually aim to propagate node information along the edges. Earlier related approaches (Sen et al. 2008; Zhu et al. 2003) focused on propagating label information from labeled nodes to their neighbors. In many applications, however, graph nodes are associated with feature vectors, which GNNs utilize. GNNs achieved a significant improvement over the state of the art since they can effectively harness the unlabeled data, i.e., graph structure and node features.
Homophily
Homophily in graphs with labeled nodes is the tendency of adjacent nodes to have the same label. The opposite case, heterophily, is the tendency of adjacent nodes to have different labels. We use the terms homophilic graphs and heterophilic graphs to describe graphs, respectively, where the homophily holds and where heterophily holds.
Mutual interplay
Homophily and GNNs
The GNN update rule in Eq. 1 is seen as a form of (Laplacian) feature smoothing (Li et al. 2018) as it combines the feature vector of a node with the feature vectors of its neighbors. Feature smoothing results in neighboring nodes having similar vector representations. Therefore, for a homophilic graph, feature smoothing potentially results in node vector representation that matches the node labels. However, for a heterophilic graph, the propagation in Eq. 1 can cause nodes to have similar vector representations even if their labels are different. It is widely accepted that classifiers achieve better accuracy when similar vector representations tend to have the same labels.
Cluster assumption
Communities are densely connected subgraphs, and they are common in empirical graphs including social, citation, or web graphs. The existence of communities directly affects information propagation in graphs (Cherifi et al. 2019; HasaniMavriqi et al. 2018). As communities are densely connected, the feature smoothing performed by the update rule in Eq. 1 tends to make nodes within the same community have similar vector representations. The dense intracommunity connectivity also causes the homophily to generalize to the community level, which means that nodes within the same community tend to share the same label. This is usually referred to as the cluster assumption (Chapelle et al. 2009) in semisupervised learning. As a result, for a homophilic graph, GNNs cause nodes with the same label to have similar vector representations simplifying the classification task on the resulting vector representations. Li et al. (2018) hypothesize that this alignment of communities and node labels is the main reason why GNNs elevate stateoftheart performance on the classification task. In this paper, we aim to experimentally test this hypothesis on eight datasets from different domains and with varying characteristics.
In the heterophilic case, which is often overlooked in the literature, a community has a variety of labels. The feature propagation between nodes of the same community would therefore result in feature smoothing for nodes with different labels. This eventually makes the classification task harder since representation similarity does not imply label similarity in this case.
In summary, theory and literature show that homophily, as well as community structure, have a direct impact on learning with GNNs. In this paper, we set out to study the impact of these factors^{Footnote 2} and the relationships between them.
Methods
With the discussion above, we showed two main factors in the graph data that contribute to the performance of GNNs. In our study, we aim to investigate these factors and their impact on classification with GNNs. Our methodology is based on manipulating these factors in the graph structure and observing the GNN response to this manipulation.
We first show how we quantify these factors, and we subsequently describe how we manipulate graph data.
Contributing factors
Homophily.
We measure the homophily in a labeled graph as the fraction of edges that link nodes of the same label together. It is computed as follows
Community structure
To quantify this factor, we first perform community detection using the widelyused Louvain method (Blondel et al. 2008)^{Footnote 3} for community detection. Then we compute the community mixing parameter on the resulting partition. Community detection partitions the graph into a set of disjoint communities \({\mathcal {C}}\). The mixing parameter of a community partition is defined as the fraction of edges that connect nodes from different communities
where \(C(u)\in {\mathcal {C}}\) is the community of node \(u \in V\). For a typical community partition, the lower this measure is, the more pronounced the community structure is. For example, \(\mu =0\) indicates that each community corresponds to one or more connected components. If the value of \(\mu\) is greater than 0.5, the majority of links are intercommunity links, which is unrealistic for a modular community partition of a realworld network.
By looking at Eqs. 2 and 3, we can notice that mixing resembles the heterophily of community memberships. In other words, if community memberships were completely analogous to node labels, then \(h + \mu = 1\).
Structure manipulation
After establishing the intuitions behind the role of communities and homophily, we aim to show their impact experimentally. To achieve this, we evaluate five popular stateoftheart GNN models on eight empirical datasets. Subsequently, we reevaluate these GNN models on the same datasets after manipulating their structures. In particular, we perform the following types of manipulation where we intend to increase/decrease the homophily/mixing of the original graphs.
Increasing homophily (\(Hom^+\))
To increase the homophily in a given graph, we build a new graph given nodes labels in the original graph. In this newly built graph, nodes of the same label are likely to link together regardless of their features or position in the original graph. To achieve this, we build a graph using a stochastic block model (SBM) (Holland et al. 1983), where blocks correspond to labels. In the stochastic block matrix, we set the values in the diagonal to be (relatively) higher than other values in the matrix (we provide details on building this matrix in “Appendix 7”). This implies a high edge density among nodes with the same label and low edge density among nodes of different labels, i.e., high homophily. The resulting graphs also have a defined community structure (stemming from the high density within labels), but it does not necessarily match the original community structure. Since homophily is intentionally high in the resulting graph, we expect GNNs to have very high accuracy on \(Hom^+\) graphs.
Decreasing homophily (\(Hom^\))
To decrease the homophily in a given graph, we perform random edge rewiring. We achieve this with the configuration model (CM) (Newman 2003), where we rewire the graph using all nodes together. Since the rewiring is completely random, we expect the resulting graph to be completely useless for GNN classification. In addition to decreasing homophily, this manipulation also affects the community structure, causing a major increase in the mixing parameter. This graph preserves the degree sequence of the original graph.
Increasing mixing (\(Mix^+\))
In this manipulation, we intend to loosen the community structure—eventually increasing the mixing parameter—without significantly changing homophily. To achieve this, we first partition the nodes based on their labels into disjoint sets. We take each induced subgraph from each of the resulting sets, and we rewire its edges randomly using the configuration model (CM) (Newman 2003). With this process, we perform rewiring within labels, preserving homophily and destroying subcommunities formed among nodes with the same label in the original graph. As a result, the propagation becomes faster between nodes of the same label, and hence we expect the impact of high homophily to be stronger on GNNs. For example, if the original graph is homophilic, this manipulation will help nodes of the same label to gain similar representations, and hence a better GNN performance. Since obtaining better performance by destroying some communities sounds counterintuitive, we look more into that later in “Destroying subcommunity structure” section.
Decreasing mixing (\(Mix^\))
In this manipulation, we intend to tighten the existing community structure, eventually decreasing the mixing parameter. We perform graph reconstruction based on communities and regardless of each node’s label or feature vector. To achieve this (more details in “Appendix 7”), we use SBM (Holland et al. 1983) where blocks refer to communities in the original graph. As a first step, we perform community detection on the original graph using Louvain method (Blondel et al. 2008), which partitions the graph into sets of disjoint communities \({\mathcal {C}} = \{c_1,c_2,\ldots ,c_{{\mathcal {C}}}\}\). Second, we build a stochastic block matrix where each element i, j represents the edge density between nodes from \(c_i\) and \(c_j\) in the original graph. We artificially increase the density of each community by increasing the values in elements i, i by \(50\%\), and decreasing the elements \(i,j: i \ne j\) by \(50\%\). Finally, we build a graph from this matrix using the stochastic block model. The resulting graph should strengthen (or tighten) the existing community structure in the original graph but should result in a binomial degree distribution (Karrer and Newman 2011). These graphs should not significantly change the level of homophily in the original graph, i.e., we should obtain a “homophilic” graph if the original is “homophilic”, and vice versa. We expect the GNN performance on these graphs to be close to their performance on the original ones (regardless of whether the original are homophilic or not).
Lastly, we summarize the effect of each type of manipulation on data in Table 1. It is not possible to manipulate individual properties in the graph without affecting other properties. In our study, we try to monitor the change of these properties to guarantee the effect is minimal.
Evaluation
Datasets
To provide a better understanding of the roles of the studied factors, we aim for a diverse selection of datasets concerning homophily. Having this in mind, we use the datasets summarized in Table 2, divided into homophilic and nonhomophilic datasets. The nodes in these datasets represent bodies of text, such as web pages, Wikipedia pages, and scientific papers. Since GNNs depend on feature propagation (as shown in Eq. 1), we restrict our experiments to graphs with node feature vectors. The feature vectors in all studied datasets are binary vectors indicating the presence/absence of a word in the respective node. We do not assume any change in the graph structure (e.g., adding/removing edges/nodes) between the training phase and the testing phase.
Homophilic datasets
As graphs with high homophily, we use four well known citation datasets: CORAML, CiteSeer, PubMed and CORAFull. The label of a node in a citation graph represents the topic of the paper. Citations are expected to be denser among papers with similar topics than they would be between papers of different topics. For example, a publication about natural language processing more likely cites other natural language processing papers than humancomputer interaction papers. Therefore, one could intuitively expect that adjacent papers tend to share the same label.
Nonhomophilic datasets
For low homophily, we use a topic graph from Wikipedia (Squirrel), a Wikipedia cooccurrence network (Actor), and web pages graphs (Texas and Wisconsin).
The Squirrel (Pei et al. 2019) graph is a Wikipedia topic subgraph, where nodes represent pages, and edges represent links between pages. The five classes in this graph are based on average monthly traffic, a property that does not particularly imply homophily.
The Actor (Pei et al. 2019) dataset (induced from Tang et al. 2009) is a cooccurrence graph. Nodes correspond to actors, while edges correspond to their cooccurrence in Wikipedia pages. The nodes are assigned to five categories in terms of words of the actor’s Wikipedia. The classes, therefore, do not imply homophily.
Texas and Wisconsin graphs are two components from the WebKB (Craven et al. 1998) graph dataset. In these graphs nodes are web pages, edges are links, and labels indicate the type of the web page, i.e., course, faculty, project, staff, or student. In this case, one cannot intuitively assume that nodes within a graph community are expected to share a label. For example, a web page of a staff member more likely links to projects on which this staff member is working than to other staff members’ web pages.
GNN models
In our experiments, we study six GNN architectures that are widely used for semisupervised classification on graphs (a) Graph Convolutional Networks (GCN) (Kipf and Welling 2017), (b) Graph Sample and Aggregate (SAGE) (Hamilton et al. 2017), (c) Graph Attention Networks (GAT) (Veličković et al. 2018), (d) Simple Graph Convolutions (SGC) (Wu et al. 2019), (e) Approximate Personalized Propagation of Neural Predictions (APPNP) (Klicpera et al. 2019), and (f) Cluster Graph Neural Networks (CGCN) (Chiang et al. 2019).
We additionally compare these approaches to a simple featureonly baseline, namely, logistic regression, which ignores the graph structure and only uses the node features. GNNs benefit of both the graph structure and node features, while the featureonly baseline can only benefit of node features. For example, in datasets with a high number of features (comparing to nodes), it is expected that the featureonly baseline should have a high accuracy since it has access to a rich set of features. However, GNNs also have access to graph structure in addition to that rich set of features. Therefore, the comparison to this baseline can indicate whether a GNN model is useful for the classification task on the respective datasets, that is, whether GNNs can exploit the graph structure to increase the basleine perfromance. We show hyperparameter settings in “Appendix 7”.
Evaluation setup
While some original graphs in our dataset selection are directed, we treat all graphs as undirected by ignoring the edge direction (which is in the line with previous research Kipf and Welling 2017; Hamilton et al. 2017; Shchur et al. 2018). All of these graphs are preprocessed similarly as Shchur et al. (2018), i.e., removing nodes with rare labels and selecting the largest weakly connected component. Following the train/validation/test split strategy as in Shchur et al. (2018), each random split consists of 50 labeled examples per class (20 for training and 30 for validation), and the rest are considered test examples. This applies to all of our datasets except Texas and Wisconsin, where we use 10 training examples and 15 validation examples per class due to the fewer number of nodes. To evaluate the GNN models on the original graphs, we follow the evaluation setup close to Shchur et al. (2018) by having 10 random splits and randomly initializing model weights 10 times for each split. The same process is carried out to evaluate the featureonly baseline (logistic regression) model.
The evaluation is slightly different for the manipulated graphs since they include an additional level of randomization, and it goes as follows. For a manipulation type on one dataset, we generate 10 manipulated graphs with different random seeds. We evaluate each of these generated graphs through 5 different random splits and 5 times initializing model weights. As a result, the reported accuracy for a GNN architecture on the original graph is presented after training the GNN 100 times. Meanwhile, the reported accuracy of a GNN architecture on one of the manipulation types is presented for training the GNN 250 times per dataset, i.e., 10 randomly generated graphs \(\times\) 5 random splits \(\times\) 5 times of weight initialization.
Results
Manipulation impact on graphs
We introduced intuitions about the datasets and their properties previously in “Datasets” section. Next, we show the measurements of the two contributing factors we introduced in “Contributing factors” section on the original datasets, and on their manipulated versions. We present these measurements in Fig. 1. Comparing the original graphs to the manipulated ones in this figure, we notice the following.
\(Hom^+\) increases homophily for all datasets (as expected). For most datasets, it does not significantly change the mixing parameter. There are some cases where \(Hom^+\) decreases mixing, e.g., Actor.
\(Hom^\) decreases homophily for homophilic datasets to a relatively very low level. However, these graphs increase the mixing of the datasets thereby effectively destroying community structure. The rewiring does not decrease homophily for datasets, where the homophily is already low. This can be explained by some of these graphs being heterophilic (or antihomophilic). In this case, our manipulation decreases heterophily, e.g., Texas and Wisconsin. Other graphs where homophily does not change, that are Actor and Squirrel, can be neutral with respect to homophily. In other words, they are neither homophilic nor heterophilic, and random rewiring just results in a similar level of homophily.
\(Mix^+\) increases the mixing parameter, loosening the community structure and potentially causing faster feature propagation. It also keeps a very close level of homophily in general.
\(Mix^\) decreases the mixing parameter, tightening the community structure. It does change the homophily but not as significantly as \(Hom^+\) or \(Hom^\). \(Mix^\) decreases the homophily for the first four homophilic datasets, and slightly increases it for the other four nonhomophilic datasets.
All in all, the manipulations generally achieve the changes which we intended for each of them with few exceptions. Since the effects of our manipulations depends on the nature of the original graphs, we will present the results of GNN accuracy on the basis of homophily and mixing of the input graph in “Impact of homophily and mixing on GNN performance” section. Next, we evaluate and compare different GNN models on original and manipulated graphs.
GNN performance
We summarize the evaluation results of the GNN models with respect to accuracy for the original graph and its corresponding manipulations of homophilic datasets in Fig. 2 and nonhomophilic datasets in Fig. 3.
Original graphs
We first compare the performance of GNNs on the original graphs to the performance of the featureonly baseline. We easily notice that GNNs outperform the featureonly baseline on all homophilic datasets in Fig. 2, and do not outperform the baseline on nonhomophilic datasets in Fig. 3. This makes the impact of homophily very clear: the higher the homophily is the more likely GNNs are to outperform featureonly baselines. For nonhomophilic datasets, the graph structure seems irrelevant to the learning process or is even hindering it.
Next we test the statistical significance for each approach on each dataset against the corresponding baseline. We compute the nonparametric MannWhitney U test for unpaired data with the significance level \(\alpha =0.01\) (Bonferroni corrected). We compare the performance of all GNN models on the original graphs to the performance of the featureonly baseline. The significance test shows that the performance of GNNs on the original homophilic graphs is significantly higher than the performance of the featureonly baseline. For datasets with low homophily, the baseline significantly outperforms GNN models on WebKB graphs (i.e., Texas and Wisconsin). On the other hand, there is an overlap of the performance on Actor and Squirrel datasets, where the homophily is not as low. The significance test on these two datasets shows a nonsignificant difference for some GNN models (namely, SAGE and GAT for Actor dataset, and GCN and SGC for Squirrel dataset).
Manipulated graphs
On all datasets, GNNs performance on \(Hom^+\) (both for homophilic and nonhomophilic data) outperforms their performance on the original graphs and the performance of the featureonly baseline. By artificially adding high homophily, GNNs improve their performance regardless of other aspects. Even when the mixing decreases for CORAFull, Actor and Texas (as pointed out in “Manipulation impact on graphs” section), the GNN still outperforms the baseline and the performance on the original graphs. This indicates that the change of mixing does not affect the general conclusion here, that is, higher homophily causes better GNN accuracy.
For \(Hom^\) graphs, the GNN performance is generally lower than the featureonly baseline. These graphs cause a major drop in performance for homophilic data compared to the original graphs. For nonhomophilic data, the performance mainly does not drop with \(Hom^\) graphs. These observations lead to the conclusion that low homophily decreases the performance of GNNs. We should, however, bear in mind that this manipulation also increases mixing significantly. We dedicate “Impact of homophily and mixing on GNN performance” section to look at homophily and mixing separately to test against confounding factors.
Let’s look at \(Mix^+\) graphs now. We can see an increase of GNN accuracy on all homophilic datasets. \(Mix^+\) graphs destroy the subcommunity structure within labels. One explanation for the increased accuracy is that the new structure causes a faster feature propagation between nodes of the same label. This fast propagation helps making the GNN vector representation of samelabel nodes more similar than it is in the original graphs. We further discuss this interpretation in “Destroying subcommunity structure” section.
With \(Mix^\) graphs for homophilic data, the GNNs show a drop in accuracy, but they still outperform the featureonly baseline. This observation shows a noticeable impact of communities on node classification in homophilic data since \(Mix^\) rebuilds the graph only based on community memberships, and still maintains a higher performance than the baseline. On the contrary, for nonhomophilic data, the performance on \(Mix^\) graphs is not very different from destroying communities and homophily with \(Hom^\). In other words, community structure becomes irrelevant when homophily is low. Since \(Mix^\) manipulation (as well as \(Hom^\) and \(Hom^+\)) has an effect on both homophily and mixing, we need to take a deeper look into the results, which we address in “Impact of homophily and mixing on GNN performance” section.
GNN models comparison
Figures 2 and 3 show that GNN models generally behave in a similar manner. Most models achieve a high performance when the homophily is high and vice versa. We notice that CGCN does not perform as well as the other GNN models when the homophily is high. CGCN outperforms other GNN models when the homophily is low showing resilience to low homophily.
Impact of homophily and mixing on GNN performance
In this section, we report the accuracy of the GCN model^{Footnote 4} on original and manipulated graphs. Figure 4 presents accuracy as a function of homophily and mixing.
We notice that the main factor that affects the accuracy is the homophily of the given graph, with higher homophily correlating with higher GCN accuracy in all datasets. The changes in mixing do not show a strong impact on GCN accuracy. However, we do notice a slight increase in accuracy when the mixing (slightly) increases where the homophily is originally high (top row). We do not notice a similar behaviour when increasing mixing, and the homophily is originally low (bottom row)—observation discussed in “Destroying subcommunity structure” section. In fact, changing the mixing when the homophily is low does not cause a noticeable change in GCN accuracy, stressing the finding from “GNN performance” section that community structure becomes irrelevant when homophily is low.
The conclusion of this section is that regardless of the manipulation applied to the graph, we find the homophily as the main contributor to the accuracy. We notice that the role of communities is less trivial to interpret but is relevant only when the homophily is high.
Destroying subcommunity structure
For \(Mix^+\) graphs, we rewire each subgraph of nodes with the same label. This preserves the homophily level of the graph, but destroys the inner subcommunity structure for nodes of the same label. In “Structure manipulation” section we hypothesized that this causes faster propagation, and in Fig. 2 we observed an increase of GNN performance on these graphs. Now we intend to empirically show that the feature propagation becomes faster.
We take a closer look into the feature propagation in \(Mix^+\) and original graphs by extracting node representations in the first layer of a trained GCN model. The representation in the first layer gives an intuition on how fast feature propagation occurs.
As an example, we first visualize the vector representations of original and \(Mix^+\) for CORAML. We reduce the dimensionality of these vectors to two dimensions using TSNE, and plot the 2D points with their labels in Fig. 5. The two plots of original and \(Mix^+\) graphs show that nodes of the same label agglomerate already in the first layer for \(Mix^+\) graph, while they still show more overlap for the original graphs. This suggests the faster propagation among nodes of the same label for \(Mix^+\) graphs in this example.
To study the overlap of nodes from different classes, we measure the average silhouette coefficient for the representations of the original graphs and the \(Mix^+\) graphs (Table 3). We notice an increase of the average silhouette coefficient on the \(Mix^+\) graphs especially for homophilic datasets, indicating the reduced overlap between labels. This reduced overlap indicates a faster intralabel feature propagation in \(Mix^+\) graphs compared to original graphs.
Communitylabel correlation
The results we obtained so far show deeper insights on the impact of homophily and communities in node classification with GNNs. Based on these results, we intend to devise a method that helps to determine whether to use a GNN model for semisupervised node classification on a given graph.
We start by looking at what homophily indicates. In Fig. 1, we can see that homophily estimates whether GNNs work on a given graph very well, i.e., homophily is high when GNNs have high accuracy (in Fig. 2) and vice versa (in Fig. 3). In other words, homophily correlates really well with GNN performance, and is a good predictor of whether GNNs can be applied to a graph dataset for node classification.
So why not estimate homophily directly?
Although homophily is a good predictor, estimating homophily requires having enough adjacent labeled nodes. This is not easily achievable in semisupervised learning settings, where only very few nodes are labeled. Therefore, we need an alternative measure that can function with very few labeled nodes.
Intuitions from the results
The results in Fig. 2 show that GNNs could still outperform the baseline on \(Mix^\) graphs, where the graph structure is built merely from community memberships. This observation highlights that communities encode label information in homophilic graphs, i.e., where GNNs should work. In other words, when the community membership correlates with node labels, GNNs can outperform a featureonly baseline. Thus we can require to approximate homophily not on pairwise level, but on aggregated (or community) level. Next we describe a measure for correlation between communities and labels to use as a predictor for GNNs applicability.
Communitylabel correlation measure
To quantify the correlation between communities and labels, we introduce a measure for communitylabel correlation. This measure should quantify how much information a node’s community reveals about its label. Let L be a random variable taking values in the set of labels \({\mathcal {L}}\), i.e., L(u) is the label of node \(u \in V\). Assuming the graph is partitioned into a set of disjoint communities \({\mathcal {C}}\), we define another random variable C taking values in \({\mathcal {C}}\), i.e., C(u) is the community of node \(u \in V\).
To measure how much the (fraction of) uncertainty about L is reduced knowing C, we use the uncertainty coefficient (Press et al. 2007) of L given C. This coefficient can be written as
where H(L) is the entropy of L, and I(L; C) is the mutual information between L and C.
When \(\rho =1\), all nodes within each community share the same label, and thus knowing the node’s community means also that we know the node’s label. On the other hand, when \(\rho =0\), the label distribution is identical in all communities, so knowing the community of a node does not contribute to knowing its label. In general, the higher the eliminated uncertainty about the labels when knowing communities is (i.e., the closer \(\rho\) is to 1), the more likely it is that GNNs can exploit the graph structure, and vice versa.
Unlike homophily, this correlation measure does not require adjacent labeled nodes. This measure requires enough labeled nodes belonging to the same community, which is easier to have in semisupervised settings. To calculate \(\rho\) for a set of nodes, the labels of these nodes must be available. Therefore, for each dataset in the next experiments, we compute \(\rho\) using the labeled nodes from the training and validation sets.^{Footnote 5}
Can communitylabel correlation predict GNN applicability?
Figure 6 shows the value of the communitylabel correlation \(\rho\) on the manipulated graphs. The increase/decrease in the communitylabel correlation follows a similar pattern to the increase/decrease of homophily value in Fig. 1, such as, increased homophily with \(Hom^+\) and decreased with \(Hom^\). Since this measure helps to indicate homophily, we expect that it can determine whether GNNs are suitable for classification on a given graph dataset. In the following experiments, we empirically show viability of this measure, and we use it to build a guideline that helps determining GNNs applicability.
Community perturbations

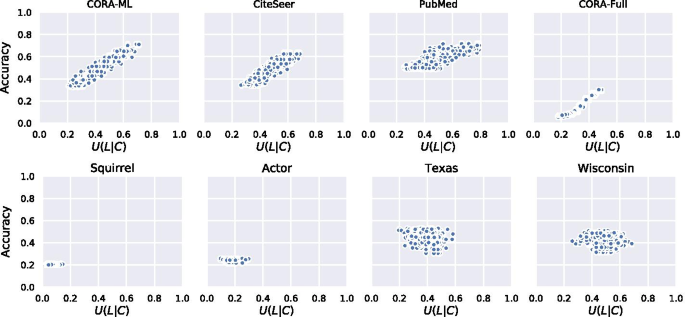

To shed more light on the correlation between \(\rho\) and the classification performance of GNNs, we now study the change of both GNN accuracy and the measured communitylabel correlation \(\rho\) on the given datasets after applying additional community perturbations. Particularly, we start with the \(Mix^\) networks for each dataset and we perform the following perturbations. We randomly select a fraction of nodes and assign them to different communities by simply swapping the nodes position in the network. Then we gradually increase the fraction^{Footnote 6} of the selected nodes to obtain a spectrum of communitylabel correlation \(\rho\). Finally, we compute \(\rho\) and the accuracy of the GCN model^{Footnote 7} on each of the obtained graphs. We show \(\rho\) as a function of the swapping fraction in Fig. 7 and visualize the correlation between \(\rho\) and the GCN accuracy in Fig. 8. We choose the \(Mix^\) networks for this experiment to guarantee that the node swapping only changes nodes’ communities and not their importance (i.e., degree). We expect that these perturbations gradually reduce \(\rho\) when the cluster assumption holds, i.e., for homophilic datasets.
We show that \(\rho\) decreases and then converges for the homophilic datasets (Fig. 7—top), supporting that the community perturbations decrease the correlation between communities and labels. In these cases, the GNN accuracy has a positive correlation with \(\rho\) (Fig. 8—top). However, when community perturbations do not reduce the correlation between communities and labels, \(\rho\) is already at a convergence level (Fig. 7—bottom). For these datasets, there is no strong correlation between \(\rho\) and the GNN accuracy (see Fig. 8—bottom). That is the case of nonhomophilic datasets where GNNs were not able to outperform the featureonly baseline. Our measure shows to reflect the suitability of GNNs for different datasets.
Guideline for application of GNNs
To verify whether a GNN model is applicable on a certain dataset, we suggest use the communitylabel correlation^{Footnote 8} based on the previous observations. The first step is to perform community detection on the dataset. Then we suggest to perform gradual community perturbations (as explained above) and inspect the respective communitylabel correlation. If the value of the coefficient decreases with more perturbations, this supports that the original graph is homophilic, and GNNs are applicable. Otherwise, if it does not decrease, the original graph is most likely nonhomophilic in the first place, and featureonly methods are more advisable than GNNs. Computing the correlation should not be an expensive procedure in semisupervised settings since only a small fraction of nodes are labeled.
Conclusion
In this work, we analyzed the impact of community structures and homophily in graphs on the performance of GNNs in semisupervised node classification. Homophily and community structure are significant factors that influence how graph data is generated. By studying their impact on GNNs, we gain a deeper understanding of the extents and limitations of stateoftheart GNN models. By systematically manipulating eight graph datasets, we showed that GNNs outperform a featureonly baseline on this task in case the given graphs are homophilic. Otherwise, GNNs cannot effectively exploit the graph structure for classification. Additionally, we show an analysis on the relation between labels and graph communities. With our analysis, we suggest that when community information does not contribute to classification, it is not advisable to use GNNs for this task. In particular, we show that our measure for the communitylabel correlation (computed through the uncertainty coefficient) can indicate whether a dataset is homophilic. We further formalize a guideline to select where to apply GNNs based on communitylabel correlation. Our work serves as a contributing factor to intrinsic validation of the applicability of GNN models, and gives insights on how plausible are current GNNs models. Future work can also investigate how the generation of graphs (broader than homophily) influences GNN performance, and how to build GNN architectures which are intrinsically adaptive to different levels of homophily.
Availability of data and materials
The code repository for this paper can be found at https://github.com/sqrhussain/structureingnn/. The datasets used in this study can be found through their corresponding links (included in the repository at https://github.com/sqrhussain/structureingnn/blob/master/src/data/dataset_handle.py).
Notes
Our code is on https://github.com/sqrhussain/structureingnn.
Other factors in the graph have an impact on learning with GNNs. In our work, we build the motivation for homophily and community structure, and leave the investigation of other factors for future work.
In our experiments, we stick to Louvain method for community detection as it is a widely used method. There is no algorithmic reason why we choose this method over another method except for the brevity of the work. Investigating other community detection methods is an interesting direction for future work.
We restrict the results in the main body of the paper to GCN and report the results of the rest of the models in “Appendix 7”
We are aware that this correlation measure is just one choice of estimating homophily. Therefore, we plan on doing a broader search for better metrics and guidelines to estimate homophily, and assess whether GNNs are suitable for node classification in semisupervised settings.
We iterate over fractions in steps of 0.1. For each fraction, we repeat the swapping ten times for different random seeds.
We train the GCN model five times on each obtained graph and report the mean accuracy.
Notice that this measure is only useful to estimate homophily when rare nodes are labeled, e.g., in semisupervised node classification. When a considerable amount of nodes is labeled, e.g., 20% of nodes, then it is advised to use the homophily measure as explained in “Contributing factors” section
The training typically stops before the 50th epoch.
We implement our models and evaluations using PyTorch Geometric https://pytorchgeometric.readthedocs.io/.
Abbreviations
 GNN:

Graph neural network
References
Blondel VD, Guillaume JL, Lambiotte R, Lefebvre E (2008) Fast unfolding of communities in large networks. J Stat Mech: Theory Exp 2008(10):10008
Chapelle O, Scholkopf B, Zien A (2009) Semisupervised learning (chapelle, o. et al., eds.; 2006)[book reviews]. IEEE Trans Neural Netw 20(3):542
Cherifi H, Palla G, Szymanski BK, Lu X (2019) On community structure in complex networks: challenges and opportunities. Appl Netw Sci 4(1):1–35
Chiang WL, Liu X, Si S, Li Y, Bengio S, Hsieh CJ (2019) ClusterGCN: An efficient algorithm for training deep and large graph convolutional networks. In: Proceedings of the 25th ACM SIGKDD international conference on knowledge discovery and data mining, pp 257–266
Craven M, DiPasquo D, Freitag D, McCallum A, Mitchell T, Nigam K, Slattery S (1998) Learning to extract symbolic knowledge from the world wide web. In: Proceedings of the national conference on artificial intelligence, pp 509–516
Dev P (2016) Homophily and community structure in networks. J Public Econ Theory 18(2):268–290
Hamilton W, Ying Z, Leskovec J (2017) Inductive representation learning on large graphs. In: Advances in neural information processing systems, pp 1024–1034
HasaniMavriqi I, Kowald D, Helic D, Lex E (2018) Consensus dynamics in online collaboration systems. Comput Soc Netw 5(1):2
Holland PW, Laskey KB, Leinhardt S (1983) Stochastic blockmodels: first steps. Social networks 5(2):109–137
Hussain H, Duricic T, Lex E, Kern R, Helic D (2020) On the impact of communities on semisupervised classification using graph neural networks. In: International conference on complex networks and their applications. Springer, Berlin, pp 15–26
Karrer B, Newman ME (2011) Stochastic blockmodels and community structure in networks. Phys Rev E 83(1):016107
Kipf TN, Welling M (2017) Semisupervised classification with graph convolutional networks. In: International conference on learning representations (ICLR)
Klicpera J, Bojchevski A, Günnemann S (2019) Predict then propagate: graph neural networks meet personalized PageRank. In: 7th international conference on learning representations, ICLR 2019. arXiv:1810.05997
Li Q, Han Z, Wu XM (2018) Deeper insights into graph convolutional networks for semisupervised learning. In: 32nd AAAI conference on artificial intelligence, AAAI 2018. arXiv:1801.07606
Newman ME (2003) The structure and function of complex networks. SIAM Rev 45(2):167–256
Pei H, Wei B, Chang KCC, Lei Y, Yang B (2019) GeomGCN: geometric graph convolutional networks. In: International conference on learning representations
Peixoto TP (2021) Disentangling homophily, community structure and triadic closure in networks. arXiv preprint arXiv:2101.02510
Press WH, William H, Teukolsky SA, Vetterling WT, Saul A, Flannery BP (2007) Numerical recipes 3rd edition: the art of scientific computing. Cambridge University Press, Cambridge
Sen P, Namata G, Bilgic M, Getoor L, Galligher B, EliassiRad T (2008) Collective classification in network data. AI Mag 29(3):93
Shchur O, Mumme M, Bojchevski A, Günnemann S (2018) Pitfalls of graph neural network evaluation. In: Relational representation learning workshop, NeurIPS 2018
Tang J, Sun J, Wang C, Yang Z (2009) Social influence analysis in largescale networks. In: Proceedings of the 15th ACM SIGKDD international conference on knowledge discovery and data mining, pp 807–816
Veličković P, Cucurull G, Casanova A, Romero A, Liò P, Bengio Y (2018) Graph attention networks. In: International conference on learning representations
Wu Z, Pan S, Chen F, Long G, Zhang C, Yu PS (2019) A comprehensive survey on graph neural networks. arXiv preprint arXiv:1901.00596
Wu F, Zhang T, Souza Jr AHD, Fifty C, Yu T, Weinberger KQ (2019) Simplifying graph convolutional networks. arXiv preprint arXiv:1902.07153
Xu K, Jegelka S, Hu W, Leskovec J (2019) How powerful are graph neural networks? In: 7th International conference on learning representations, ICLR 2019. arXiv:1810.00826
Zhang M, Chen Y (2018) Link prediction based on graph neural networks. In: Advances in neural information processing systems, pp 5165–5175
Zhu X, Ghahramani Z, Lafferty JD (2003) Semisupervised learning using gaussian fields and harmonic functions. In: Proceedings of the 20th international conference on machine learning (ICML03), pp 912–919
Zhu J, Yan Y, Zhao L, Heimann M, Akoglu L, Koutra D (2020) Beyond homophily in graph neural networks: current limitations and effective designs. Adv Neural Inform Process Syst 33
Acknowledgements
We thank the anonymous reviewers for their valuable feedback on the manuscript. This work is supported by the H2020 project TRUSTS (GA: 871481) and the “DDAI” COMET Module within the COMET Program, funded by the Austrian Federal Ministry for Transport, Innovation and Technology (bmvit), the Austrian Federal Ministry for Digital and Economic Affairs (bmdw), the Austrian Research Promotion Agency (FFG), the province of Styria (SFG) and partners from industry and academia.
Funding
The KnowCenter is funded within the Austrian COMET Program—Competence Centers for Excellent Technologies—under the auspices of the Austrian Federal Ministry of Transport, Innovation and Technology, the Austrian Federal Ministry of Economy, Family and Youth and by the State of Styria. COMET is managed by the Austrian Research Promotion Agency FFG.
Author information
Authors and Affiliations
Contributions
HH, TD, EL, DH and RK designed the study. HH and TD implemented the data processing, training and evaluation experiments. HH, TD, EL, DH and RK wrote, reviewed and approved the manuscript. All authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Appendices
Appendix A: Stochastic block matrix computation for \(Hom^+\)
To create LSBM graph graphs, we use a stochastic block model which is a generative model that produces random graphs with communities identified by a stochastic block matrix and with a Poisson degree distribution. To build the stochastic block matrix, we first partition the nodes into disjoint sets based on their labels \(\{V_1,V_2,\ldots ,V_{{\mathcal {L}}}\}\), where \({\mathcal {L}}\) is the set of labels. We build a vector of block sizes reciprocals \(\eta = [\frac{1}{V_1}, \frac{1}{V_2},\ldots , \frac{1}{V_{{\mathcal {L}}}}]^T\) to use for normalization. We build the stochastic block matrix M as follows
where \(\bar{d_{in}}\) is the average node indegree in the graph. We use M with the block sizes to build a synthetic graph using the stochastic block model.
Appendix B: Stochastic block matrix computation for \(Mix^\)
The aim of this manipulation is to preserve community structure while eliminating the degree distribution. To create these graphs, we use a stochastic block model after performing community detection as follows.
Community detection
In order to achieve this, we first assigned a community id to each node using the Louvain method for community detection. With the resulting communities we were able to produce a stochastic matrix which served as an input to the SBM.
Building the stochastic block matrix
We first calculate edge density within each community and then between each pair of different communities. These edge densities serve as edge probabilities between each pair of nodes in the resulting stochastic matrix M. To increase the intracommunity edge density, we multiply each value \(M_{i,i}\) in M by 1.5 (clipped from the top so no value exceeds 1). To decrease the intercommunity edge density, we multiply each value \(M_{i,j} : i \ne j\) in M by 0.5. We finally use matrix M for the stochastic block model, which results in a graph with reduced community mixing.
Appendix C: Model settings
Common settings
For all the GNN architectures, we use a model of two hidden layer, with the second layer as the output layer. The first hidden layer for each GNN architecture uses the activation that was used in the corresponding paper. The second hidden layer has the size of the number of labels in the respective dataset, and uses softmax as an activation function. For the training process, we use the negative log likelihood as our loss function. We use Adam optimizer for 200 epochs, with early stopping after the validation accuracy has not improved for 10 consecutive epochs.^{Footnote 9} Then we select the state of the model at the epoch where the highest validation accuracy was achieved.^{Footnote 10}
Hyperparameter search
We perform the following grid search to find the hyperparameter setting which maximizes the mean validation accuracy over 10 random splits with 10 random model initialization.

First hidden layer size: [12, 24, 48, 96]

Learning rate: [0.001, 0.005, 0.01]

Dropout probability: [0.2, 0.4, 0.6, 0.8]

Regularization weight: [0.0001, 0.001, 0.01, 0.1]

Attention dropout probability for GAT: [0.2, 0.3, 0.4, 0.6, 0.8]

Attention heads for GAT’s first hidden layer: [2, 4, 8]
After grid search, the chosen hidden layer size for all models turned out to be 96. Table 5 shows the hyperparameters used after grid search except for GAT which is shown in Table 4.
Appendix D: Homophily and mixing impact on GNN accuracy

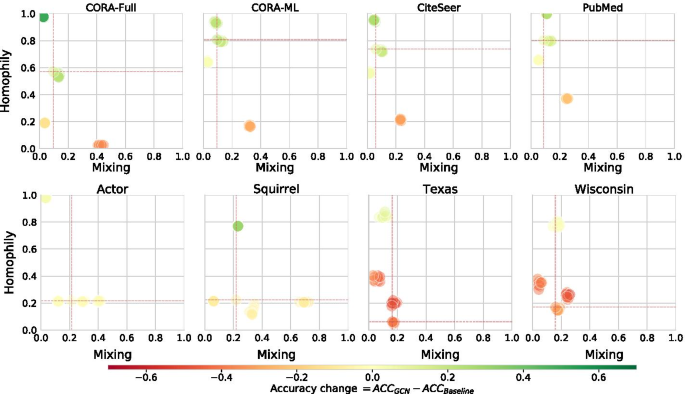

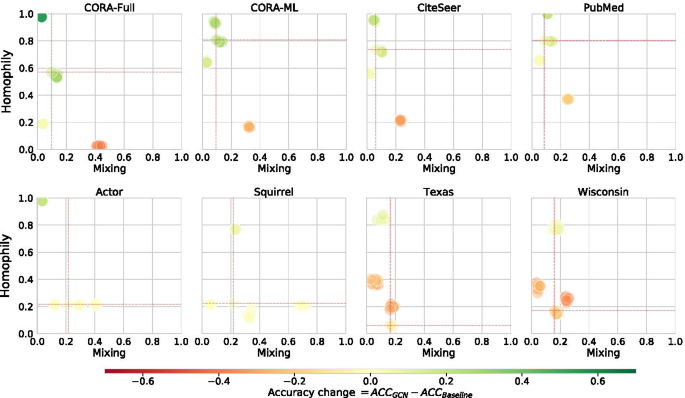

We visualize the accuracy of different GNN models as a function of homophily and mixing in Figs. 9, 10, 11, 12, and 13 in the same manner done for GCN in Fig. 4.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Hussain, H., Duricic, T., Lex, E. et al. The interplay between communities and homophily in semisupervised classification using graph neural networks. Appl Netw Sci 6, 80 (2021). https://doi.org/10.1007/s41109021004231
Received:
Accepted:
Published:
DOI: https://doi.org/10.1007/s41109021004231
Keywords
 Graph neural networks
 Community structure
 Homophily
 Semisupervised learning
