Detecting malicious accounts in permissionless blockchains using temporal graph properties

Abstract

Directed Graph based models of a blockchain that capture accounts as nodes and transactions as edges, evolve over time. This temporal nature of a blockchain model enables us to understand the behavior (malicious or benign) of the accounts. Predictive classification of accounts as malicious or benign could help users of the permissionless blockchain platforms to operate in a secure manner. Motivated by this, we introduce temporal features such as burst and attractiveness on top of several already used graph properties such as the node degree and clustering coefficient. Using identified features, we train various Machine Learning (ML) models and identify the algorithm that performs the best in detecting malicious accounts. We then study the behavior of the accounts over different temporal granularities of the dataset before assigning them malicious tags. For the Ethereum blockchain, we identify that for the entire dataset—the ExtraTreesClassifier performs the best among supervised ML algorithms. On the other hand, using cosine similarity on top of the results provided by unsupervised ML algorithms such as K-Means on the entire dataset, we were able to detect 554 more suspicious accounts. Further, using behavior change analysis for accounts, we identify 814 unique suspicious accounts across different temporal granularities.

Introduction

A blockchain can be modeled as an ever-growing, large directed temporal network with more and more industries starting to adopt it for their businesses. In permissionless blockchains, interactions (also called as transactions) happen between different types of accounts. In Ethereum mainnet public blockchain, these accounts can be either Externally Owned Accounts (EOA) or Smart Contracts (SC). Here, transactions from an EOA (called as an external transaction) are recorded on the blockchain ledger whereas transactions from an SC (called as an internal transaction) are not recorded on the ledger. Note that in Ethereum, SCs can issue external transactions by executing external calls also which would be recorded in the blockchain ledger.

With actual money involved in most of the permissionless blockchains, an account must be able to perform secure transactions. Recently, many security threats to various blockchain platforms have been identified (Bryk 2018). For some identified vulnerabilities, counter-measures have been implemented. We do not delve into surveying all the security threats. In Chen et al. (2020), the authors survey security flaws that exist in the Ethereum blockchain. In many of the security vulnerabilities identified in Ethereum blockchain, hackers target other accounts by either hacking SCs or implementing malicious SCs for cyber-crimes such as ransomware, scams, phishing, and hacking of exchanges or wallets (Chainalysis 2019).

With an ever-increasing growth and adoption of the blockchain technology by the industry and the crypto-currency markets, permissionless blockchains are at the epicenter of increased security vulnerabilities and attacks. Our motivation for this work is based on the fact that there is limited work on learning the behaviors of the accounts in permissionless blockchains which are malicious and potentially victimize other accounts in the future. We define malicious accounts as those accounts that have been founded to be involved in illegal activities such as phishing, hacking, scams, and Ponzi schemes. Benign accounts as those that perform only legitimate transactions. Although, these illegal activities have different features, in this paper we assume that the transaction behavior and features are consistent and are applicable to all types of malicious activities. The results seem to bear out such assumption. In short, in this paper, we aim to identify malicious accounts so that the potential victims and blockchains can deploy counter-measures. In this paper, henceforth, the term blockchain is used to represent a permissionless blockchain. The techniques proposed in related studies classify accounts as malicious using either Machine Learning (ML) algorithms or motif-based (basic building block/subgraphs of a network) methods. Nonetheless, the features used by the available techniques are: (a) limited and not learned from the previous attacks on blockchains, and (b) extracted from the aggregated snapshot of time-dependent transaction graphs that do not consider the temporal evolution of the graphs.

The temporal aspects attached to the features are essential in understanding the actual behavior of an account before we can classify it as malicious. For example, inDegree and outDegree features are time-variant and should be considered a time series. Nonetheless, it has been proven that the aggregated node degree distribution for accounts follows a power-law in blockchains such as Ethereum (Chen et al. 2018a). Here, questions that we ask are: does such behavior exist in all accounts? Is there a burst of degree for certain accounts at certain instances and can the existence of such bursts be used to identify malicious activity? To answer these questions, we first identify the existence of bursts. Then, we introduce features such as temporal burst, degree burst, balance burst, and gasPrice burst to study the effect of bursts.

The fat-tailed nature of power-law degree distribution also gives rise to neighbor-hood-based fitness preferential attachment in blockchains (Aspembitova et al. 2019). In Aspembitova et al. (2019) authors defined fitness as “the ability of a node to attract new connections” and showed that the accounts that have high fitness sometimes are short-lived and indulge mostly in malicious activities while when they are long-lived they represent large organizations. Here, the authors define the fitness factor considering one previous time instance interactions. As it does not consider a temporal window, one drawback of the method lies in its ability to correctly classify malicious transactions that appear at an interval of 2 time units or more. Inspired by this, we define a neighborhood-based feature called attractiveness that takes into account a temporal window of size \(\theta _a\) where \((0< \theta _a < T_{DS})\) and \(T_{DS}\) is the duration for which we collect the dataset (DS). Our attractiveness measure takes into account the stability of directed transactions that happened between two accounts in the past. Intuitively, a malicious account will have high attractiveness as it will tend to transact with new accounts while benign accounts will have high neighborhood stability or low attractiveness.

As the behavior of an account can change from malicious to benign or from benign to malicious over time, there is a need for continuous monitoring and analysis of the real-time transactions given the history of transactions performed by an account. We, thus, study the evolution of malicious behavior over different timescales by creating sub datasets and then answer the question: would a certain account show malicious behavior in the future? Towards this, we first apply different ML algorithms and identify the most suitable unsupervised ML algorithm for the entire dataset that is able to cluster accounts most accurately. Then we apply the identified algorithm to different sub datasets within a temporal scale to capture the behavior changes.

In summary, following are our main contributions:

  • Feature engineering We identify feature vector for identifying malicious accounts based on previous attacks on blockchains and perform time series analysis. As new features, we propose temporal burst, degree burst, balance burst, gasPrice burst, and attractiveness.

  • Comparative analysis We perform a comparative study with techniques proposed in the related studies and identify the best possible supervised and unsupervised ML algorithm with related hyperparameters when we use Ethereum transaction data.

  • Results Our results demonstrate that for the supervised case, ExtraTreesClassifier performs the best with respect to balanced accuracy for the entire dataset while for the unsupervised case, we are able to identify 554 more suspect accounts using K-Means Clustering. Analysis of the behavioral changes reveal 814 suspects across different temporal granularities.

The rest of the paper is organized as follows. In Sect. 2, we present background and the state of the art techniques for identifying malicious accounts and compare them. In Sects. 3 and 4, we present a detailed description of our methodology and the feature vector, respectively. This is followed by an in-depth evaluation along with the results in Sect. 5. We finally conclude in Sect. 6 providing details on prospective future work. Further, in Abbreviation section we provide a glossary of the acronyms used in the paper.

Background and related work

There are two types of blockchain technologies, permissionless and permissioned. The major difference between the two technologies is that in a permissioned blockchain prior access approval is needed for performing any action on the blockchain while in permissionless blockchain anyone can perform actions on the blockchain without any approval. Further, there is no way to censor anyone from permissionless blockchains. Such aspects lead to more frauds and malicious activities to prevail in permissionless blockchains. Ethereum and Bitcoin use permissionless technology.

Ethereum was developed by Buterin (2013) and allows users to run programs in its trusted virtual environment known as Ethereum Virtual Machine (EVM). These programs are called Smart Contracts (SC) and are stored on the ledger along with transactions performed on a given fixed address. Ethereum uses “Ether” as its native crypto-currency for transfer and transaction fees. Smart Contracts (SC) can also send, store, and receive Ether. Once deployed, SC is a hard coded program that could only be fed with input to get output. SCs are also used by some applications for their processing. Such applications are called distributed applications or dapps. Although Ethereum is known for its security and trust, a small bug in a SC code can cause huge loss of crypto-currency (Atzei et al. 2017). Ethereum manages a list of accounts along with the account balance. For a valid transaction usually amount is transferred from a sender to a receiver. If the receiver is an SC, its code is executed and the state of the SC is updated. Internally, a SC could send a message or perform internal transactions with other accounts. Ethereum currently uses a refined form of PoW (Proof of Work) consensus algorithm. PoW is computationally expensive and energy inefficient. Moreover, Appendix 1 presents a brief overview of PoW.

There are vast number of studies in fraud detection (Abdallah et al. 2016). Nonetheless, targeting Ethereum, Chen et al. (2020) base their survey on the attacks and defenses in Ethereum. We do not survey all the attacks and defense mechanisms in this work. However, we provide an in-depth understanding of different methods used to detect accounts involved in malicious activity. Several works have tried to identify or categorize malicious accounts and activities in different types of blockchains. As blockchains have a graph structure, most of these techniques study graph properties (such as node degree) to identify features before applying supervised or unsupervised learning.

In Pham and Lee (2016), authors used a bitcoin transaction network to detect malicious activity. They were able to detect three malicious attacks using unsupervised ML algorithms with a limited amount of transaction data they had. In their followup work, they used a more comprehensive bitcoin transaction dataset (starting from genesis block until April 7th, 2013) (Pham and Lee 2017). They employed data in two types of graphs namely User Graph and Transaction Graph. In the user-graph, nodes represent accounts and edges represent transactions, whereas in the transaction-graph nodes represent transactions and edges represent the flow of bitcoins. They first studied the flow of bitcoins to prove the existence of anomalies and then performed clustering to identify different attacks. They were able to detect the existence of one attack using the Local Outlier Factor (LOF). Inspired by Pham and Lee (2017), in Monamo et al. (2016), Monamo et al. also used bitcoin transaction data and proposed an update to counter scaling issues that are inherent in LOF. They validated their approach using trimmed K-Means, argued its usefulness in detecting anomalies, and detected 5 out of 30 fraudsters.

In another bitcoin-related malicious activity detection, authors studied the detection of addresses involved in the Ponzi scheme (Bartoletti et al. 2018). They used supervised learning and validated their results after addressing the class imbalance that is inherent in any malicious activity related dataset. They identified that the Gini coefficient of outgoing Ethers and the ratio between incoming and total transactions are the most important features for detecting Ponzi scheme related accounts. In another Ponzi scheme related study, in Chen et al. (2018b), authors use Ethereum data to extract features from operation codes (opcodes) of the SC’s bytecode. Their motivation behind the study was based on the fact that the opcodes reflect the logic implemented in a SC and therefore provide useful features for identifying Ponzi and non-Ponzi SC. They also figured out that opcode based features are more efficient than account based features while detecting Ponzi scheme accounts. In Ostapowicz and Zbikowski (2019), the authors use partial Ethereum transaction data to classify malicious accounts. They also performed a sensitivity analysis to study the effect of different classifiers on the feature set. In Singh (2019), to counter class imbalance, authors assumed that the accounts connected to malicious accounts via incoming transactions are also malicious. They then studied various supervised ML algorithms to identify malicious accounts over this over-sampled Ethereum dataset. In a followup study of Singh (2019), in Kumar et al. (2020), the authors used only those benign accounts that have never transacted with malicious accounts. Further, their feature vector had only transaction based properties but not the graph based properties.

N-motifs are frequently occurring subgraphs that serve as a basic building block of a network. The authors in Zola et al. (2019) defined N-motif as a path of length 2N between two entities. Here transactions were also considered as vertices. Using N-motifs that are present in the transaction graph, in Zola et al. (2019), the authors studied transactions happening between entities (people or organizations with multiple accounts). They were able to correctly identify malicious accounts involved in gambling. In another study (Goldsmith et al. 2020), the authors analysed transfer of funds within a sub-network and used temporal feature such as how quickly funds are cashed.

We present all the above-mentioned techniques in detail in Table 1 and present the features that the techniques use along with the studied ML algorithms, their hyperparameters, accounts considered in the dataset, and achieved performance score. Note that all these techniques use features that are based on some graph properties, transacting amount, and active state to train the ML algorithm. However, several other studies, such as Chen et al. (2018a) and Cheng et al. (2019), use inferences drawn from the analysis of the transaction graph to mark malicious accounts. In Chen et al. (2018a), the authors try to identify accounts that indulge in DDos attacks and argue that accounts that create multiple rarely used contracts are malicious. A similar approach is followed in Jung et al. (2019) where the authors used only verified SC codes and introduced features like SC size, lifetime, and average time between transactions (i.e. Inter-event time). In Cheng et al. (2019), the authors deploy honeypot and analyze remote procedure call (RPC) requests to identify malicious accounts. They then analyze transactions to mark accounts as suspicious that accept crypto-currency from malicious accounts. They perform behavior analysis to identify fisher accounts and attacks such as crypto-currency stealing.

Table 1 Features used in related studies

All the above techniques either use a limited set of ML algorithms on a highly scaled-down data inducing over-fitting or apply inferences on the graph structure to identify malicious activities and accounts. In most cases, the studies use features that do not capture temporal behavior and are approximated by the average (mean) behavior, thereby, further inducing a bias in their study thus having high accuracy. On the other hand, techniques that use large datasets and have high class imbalance, either have high recall and low precision or low recall and high precision (Ostapowicz and Zbikowski 2019). Nonetheless, using our features, we identified the ML algorithm that provides not only the best precision but also the best recall. In brief, these measure are described next. Let C be the set of n distinct classes present in a dataset such that \(C=\{C_1, C_2, ..., C_n \}\).

  • Precision For a particular class i, the precision is defined as the ratio of correctly predicted observations of a class to the total observations that are predicted under that class. Let \(P_{j,i}\) represents the number of observations of class j that are predicted under class i such that \(j\in C\). Formally, precision is defined as:

    $$\begin{aligned} Precision_i = \frac{P_{i,i}}{\sum _{j\in C} P_{j,i}} \end{aligned}$$
    (1)
  • Recall For a particular class, recall is defined as the ratio of correctly predicted observations of a class to the total observations of that particular class. Let \(R_{i,j}\) represents the number of observations of class i that are predicted under class j. Formally, recall is defined as:

    $$\begin{aligned} Recall_i = \frac{R_{i,i}}{\sum _{j\in C} R_{i,j}} \end{aligned}$$
    (2)
  • Balanced accuracy For an imbalanced dataset, accuracy can be deceiving. However, balanced accuracy gives well enough representation of the performance of the model. Balanced accuracy is defined as the average recall score obtained in each class. Formally, balanced accuracy is defined as:

    $$\begin{aligned} Balanced\_Accuracy = \frac{1}{n}\sum _{j\in C}Recall_j \end{aligned}$$
    (3)
  • F1 score It is represented by the harmonic mean of precision and recall. It can also be described as a weighted average of precision and recall. Formally, F1 score is defined as:

    $$\begin{aligned} F1\_Score_i = \frac{2*Precision_i*Recall_i}{Precision_i+Recall_i} \end{aligned}$$
    (4)
  • MCC score Mathews Correlation Coefficient (MCC) is the correlation between the ground truth and the predicted results. It is defined as:

    $$\begin{aligned} MCC = \frac{\prod _{i\in C} P_{i,i} - \prod _{j\in C-\{i\}} P_{j,i}}{\sqrt{\prod _{i\in C}\left[ \left( \sum _{j\in C} P_{j,i}\right) \times \left( \sum _{j\in C} P_{i,j} \right) \right] }} \end{aligned}$$
    (5)

Methodology

We use Ethereum mainnet blockchain transaction data and first validate our assumptions and approach. We segment the transaction data into sub-datasets (SD) to capture the behavioral changes. We create the SDs using different temporal granularities (\(T_g\) such that \(T_g\in T_G\)) where \(T_G=\{Day\), Week, Month, Quarter, HalfYearly, Year, \(All\}\). A granularity becomes coarser as we move from Day to Year. Here, a SD in a Day consists of transactions of 6000 blocks. The choice of 6000 blocks is based on the fact that in Ethereum approx. 6000 blocks are created every day. At a coarser \(T_g\), a SD in a Week consists of 7 Days data. Similarly, a SD in a Month consists of 30 Days data, a SD in a Quarter consists of 3 Months data, a SD in a HalfYearly consists of 6 Months data, and a SD in a Year consists of 12 Months of data.

On all the features that are time series based (features described in Sect. 4), we perform time series analysis of all the SDs at different \(T_g\) to quantify them. To perform such task, we use tsfresh that “extracts characteristics from a time series” (Christ et al. 2016, 2018). The analysis reveals that features such as quantile and median best describe the time series for most of the features we have. We observe this behavior not only in the entire dataset but also in different SDs at different \(T_g\)s.

We first apply the AutoML pipeline using TPOT (Olson et al. 2016) to identify the best ML classifier on the entire dataset and validate state of the art techniques. From a given set of ML pipelines, TPOT reports the ML pipeline that produces the best results, in our case the best balanced accuracy. We configure TPOT with not only the state of the art supervised ML algorithms and their hyperparameters but also with other hyperparameters to identify best results and to be sure that related studies did identify hyperparameters for which the balanced accuracy was the best. Note that TPOT internally performs imputation and feature scaling also. A detailed explanation of TPOT is out of scope of this work, thus we do not present the internal architecture of TPOT. Besides supervised learning, as our aim is to detect malicious accounts, we also apply clustering to identify accounts that show similar behavior to that of malicious accounts. Note that for training purposes, we use 80% of the dataset while we test on the remaining 20% of the dataset. For the entire dataset, we find that K-Means provides best silhouette score for \(k=9\) when we consider both EOAs and SCs while \(k=10\) when we consider only EOAs. For the clusters identified as malicious, we use cosine similarity to quantify the similarity among the accounts within a cluster. We acknowledge that there are other methods as well to identify similarity, but for this work we use cosine similarity. Assuming that K-Means with hyperparameter \(k=9\) identified for entire dataset (both EOAs and SCs) performs the best for all temporal sub-datasets at different temporal granularities, we determine a probability for an account to be malicious at different temporal granularities.

In summary, Fig. 1 presents an overview of our methodology. Here, for the dataset we have, we first pre-process the data to generate necessary graph structure and segment the it based on different \(T_gs\). On the full dataset, we then identify distributions and generate necessary heat maps. All the data segments are then passed to the feature constructor which captures all the needed features. As there are two types of features: time series based and non-time series based features, for all the time series based features in each data segment we ran tsfresh. The results, depending on the data segment, are then integrated with the non-time series based features in that data segment. Once we obtain the needed features, we further segment the data based on EOAs and SCs and perform PCA (Principal Component Analysis) to reduce the dimensionality of our dataset. We then execute supervised ML algorithm on the derived datasets using AutoML tool to identify the best ML algorithm. Further, we also apply different unsupervised ML algorithms, for example K-means, to identify the number of clusters for which the silhouette score is the best, then perform cosine similarity to identify potential benign accounts that may seem malicious. Once the best setting for clusters is identified, we use it for the temporal analysis on different SDs and generate probability distribution for an account to be deemed malicious.

Fig. 1
figure1

Overview of our methodology

Feature engineering

A typical blockchain is a temporal-directed graph. Let \(G^t(V^t, E^t)\) be the temporal snapshot of the blockchain graph, where \(V^t\) is a set of accounts at time t and \(E^t\) is the set of directed edges or the transactions that happen between two accounts in \(V_t\) at time t. Figure 2 shows 3 temporal snapshots of blockchain graph where 5 accounts interact with each other at different epochs. Here, at time \(t_0\), 3 accounts ‘A’, ‘B’, and ‘C’ interact where one account (account ‘B’) sends crypto-currency to the other 2 accounts. Similarly, at \(t_1\) and \(t_2\), 2 and 3 accounts interact, respectively. The figure also shows corresponding aggregated graph where the edges with more than one occurrences are weighted with the number of occurrences.

Fig. 2
figure2

Sample blockchain temporal graphs and corresponding aggregated graph

We used both temporal and aggregated graph structure of blockchain to extract features. The set of features (F) defined in the related work is limited and, in most cases, does not convey correct temporal behavior. We extend the feature set and introduce new features to detect malicious accounts. We follow a two-fold methodology to identify the relevant features. First, we study different attacks that have happened in the past to understand what features malicious accounts revealed after engaging in malicious activity. Second, as most of the account features (for example, inDegree) are time series based, we perform time series analysis to identify features that best represent the salient properties of the relevant time series. Below we provide a list of all the features we use:

  • Non Time Series based (set \(F_n | F_n\subset F\))

    • Active state (AS) malicious activities are usually short-lived (Aspembitova et al. 2019) and remain, for example, until remediation is introduced. It is thus essential that we consider features such as when the account first transacted (transactedFirst), last transacted (transactedLast), how long it has been active (durationActive), and since when the account is continuously transacting (activeSinceLast).

  • Time series based (set \(F_t | F_t\subset F\)) We analyze each of the following time series based features using tsfresh (Christ et al. 2016, 2018) and select 3 top features identified for each of the following attributes. Nonetheless, as inter-event time (IET) itself is a time series, we use it as a feature as well.

    • inDegree (iD) it represents the number of transactions in which the account under consideration is a receiver at a particular instant. Most of the malicious activities involve transfer of money to a malicious account. Thus, it is one of the most important features used to understand the behavior of a malicious account. In Singh (2019), the author found uniqueInDegree (defined as unique accounts from which the account under consideration has ever received money) to be one of the most critical features for identification of malicious accounts. On top, we also use aggregated inDegreeAgg as a feature.

    • outDegree (oD) represents the number of transactions in which the account under consideration has sent money at a particular instant. In some attacks such as Bitpoint Hack (O’Neal 2020), after the attacker has received amount of sum from the victims in an alias account, they transferred the received sum to another account they hold or to an exchange. Such attacks increase the importance of outDegree as a potential feature. Similar to the case above, we also use aggregated outDegreeAgg as a feature.

    • Balance (Bal) our motivation to use it as a feature is based on the fact that most malicious activities in a permissionless blockchains are finance based. For example, in one of the famous Parity Multisig wallets (Palladino 2020) attack, the malicious account drained more than 150k Ethers. Thus, the currency held by an account as well as its flow are important features. We identify balance time series for both in/out case. Besides balance, we identify for each instance, max balance for both in and out cases (maxInBalance and maxOutBalance), zeroBalanceTransactions (transactions where no money was transferred either to or from an account), totalBalance (final balance held with the account), and averagePerInBalance (average of received balance) as features.

    • Transaction Fees (TF) In crypto-currency based blockchains, a transaction is marked by transaction fees that a sender is willing to spend on a particular transaction. In the Ethereum blockchain, \(TF=Gas\times GasPrice\) where Gas is the measure of the amount of computation required to perform the transaction by a miner and GasPrice is the amount of Ethers a user is willing to pay per unit Gas. Operations like transferring of Ethers require a fixed sequence of instructions i.e. fixed amount of computation so it consumes fixed amount of Gas (21000). Therefore, if a high transaction fee is paid, it suggests that the user is willingly setting a higher GasPrice, since, for a transaction, unit of Gas is a fixed. Several attackers put higher gas price to bribe the miner so that a particular transaction of interest to them is included in the next block (Cheng et al. 2019). Nonetheless, in DDos attack (Buterin 2020), an attacker created multiple accounts at very low gas price to increase synchronization and processing time. Thus, it is also a feature.

    • Attractiveness (A) mostly, malicious accounts tend to interact with accounts that they have not interacted with before. The probability of interacting with the same account that they have interacted before is very low. Attractiveness can be understood as the change in the neighborhood of an account over time. This can be modeled using the stability of the neighborhood. Consider 5 accounts in the blockchain that interact with each other and perform transactions with each other as shown in Fig. 3. From the figure, we can see that account ‘A’ received crypto-currency from accounts that change almost in every time slot. On the other hand, account ‘B’ only received crypto-currency from account ‘C’. This stability of incoming transactions deem account ‘B’ as more stable and less attractive than account ‘A’ which is more unstable and attractive to other accounts. Consider, \(N_i^t\) to be the neighborhood (accounts from whom the account i has received crypto-currency) of account i at time t, \(T=\{t, t-1, \cdots , t-\theta _a\}\), and \(\theta _a\) the time window size. Based on this, we define attractiveness (\(A_i^t\)) for account i at time t as shown in Eq. 6.

      $$\begin{aligned} A_i^t={\left\{ \begin{array}{ll} 1-\frac{\left| N_i^t\bigcap \left( \bigcup _{j\in T-\{t\}}N_i^{j} \right) \right| }{\left| \bigcup _{j\in T} N_i^j \right| }, &{} \text {when }j\ge 0\text { and }N_i^t\ne \emptyset \\ 0, &{} \text {otherwise}. \end{array}\right. } \end{aligned}$$
      (6)

      In the Eq. 6, the numerator represents the number of unique accounts that the account i has received crypto-currency from that were present in past \(\theta _a - 1\) blocks/times. While the denominator represents the total number of unique accounts from which the account has received crypto-currency from, in the last \(\theta _a\) blocks. To get the attractiveness value, we subtracted this ratio from 1. Note that we specifically considered in-degree and not the degree of the account because we were motivated by the fact that most of the malicious activities involve extracting crypto-currency from a benign account.

      As the blockchain graph is a temporal graph where interactions are intermittent, an account’s neighborhood is highly dynamic and changes at each epoch. Thus, the attractiveness also changes with respect to time (as new accounts can be added to the neighborhood at the epoch under consideration). Therefore, we define attractiveness as a temporal feature.

Fig. 3
figure3

Sample graph depicting the most attractive and least attractive accounts

  • Burst (BB) (set \(F_b | F_b\subset F\)) bursty behavior is defined as temporal non-homogeneous sequence of events (Karsai et al. 2012) and has been characterized by a fat-tailed inter-event time (\(\Delta t\)) distribution. In one of the bitcoin blockchain attacks (Allinvain Theft 2020), a malicious account generated a large number of transactions to taint the bitcoin platform. Motivated by this incident, we define four types of bursts (temporal, degree, balance and gasPrice) that occur in the network under consideration. As an account can either be a sender or a receiver, the following burst types are defined for cases (a) when the account acts as a sender, (b) when the account acts as a receiver, and (c) when the account acts as both a sender as well as a receiver.

    • Temporal Burst for an account i, non-homogeneous occurrences of events (in our case transactions) lead to some transactions occurring where \(\Delta t\) is less than a threshold, \(\theta _t^i\), while for other transactions \(\Delta t\) is large. If a transaction happens when \(\Delta t < \theta _t^i\), we assume that it is a burst. Some burst can be long lived while some burst can be short lived, meaning, some event can happen continuously for long time intervals before going dormant. As features, we identify number of such temporal bursts (numberOfTemporalBursts) and the duration of the longest burst (longestBurstDuration) for both in and out transactions separately.

    • Degree Burst it has been proven that the degree (also inDegree and outDegree) distribution of the aggregated transactions in blockchain such as Ethereum follows a power-law (fat tailed) distribution (Chen et al. 2018a) with \(\alpha \in [-2.8,-2.6]\). This suggests that many accounts do not transact often while there are very few accounts that act as hubs (for example, exchanges). Nonetheless, when considering the temporal aspects, we believe such behavior also exists where some accounts have a very high degree for some instant while for other instants they have a low degree. Thus, we define a degree burst when at a given instant of time the degree of an account, i, is greater than \(\theta _d^i\). Similar to the temporal case, for degree bursts we also identify number of degree bursts (numberOfDegreeBursts) that happened for an account over time, number of instances where the degree burst happened (numberOfDegreeBurstInstances), and the time at which the largest burst of degree happened (largestBurstAt). Note that these features except for numberOfDegreeBurstInstances are defined for both in and out transactions separately as well.

    • Balance Burst in some cases transactions happen from accounts i to account j where the involved sum of crypto-currency was very large (more than a threshold value \(\theta _b^i\)). For example, some accounts associated to Silk Road (Spagnuolo et al. 2014) or involved in money laundering, sometimes transact large sum for illegal activities. Bursty behavior of transaction amount could be helpful in identifying potential malicious activities and accounts. Similar to the above cases, for an account i, we identify number of unique instances where balance is more than \(\theta _b^i\) (numberOfBalanceBurstyInstances), and number transactions more than \(\theta _b^i\) (numberOfBalanceBursts). Note that, we define these factors for both in and out cases, separately.

    • GasPrice Burst: As described before, an attacker can put higher gas price (more than a threshold value \(\theta _g^i\)) to bribe the miner so that the transaction is included in the block. This activity although abnormal is useful in understanding account’s behavior. Towards this, similar to previous cases, we define numberOfGasPriceBurstyInstances as number of instances where the gasPrice was set more than \(\theta _g^i\). This is only defined for senders as gasPrice is only set by the sender.

Note that features such as in/outDegree, burst, attractiveness are some graph-based temporal features. Besides these features, other graph-based properties that we use as features include clustering-coefficient (CC) (Watts and Strogatz 1998). For an account i, let \(N_i^{t,in}\) be the neighborhood of account i at time t from which the account has received the crypto-currency, \(N_i^{t,out}\) be the neighborhood of account i at time t to which the account has paid the crypto-currency. Thus, the total account degree is \(deg_i^{tot}=|N_i^{t,in}|+|N_i^{t, out}|\). Let \(N_i^{t,\leftrightarrow }=N_i^{t,in} \bigcap N_i^{t, out}\) and \(a_{ir}=1\) if there is a transaction between i and r, otherwise 0. We similarly define \(a_{is}\), \(a_{ri}\), \(a_{si}\), \(a_{rs}\), \(a_{sr}\). For a directed graph, CC of account i (\(CC_i^t\)) at time t is defined by Eq. 7 (Fagiolo 2007).

$$\begin{aligned} CC_i^t=\frac{\sum \limits _r \sum \limits _s (a_{ir}+a_{ri})(a_{is}+a_{si})(a_{sr}+a_{rs})}{2\left[ deg_i^{tot}(deg_i^{tot}-1) - 2 | N_i^{t,\leftrightarrow }|\right] }. \end{aligned}$$
(7)

Results and evaluation

We evaluate the effectiveness of our method using Ethereum’s external transactions data which is publicly available for download using the Etherscan APIs (Etherscan 2020a). Note that the APIs do not provide any information about the account (such as the name and the account type). Nonetheless, as the hash of the accounts is available, one can check the associated information using the Ethereum Blockchain Explorer (Bitfly Gmbh 2020). We perform all our evaluations using Python version 3.7. Within the Python environment, we use supporting libraries such as TPOT version 0.10.2, tsfresh version 0.13.0, scikit-learn version 0.21.3, pandas version 0.25.1, and numpy version 1.16.5. All the result plots are generated using matplotlib version 3.1.1.

Dataset

Ethereum as on 20th December 2019 had \(\approx\)79M accounts. Out of these accounts, 3362 accounts were already tagged to be involved in malicious activities. The tags mainly include Phishing (3168 accounts), Gambling (8 accounts), Cryptopia-Hack (6 accounts), Heist (16 accounts), Suspicious (4), Bitpoint Hack (2 accounts), Compromised (21 accounts), Spam (10 accounts), Upbit-Hack (123 accounts), Unsafe (1 account), Scam (1 account) and Bugs (2 accounts). Note that to get such ground truth about the accounts, we explicitly browsed through all the tags available in Etherscan and marked those accounts as malicious where the associated tags had caution warnings. Moreover, we chose the accounts associated with the tag Gambling as this type of activity is illegal in most countries. We look for other sources such as Cryptoscam.db (MyCrypto Inc 2019) as well to know the ground truth about the accounts as only some of the accounts are tagged as malicious. As a result, we find 329 more malicious accounts with a total of 3691 unique malicious EOAs and SCs. Upon further investigation, we find that out of these 3691 EOAs and SCs, 746 never transacted and were mostly involved in the token trade until 7th December 2019. We, thus, remove them from our malicious accounts dataset. In these remaining set of malicious accounts, there are 158 SCs and 2 marked compromised exchanges. Note that for these accounts we collect only-but-all external transactions (transactions from EOAs to SCs, and between different EOAs). Also note that at the time of this study Etherscan had removed most of the malicious tags. But recently Etherscan provided new tags and marked more accounts as malicious. As of 27th May 2020, there were 4708 malicious accounts out of which 2019 were newly tagged accounts. Out of these 2019 accounts only 1252 accounts ever transacted. Out of these 1252 accounts 1029 were created before 7th December 2019 in which only 3 are present in our dataset. As the number of malicious accounts is constantly evolving, we take this opportunity to cross validate accounts that our analysis found malicious.

There is a high class imbalance in the dataset as the number of benign accounts is large. Thus, we perform random under-sampling to uniformly sample 697K benign accounts from the 79M Ethereum accounts. In the total \(\approx\)700K accounts we have, there are 7 exchanges and 23,141 SCs while the remaining accounts are EOAs.

A unique external transaction, Tx, retrieved using Etherscan API contains information like blockHash, blockNumber, source, destination, gas, gasPrice, Transaction hash, balance, and timestamp of the block. A typical Tx is shown in Fig. 4. Here,

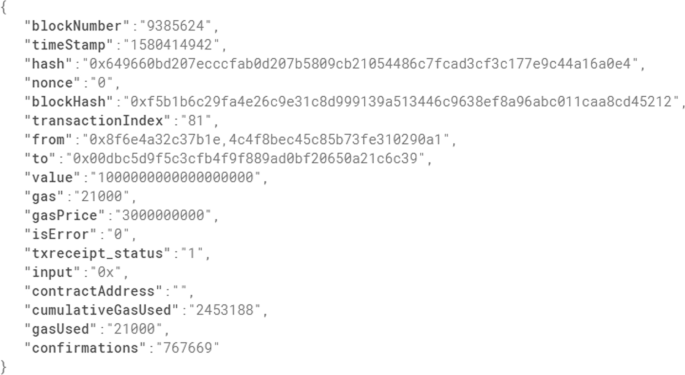

Fig. 4
figure4

A sample Ethereum transaction

  • blockNumber is the number associated with a block in which the transaction (represented by a 32-byte long transaction hash stored in hash) is stored by the miner at index represented by transactionIndex. A block is also uniquely identified by a 32-byte long hash (i.e. blockHash) . The timestamp represents the epoch timestamp, in seconds, at which the transaction was mined.

  • The from and to fields are both 20-byte long hashes of public keys of sender and receiver accounts. These accounts can be either EOAs or SCs. In a transaction, if the to field is empty, then it represents that the transaction is a contract creation transaction. In this case the input field contains the SC code. However, if to field is a hash of a SC, then input field may contain a function call. In other cases, the input field is an arbitrary message or Null.

  • In a transaction, nonce represents the number of outgoing transactions performed by an EOA sender before that particular transaction. This nonce, in the case of SC, represents the number of secondary SCs created by it. Nonce along with the sender’s address is used to calculate the address of the SC.

  • The value field represents Ethers transferred (in Wei). 1 Ether is equal to \(10^{18}\) Wei.

  • The maximum amount of gas provided for the transaction is specified using gas. The gas is the upper limit of computation work that sender allows a miner to perform the transaction. Whereas gasUsed is the actual amount of computation performed. The cost per unit of gas that the sender is willing to pay for a transaction is represented by gasPrice (in GWei = \(10^9\) Wei). An attacker can set a higher gasPrice for better chances of his transaction being included in the block.

Fig. 5
figure5

Degree distribution of accounts

Note that the Tx data does not include the actual timestamp of when a transaction was performed by the account. The available timestamp is the time when the miner added the Tx to the block. The only time related information, we are able to extract is the information about when a block is mined. However, currently we do not use this information. We assume a time bin of 1 block for our study. We assign respective blockNumber as a timestamp to all the transactionsFootnote 1. Based on this notion of timestamp, we also segment the data into several SDs of different \(T_g\) and study the behavior of the accounts. We describe in the Sect. 1 the different \(T_g\)s we consider. For statistical purposes, we have 1,531 Day SDs, 219 Week SDs, 52 Month SDs, 18 Quarter SDs, 9 HalfYearly SDs, 5 Year SDs, and the entire dataset. A total of 1835 datasets.

For our study we assign: (i) \(\theta _t\) = 2 so that continuous burst of smallest size are also captured, (ii) for an account i, \(\theta _d^i\) = \(0.8\times (max(d))\) where d is the in/outdegree of an account in the considered SD, (iii) \(\theta _b^i= 0.8\times (max(b))\) where b is the transaction balance for either in or out case, (iv) \(\theta _a^i\) is set to be equal to the duration of the SD to keep the entire history of neighbors that a particular account transacted with in the past in the given sub-dataset, and (v)) \(\theta _g^i=0.8\times (max(gasPrice))\) where gasPrice is the the gas price for transactions associated with account i. We then analyse different time series based features to identify there characteristics as potential features.

Results

In this subsection, we present results obtained after analysing the dataset and using different ML techniques. Here, we also present results obtained after performing behavioral analysis.

Data analysis

For the entire dataset, we first study inDegree and outDegree distribution for both malicious and benign accounts to validate the fat-tailed behavior of the degree distribution. From Fig. 5, we identify that power-law distribution (Alstott et al. 2014) with \(x_{min}=2.3\), \(\alpha \in [2.37,2.54]\) and \(\alpha \in [2.23,2.33]\) fits inDegree and outDegree distribution, respectively, for both malicious and benign accounts. Here \(\alpha\) and \(x_{min}\) are the powerlaw exponent and minimum x from where the powerlaw distribution is observed, respectively.

Fig. 6
figure6

Temporal degree distribution of individual accounts

The fat-tailed nature of degree is evident because some accounts interact with more number of accounts at a certain instant, thereby inducing a bursty behavior. We study the distribution of inDegree for all individual accounts to understand if such behavior is shown by all the accounts. Figure 6a presents distribution of inDegree for different accounts. We identify that the inDegree of very few accounts is high (> 100) for very few time instances while most of the time it is low suggesting the existence of bursts. We observe a similar behavior for outDegree as well (see Fig. 6b).

Next, we validate the existence of temporal bursts. For this we study the distribution of inter-event time (\(\Delta t\)) for all accounts. We find that it follows power law with \(x_{min}=3\) and \(\alpha =1.25\) and \(\alpha =1.76\) for benign and malicious cases, respectively (see Fig. 7a). Nonetheless, we also observe a truncation at \(1.5\times 10^6\) blocks. The truncation reflects that some accounts are inactive or did not perform any transactions for long period of time. When looking at the individual level, we observe that only few accounts have very large inter-event time (\(>1\times 10^6\)) where the probability of occurrence of such events is very low. Most of the activity happens where the inter-event time is very small (see Fig. 7b).

Fig. 7
figure7

Distribution of \(\Delta t\)

The attractiveness behavior of malicious and benign accounts differ significantly (see Fig. 8). Most malicious accounts have high attractiveness value while most of the benign accounts have low attractiveness value. This justifies our assumption that most malicious accounts target those accounts that they have not previously interacted with. Some attacks (Upbit Hack - Fake_Phishing1431: ‘0xdf9191889649c442836ef55de5036a7b694115b6’) uses multiple accounts to evade detection while transferring money to exchanges. They use multiple accounts as buffer between account and exchange. This is the reason for relatively high probability (\(p(A=0)>0.2\)) for the low values of attractiveness (\(A=0\)) for malicious accounts. Similarly, for some benign accounts \(p(A=1)=0.1\) because such accounts only have 1 incoming transaction in whole lifetime portraying that the account interacted only with new accounts.

Fig. 8
figure8

Attractiveness

Feature extraction

For the entire dataset, after applying tsfresh, for every temporal feature \(F_t^j \in F_t\) we get a set of features (\({\hat{F}}_t^j\)) that describes \(F_t^j\). tsfresh in most of the cases reported more than 400 features. But, due to computational resource constraints, we were not able to use all the features from \({\hat{F}}_t^j\). Therefore, we choose only the top three features identified using Gini as the scoring method. Here, we have selected 3 features because for most of the \(F_t^j \in F_t\), top 3 features turned out to be equally important. After this process, we get a total of 59 features. Appendix 2 provides extracted feature vector of a sample account. For the entire dataset, using pearson correlation, we remove highly correlated features and find 36 important features. We also perform PCA to identify 28 features that cover >98.2% variance to further reduce the feature space in the entire dataset.

Approach using supervised learning

For the analysis purposes, besides performing PCA to identify 28 features and before running the AutoML tool (TPOT) to identify the best supervised learning algorithm, we segment the entire dataset into six dataset configurations. Note that these six dataset configurations are different from the temporal SDs. Three out of these six dataset configurations use all types of accounts (EOA and SC) and have 59, 36, and 28 features, respectively. While for the remaining three, we separate EOAs from SCs and use only EOAs. These three configurations again have 59, 36, and 28 features, respectively. We configure TPOT with all the supervised ML algorithms used in the state of the art studies along with other supervised ML algorithms to identify the algorithm that gives best balanced accuracy.

As mentioned in the Sect. 3, from a given set of ML pipelines, TPOT reports the ML pipeline that produces the best results, in our case the best balanced accuracy. This results in the evaluation of multiple ML models that are even beyond those that are reported by the related works. We, thus, decided to limit ourselves from reporting results of all the models and instead report the model for which the best balanced accuracy was achieved. Table 2 lists different dataset configurations we have used along with the algorithm that provided the best balanced accuracy along with precision, recall, and f1-score for each class and reports Mathews Correlation Coefficient (MCC). For each dataset configuration and the algorithm that provided the best balanced accuracy, we only provide values of those hyperparameters for which the values are different from the default case. We identify that ExtraTreesClassifier provides overall best balanced accuracy for all the dataset configurations. Among the different dataset configurations we have, the dataset with 59 features and containing both EOAs and SCs shows the best balanced accuracy. The difference in balanced accuracy score between the dataset configurations when 36 and 59 features are used is only 0.5% for both when we consider only EOAs and all the accounts, respectively. Given such results, we show that correlated features do not provide much gain and can be removed without the loss of accuracy. Further, for completeness, the Table 3 shows balanced accuracy, precision, recall, and MCC score for the ML algorithms and their hyperparameters that the state of the art algorithms use. Here, we specifically focus on the Ethereum based state of the art algorithms for which the hyperparameters were reported. From the Table 3, we can see that the best balanced accuracy achieved was 85% while using our approach, we were able to achieve \(>88.7\%\) balanced accuracy. However, when comparing MCC scores, we note that although XGBoost has a high MCC score, it has relatively low Recall on malicious account. Having a low Recall would mean that algorithm is deeming a large number of malicious accounts as benign. This is not desired as there could be an adversarial attack. Though for our case the MCC score is low, recall is high. Therefore, our model is more robust towards adversarial attack.

To validate our results, we test ExtraTreesClassifier with identified hyperparameters on newly identified set of 1252 malicious accounts. The classifier achieves 50% balanced accuracy. However, when we train the classifier with identified hyperparameters on the total dataset (dataset consisting of previously used 700k accounts and new 1252 accounts), we were able to achieve \(\approx 92\%\) balanced accuracy. This makes us wonder if the new malicious nodes have different characteristics. We check cosine similarity between the old 2946 malicious accounts and the new 1252 malicious accounts (see Fig. 9). We find that most of the newly added malicious accounts had low similarity score. Only one new malicious account had similarity score \(>0.985\) with only one old malicious account. In many cases the similarity score even reached \(<-0.89\) showing that the accounts are not similar and there are some new aspects used by new malicious accounts. Note that to identify cosine similarity we do not use features such as transactedlast and transactedFirst because many of the accounts were created after 7th Dec 2019. This shows malicious actors also evolve the ways they use to misuse crypto-currency platforms for their fraudulent activities.

Fig. 9
figure9

Cosine similarity between malicious accounts identified on different dates

Table 2 Balanced accuracy, Precision, and Recall, and F1 score for both malicious (Mal) and benign (Ben) accounts with best identified ML algorithm for supervised case when using different dataset configurations
Table 3 Balanced accuracy, Precision, and Recall, and F1 score for both malicious (Mal) and benign (Ben) accounts for supervised learning algorithms used in state of the art approaches where hyperparameters were reported

Approach using unsupervised learning

We next test unsupervised learning algorithms such as K-Means, DBSCAN, HDBSCAN, and oneClassSVM to identify suspect accounts in the entire dataset. We find that for the six dataset configurations (mentioned above and not the SDs) and different values of \(k\in [3,24]\), K-Means provide the best silhouette score (score = 0.365) when \(k = 10\) clusters and when we use all the features but only EOAs (‘59 - EOA’) (see Fig. 10). Among these 10 clusters, for one initial condition, one cluster had the most number of already known malicious EOAs (\(\approx 73.9\%~(2062/2788)\)) (see Fig. 11). We then identify the similarity between all the accounts in the identified cluster. We identify 554 benign accounts whose behavior (cosine similarity) (see Fig. 12) is within \(1-\epsilon\) where \(\epsilon \rightarrow 0\) to that of malicious accounts. For our analysis we use \(\epsilon =10^{-7}\). We cross validate the transactions performed by these 554 benign accounts and find that (a) most of the EOAs have small transactedLast value, meaning, those accounts never transacted in recent past (in past 6 months 494 EOAs never interacted), (b) atleast 38 EOAs only have incoming transactions and are not exchanges, and (c) totalBalance \(\in [0.0, 150.0]\) Ethers with a median of 0.001 Ethers.

Fig. 10
figure10

Silhouette scores of clusters identified by K-Means where \(k\in [3, 24]\) for different dataset configurations

Fig. 11
figure11

Clusters with number of malicious accounts for a when only EOAs are considered, b when both EOAs and SCs are considered

Fig. 12
figure12

Cosine similarity between malicious accounts and benign accounts in the cluster with best Silhouette score

When considering both EOAs and SCs, we obtain the best silhouette score (score = 0.356) for \(k=9\) clusters but for the case when we use all the 59 features (‘59 - EOA and SC’) (see Fig. 10). In this case, for one initial condition, there was one cluster with a maximum number of already tagged malicious EOAs (\(\approx 64.3\%~(1793/2788)\)) and malicious SCs (\(\approx 62.6\%~(99/158)\)). We identify 293 potential suspects EOAs and no suspect SCs within this cluster using our previous method. Out of these 293 accounts, 160 EOAs were also detected in the set of 554 accounts. We further tested if the accounts we identified as suspects are present in the list of newly tagged malicious accounts. We found that none of the 3 new malicious tagged accounts that transacted during our analysis period were not in our list of suspects. This is possible as the accounts must have changed their behavior and become malicious after our collection period. We do not reveal the account hash for the sake of privacy and not maligning benign accounts in interacting with any of these 554 or 293 suspects until they are officially tagged malicious. Other unsupervised ML algorithms did not perform better than K-Means. The range of silhouette scores for HDBSCAN was \(\in [-0.06,-0.022]\) while oneClassSVM did not converge.

Given such results, we advocate the use of the approach using unsupervised learning. Approach using supervised learning failed to classify correctly new malicious accounts. Moreover, for the unsupervised case, even in the initial dataset, our approach was able to identify more accounts as suspects. Thereby aligning with our motivation of detecting suspects in the blockchain. Keeping, such results in mind, we used unsupervised learning approach to detect behavior changes before deeming any account as malicious.

Behavior analysis

To further understand the temporal behavior changes before classifying the accounts as malicious, we use temporal sub-datasets (SDs) created at different temporal granularities (\(T_g\), see Sect. 1). Consider a \(T_g\in T_G\) of several SDs. Let this set be \(SD(T_g)\) where \(SD(T_g)=\{SD(T_g)_1,\) \(SD(T_g)_2,\) \(\cdots ,\) \(SD(T_g)_j,\) \(\cdots ,\) \(SD(T_g)_n\}\). Further, consider an account i. We first analyse all the time-series based features in each \(SD(T_g)_j\) and characterise them. We employ a similar approach as before where we identify \({\hat{F}}_t^i\) using tsfresh for a \(F_t^i\in F\) in a given \(SD(T_g)_j\) and use three features in \({\hat{F}}_t^i\) with the highest gini scores.

We then use K-Means with previously identified hyperparameter (\(k=9\)) and perform clustering. As before, we tag accounts in each \(SD(T_g)_j\) as malicious and benign after identifying cosine similarity. This results in a vector (M) for each account of size \(n_i\) where each element (\(M_{j}\)) in M is either 0 or 1 and \(n_i\) is the number of SDs in a \(T_g\) in which the account appears. Here 0 represents not identified as malicious. Let this set of SDs be \(SD(T_g)=\{SD(T_g)_1^i,~SD(T_g)_2^i,~\cdots ,~SD(T_g)_j^i,~\cdots ,~SD(T_g)_n^i\}\). M depicts the behavior of an account i where a change in behavior is captured if \(M_{j}\ne M_{j+1}\). We note that only one benign account, as per our analysis, has changed its behaviour most number of times (591) in the \(T_g=Day\). Figure 13 shows probability distribution of the number of behavioral changes observed in an accounts. The figure only considers those accounts where the change happened at least once. For the daily case, as the data was significant we identify that lognormal-positive distribution with parameters \(x_{min}=1\), \(\mu =1.25\), and \(\sigma =2.36\) best fits the data. Further, across all \(T_g\)s there were 9254 unique benign accounts that showed unstable behavior.

Fig. 13
figure13

Probability distribution of number of changes in behavior of accounts with certain probability for being benign at different \(T_g\)s

From M, the probability of a particular account i to be malicious in a given \(T_g\) is given by \(p_m^i=\frac{\sum _{j\in SD(T_g)^i} M_{j}}{n_i}\). Number of accounts with certain probability for being benign at different \(T_g\)s is shown in Fig. 14. Intuitively, a benign account should have \(p_m^i=0\) while a malicious account should have \(p_m^i=1\). If a known benign account has a high probability then it cannot be trusted. Using such approach, we identify 814 unique accounts across different \(T_g\)s as suspects that have \(p_m^i=0\). Further, as seen from the figure, most of the accounts were identified as benign.

Fig. 14
figure14

Number of accounts with certain probability for being benign at different \(T_g\)s on a semi-log scale

In summary, capturing account’s behavior changes advocates if the account should be considered as malicious or benign at the time of performing a transaction with it. It is possible that, in past, an account might have evaded detection as malicious. Knowledge of such changes in the behavior provides an understanding on whether an account is trusted and is not involved in any illegal activity. Our approach provides one solution to know beforehand and predict if an account would behave maliciously.

Conclusion

Blockchains technology and concept has found its implementation not only in the financial sector such as crypto-currency market, hedge-fund, and insurance but also in sectors such as governance, education, healthcare, and law enforcement. Although blockchains are privacy-preserving, with an increase in its adoption, security threats are inevitable. The misuse will be more diverse and deployed using novel techniques. It is essential to have secure transactions. Motivated by the fact that there is limited work in identifying accounts involved in potential malicious activities and those available do not target temporal aspects of blockchains, in this work, we present a way to detect malicious accounts considering the temporal nature of the blockchains.

In this work, we present graph-based temporal features (such as burst and attractiveness) that are inspired by the existing attacks in the blockchain on top of existing features used to identify malicious accounts. To do so, we first conduct a systematic study of the temporal behavior of the blockchain graph on a collected transaction data in one of the blockchains called Ethereum. Our results show that ExtraTreesClassifier performs best under the supervised setting and achieves balanced accuracy in the range [87.2, 88.7] for different dataset configurations. Moreover, under the unsupervised settings, K-Means was able to cluster max 73.9% known malicious accounts together and identify 554 more suspects that had similar behavior to that of malicious accounts. When considering behavioral changes over time and studying them over different temporal granularities, we are able to detect the probability of an account being malicious at a particular temporal granularity.

Given such results, we expect that benign accounts would be more careful while transacting with suspects and safe-guard themselves from any fraud and security threats. However, the current technique is only applicable to permissionless blockchain. We would like to investigate the applicability of our method to blockchains where features such as Transaction Fees and Balance are missing. Despite whether a particular blockchain is permissionless or permissioned, there are many other centrality measures such as closeness, betweenness and page-rank that are applicable in a blockchain graph. Another future research direction is to incorporate these measures as features and study the behavior of the accounts before tagging them as malicious or benign. Nonetheless, in this work, we detected suspects using supervised learning and unsupervised learning algorithms. Reinforcement learning is another type of ML that can be applied and studied to detect malicious activity. As our validations failed on the newly tagged malicious accounts one perspective is to study new features and new methods that the new malicious accounts are using and deploying to perform illegal activities. In this work, we considered all the malicious activities under one class. In the future, we would also like to investigate which features are more important for a particular activity and study based on the malicious activity type.

Availability of data and materials

The list of 2946 malicious accounts used will be made available upon request. Nonetheless, list of all 4708 malicious accounts is publicly available on Etherscan and can be crawled using Etherscan (2020b). The Ethereum transaction Data is also public and can be downloaded using Etherscan APIs (Etherscan 2020a).
