A data-driven network approach for characterization of political parties’ ideology dynamics

Abstract

Political ideology is a major social phenomena that plays a crucial role in the formation and dynamics of ideologically-aligned social groups. This alignment gives rise to some of the most powerful social structures in modern democracies, the political parties. Due to the influence and importance of political parties in society, estimating their ideology is an active topic in political science research. However ideology is a very subjective phenomena and existing quantitative methods for ideology estimation are susceptible to a variety estimation issues, specially when applied in multi-partisan systems. In this work, we developed a data-driven network model for political ideology estimation based on partisan relationships established from party-switching politicians. The model is applied to the Brazilian case and yields results consistent with existing literature in the Brazilian political scenario while addressing data scarcity issues in existing methodologies.

Introduction

Political ideology plays a key role in democracies; it drives the formation and agenda of political parties; it also guides the voting decisions of citizens. Indeed, an effective strategy for a party to attract voters, and thus maximize its representation, is to align its political ideology and agenda with that of voters. This alignment strategy works because people tend to make voting decisions by matching their own opinions to a party’s perceived ideology (Colomer 2004). By determining a party’s ideology, citizens can make informed decisions in elections, which should improve the quality of political representation, and possibly contribute to a healthier democracy.

The development of methods for estimating the ideology of political parties is of major interest in political and social-economic sciences (Budge 2000; La Palombara and Weiner 1966). However, estimating ideology is highly subjective (Freeden 2006; Feldman and Johnston 2014). For instance, the meaning of ideological labels such as left, right, liberal, conservative depends on historical context, e.g., being a liberal in 1950 differs from being a liberal in 2019 (McCarty 2011). In fact, even a simplistic left-right characterization still leads to a continuous spectrum of orientations.

Despite its subjectivity, partisan ideology can be estimated by quantitative approaches (Slapin and Proksch 2008; Clinton et al. 2004; Dinas and Gemenis 2010). The most popular class of approaches known as roll-call models rely on roll-call records of parliamentary voting (Hinich and Munger 1992). Roll-call models are usually applied to infer ideal points (e.g., most preferred outcomes) of individual politicians. Because of their popularity, they became very common to estimate the ideology of entire political parties. This is accomplished by aggregating the individual scores by their respective party. However, this method can lead to inaccurate estimates due to roll-calls with few records for certain cases (Poole and Rosenthal 2001). For example, roll-call data scarcity is an issue for countries with small parties with little representation as in the case of some major democracies (e.g. Argentina, Brazil, France, Germany, Mexico, Netherlands, and Switzerland). Roll-call based approaches cannot be applied in the case of new parties because they have no representation or in the case of newly elected politicians as their roll-call data is nonexistent.

In this paper, we present a quantitative approach based on network science (Barabási 2013) and grounded in assumptions from structural social-influence theory (Friedkin and Johnsen 2011) to estimate political parties’ ideology. Here, we consider political parties as social groups, and we model partisan ideology based on party-switching affiliations from one election to another. Because our model does not use roll-call data, it can estimate ideal points of any political party in multi-party democracies regardless of the parties’ parliamentary representation size.

Our contribution are as follows. First, we mine a large longitudinal dataset of electoral data to build networks of political parties based on politicians’ party-switching affiliations. Second, we apply a community detection algorithm to uncover the macroscopic structure of the networks regarding partisan ideology. Third, by leveraging the network structure, we derive a model to estimate the ideology of political parties in the left-right scale. And finally, we validate our methods by probing the networks against a configuration model and comparing the distribution of ideological distances produced by the model in the case of empirical and synthetic networks.

Our approach applies a network science methodology to fill the gap of ideal-point estimation in multi-party democracies by demonstrating that election data, which includes data related to non-elected politicians, may still be effective in ideology estimation and are less likely to present data scarcity issues.

Related works

Quantitative methods estimating party ideology can be divided into two groups. Methods in the group estimate ideology by analyzing the party’s manifestos and other foundation documents (Slapin and Proksch 2008; Dinas and Gemenis 2010). However, methods in this first group might suffer from two issues. First, the party’s documents may reflect their author’s opinions which may differ from the party’s current ideology. This difference affects ideological estimation for large political parties. Second, analyzing manifestos to infer ideology can fail to capture longitudinal ideological variations.

The second group of quantitative methods estimate politicians’ ideal points from roll-call records using approaches such as the Bayesian ideal-points estimation and the three-step nominate (Kellermann 2012; Clinton et al. 2004). Both approaches rely on existing voting records and are known to predict accurate voting outcomes. The Bayesian method is similar to the item-response model (i.e., the Rash model) largely used in education research (Bafumi et al. 2005). The nominate method is the most-used approach for ideology estimation. It combines the uncertainty of voting outcomes with a utility function that minimizes the distance from a legislator’s ideal point and the bill being considered. The nominate method has been applied beyond parliamentary systems in analysis of the United Nations Assembly (Voeten 2000) and the United States Supreme Court (Martin and Quinn 2002). Both Nominate (and its variations) and the Bayesian methods are flexible and accurate and have been shown to generate similar results (Clinton and Jackman 2009). These methods are designed to uncover ideology at the individual level, yet, they are commonly used to analyze the ideology of political parties through aggregation of politician’s ideology scores by party affiliation. This is the case of ideology studies of the European (Hix 2002) and Canadian Parliaments (Godbout and Høyland 2011); Argentina’s (Alemán et al. 2018), Mexico’s (Knight 2018) and Brazil’s Chamber of Deputies (Bernabel 2015), and of the Brazilian Senate (McDonnell 2017). However, these methods’ application to multiparty systems is limited because of the reliance of roll-call data, which is not always available.

The nominate approach was designed for two-party systems, yet the method can been used in multi-partisan democracies with some adaptations. For instance, a government-opposition spectrum can be used instead of the left-right spectrum (Hix and Noury 2016). In previous works, this method was used with data from the Brazilian House of Representatives to estimate legislator’s ideal points in a scale of support-opposition to the government (de Borja and Freitas 2015). While such an approach can be extrapolated to position a party with respect to its support (or opposition) to the government’s position, it does not capture its ideological position. The nominate method also works for estimating ideal points for major political parties, but it is unsuitable for estimating ideology of small and newly created parties.

Methods

Our approach for estimating the ideology of political parties is based on the theory of social influence which posits that people’s idiosyncrasies are affected by their social interactions. Likewise, the overall behavior of social groups is affected by its membership dynamics (Friedkin and Johnsen 2011). Here, we assume that the ideology of a political party as a social group, is affected by affiliation switches of politicians.

Network model of party affiliation switching

To test our assumptions, we model a network representing political parties and their affiliation dynamics as shown in Fig. 1. The network includes a temporal dimension to account for affiliation switches occurring at any election year. Each political party is represented as a node and any two parties are connected by an edge if at least one candidate switched affiliation from one party to the other. The edge only exists in the election year that the switch occurred, and the edge weight accounts for the number of switching politicians between the two parties (Filho et al. 2013).

Fig. 1

The movement of candidates between parties yields a network of parties. Each candidate movement generates a connection between two parties. The result is a network where nodes represent parties and edges represent the connections among them. The weight $w_{ij}^{y}$ of an edge represents the total number of candidates switching from i to j in year y. See Additional file 1: Table S2 for details about the political parties studied in this paper

Formally, let $V = \left \{ 1, \hdots, P\right \}$ be the set of political parties and G^y=(V,E) be the affiliation-switch graph. A directed weighted edge (i,j)^y∈E connects party i to party j if there exists a candidate who switched affiliation from party i to party j in the election cycle year y. The weight $w_{ij}^{y}$ is the total number of candidates switching from i to j in year y.

For example, assuming a candidate c, three parties p₁, p₂, and p₃, and three election years, y₁, y₂, and y₃, where y₁<y₂<y₃. A few scenarios can occur:

• If a candidate c runs in election year y₁ for party p₁, and in elections years y₂ and y₃ for party p₂, the movement yields one directed edge (p₁,p₂) for year y₂. There is no contribution to the graph for year y₃ from c staying in the same party (p₂) in years y₂ and y₃.

• If a candidate c runs in election y₁ for party p₁, in y₂ for party p₂, and in y₃ for party p₃, the movements will yield edge (p₁,p₂) for year y₂ and edge (p₂,p₃) in the party graph for year y₃.

• If a candidate c runs in election y₁ for party p₁, does not run in election y₂, and runs in election y₃ for party p₂, such movement yields one edge (p₁,p₂) in the graph for the year y₃. This means the movement is only consolidated when the candidate reappeared in election y₃.

Dataset

We used a dataset of more than two million candidacies in Brazil (legislative and executive) from 1998 to 2018. The raw data is provided by the Brazilian Department of Elections¹ and is freely available online.

We mined the dataset to retrieve affiliation switches. Then we generated ten networks, one for each election year, according to the scheme described in “Network model of party affiliation switching” section and Fig. 1. We found a total of 392,457 affiliation switches within twenty years of election data. A summary of each network is provided in Table 1.

Table 1 Summary of the network characteristics for each election cycle

Structural evidence via community analysis

Community detection to analyze the political scenario and its ideology dynamics has been recently investigated using roll-call data (Gomes Ferreira et al. 2018). In this work, we investigated the properties of the party-switching networks with regards to community structure and partisan ideology. A community is a set of nodes more tightly connected among themselves than to the rest of the network (Santo 2010). In the context of political networks defined by affiliation switches, a community means a group of parties sharing a higher rate of member exchange.

There are many methods of community detection, however, few of them support directed and weighted networks (Hartman et al. 2017). In this work, we applied the stochastic block model (SBM) for community detection (Peixoto 2014) because it satisfies both direction and edge weights. SBM applies an inference-based approach to find the best grouping ensemble of nodes by using entropy minimization (Karrer and Newman 2011), and is considered a state-of-art method for community detection (Peel et al. 2017). Furthermore, SBM has been shown to be equivalent (Newman 2016) to modularity based algorithm such as the Louvain method (Blondel et al. 2008).

We measured the ideological homogeneity among parties within communities to test the relationship between communities and ideological positions. Communities were assigned to the predominant position of parties within them (according to Table 2). When a party has a position different from the predominant of the community we accounted it as a miss. The proportion between the sum of all misses in a network and the total number of parties in it, is the measure of ideological influence on candidates movements, and is represented as a matching percentage.

Table 2 Parties classification based on their positions in the left-right ideological continuum as proposed by Miguel and Machado (Miguel and Machado 2007)

Ideology of political parties

We represent the ideology of individual party members as a value in a one-dimension left-right ideological continuum, where 1 denotes the extreme left, and 10 the extreme right, a convention largely adopted in the literature. Also following the political-science literature, we model parties’ ideology using a normal distribution $\mathcal {N}(\mu,\sigma)$, where the mean μ is the party ideological center, and the standard deviation σ is the ideological spread of party members (Fig. 2).

Fig. 2

Normal distribution modeling the ideology of political parties. Political parties have an ideology position located anywhere within the ideology spectrum. Parties’ ideologies are normally distributed ($\mathcal {N}(\mu,\sigma)$) around the mean μ with party ideology dispersion represented by the standard deviation σ

We assume that the switches in party affiliation by politicians (“Network model of party affiliation switching” section), when accounted at a sufficiently large scale (e.g., country level), should influence the ideologies of both the origin and the destination parties. These assumptions are grounded in many studies in social networks that investigated the effects of affiliation switches among social groups (e.g., company board interlocks) (Carpenter and Westphal 2001; Gulati and Westphal 1999).

The ideology of the party of origin is affected by the loss of its members, and the ideology of the destination party is affected by the new members’ arrival. We also assume that the degree of change in party ideology resulting from affiliation switches is a function of the magnitude of the movement (e.g., the number of politicians), the ideological distance between the two parties, and, the size (e.g., number of running politicians) of both origin and destination parties. We further assume that politicians switch parties because their own ideology aligns better with the destination party. We think that this ideological-affinity assumption is reasonable given the large scale of our analysis, even though there can be many reasons for a politician to switch parties. Since our data include all candidates to all elected positions, sporadic affiliation switches that happen contrary to politicians’ ideological affinity should have their influences averaged out leaving mostly ideology influences as a net result.

We modeled party switches by applying a sampling procedure. Since the ideology of each party is represented by $\mathcal {N}(\mu,\sigma)$, we can sample the moving members out of the origin party, and merge them into the destination party. To account for the ideological affinity of the leaving members with the destination party, we skew the sampling area in the party of origin towards the direction of the destination party. Here, the skewed sampling probability is given by a Beta distribution $\mathcal {B}(\alpha,\beta)$ with probability density function defined as:

$$ f(x;\alpha,\beta) = \frac{1}{B(\alpha,\beta)}x^{\alpha -1}(1-x)^{\beta -1}, $$

(1)

where:

$$ B(\alpha,\beta) = \frac{\Gamma(\alpha)\Gamma(\beta)}{\Gamma(\alpha + \beta)}, $$

(2)

and Γ(α) is the standard gamma function, given by:

$$ \Gamma(\alpha) = \int^{\infty}_{0} x^{\alpha -1}e^{-x} dx. $$

(3)

Formally, let $\mathcal {N}(\mu _{i},\sigma _{i})$ and $\mathcal {N}(\mu _{j},\sigma _{j})$ be ideology distributions of the origin and destination parties, respectively. We define the parameters (α, β) of the Beta distribution proportional to the ideological distance between the parties, defined as |μ_i−μ_j|. The relationship between α and β is defined as follows:

$$ \left\{\begin{array}{ll} \alpha > \beta, & \text{if}\ \mu_{i} > \mu_{j}\\ \alpha < \beta, & \text{if}\ \mu_{i} < \mu_{j}\\ \alpha = \beta, & \text{if}\ \mu_{i} = \mu_{j}. \end{array}\right. $$

(4)

For all cases, we set $\alpha, \beta \in \left [1,10\right ]$, with the variation in between determined by the ideological distance |μ_i−μ_j|. When α>β, we set α=10, and $\beta \propto |\mu _{i} - \mu _{j}|$. The opposite case works similarly, for α<β, we set β=10, and $\alpha \propto |\mu _{i} - \mu _{j}|$. For cases when parties have the same ideology score, we set α=β=10. Any configuration of α and β>1 yields a similar behavior of the Beta distribution. The choice of the 0−10 range maintains the consistency with the adopted ideology range (Power and Zucco Jr 2009). The three cases (Eq. 4) skew the sampling area to the left, to the right, or the same as the distribution of the origin party $\mathcal {N}(\mu _{i},\sigma _{i})$, which occurs when α=β and α>1. The first two cases are depicted in Fig. 3.

Fig. 3

Sampling of switching politicians based on ideological distance following a Beta Distribution $\mathcal {B}(\alpha,\beta)$. The parameters α and β which are proportional to the distance between the origin and destination means (μ_i,μ_j see Fig. 2) are shown as vertical dashes. The longer horizontal arrows show the most likely shift in ideology. Because the model is probabilistic, there is also a possibility of the shift occurring in the opposite direction (shorter arrows). Continuous horizontal arrows represent the shift in the origin party while dashed arrows represent the shift in the destination party. In panel a, the destination party is on the right, hence the politicians on the right side of the origin distribution are more likely to leave. Conversely, in panel b the destination party is on the left, hence the politicians on the left side of the origin distribution are more likely to leave

As politicians switch from one party to another, we sample from the origin party $\mathcal {N}(\mu _{i},\sigma _{i})$ and add to the destination $\mathcal {N}(\mu _{j},\sigma _{j})$. At every interaction (election year), we keep a table with the number of running politicians and position of every party. The size of each party’s pool of members is adjusted at every iteration (i.e., election cycle), to be the number of politicians running in that party for any election year. We initialized the model with means and standard deviation using elite survey data reported by Zucco and Power (Power and Zucco Jr 2009), as shown in Additional file 1: Table S1. The procedure was repeated for all election years in the dataset.

Comparison with a configuration model

The input of the ideology model are graphs representing the switching patterns of politicians among the political parties. To assess our model’s ability to capture structural components of the party switching networks, we compared it with a randomized configuration model (Fosdick et al. 2018).

For each graph, we generated a randomized counterpart by shuffling the edges and maintaining the degree distribution. For each election year and for each affiliation switch, we fixed the origin party and sampled the destination with replacement from the set of active political parties in that year. This procedure creates parallel edges, which are then collapsed into edge weights. The method yields one randomized graph for each election, which are input into the ideology model described in “Ideology of political parties” section. The distributions of random and empirical graphs are shown in Fig. 6.

Results

The outcome of the community detection analysis suggests that inter-party migrations are coherent with the party ideology. As shown in Fig. 4, the networks became more representative of the switching phenomena over time as increasingly more switching information is mined from electoral data. However, the high matching rates shown in Table 3 were unexpected due to the higher density of later years’ networks (e.g., 2016 and 2018), in addition to an alleged lack of strong ideological roots for most of the political parties in Brazil (Zucco 2009).

Fig. 4

Networks of inter-parties movements for the elections in the period from 2000 to 2018. The nodes’ colors correspond to their communities while sizes are proportional to the nodes’ total weighted degree. In the first year, the network has low density and there is scant evidence of structure. As more data is added the structure of party clusters became evident

Table 3 Communities and the matching rate to the political ideological position described in Table 2

The community detection analysis shows a tendency of parties of similar ideology appearing together. This structure also shows a type of ideological locality, i.e., despite changing affiliations, the majority of politicians tend to move to groups that are ideologically closer to those with which they have been previously affiliated. Such a structure is indicative of the existence of ideological affinity in affiliation exchanges among parties and provides ground to the assumptions in our model of parties’ ideology.

Underlying our modeling assumptions is the consideration of political parties as social groups. These groups interact with each other through affiliation exchanges which were aggregated every election year. On each interaction, the group’s ideology was recomputed based on the positions of the incoming and outgoing members (e.g., the ideological position of a party in 2004 was used to compute its position in 2006). This allowed us to create a temporal trajectory of the political parties’ ideologies as shown in Fig. 5.

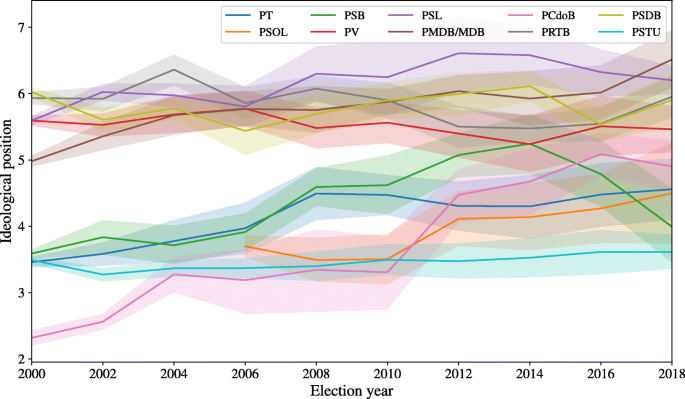

Fig. 5

Positions of political parties. The starting points from Zucco and Power (Power and Zucco Jr 2009) (Additional file 1: Table S1) are from the election year of 1998. The points shown for year 2000 are already computed from our model. The points of interest are the location of the party in any election year. The error of each score is shown with the same color in higher transparency. Movements to the left or to the right along the ideological spectrum represents the dynamics of the churn rate of members in any election year. The stability of a party to its current ideology depends on the number of loyal and newly acquired members

Recomputing the ideology after every election cycle accounts for two important assumptions. The people joining the destination party will “integrate and blend in” with the party’s ideology. Similarly, the new members bring their previous beliefs and idiosyncrasies into the group, thus, changing its ideology. These effects represents the bidirectional nature of social influence in which the group influences its new members whereas the new members also influence the group (Friedkin and Johnsen 2011).

The number of first time candidates and of candidates loyal to the party (candidates that never run in other parties) play an important role in party stability regarding ideology shifts. Large parties will be more stable since the size of the influx of members, which translates into ideology changes, is proportional to its size. That is, a party with a high proportion of loyal and new members in its pool of members is less susceptible to ideology shifts. Conversely, when a small party receives a high number of new members, proportional to its size, such party is likely to suffer a significant change in its ideological leaning as a result of the influence of the new members. Additionally, this effect is proportional to the ideological position from which the incoming members originated.

Our model captures interesting events in the party dynamics of Brazilian politics. It is not our intent to delve into the field of comparative politics, to which we refer the interested reader to an excellent accounts in comparative analysis of Brazilian contemporary politics (Power 2011; Bruera 2013). Nevertheless, we point out the results of our model that remarkably captured or anticipated important developments in the Brazilian political landscape. One example of these events was a split that occurred within the Workers Party (PT) in 2005 when many of its affiliates left the party to create the Party of Freedom and Socialism (PSOL). As a new party, the PSOL had very few elected officials, making it impractical the use of roll-call data models to evaluate the party’s location in the political ideological spectrum (Poole 2000). Our model placed the PSOL close to the position of the Worker’s party, from which most of its members came. Not surprisingly, a few years later, the position of PSOL was quantitatively estimated as a left-wing party using roll-call data (Zucco JR and Lauderdale 2011), in agreement with our predictions.

Another interesting observation was the rightward movement of the PSB (Socialist Party of Brazil). Notice in Fig. 5 that in the beginning of the 2000’s, PSB was a left-wing party. Our model shows a rightward movement which is also mentioned by comparative politics analysis (Power and Zucco Jr 2009; Miguel and Machado 2007). PSB’s right shift coincides with a key moment of Brazilian politics in modern times, which was the impeachment of the left-leaning president Dilma Roussef (Nunes and Melo 2017). In this period, the PSB joined forces against the party of Mrs. Roussef, and the party voted overwhelmingly to oust her from power both in the House and in the Senate. Since then, the party has been often split on whether or not to support the reforms proposed by the subsequent president Michel Temer. Our model suggests that PSB lost most of its right-leaning members, pushing the party’s ideology back to the left.

Our validation experiments aimed at ensuring that our model captures the structural characteristics observed in the network. Figure 6 shows the empirical and shuffled distributions of distances of affiliation switches for all election years. The configuration methodology yields a distribution of distances centered in the middle of the ideology spectrum because the targets are randomly sampled out of all parties active in a given year. On the other hand, the distribution of distances from the empirical data shows a clear tendency of shorter distances, consistent with the community detection analysis.

Fig. 6

Comparing the distribution of ideological distances between origin and destination parties for the empirical results and a configuration model as a theoretical baseline system. The main panels show the density distribution as histograms whereas the insets depict their corresponding cumulative distribution functions (CDF). When we compare the distance distribution between all origin and destination parties (green) with the baseline distances, should both endpoints of a party switch were picked at random (orange), we can see that, in general, the observed distances are significantly smaller than the ones from the randomized networks (See “Comparison with a configuration model” section for methodological details on our baseline model). Indeed, the model captures the structural phenomena of ideological proximity, as the switches tend to take place over shorter distance. Not surprisingly, the same trend had already been evidenced by community analyses

Final considerations

Political parties are an essential component of modern democracies. Hence, understanding their dynamics and characteristics is paramount. In this work, we proposed an approach to estimate the ideology of political parties based on their members’ affiliation exchanges. We show that our methods can capture the ideology of new or less-represented political groups, a scenario in which traditional methodologies could not be applied. Our model can position parties in the ideological spectrum regardless of their size or level of representation as long as affiliation data is available. To test our model, we identified affiliation switches by mining a large longitudinal dataset from Brazilian elections, where party-switching affiliations is a well-known behavior among politicians (Desposato 2006).

In this work, we showed that our results are consistent with the phenomena of ideological locality by comparing the empirical results with a network configuration model. However, our model is suitable for uncovering a macro view of the political landscape. Unlike roll-call data models, our methods are not suited to estimate ideal points at an individual level, which can be adjusted for both individual and group level studies. Furthermore, the applicability of our method is suited to situations in which the roll-call data is scarce for certain political parties in multi-partisan systems.

An important aspect of our work, is its potential to be generalized to any social groups. There are many cases of well-structured groups in which affiliation switches play a role in the group’s general characteristics such as academics in research institutions and dynamics of employees in companies. Modeling social group characteristics from members affiliation dynamics can potentially leverage the knowledge of several underlying social phenomena.
