SIR epidemics in interconnected networks: threshold curve and phase transition
Applied Network Science volume 9, Article number: 50 (2024)
Abstract
For simplicity of mathematical modeling of epidemic spreading, the assumption is that hosts have identical rates of diseasecausing contacts. However, in the real world, the scenario is different. The networkbased framework allows us to capture the complex interdependencies and structural heterogeneity present in realworld systems. We examine two distinct scenarios involving the dynamics of susceptibleinfectedrecovered (SIR) in interconnected networks. In the first part, we show how the epidemic threshold of a contact network changes as a result of being coupled with another network for a fixed infection strength. The model employed in this work considers both the contact networks and interconnections as generic. We have depicted the epidemic threshold curve for interconnected networks, considering the assumption that the infection could be initially present in either one or both of the networks. If the normalized infection strengths are above the threshold curve, the infection spreads, whereas if the normalized infection strengths are below the threshold curve, the disease does not spread. This is true for any level of interconnection. In the second part, we investigate the spillover phenomenon, where the disease in a novel host population network comes from a reservoir network. We have observed a clear phase transition when the number of links or the internetwork infection rate exceeds a certain threshold, keeping all other parameters constant. We observe two regimes for spillover: a major spillover region and a minor spillover region based on interpopulation links (fraction of links between two networks) and internetwork infection strength (infection rate between reservoir and host network). If the interpopulation links and internetwork infection strength are in the major spillover region, the spillover probability is high, while if the former parameters are in the minor spillover region, the spillover probability is low. When the number of infected individuals within a reservoir network is nearly equal, and the internetwork infection strength remains constant, the threshold number of links required to achieve the spillover threshold condition varies based on the network topology. Overall, this work contributes to the understanding of SIR dynamics in interconnected networks and sheds light on the behavior of epidemics in complex systems.
Introduction
Various types of contagious diseases are found all over the world. It is crucial to prevent the spread of these diseases. Consequently, extensive research is being conducted to halt their transmission. In addition to other research endeavors, scientists are also crafting diverse mathematical models. These models can aid in understanding diseasespreading mechanisms, estimating potential outbreak sizes, and formulating more effective mitigation strategies.
Considerable progress has been made in the realm of mathematical research on epidemic diseases, encompassing both theoretical and practical applications. Numerous epidemic models are formulated as dynamical systems of ordinary differential equations. Delay differential equations have demonstrated their efficacy in capturing the variability observed in infectious periods within diverse epidemic models. Furthermore, incorporating factors like age structure and spatial considerations has contributed to the development of partial differential equations (Ji and Jiang 2014).
Compartmental models are also very useful for studying epidemic diseases. These models for epidemics are of different types, such as the SIS (SusceptibleInfectedSusceptible) model, the SIR (susceptibleinfectedrecovered) model, and the SEIR (susceptibleexposedinfectedrecovered) model, among others (Brauer 2008). In the SIR model, infected agents recover and become permanently immune, never becoming infected again. The SIR model is particularly effective in explaining diseases like influenza, COVID19, and other contagious diseases.
Many epidemiological models simplify the assumptions regarding the patterns of diseasecausing interactions among hosts. Specifically, in homogeneousmixing models, it is assumed that hosts have identical rates of diseasecausing contact. In recent years, several networkbased approaches have been developed to explicitly model the heterogeneity in host contact patterns (Bansal et al. 2007).
A contact network plays a crucial role in facilitating the transmission of epidemics. This network is composed of nodes, which correspond to individual agents, and links, which signify the connections between any two individuals. At its simplest, a contact network takes on a binary form with two distinct values: a nonzero value denoting contact between a pair of individuals and 0 indicating no contact. Each node within this network represents an individual, while the interconnecting links between nodes provide insights into the quantity and types of interactions. For instance, these links shed light on an individual’s associations with susceptible or infected individuals, thereby offering a comprehensive view of the underlying dynamics of disease transmission within the network.
In many cases, a single generic network is used to model epidemic diseases, but in reality, every network has some interaction with other networks. That’s why the concept of interconnected networks is a very critical research area nowadays, especially for epidemic disease modeling (Wang et al. 2014; Wang and Xiao 2011).
It is a proven result that in a generic contact network, if the ratio of infection to cure rate is less than a particular threshold, the infection cannot survive in the network. However, for SIS spreading dynamics in two interconnected networks, the epidemic can survive though the infectiontocure rate in both networks is less than the epidemic threshold (Sahneh et al. 2013a). In that case, we have seen an epidemic threshold curve, which is plotted to show the epidemic threshold of one network as a function of effective infection strength (infection to cure rate) in the other network for a specific level of interconnection. To our best knowledge, this result has not been proven for SIR spreading dynamics.
In the initial portion of this paper, we have demonstrated the alteration of the epidemic threshold of a specific network due to its coupling with another network, assuming a constant infection strength. However, we have specifically examined the change in the epidemic threshold concerning the dynamics of SIR spreading. We have plotted three distinct epidemic threshold curves corresponding to three different types of coupling: weak, medium, and strong. We show that for SIR dynamics, although the epidemic threshold of both networks is less than the epidemic threshold, the infection can still survive in the whole interconnected system.
In our work in depicting the epidemic threshold curve for interconnected networks, the consideration has been that few initial infections either die out or invade both networks, causing an epidemic.
However, in reality, there are certain diseases where the infection is endemically present in one population represented by a contact network, and from that, the disease spills to another population represented by another contact network if the two networks are interconnected. This event is known as spillover.
In the second portion, we have done significant work on spillover in various networkbased models and obtained a clear phase transition for the probability of spillover. These networkbased models for spillover include both homogeneous and heterogeneous node degree distributions. We have also drawn a spillover threshold curve based on interpopulation link density and internetwork infection strength that divides the entire area into two regions: major and minor spillover. If the internetwork infection strength and interpopulation link density are in the major spillover region, the probability of spillover is very high, whereas if the internetwork infection strength and interpopulation link density are in the minor spillover region, the probability of spillover is low.
Summarizing the novel contributions of this paper are:

The determination of an epidemic threshold curve for SIR spreading in interconnected networks.

The discovery of a phase transition for spillover as a function of the level of interconnection.

The determination of a major or minor spillover probability region as a function of the level of interconnection and internetwork infection strength.
The rest of the paper is organized as follows. “Background” section presents some background on spillover and interconnected networks. The epidemic threshold curve for SIR dynamics in interconnected networks is illustrated in “Modeling SIR spreading in interconnected network” section. Modeling spillover and discovering the phase transition through extensive simulations are shown in “Modelling spillover” section.
Background
Multilayer networks are formed by several networks that evolve and interact with each other. These networks are ubiquitous and include social networks, financial markets, and multimodal transportation systems. The multilayer structure of these networks strongly affects the properties of dynamical and stochastic processes defined on them, which can display unexpected characteristics (Bianconi 2018).
As the field of network science has dramatically increased, researchers have found that most complex systems do not work in isolation. Every complex system depends on another complex system to some extent. For example, communication systems often depend on the power grid to be operational (Gao et al. 2022; D’Agostino and Scala 2014). So, if there is a failure in any part of an interconnected system, that fault propagates to other parts of the system. So, for the proper functioning of an interconnected system, insight into fault propagation mechanisms in an interconnected system is very important. This kind of research also provides insight into the robustness of the system (Shekhtman et al. 2023). Similarly, research has been done to revive a failed network through microscopic interventions. The complex system represented by a complex network generally fails due to node, link removal, or due to reduction in link weights. But just reversing the topological damage, i.e., reconstruction of links, nodes, or increase of link weight, does not guarantee the spontaneous recovery of a system. So scientists have come out with a twostep intervention process by which a system can be steered towards its functionality after reversing the topological damage (Sanhedrai et al. 2022). Radicchi et al. have shown that depending on the relative importance of inter and intralayer connection, the entire interconnected system can have two regimes; in one regime, various layers act as independent entities, and in another regime, the whole system behaves as a single network (Radicchi and Arenas 2013). These are some examples of various research conducted on interconnected networks.
Interconnected networks are also used to model epidemic spreading. Researchers have shown how the epidemic threshold of an interconnected network structure varies for SIS spreading dynamics without any approximation. They have also shown the upper and lower bound of the epidemic threshold and how it is related to properties of network parameters (eigenvalue and eigenvector) (Wang et al. 2013). Scientists have found that for an interconnected network system, there exists a global threshold above which the infection prevails in every network of the subsystem and below which the infection dies out. Another finding indicated that having a diverse structure enhances the likelihood of infection, with this impact being particularly noticeable in interconnected network systems (Zhu et al. 2015). The epidemic threshold in two interconnected networks is always lower than any of the twocomponent networks. Moreover, in interconnected networks, interconnection correlation has no significant contribution to epidemic size (Wang and Xiao 2012). Dickison and colleagues discovered that when considering SIR spreading dynamics within a connected network, there are two clear modes. In the case of strongly coupled interconnected networks, there’s a threshold infection strength beyond which the epidemic invades the entire interconnected structure, while below this threshold, the epidemics die away. But for weakly coupled networks, a mixed phase exists, where the epidemic does not spread in the whole interconnected system, and interconnections affect the less interconnected network mostly (Dickison et al. 2012). The directed interconnected network is also used for epidemic modeling. For various types of directed interconnected networks, mathematical expression of \(R_{0}\). The disease will become endemic if \(R_{0}\) is greater than 1; otherwise, it will die out. Coupling can increase \(R_{0}\) and even make a disease endemic. There are certain considerations for epidemic prevalence in a single subnetwork, which is only possible in directed network (Jia et al. 2019). A new type of model has been made to investigate the epidemics on interconnected networks. One contact network has a fixed infection rate, and another has a periodic infection rate. They have some novel findings regarding \(R_{0}\) based on their model and showed the dependence of infection rate and other network parameters on \(R_{0}\) (Xu et al. 2019).
In recent years, many works have been done on modeling spillover. Nandi et al. have considered the effect of seasonal variation on transmission and recovery rates in the context of spillover. They have focused on the direct transmission of pathogens between humans and animals and considered all the infection and recovery rates are periodic. A branching process approximation has been applied near the diseasefree equilibrium to predict the first spillover event. It also shows how the probability of spillover depends on the humantohuman infection rate, humantoanimal infection rate, and animal recovery rate (Nandi and Allen 2021). Grange et al. have identified the host, viral, and environmental risk factors contributing to zoonotic virus spillover and spread in humans. They have also developed an interactive web tool that estimates the risk score of wildlifeorigin viruses and lists a number of viruses based on their risk score (Grange et al. 2021). Ellwanger et al. have reviewed the basic aspects and the main factors involved in zoonotic spillover. The focus was on the role of interspecies interaction, phylogenetic distance between host and species, environmental drivers, and specific characteristics of the pathogen. They have also shed light on preventing zoonotic spillover in various ways (Ellwanger and Chies 2021). Royce et al. have used a new mathematical spillover model with an intermediate host. The agents are in three categories: wild animals, domestic animals, and humans. They have assumed that the pathogen in domestic animals mutates itself and becomes strong enough to infect a human. Even though \(R_{0}\) is less than 1 in humans, it can still infect the human population (Royce and Fu 2020). A synthetic framework for animaltohuman virus transmission is proposed by Plowright et al., and this study integrates the relevant spillover mechanism. According to the authors, all zoonotic pathogens must overcome a hierarchical series of barriers to cause spillover. If any barriers are impenetrable, then the spillover cannot happen. They describe these barriers in detail and claim that the probability of spillover is determined by the interaction among the barriers and the associated bottlenecks that might prevent crossspecies transmission (Plowright et al. 2017). Rees et al. review the mathematical models of spillover. There are two criteria for selecting diseases included in models. The first one is the disease must be zoonotic, and the second one is the pathogen must be alive for 48 h and should be able to infect humans. This appears to describe the scope of future research in zoonotic spillover, model validation, and other important information (Rees et al. 2021). We have been discussing only zoonotic spillover till now, but recently, spillover from plants has also been spotted. A 61yearold person with no previous history of the disease has been infected by a plant fungus in Kolkata (a city in Eastern India). The scientific name of the plant pathogen is Chondrostereum purpureum (Dutta and Ray 2023).
Modeling SIR spreading in interconnected network
One of the most commonly employed compartmental models in epidemic modeling is the SIR model, which stands for susceptibleinfectedrecovered. The SIR model is highly popular for understanding and predicting the spread of infectious diseases within a population.
S (Susceptible): A susceptible individual is someone who has the potential to become infected when exposed to an individual carrying the infection.
I (Infected): The infected individuals represent the people who have already contracted the disease and can transmit it to susceptible individuals.
R (Recovered): Recovered individuals are those who have previously been infected with the disease and have subsequently overcome it, resulting in immunity and no longer being capable of transmitting the infection.
The SIR model on a contact network with N number of agents is shown in Fig. 1.
The equation of the SIR model with a meanfield approximation for ith agent in a network having N number of nodes (without considering demography) is
Considering a node denoted by i within a network comprising N nodes, where each node is assigned labels ranging from 1 to N. The parameter \(\beta\) is the infection rate, and \(\delta\) is the recovery rate. \(S_{i}(t)\), \(I_{i}(t)\), \(R_{i}(t)\) denote the state probability of agent i being in the susceptible, infected, or recovered compartment, respectively. \(a_{ij}\) represents an entry in the network’s adjacency matrix, where the values can only be 0 or 1. A nonzero value indicates a connection between agent i and agent j, while a value of 0 signifies the absence of a link between agent i and j. It can also be written that at any point in time, \(S_{i}(t)+I_{i}(t)+R_{i}(t)=1\).
Generalized epidemic threshold curve
Let us consider two groups of agents of sizes: \(N_1\) and \(N_2\). Let’s take the first graph, \(G_1\), whose agents are labeled as 1 to \(N_1\), and in the second graph, the agents are labeled as \((N_1+1)\) to \((N_1+N_2)\). The adjacency matrix of graph \(G_1\) is denoted by \(A_{11}\), and the adjacency matrix of graph \(G_2\) is denoted by \(A_{22}\). The elements of submatrix \(A_{12}\) and \(A_{21}\) denotes the connection between node i and node j, where node i belongs to graph \(G_1\) and node j belongs to graph \(G_2\). So, the adjacency matrix for the two interconnected networks is:
The topology of networks \(G_1\) and \(G_2\) is undirected. As the interconnection between both networks \(G_1\) and \(G_2\) is undirected, it can be written as \(A_{12}=(A_{21})^T\). The infection rates \(\beta _{11}, \beta _{12}, \beta _{21}, \beta _{22}\) are such that a susceptible agent of graph \(G_m\) receives the infection from an infected agent of graph \(G_n\) with the infection rate, \(\beta _{mn}\) for \(m,n\in [1,2]\). The recovery rates of the agents of both networks are the same and equal to \(\mu\). The equations for the change in the state probability of infection of node i at time t for SIR spreading dynamics in the interconnected network can be expressed in the following manner:
Our assumption is that if there is no interconnection, then infection cannot survive in \(G_2\); that is, \(\beta _{22}/\mu\) will be less than the epidemic threshold of \(G_2\). So, in our case, the effective infection strength \(\beta _{22}/\mu\) will be between zero to \(1/\lambda (A_{22})\). Here \(\lambda (A_{22})\) is the highest eigenvalue of \(A_{22}\).
As the initial fraction of infected individuals is very small, we can assume that \(S_i(0)\approx 1\). So, Eqs. (1) and (2) can be written as follows:
To find the epidemic threshold, we follow the approach of Youssef and Scoglio (2011).
Equations (3) and (4) can be written as follows:
The element \({L}_{ij}\) = (\(\beta a_{ij}\mu \delta _{ij}\)) of Eq. (5) is the element of the Jacobian matrix L defined as follows [Eq. (6)].
where \(\delta _{ij}\) is the Kronecker delta function and \(I_{(N1+N2)(N1+N2)}\) is the identity matrix of dimension \((N1+N2)(N1+N2)\). We now perform the spectral analysis of the Jacobian matrix to study the growth or decay of epidemics in interconnected systems. In the abovementioned Jacobian matrix, the elements were in the form of \(\beta a_{ij}\mu \delta _{ij}\). However, instead of using these elements in the form of \(\beta a_{ij}\mu \delta _{ij}\), we can write them as \(\mu [\tau a_{ij}\delta _{ij}]\), where \(\tau =\beta /\mu\). Now a new matrix \(\bar{L}\) can be constructed where each element will be in the form \([\tau a_{ij}\delta _{ij}]\).
For interconnected graphs, this new matrix (\(\bar{L}\)) is shown in Eq. (7)
where \(\tau _{11}=(\beta _{11}/\mu ); \tau _{12}=(\beta _{12}/\mu ); \tau _{21}=(\beta _{21}/\mu ); \tau _{22}=(\beta _{22}/\mu ).\) Thus, we can define \(L = \mu {\bar{L}}\). Let us denote the matrix \({\bar{L}}\) as \([{\widetilde{L}}  I]\). It is known that a system with negative eigenvalues indicates that perturbations will decay over time, leading the system towards stability. Since the recovery rate, \(\mu\), is a positive quantity, it follows that if the eigenvalues of \([{\widetilde{L}}  I]\) are all less than zero, the disease will not spread throughout the entire network system. This insight is crucial for understanding the stability and containment of epidemic spread in network structures. To ensure the epidemic threshold condition is met, the maximum eigenvalue of \({\widetilde{L}}\) must be 1. Given that the overall network is connected, \({\widetilde{L}}\) is an irreducible, nonnegative square matrix. The largest absolute value of any eigenvalue of a matrix is called its spectral radius. According to the PerronFrobenius theorem (Horn and Johnson 2012), for an irreducible, nonnegative square matrix \({\widetilde{L}}\), the spectral radius is a real, positive, and simple eigenvalue. Furthermore, the corresponding Perron vector is strictly positive. Let \(V_1\) and \(V_2\) denote the Perron vectors when the spectral radius equals 1.
So, for a spectral radius equal to 1, we can write as follows:
Based on Eq. (8) above, we can write the equations below [(9) and (10)].
Finding the value of \(V_2\) from Eq. (10), we get
As \(V_1\) is positive, it follows that \(V_2 = \tau _{21}(I  \tau _{22}A_{22})^{1}A_{21}V_1\) exists and is nonnegative. By substituting the expression for \(V_2\) into Eq. (11) and then into Eq. (9), we can rewrite equation (9) as \(HV_1 = V_1\), where H is given by:
We know that the infection process is the result of interactions between pairs of agents. It depends on the rate at which the disease is transmitted and the ability of the susceptible to receive the disease. So \(\beta _{11},\beta _{12},\beta _{21},\beta _{22}\) are not completely independent on each other. Following the analysis of the infection rates in any interconnected network (Sahneh et al. 2013a), we can write.
As the recovery rates for all the agents are same, we can write the Eq. (13) as
Here \(\alpha\) is a positive scalar accounting for the heterogeneity of interconnection and intraconnection. So, by substituting Eq. (14) in Eq. (12), we obtain
We can update equation (15) as \(H=\tau _{11}H_{T}\), where \(H_{T}\) can be defined as
As we have stated, Eq. (9) can be expressed in the form of \(HV_1=V_1\), so from Eqs. (15) and (16), we can also update the expression \(HV_1=V_1\) as
We said \(V_1\) is a Perron vector, which is positive, and from the analysis of Sahneh et al. (2013a), we can conclude that \(H_{T}\) is an irreducible matrix. Therefore, from the PerronFrobenius Theorem for irreducible matrices, we can conclude that \(\tau _{11}\) is the inverse of the spectral radius of \(H_{T}\).
If we call the epidemic threshold \(\tau _{11c}\), we can say that \(\tau _{11c}\) is the spectral radius of the matrix \(H_{T}\), which is denoted in Eq. (16). So, for any given infection strength \(\tau _{22}\) and coupling level, if the \(\tau _{11}\) value is lower than \(\tau _{11c}\), we can say the epidemic will die out.
The threshold curve
To give an example of application of the results obtained in the previous section, we have generated two different realizations of the Watts–Strogatz (WS) model (Watts and Strogatz 1998). In layer 1, we have a WS network with 500 nodes, a mean node degree of 20, and a rewiring probability of 0.2. In layer 2, we have a WS network with 100 nodes, a mean degree of 4, and a rewiring probability of 0.1. We have activated all potential edges between the two layers with some probability \(\omega\) for the interconnection of these two graphs. For high, medium, and low interconnection levels, the values of \(\omega\) are respectively 0.2, 0.042, and 0.01. We have generated a plot of the normalized epidemic threshold \(\tau _{c1}=\tau _{11,c}\lambda (A_{11})\) as a function of the normalized infection strength \(\tau _{2}=\tau _{22}\lambda (A_{22})\) for different interconnection levels. The plot of epidemic threshold curves is shown in Fig. 2.

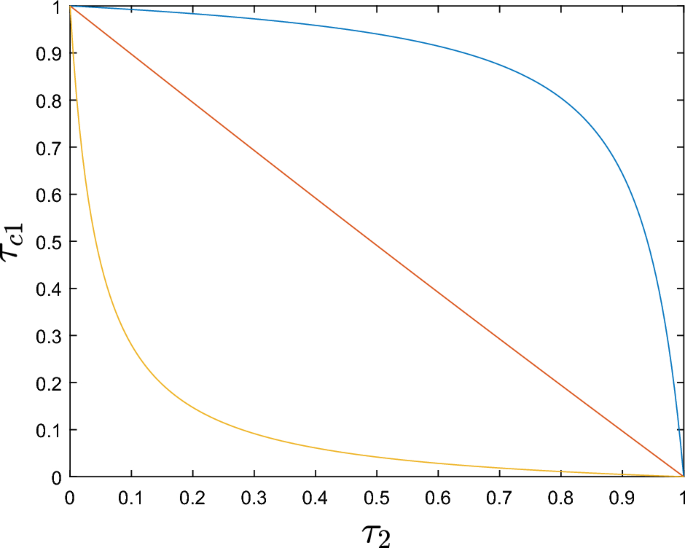

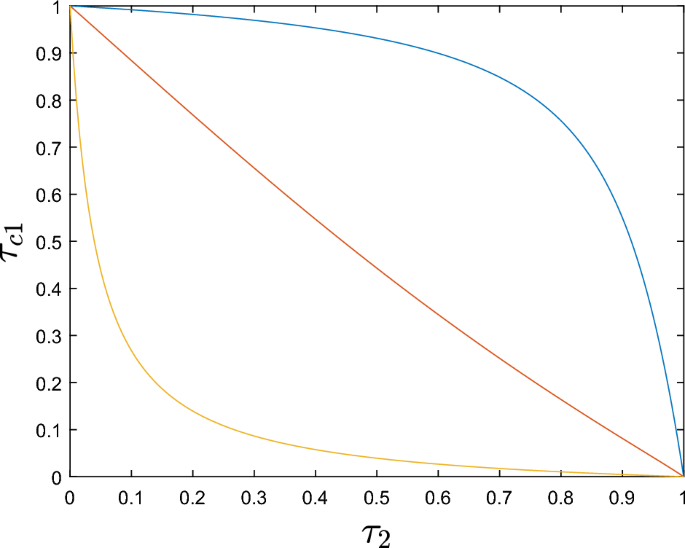

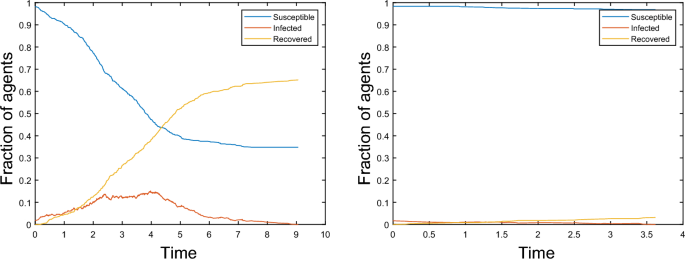

We have taken various normalized epidemic strengths (\(\tau _{c1}\) and \(\tau _{2}\)) and found that when the epidemic strengths are below the threshold curve, the infection is not spreading, whereas when the infection strengths are above the threshold curve, the infection is spreading. This is true for any level of interconnection. Through the following figures, we have shown how the number of agents in different compartments varies with time. The network topologies are the same Watts–Strogatz models as mentioned earlier. In the given scenario where the normalized infection strengths (\(\tau _{c1}\) and \(\tau _{2}\)) for both network one and network 2 are 0.4, and the internetwork infection strengths are equal with a value of alpha being 1, as well as a recovery rate of 1 for the agents of both networks, we observe that the epidemic is spreading when the level of interconnection between the networks are strong (Fig. 3). Conversely, when the level of interconnection is weak, the epidemic does not spread (Fig. 3).

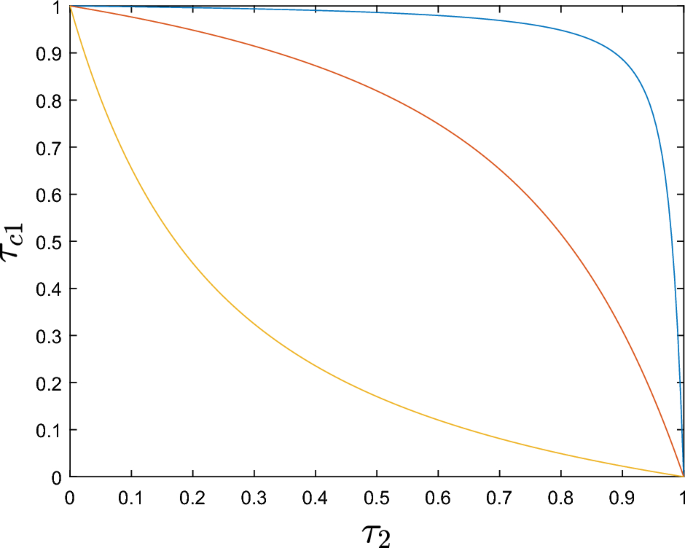

We have also plotted the epidemic threshold curves for the Erdos–Renyi network (Erdős et al. 1960) (Fig. 4). The first layer is a Gilbert model with 500 nodes and a probability of interconnection of 0.02. The second layer is a Gilbert model with 100 nodes and a probability of interconnection of 0.1. For this configuration, the epidemic threshold curve is shown in Fig. 4.
We have also plotted the epidemic threshold curve for an interconnected network system where both the network is an ErdosReyni network of 500 nodes, and the probability of interconnection is 0.02. The curve is shown in Fig. 5.
Modelling spillover
Spillover refers to transferring a virus from its usual circulating species, known as the reservoir, to a different species, known as the novel host. In the host species, the virus can either perish or undergo adaptations, potentially leading to the emergence of an epidemic. Zoonotic infectious diseases spread from animals to humans. Sixty percent of human infectious diseases are zoonotic, and seventyfive percent are emerging zoonoses (Salyer et al. 2017). Many emerging zoonotic diseases are caused by viruses, including avian influenza, rabies, and Ebola (Sahu et al. 2021; Nandi and Allen 2021).

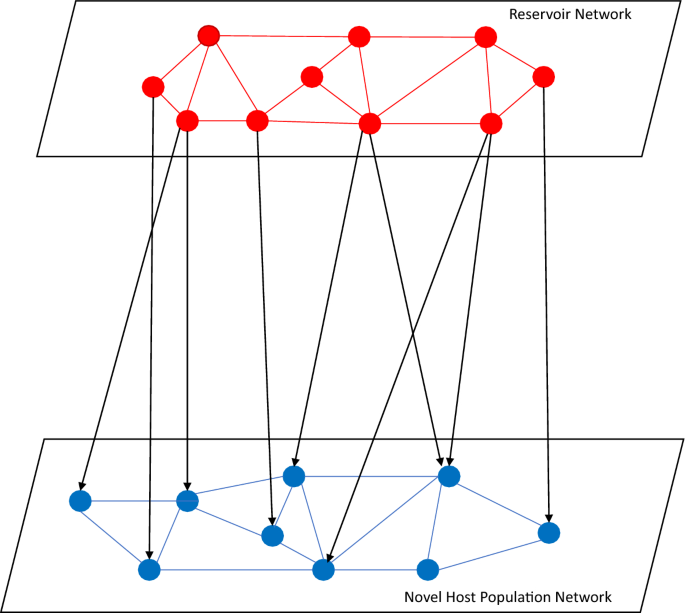

The graphical representation in Fig. 6 illustrates the transfer of infection, referred to as spillover. The upper network represents a reservoir network, where the nodes are highlighted in red. The lower network represents the population of a novel host, with its nodes marked in blue. The red and blue links between the agents of reservoir and novel host population network denotes the intra network connection between the agents. The blackdirected links indicate the transmission of the disease from the infected agents in the reservoir network to the agents in the novel host population network.
In a contact network where there are already some infected individuals, the spread of a disease can occur, and various factors influence the extent of the spread. However, if we keep all other properties of the network constant, it has been observed that when the initial number of infected individuals is low, the threshold for an epidemic to occur becomes higher. This means that if the initial number of infected individuals is very low, the spread of the disease can be controlled (Machado and Baxter 2022).
In our work, when the number of infected individuals in the new host network exceeds a significant threshold (considered as three), it indicates an effective spillover event. Therefore, if the number of infected agents resulting from spillover in the host network is less than three, the spillover size is considered zero. Similarly, if the probability of spillover in the host network (calculated as the ratio of spillover occurrences to the total number of realizations) is less than 0.1, it is classified as a nonspillover scenario. These assumptions are in line with previous research on the stochastic epidemic model (Andersson and Britton 2012).
To simulate the spillover events, we have used the stochastic simulator GEMFsim based on the Generalized Epidemic Mean Field (GEMF) framework developed by the Network Science and Engineering (NetSE) group at Kansas State University (Sahneh et al. 2013b, 2017). We have used the Matlab and Python version for simulation.
Simulation results
Our simulation model pertains to diseases like avian influenza, West Nile virus, and Ebola. In the first portion of our simulation based study we have modeled avian influenza and West Nile virus diseases. Transmission of avian influenza occurs primarily from birds to other birds and occasionally from birds to humans. For West Nile disease, the mechanism of transmission is different. The disease mainly circulates between mosquitoes and birds, which can infect each other and be infectious. When mosquitoes cannot find birds, they sometimes target mammals and can infect them (such as humans). Mammals cannot transmit the disease and are known as deadend hosts. Hosseini et al. have explained the mechanism of West Nile virus transmission using a system of differential equations and employ this model to predict the number of new cases (Hosseini et al. 2024). Our networkbased model for West Nile disease and avian influenza in this simulation study draws inspiration from the work of Moon et al. (2019). In our simulationbased study of avian influenza and West Nile virus, we can envision a scenario in which the agents within the reservoir network represent birds while the agents in the novel host population network represent humans. Consequently, within our spillover model, we establish an effective infection rate of zero between the agents in the novel host population network. Conversely, both the effective infection rate within the reservoir network and the effective infection rate between the novel host population network and the reservoir network are nonzero.
The examination of data from the 2019 European study (EFSA) et al. (2019) revealed that the percentage of infected birds can vary significantly due to various factors. With this study as a reference, we aim to establish an effective infection rate within our reservoir network such that the number of infected agents in the reservoir network falls within the range of 4 to 6 percent of the total population. Notably, the study (EFSA) et al. (2019) found that, on average, 5.6 percent of birds were infected with highly pathogenic avian influenza (HPAI) in eight European countries.
In this specific situation, both the novel host network and reservoir network are Erdos–Renyi networks consisting of 1000 nodes and 3255 links. Throughout the simulation, the infection rates have been set as follows. The infection rate within reservoir network \(\beta _{22}\) is set to 0.15 in order to obtain the expected number of infected agents to be within 4 to 6 percent of the total population as reported in (EFSA) et al. (2019).
Now, the probability that a human is infected by a bird can vary a lot based on different factors like virus strain, immunity of people, infectionspreading capability of birds, etc. However, based on a study conducted on Egyptian people, the probability of a person being infected by a poultry bird is 0.02 (Gomaa et al. 2015). Another study conducted in European countries claims that the risk of avian influenza for general people is low, and for occupationally exposed people, the risk of infection is low to medium (European Food Safety Authority et al. 2023). Based on these studies, the infection rate between agents of the reservoir network and the novel host population network \(\beta _{12}\) is set equal to 0.02 such that the probability of infection for humans from birds is 0.02, and the rate is also low to moderate. Finally, we set the infection rate within the novel host population network \(\beta _{11}\) equal to 0, assuming humantohuman disease transmission is very limited. The recovery rate \(\delta\) for all agents is assumed to be equal to 1 to maintain a proper effective infection rate. The fraction of the total number of interpopulation links between the two networks has ranged from 0.0001 to 0.03. To establish an interpopulation link, we randomly select one node from the reservoir network and one node from the novel host population network, creating a directed link from the reservoir network to the novel host population network.

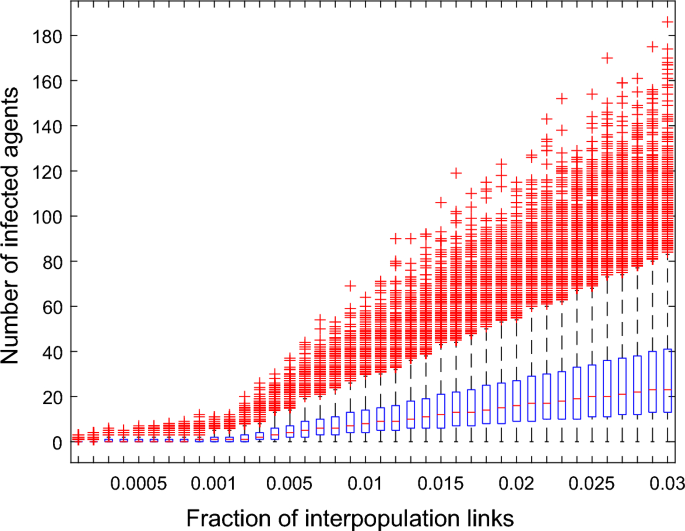

To measure the spillover size, 16,000 simulations have been conducted for each fraction of all possible links. For each specific fraction of links, a box plot has been generated to depict the spillover size (Fig. 7). Ten random nodes were chosen as initially infected nodes in the reservoir network. This random selection process was repeated for each realization, resulting in different sets of initially infected nodes for each iteration.

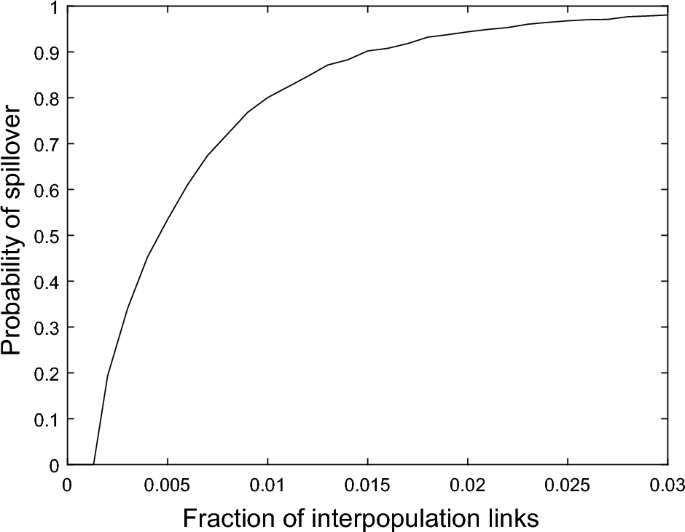

Based on the assumptions about spillover mentioned earlier in this paper, we have generated a plot between the probability of spillover in the host network and the fraction of links between the reservoir and the host network (Fig. 8).
It is important to mention that when the fraction of links is smaller than 0.0013, the probability of spillover remains very low. However, beyond this threshold, there is a noticeable increase in the probability of spillover. Therefore, we can conclude that the fraction of 0.0013 of the total possible internetwork links acts as a clear threshold, indicating a distinct phase transition.
In the next scenario, the number of links between the novel host population network and reservoir network has been kept constant at 1000. However, the internetwork infection rate (\(\beta _{12}\)) has been systematically reduced from 0.7 to 0.005. The infection rate within the novel host population network (\(\beta _{11}\)) is set to zero, while the infection rate within the reservoir network (\(\beta _{22}\)) remains at 0.15. The novel host network and the reservoir network maintain the same topology as previously mentioned. It is assumed that ten random nodes are infected during each iteration.

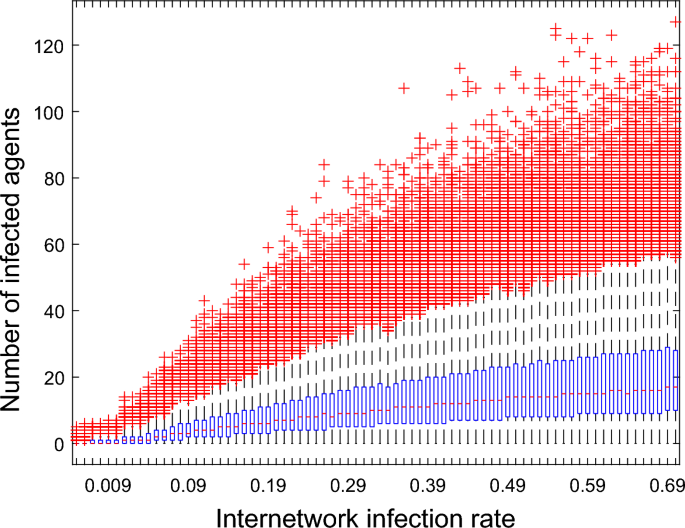

To analyze the impact of different internetwork infection rates on spillover size, 16,000 realizations have been recorded for each value of internetwork infection rate. For each internetwork infection strength, a box plot has been generated to represent the spillover size visually (Fig. 9).
Based on the previously mentioned assumptions about spillover, we draw a curve between the probability of spillover and internetwork infection strength between two networks (Fig. 10).
If we observe Fig. 10 closely, we can see that the internetwork infection rate close to 0.026 acts as a threshold between a low and significantly high probability of spillover. A clear phase transition in spillover probability also exists for the change in internetwork infection rate.

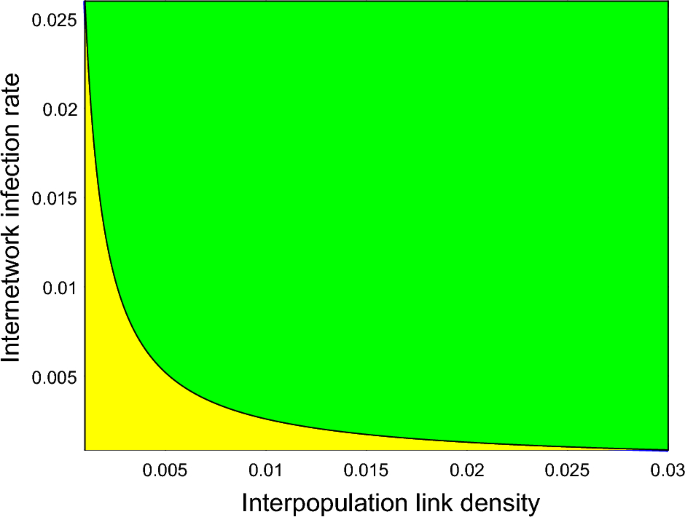

When all other factors remain unchanged, and the fraction of total possible links between different populations exceeds approximately 0.001 in a fixed network structure, we can observe a relationship between the strength of infection between networks (\(\beta _{12}\)) and the total fraction of interpopulation links between populations. This relationship confirms the validity of our assumption regarding the extent of spillover events. In fact, the strength of infection between networks (\(\beta _{12}\)) and the proportion of links between populations are inversely proportional to each other. Based on this correlation, we can represent a rectangular hyperbola curve where either of these two quantities can be plotted on the xaxis and the other on the yaxis (Fig. 11). The region above this curve (shown in green in Fig. 11) corresponds to a significant spillover area, while the region below the curve represents a minor spillover area (shown in yellow in Fig. 11).

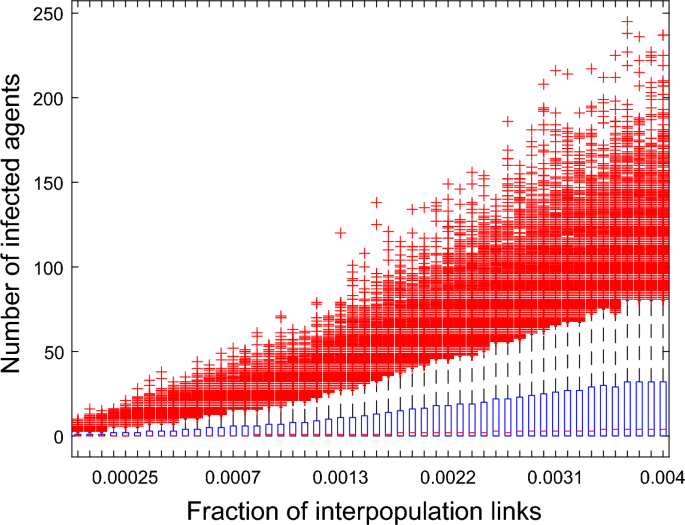

Furthermore, we conducted the same experiment with scalefree networks (Barabási and Bonabeau 2003) in both layers. There were no significant changes in the results compared to the previous findings when the internetwork links between the host and reservoir networks were randomly connected.
However, when the agents of the novel host network were connected with the hubs of the reservoir network using the same internetwork infection rate, a phase transition occurred at a significantly lower fraction of links compared to the previous results shown in Fig. 8. In this case, we had a scalefree network consisting of 1000 nodes and 2957 links for both the novel host population network and the reservoir network. The infection rate among the agents of the reservoir network was 0.1, and the internetwork infection rate was 0.02. We distributed the number of links equally among five hubs. However, the fraction of links varied from 0.0001 to 0.0039, and for each fraction of links, we conducted 16,000 realizations to illustrate the size of spillover, shown in the boxplot (Fig. 12). We observed the same phase transition in the spillover probability as before, but it occurred when the fraction of interpopulation links was much smaller, approximately 0.00018 (Fig. 13).
In our study, we expanded our simulations to include smallworld networks (based on Watts and Strogatz’s model) and observed that the same phase transition phenomenon also exists for these networks.
To summarize, the primary focus of our simulations was on exploring the spillover threshold. To achieve this, we selected random networks, scalefree networks, and several smallworld networks with varying rewiring probabilities (ranging from 0.01 to 1). All of these networks contained the same number of nodes (1000), while the smallworld networks had a slightly higher number of links.
During the course of the experiments, we carefully controlled the infection rate to ensure that the average number of total infected individuals within the reservoir network remained consistently stable. Across all mentioned network topologies, this average ranged around 5 percent throughout the entire infection process. Additionally, the internetwork infection strength (\(\beta _{12}\)) was kept constant. Our goal was to measure the number of interpopulation links required to reach the spillover threshold. For this threshold, we validated our previous assumption, stating that approximately 0.1 fractions of all realizations would exhibit a spillover nonnegligible spillover size.
Our findings revealed that the number of links needed to reach the spillover threshold was the lowest for scalefree networks and the highest for regular lattice networks. As for the smallworld networks, an increase in the rewiring probability resulted in a decrease in the number of interpopulation links required to reach the spillover threshold. This behavior can be attributed to the emergence of the smallworld effect, which promotes the spread of epidemics (Liu et al. 2015).
In the case of scalefree networks, the presence of hubs, which are highly connected nodes, contributed to an enhanced spread of epidemics within the network.
In another scenario, our simulationbased study has been expanded to discuss one of the most notorious zoonotic diseases, Ebola, which is prevalent in West African countries. Unlike other infections where humans serve as deadend hosts, Ebola can also spread through human networks. The SusceptibleExposedInfectedRecovered (SEIR) model is particularly apt for modeling Ebola due to its ability to incorporate the incubation period before the disease becomes transmissible. This model enhances the SIR model by introducing an ’Exposed’ state that accounts for the incubation period. The transition between states in the SEIR model, as shown in 14, includes the incubation rate (\(\kappa\)), which is incubation rate related the time it takes for an exposed individual to become infectious.

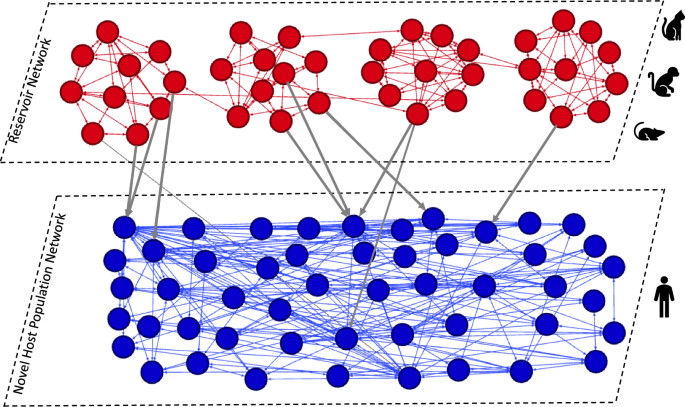

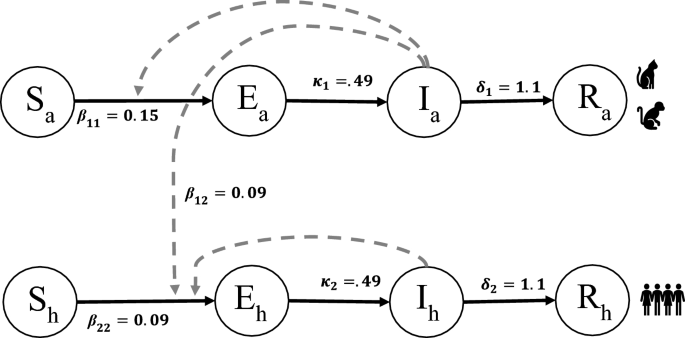

In this analysis, we examine a hypothetical yet plausible scenario for the transmission of the Ebola virus from animal reservoirs to human populations. To enhance the realism of our model, we constructed two distinct network layers (Fig. 14). The first layer, representing the animal population, is modeled as a stochastic block network comprising 2000 nodes and 5079 undirected edges. This network simulates 20 distinct animal herds, where each block represents a particular herd, each connected to at least two other herds, mimicking the potential interherd transmission dynamics. For the human population layer, we employed a Barabasi–Albert (BA) network to represent a small village setting. The BA network, renowned for its scalefree properties, accurately captures the intricate social structures present in human communities, featuring 5000 nodes and 14991 undirected edges. In Fig. 15, an example of these two networks structure is presented. We extracted the parameters for the SEIR model from the cases covered in Drake et al. (2015) as Uganda 2000 case and adjusted the rates to accurately reflect the network structure for both humans and animals. The rates were adapted based on the average degree of nodes \(\langle k \rangle\). The parameters used for this experiment are detailed in Fig. 14.

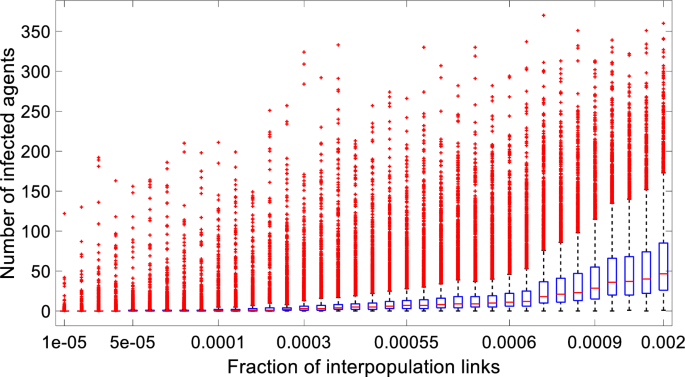

We ran 16000 simulations to examine the effects of varying the number of links between humans as hosts and animals as networks as we increase the links from 100 to 30,000 edges. Figure 16 shows the number of infected agents in the novel host population network for a specific fraction of interpopulation links. The data from a total of 16,000 simulation realizations is represented using a boxplot. The probability of spillover with respect to the fraction of interpopulation links is also presented in Fig. 17. In this simulationbased study, we can also see a clear phase transition for the probability of spillover as the number of interpopulation links increases. A fraction of up to 0.0001 of the total possible number of links acts as a threshold for this phase transition curve.
Based on the simulationbased study of the abovementioned zoonotic diseases, we can conclude that there will always be a clear phase transition in the probability of spillover as the number of interpopulation links increases, regardless of whether humans act as deadend hosts.
Conclusions
Our work investigated two situations for SIR spreading dynamics in interconnected networks. In the first case, we have a situation where the initial infection could be present in any of the two interconnected networks. The infection will not spread in interconnected networks if the normalized infection strengths are below the threshold curve for any level of interconnection. However, in the second situation, the infection in the novel host population comes only from the reservoir network. For avian influenza and West Nile virus modelling, we conducted experiments by changing the number of interpopulation links and by changing the internetwork infection rate, keeping all other parameters constant. Experiments have been conducted on Erdos–Renyi networks, Barabasi–Albert networks, and Watts–Strogatz networks. The interpopulation links were distributed randomly. In all the cases, we obtained a phase transition in the probability of spillover. While keeping all other network parameters constant, we obtain a relationship between the interpopulation link density and internetwork infection strength, based on which we get two regimes of significant and minor spillover zones. When the interpopulation links are connected only with the hubs, we get a phase transition at a very low number of links while keeping all other parameters constant. It can be concluded that hubs of scalefree networks also play a crucial role in spillover. For smallworld networks, we found that the number of interpopulation links for the spillover threshold decreases with the increase in rewiring probability. The spillover threshold, when considering a fixed number of infections in the reservoir population, follows a pattern of highest to lowest interpopulation links: Regular Lattice networks have the highest number of links, followed by SmallWorld networks, Erdos–Renyi networks, and finally ScaleFree networks with the lowest number of links. Finally, when we expanded our simulationbased study to model Ebola, where humantohuman infection spreading is significant, we observed a clear phase transition in the probability of spillover.
For future work, this study can be enhanced by developing a theoretical model to determine the spillover threshold for both interpopulation links and internetwork infection strength. Additionally, simulations using various network topologies and interpopulation link patterns can provide diverse results. These simulation outcomes can be used to train a neural network for predicting spillover in new scenarios.
