Enhanced network inference from sparse incomplete time series through automatically adapted \(L_1\) regularization
Applied Network Science volume 9, Article number: 13 (2024)
Abstract
Reconstructing dynamics of complex systems from sparse, incomplete time series data is a challenging problem with applications in various domains. Here, we develop an iterative heuristic method to infer the underlying network structure and parameters governed by Ising dynamics from incomplete spin configurations based on sparse and smallsized samples. Our method iterates between imputing missing spin states given current coupling strengths and reestimating couplings from completed spin state data. Central to our approach is the novel application of adaptive \(l_1\) regularization on updating coupling strengths, which features an automatic adjustment of the regularization strength throughout the iterative inference process. By doing so, we aim at preventing overfitting and enforcing the sparsity of couplings without access to ground truth parameters. We demonstrate that this approach accurately recovers parameters and imputes missing spins even with substantial missing data and short time series, providing improvements in the inference of Ising model parameters even for relatively small sample sizes.
Introduction
Parameter inference from observed timeseries data of the dynamics of complex systems is an important research topic in the statistical mechanics community (Zdeborová and Krzakala 2016). A widely recognized and wellestablished framework for statistical inference of complexnetworked systems is the inverse kinetic Ising model (Roudi and Hertz 2011b). This model aims at reconstructing pairwise interactions between spins in the Ising model from timeseries observations, such as spin states. With its versatility, the inverse kinetic Ising model has found applications in various domains, including neuroscience (Zeng et al. 2011; Tyrcha et al. 2013; Roudi et al. 2015; Donner and Opper 2017), computational biology (Nguyen et al. 2017; CresswellClay and Periwal 2021), economics (Hoang et al. 2019a; Lee et al. 2021), and social sciences (Bisconti et al. 2015).
Due to the growing need to analyze highthroughput data using statistical models, significant efforts have been devoted to devising efficient approximate inference techniques for the inverse kinetic Ising model. These efforts have led to the development of utilizing meanfield approximations (Roudi and Hertz 2011b; Mézard and Sakellariou 2011), the ThoulessAndersonPalmer (TAP) method (Roudi and Hertz 2011a), cavity analysis (Zhang 2012), and the expectationreflection approach (Hoang et al. 2019b). However, these studies are based on the assumption that the system dynamics are fully observed. In contrast, the complexity of realworld systems and limitations in data sampling techniques often make it difficult to obtain complete observations. For example, observing every neuron in the brain and monitoring their complete spiking activities is almost impossible (Soudry et al. 2015). Furthermore, considering the effects of hidden units in the statistical model can help improve the inference quality (Pearl 2000). Therefore, recent research has primarily focused on the inference with incomplete data (Dunn and Roudi 2013; Tyrcha and Hertz 2014; BachschmidRomano and Opper 2014; Battistin et al. 2015; Dunn and Battistin 2017; Hoang et al. 2019a; Campajola et al. 2019; Lee et al. 2021; Gemao et al. 2021).
One commonly used setting for inference with incomplete data is the assumption of the existence of hidden spins, whose states can never be observed (Dunn and Roudi 2013; Tyrcha and Hertz 2014; BachschmidRomano and Opper 2014; Battistin et al. 2015; Dunn and Battistin 2017; Hoang et al. 2019a; Gemao et al. 2021). Of the studies above, Dunn and Battistin (2017) and Gemao et al. (2021) emphasize the impacts of hidden spins on dynamics of observed spins. However, they only provide estimates for coupling strengths between observed spins. In contrast, Hoang et al. (2019a) tackle a broader aspect of this challenge by inferring not just the interaction strengths but also the states and the number of hidden spins. Similarly, other research efforts, including those by Dunn and Roudi (2013), Tyrcha and Hertz (2014), BachschmidRomano and Opper (2014), Battistin et al. (2015), employ an iterative estimation procedure to infer the coupling strengths between hidden spins. In more detail, their procedures alternate between two steps: estimating the states of hidden variables given current parameters, and optimizing model parameters given current hidden variable estimates.
On top of assuming the existence of hidden units, a more practical setting in the context of incomplete data is to consider that even visible spins may not be consistently observable throughout the dynamics. This consideration holds significant relevance in domains such as neuroscience (Soudry et al. 2015), finance (Mazzarisi et al. 2020), and the social sciences (Zipkin et al. 2016), where partially observable units are prevalent. To the best of our knowledge, there are only two previous studies investigating the inverse kinetic Ising model with partially observable spins using the framework of iterative estimations . Specifically, the work of Campajola et al. (2019) tackles this issue via employing the meanfield and TAP approximations. However, the meanfield method and TAP approach both assume a priori that interactions are weak and dense. As sparse networks, with only a fraction of nodes significantly connected while the majority have limited or no connections, are widely observed in realworld systems (Han et al. 2015; Mirshahvalad et al. 2012; Singh and Humphries 2015), it is important to devise an alternative method that does not impose the limitation of dense connectivity. The other study that considers network inference in the existence of partially observable spins is Lee et al. (2021). In this work, the authors iterate between the step of generating estimations for hidden spin states, and the step of optimizing couplings by utilizing linear regression. However, through our experiments in Sect. 3.1, we observed that this algorithm converges most effectively with intermediate sample sizes. For small sizes, a specific threshold for the stopping criterion must be designed to ensure the convergence of their algorithm. Nevertheless, in many applications, it is common to encounter situations where experimental data may not be sufficiently large to reconstruct the interaction network of a given system (Hoang et al. 2019b). Hence, more research is needed to improve methods for the inference of networks from short incomplete time series.
Motivated by the abovementioned challenges of network sparsity and limited data availability, we propose an iterative heuristic method to reconstruct the couplings and hidden spin states of the Ising model from incomplete time series data in the context of sparse networks and small sample sizes. Our work focuses on the setting where we know all the spins, but some of the visible spins can have unobserved states, similar to the scenarios described in Campajola et al. (2019), Lee et al. (2021). From the dataset we can identify the set of unobserved spin states and its size. Drawing inspiration from Lee et al. (2021), our algorithm consists of two main components. The first part employs iterative estimations and optimizations to deduce missing spin states and determine coupling strengths, gradually refining these parameters towards their true values. However, due to the small size of our datasets, this process is susceptible to overfitting. To address this issue and impose sparsity on the network’s structure, the second part of our algorithm incorporates \(l_1\) regularization. While existing methods often rely on manually tuned hyperparameters by using crossvalidation or a priori knowledge about network sparsity levels, our approach automates the adjustment of the \(l_1\) regularization strength based on the convergence of the iteration process. This automation is a key methodological novelty in our approach, as it eliminates the dependency on known network structures to manually tune the hyperparameters, offering a robust solution when such ground truths are unavailable.
Our contributions are thus as follows: (1) We propose an iterative heuristic that can reconstruct sparse Ising networks from incomplete time series data from small sample sizes. (2) We introduce an automatic regularization technique to prevent overfitting during the inference process when the ground truth is unavailable. (3) We demonstrate through simulations that our method outperforms the stateoftheart method in inferring network structure especially in the setting of small samples, via an automated regularization approach without requiring ground truth for hyperparameter tuning.
The remainder of this paper is organized as follows. In Sect. 2, we provide a formal description for the framework of network inference with missing data and the algorithm to solve this problem. In Sect. 3, we provide numerical results demonstrating the validity of our proposed approach on simulated sparse network data across varying settings such as sample sizes, missing data percentages, network connectivity, and network types. We demonstrate the effectiveness of the automatic \(l_1\) regularization in preventing overfitting and enhancing inference accuracy compared to prior methods. In Sect. 4, we summarise the main findings and contributions and discuss ideas for future work.
Model description and methods
Consider the stochastic dynamics of an Ising system with N binary spins. Each spin has two possible states at time t, denoted as \(\sigma _i(t)=\pm 1\) for \(i =1, \ldots , N\). Following the discretetime and synchronously updated Glauber algorithm (Glauber 1963), the system evolves according to the conditional probability at time steps \(t =1, \ldots , T\):
Here, the local field \(H_i(t)=\sum _jw_{ij}\sigma _j(t)\) represents the weighted sum of interactions between spin i and each of its connected spins j at time t, where \(w_{ij}\) is the coupling strength from spin j to spin i.
In this paper, instead of assuming all spin states are always observable during the whole observation period T, we consider a more realistic scenario of partial observability, in which some of the spin states are unobserved (or missing). More specifically, we use the set \({\mathcal {U}}\) to represent these unobserved data points. To distinguish between unobserved and observable spin states, we introduce notations \(\sigma _i^u(t) \in {\mathcal {U}}\) for unobserved states and \(\sigma _i^o (t)\notin {\mathcal {U}}\) for observed states. When the context is clear, we drop the superscripts u and o for brevity. Given the partially observed time series of spin states, we aim at inferring the model parameters \(\theta =\{w_{ij}\}_{i,j=1}^N\), i.e. the coupling network between the spins, which we assume to be constant over time.
In the presence of latent variables (i.e., \(\sigma _i^u(t)\)), the iterative estimation procedure is a commonly applied technique for finding maximum likelihood estimates of parameters in statistical models (Hastie et al. 2009). Here, following Lee et al. (2021), we extend the use of their iterative solution to compute coupling strengths from incomplete spin configurations for small samples and sparse network structures. Our approach contains four key components:

(i)
Estimation (E) step: Estimate missing spin states given observed spin states and the current estimate of couplings;

(ii)
Maximization (M) step: Recalibrate couplings based on completed spin state configurations after applying the Estep;

(iii)
Automatic \(l_1\) regularization: Encourage sparsity and prevent overfitting in the Mstep with the regularization hyperparameter automatically determined;

(iv)
Stopping criterion: Halt iterations between the E and M steps to further prevent overfitting.
In the above, we provided a highlevel overview of the four key components. Next, we detail the specific procedures for the Estep, Mstep, regularization, and stopping criterion, followed by a summary of the overall algorithm.
Estep
In the Estep, the missing spin states \(\sigma _i^u(t) \in {\mathcal {U}}\) are estimated by calculating the likelihoods of spins taking the states \(\pm 1\). More specifically, the values of \(\sigma _i^u(t)\) are stochastically updated to 1 with probability \({\mathcal {L}}^{+1}_{i,t}/\left( {\mathcal {L}}^{+1}_{i,t} +{\mathcal {L}}^{1}_{i,t} \right)\), and to \(1\) with probability \({\mathcal {L}}^{1}_{i,t}/\left( {\mathcal {L}}^{+1}_{i,t} +{\mathcal {L}}^{1}_{i,t} \right)\). Here, \({\mathcal {L}}^{\pm 1}_{i,t}\) stands for the likelihood of \(\sigma _i^u(t)\) taking \(\pm 1\), computed as:
The first term of the righthand side of Eq. (2) represents the onestepbackward likelihood of \(\sigma _i^u(t)\) taking the values \(\pm 1\). The second term stands for the onestepforward likelihood. For the special case of \(t=1\) or \(t=T\), we only include the forward or backward likelihood.
Mstep with expectation reflection
In the Mstep, we integrate the observed spin states with the imputed missing states from the Estep to compile complete spin configurations, represented as \({\mathcal {S}} = \{\sigma _j(t) \mid 1 \le j \le N, 1 \le t \le T\}\). At this stage, the distinction between observed and unobserved data points becomes unnecessary for our analysis, as we operate with these full configurations to update the coupling strengths. Consequently, we simplify our notation by omitting the superscripts u and o.
The expectationreflection algorithm then consists of three main components: i) optimization of coupling strengths \(w_{ij}\), ii) updating of local fields \(H_i(t)\), and iii) a stopping criterion to determine when to terminate the iterations between optimizing \(w_{ij}\) and updating \(H_i(t)\). In this study, we adopt the expectationreflection algorithm for inferring coupling strengths for two main reasons. First, its computational efficiency surpasses traditional methods like maximum likelihood estimation, primarily due to its use of multiplicative weights. Second, the expectationreflection algorithm exhibits enhanced performance through its stopping criterion. This criterion, by assessing mismatches between observed spins and model expectations, curtails unnecessary iterations. Such a mechanism can not only be applied to improve the expectationreflection algorithm’s performance but also has the potential to augment maximum likelihood estimation, especially in datalimited scenarios as shown in Hoang et al. (2019b). Overall, our selection of the expectationreflection algorithm is driven by its efficiency and its effectiveness in addressing the challenges associated with data scarcity, as outlined in our research.
To optimize the parameters \(\{w_{ij}\}_{i,j=1}^N\) across all times t, we first sum \(H_i(t)\) over time t and multiply this by spin fluctuations \(\delta \sigma _k(t)=\sigma _k(t)\left\langle \sigma _k \right\rangle\), with \(\left\langle f \right\rangle =1/T\sum _{t=1}^Tf(t)\) denoting the time average of function f:
By replacing \(H_i(t)\) with its fluctuation \(\delta H_i(t)\) and mean \(\left\langle H_i \right\rangle\) (i.e., \(H_i(t)=\delta H_i(t)+\left\langle H_i \right\rangle\)) in Eq. (3), we obtain
This leads to a simplified expression:
where \(\left\langle \delta \sigma _j\delta \sigma _k \right\rangle\) is the covariance matrix. Note that, in the absence of \(l_1\) regularization, the coupling strengths \(w_{ij}\) can be obtained via:
As mentioned above, to prevent overfitting and encourage sparsity given the small sample sizes, we incorporate \(l_1\) regularization (Liu and Ihler 2011). Therefore, instead of optimizing Eq. (5) to find the best \(\{w_{ij}\}_{i,j=1}^N\), we optimize a regularized loss function:
where \(\lambda\) controls the regularization strength. A larger value of \(\lambda\) will lead to stronger regularization, which tends to drive more of the coupling strengths towards zero, promoting sparsity in the model. Conversely, a smaller \(\lambda\) will result in weaker regularization, allowing the model to have larger coupling strengths. The process of updating the coupling strengths under \(l_1\) regularization is carried out through the numerical optimization of the regularized loss function of Eq. (7). This optimization is specifically achieved using the coordinate descent method (Wu and Lange 2008). Note that, the above requires a choice of the parameter \(\lambda\). We will explain later how \(\lambda\) can be automatically adapted based on a criterion related to our algorithm’s convergence in Sect. 2.3.
After obtaining the coupling strengths, the expectationreflection employs a twostep process to update the local field \(H_i(t)\). A detailed deduction for the updating of \(H_i(t)\) can be found in Appendix A. Initially, \(H_i(t)\) is estimated using:
Subsequently, \(H_i(t)\) is refined to better align with the next time step’s state \(\sigma _i(t+1)\) through:
where \(E[\sigma _i(t+1)\mid H_i(t)]\) represents the expected value of \(\sigma _i(t+1)\) given \(H_i(t)\). This step helps correct the sign of \(H_i(t)\) and pull the expectation of \(\sigma _i(t+1)\) closer to \(\pm 1\).
As overfitting poses a significant challenge in the context of inference with small sample sizes, it is important to determine an appropriate stopping criterion for optimizing \(w_{ij}\) and updating \(H_i(t)\). In this regard, our focus shifts to the overall discrepancy between the observed values, denoted by \(\sigma _i(t+1)\), and the model’s predictions, \(E[\sigma _i(t+1)\mid H_i(t)]\). This discrepancy is quantified as follows:
Following the heuristic proposed by Hoang et al. (2019a), we repeat optimizing Eq. (7) and updating \(H_i(t)\) until \(D_i\) starts to increase. Note that the parameter updates given by Eqs. (7), (8) and (9) are completely independent of the computation of \(D_i\). This crucial aspect allows the inference process to avoid overfitting when dealing with small sample sizes, as the minimization of \(D_i\) serves solely as a stopping criterion. This approach is notably different from maximum likelihood methods, which directly minimize a cost function and terminate at the minimal cost configuration, even if it represents a local minimum rather than the global optimum. A more systematic comparison between the method of minimization of data and predictions mismatch and the maximum likelihood methods can be found in Hoang et al. (2019b).
Stopping criterion and automatic \(l_1\) regularization
By executing E and M steps iteratively, the model parameter \(\theta\) is expected to converge to a local maximum. However, iterating too often can worsen inference accuracy due to overfitting, especially with small samples (Lee et al. 2021). Therefore, an appropriate stopping criterion is critical. To address this issue, we consider prediction consistency between observed and unobserved data, where the model should have similar performance in predicting the observed data and the unobserved data. Specifically, the modeldata discrepancy for the observed data \(D_{obs}\) and the unobserved data \(D_{un}\) is determined by
and
where, \(\left {\mathcal {U}} \right\) stands for the number of unobserved data points. Typically, the iterative estimation procedure halts when \(\left D_{obs} D_{un}\right < \varepsilon\), where \(\varepsilon\) is a threshold that needs to be properly chosen to stop the estimation procedure at an appropriate time (Lee et al. 2021). However, as there is no ground truth for most realworld inference problems, it is challenging to determine the best choice of \(\varepsilon\). To address this issue, together with the problem of determining the hyperparameter of the \(l_1\) regularization \(\lambda\), we propose a heuristic that gets around the problem of finding the threshold \(\varepsilon\). Instead, we propose an approach, which is based on the observation that best results from the iterated approach tend to be found at parameter values just before convergence is lost. Hence, we directly set \(D_{obs}= D_{un}\) as the stopping criterion and, incrementally increasing \(\lambda\) from \(\lambda =0\), choose \(\lambda\) to be right at the threshold at which the algorithm changes from convergence to nonconvergence. The effectiveness of this heuristic is systematically verified in Sect. 3.
In summary, the overall procedure for determining the model parameters \(\theta\) involves these main steps:

(i)
Start by setting the regularization parameter to \(\lambda =0\) and set the maximum number of iterations to \(Q_{max}=100\). (A detailed discussion for the choice of \(Q_{max}\) can be found in Sect. 3.2.)

(ii)
Randomly initialize every unobserved spin state \(\sigma _i^u(t) \in {\mathcal {U}}\) to to either \(+1\) or \(1\), each with a \(50\%\) probability. Then, given the observed and randomly assigned spin states, we obtain a complete collection of binary time series: \({\mathcal {S}} = \{\sigma _j(t) \mid 1 \le j \le N, 1 \le t \le T\}\).

(iii)
Mstep: We then infer the model parameters \(\theta\) via the abovementioned expectationreflection method.

a)
We first initialize the local field \(H_i(t)\) as \(\sigma _i(t)\).

b)
Then the coupling strength \(w_{ij}\) can be obtained via the regularized loss function of Eq. (7).
 c)

d)
Repeat steps b) and c) iteratively until the discrepancy between true and expected values of the spin states (see Eq. (10)) is minimized.

a)

(iv)
Estep: Stochastically update the values of \(\sigma _i^u(t)\) to 1 with the probability of \({\mathcal {L}}^{+1}_{i,t}/\left( {\mathcal {L}}^{+1}_{i,t} +{\mathcal {L}}^{1}_{i,t} \right)\), and to \(1\) with probability \({\mathcal {L}}^{1}_{i,t}/\left( {\mathcal {L}}^{+1}_{i,t} +{\mathcal {L}}^{1}_{i,t} \right)\) according to Eq. (2).

(v)
Repeat steps (iii) and (iv) until \(D_{obs}=D_{un}\) (see Eqs. (11) and (12)) or the number of iterations exceed the maximum number of iterations \(Q_{max}\).

(vi)
The procedure is terminated if the number of iterations exceeds the maximum number of iterations \(Q_{max}\). Otherwise, increase \(\lambda\) by a small increment of \(\Delta \lambda\) and repeat steps (i) to (vi). This process continues, with \(\lambda\) incrementally increasing, until the iterative procedure fails to converge. The \(\lambda\) value used in the final converged iteration prior to nonconvergence is then considered as the optimal \(\lambda\) for the \(l_1\) regularization.
Furthermore, to evaluate our algorithm, we use the mean square error (MSE) between the inferred weights and the true weights:
where \(w_{ij}\) refers to the inferred linking weights from spin j to spin i and the \(w^*_{ij}\) represent the corresponding true values. We choose MSE because it is a standard metric, and is used widely for evaluating the accuracy of inferred network connections and weights (Hoang et al. 2019a; Lee et al. 2021). By benchmarking with MSE, we can directly compare the performance of our proposed approach against existing methods.
Results
In this section, we validate the applicability of our proposed algorithm for network inference on sparse networks for small sample sizes. In Sect. 3.1, we start by analyzing the performance of network inference without \(l_1\) regularization. Results shown there provide a benchmark for later comparisons. In this section, we also present a counterintuitive observation, where diluting the quality of available information by adding empty rows to the time series is found to result in improved inference accuracy. We show that this is explained by overfitting to noise in the case of limited data. These experiments set the stage for the necessity of \(l_1\) regularization. Next, in Sect. 3.2, we present an initial exploration of the iterative heuristic including the procedure of automatically determining the regularization parameter. We then conduct comprehensive tests on the algorithm’s performance across various data availability scenarios, including sample sizes, amounts of missing data, average degrees \(\langle k \rangle\) of the network, average connectivity strength, and network types in Sect. 3.3.
In our study, we employ a structured approach to generate simulated time series for network inference. This process begins with the construction of sparse networks using commonly studied network topologies. Specifically we use the BarabásiAlbert (BA) model (Barabási and Albert 1999), the Erd?sRényi (ER) model (Newman et al. 2001), and the smallworld (SW) model (Watts and Strogatz 1998) to build sparse networks of size \(N=100\). Once the network structure is established, we assign link weights to the existing connections. More specifically, link weights are drawn from a normal distribution with a mean of 0 and a standard deviation of \(g/\sqrt{N}\). Here, the parameter g influences the connectivity strength.
Subsequent to the network and weight setup, we simulate the Ising dynamics on these networks using Glauber dynamics. For the initial conditions of the spin states, we employ a random assignment where \(50\%\) of the states are set to \(1\) and the remaining \(50\%\) to \(+1\), ensuring a balanced start for each simulation. Crucially, the recording of the time series begins from time 0, capturing the entire evolution of the system from the very start.
Network inference without \(l_1\) regularization for small sample sizes
We first explore network inference based on small sample sizes without applying the automatically determined \(l_1\) regularization. In this case, our approach reduces to the algorithm introduced by Lee et al. (2021), which provides stateoftheart performance in reconstructing coupling strengths from limited observations with missing data. A major drawback of their algorithm is the need to manually tune the threshold \(\varepsilon\) of \(D_{obs}  D_{un} < \varepsilon\) to ensure the algorithm stops at the right time. In their setting with observation lengths \(T \ge 2500\), they choose a specific value of \(\varepsilon =0.01\) as the stopping threshold. However, the appropriate threshold is highly dependent on the amount of data available. In Fig. 1a, we demonstrate how the optimal threshold \(\varepsilon ^*\) is influenced by varying observation lengths T in contexts with different percentages of missing data. The optimal threshold \(\varepsilon ^*\) is determined as the specific value of \(D_{obs}  D_{un}\) at which the MSE is minimized during the algorithm’s iterations. In Fig. 1a, with extremely limited data \(T \le 1500\), we observe higher optimal thresholds \((\varepsilon ^* > 0.01)\) in order to halt the iterations earlier.
Correspondingly, in Fig. 1b, we compare the MSE when stopping at the optimal threshold \(\varepsilon ^*\) (as determined above) versus at \(D_{obs}  D_{un} < 0.01\) for varying observation lengths T. The relative MSE on the yaxis shows the percentage increase in MSE from using 0.01 as the threshold compared to the optimal threshold. This comparison reveals a key insight: Whereas performance losses for longer time series are not significant, for smaller values of observation lengths T, adhering to a fixed threshold of \(D_{obs}  D_{un} < 0.01\) results in excessive iterations and decidedly suboptimal performance. However, it is unrealistic to design a specific \(\varepsilon\) value for each T, especially without knowledge of the ground truth. Therefore, for small lengths of the time series T, a new stopping criterion that eliminates manually assigning \(\varepsilon\) is required.

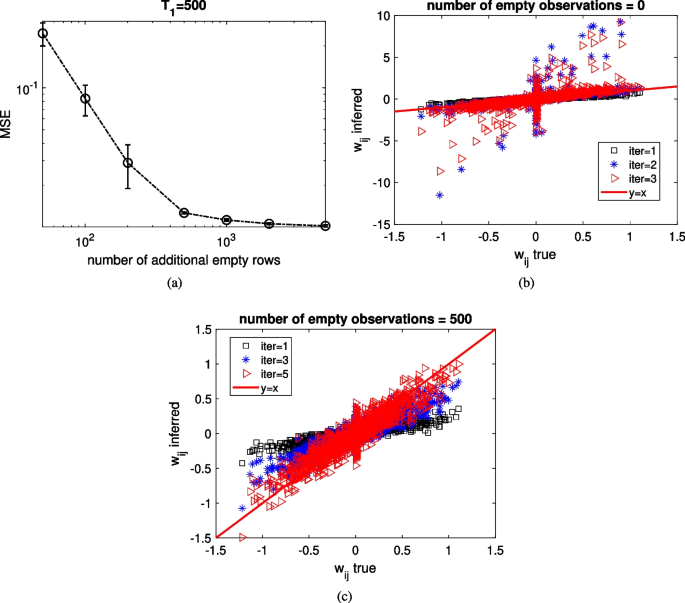

To further demonstrate the overfitting challenges with limited samples, we explore the impact of supplementing the dataset with additional empty rows that do not contain any spin state information. Specifically, these empty rows are added to the end of the original dataset, and they represent time steps where the spin states for all spins in the network are unobserved or missing. Somewhat surprisingly, we note that adding empty rows significantly improves the inference accuracy, as shown in Fig. 2a. More specifically, Fig. 2a shows the dependence of MSE on the number of additional empty rows. The inference is carried out on a dataset containing two parts: a \(90\%\) visible data part with length \(T_1=500\) plus a number of empty rows as shown on the xaxis. The unobserved data points in \(T_1\) are chosen randomly. Here, padding with empty rows leads to monotonic improvement despite the fact that the appended rows do not provide any extra information. This highlights the tendency of the unregularized algorithm of Lee et al. (2021) to capitalize on spurious noise patterns, fitting to spurious patterns in limited data rather than real underlying correlations.
To directly illustrate this overfitting behavior, Fig. 2b, c compare true weights versus those inferred by the algorithm of Lee et al. (2021) without and with 500 added empty rows. Without extra rows in Fig. 2b, the lack of data causes inferred weights to be drastically overestimated in early iterations. However, with empty padding in Fig. 2c, weights initially underestimate true values as the algorithm attempts to latch onto nonexistent signals in the meaningless rows. These experiments conclusively demonstrate the need for safeguards such as l1 regularization to constrain overfitting.
Network inference with \(l_1\) regularization
As discussed above, network inference without \(l_1\) regularization can lead to overfitting, especially for small data sets. To address this, we now examine the performance when including automatic \(l_1\) regularization through the heuristic approach proposed in Sect. 2. Notice that, \(l_2\) can also be used to avoid overfitting. However, it typically results in models where most coefficients are nonzero but small. This attribute makes \(l_2\) regularization less suited for our purpose. A detailed comparison between \(l_1\) and \(l_2\) regularization can be found in Appendix C.
We first present a sweep across different values of the regularization parameter \(\lambda\) and examine the resulting inference errors. As shown in Fig. 3a, we note that the MSE initially decreases as \(\lambda\) increases, reaching a minimum and then starts increasing again. This aligns with expectations – a small amount of regularization typically constrains overfitting, but too much regularization might degrade performance. Moreover, we also see that the optimal regularization parameter and the benefits of regularization depend on the lengths of the time series, with the largest benefits observed for \(T=500\).
Additionally, in Fig. 3b, we show the corresponding dependence of the number of iterations until convergence is reached on \(\lambda\), again for varying observation lengths T. Here, we set a maximum of 100 iterations, \(Q_{max}=100\). Iterations exceeding \(Q_{max}=100\) are considered nonconvergent. As seen in Fig. 3b, the \(\lambda\) value corresponding to the minimum MSE aligns closely with the transition point between convergence and nonconvergence, validating the proposed heuristic. Initially, increasing \(\lambda\) causes more iterations until eventual nonconvergence is reached at \(Q_{max}=100\). With further \(\lambda\) increases, the strong regularization pushes coupling strengths near zero, abruptly reestablishing convergence (note the last data points in panels (b) and (d)).
To illustrate the nonconvergent behavior, Fig. 3c shows the evolution of discrepancies \(D_{obs}\) and \(D_{un}\) at \(T=500\), and relatively large \(\lambda =0.0003\), with \(50\%\) missing data. We see that in spite of fluctuations \(D_{obs}\) remains above \(D_{un}\), so the iterations continue beyond \(Q_{max}=100\), as the convergence criterion cannot be met. Finally, Fig. 3d verifies that the overall shape and turning points are robust to the choice of \(Q_{max}\). For large enough \(Q_{max}\), the curves exhibit two distinct behaviors: quick convergence or sustained nonconvergence, and results for the first point of nonconvergence become independent of the exact choice of \(Q_{max}\). A more systematic exploration for the nonconvergent behavior under varying numbers of missing data can be found in Appendix .
Dependence of performance on data availability
Next, we carry out a comprehensive set of experiments on our proposed algorithm from the perspective of missing data selection, the structure of the weights matrix, and network types to verify the effectiveness of the automatically determined \(l_1\) regularization. To be specific, we test the performance of our algorithm depending on the following model specifications: (i) Percentages of unobserved data p, (ii) Average degrees \(\left\langle k \right\rangle\) for reflecting levels of network sparsity, (iii) connectivity strengths g, (iv) Network models, such as the BA model, the ER model, and the SW model. To maintain conciseness in the main discussion, we have placed the detailed examination of network size (N) in Appendix B.
To evaluate the robustness of our approach to missing observations, we test the inference performance under varying percentages of unobserved data p in the range from \(10\%\) to \(70\%\). This range was selected to encompass a realistic spectrum of missing data scenarios encountered in practical applications, starting from minimal data loss (\(10\%\)) to a substantial but manageable level (\(70\%\)). At the lower end of the range, a \(10\%\) level of missing data represents scenarios with minimal data loss, which can occur in wellconnected online social networks or transportation networks (Li et al. 2014; Kossinets 2006) during periods of normal operation. On the other hand, a \(70\%\) level of missing data represents a substantial but manageable level of unobserved nodes, as often seen in biological networks where experimental techniques may not capture the complete set of biomolecules (Liao et al. 2018). The decision to cap the range at \(70\%\) was informed by the consideration that beyond this threshold, the volume of missing data likely becomes too extensive for reliable inference. Additionally, experiments are conducted for several observation lengths \(T=500, 1000, 2000\), and \(T=4000\) time steps with a fixed connectivity strength \(g=4\).
In our analysis, we determine the quality of the network reconstructions by computing the MSE between the true and inferred networks, using three distinct approaches: (i) Optimal Inference MSE (min MSE\(_\text {true}\)): This represents the MSE obtained at the \(\lambda\) value that yields the minimum MSE, reflecting the best possible inference outcome when the ground truth is known. This optimal MSE serves as a benchmark for the highest achievable performance in network inference. (ii) Algorithmic Inference (min MSE\(_\text {approx}\)): This MSE is calculated at the \(\lambda\) value determined by our algorithm, providing a measure of how well our proposed method performs in approximating the true network. (iii) Baseline MSE (MSE\(_{\lambda =0}\)): This metric calculates the MSE without applying \(l_1\) regularization, which corresponds to the method described by Lee et al. (2021). To be specific, MSE\(_{\lambda =0}\) acts as a reference for the stateoftheart performance in network inference with missing data.
To summarize, here, we introduce two reference classes including an ideal benchmark (i.e., min MSE\(_\text {true}\)) and the stateoftheart (i.e., MSE\(_{\lambda =0}\)) for evaluating MSE values. The above enables us to more meaningful comparisons across different scales and parameter settings, facilitating a better understanding of the effectiveness of our approach in achieving accurate network reconstruction.
The results of these experiments are plotted in the panels of Fig. 4. We make the following observations. First, inspecting panels (a)(d), we see that results for the truly best regularization (min MSE\(_\text {true}\)) and approximated best regularization (min MSE\(_\text {approx}\)) are very close across the range of missing data p. Second, performances without regularization (MSE\(_{\lambda =0}\)) tend to be significantly worse, with decreasing differences as the lengths of the time series increase. The closeness of the optimally and heuristically regularized results demonstrates our algorithm’s ability to automatically find a suitable regularization strength approaching the optimal MSE. For larger p, min MSE\(_\text {true}\) and min MSE\(_\text {approx}\) begin to diverge, indicating greater difficulty in identifying the optimal \(\lambda\) as the amount of missing data increases. However, even for \(70\%\) missing data, our approach maintains strong gains over the no regularization scenario. Correspondingly, in Fig. 4e, we show the difference between the optimal regularization strength, labelled as \(\lambda _\text {true}\) that minimizes MSE, versus the automatically determined \(\lambda _\text {approx}\) based on the convergence transition point. We find that, our algorithm manages to find a very close approximation for the optimal regularization strength, especially when not many data points are missing.
Next, we continue with an exploration of the effects of varying network connectivity strengths g on the accuracy of network inference. Specifically, we examine four cases: \(g=1\) in Fig. 5a, \(g=2\) in Fig. 5b, \(g=4\) in Fig. 4a, and \(g=10\) in Fig. 5c. Throughout these evaluations, we observe a consistent and noteworthy alignment between the minimum mean square error of the true model min MSE\(_\text {true}\) and its approximation min MSE\(_\text {approx}\). This finding reinforces the robustness of our proposed algorithm, particularly in its ability to significantly surpass the performance metrics of the baseline model MSE\(_{\lambda =0}\), across varied network connectivity paradigms.
Following the evaluation of connectivity strengths, we examine the role of network sparsity by considering different average degrees \(\langle k \rangle\) of the networks. A higher average degree corresponds to a denser network with more connections, while a lower average degree represents a sparser network with fewer connections. Specifically, we examine scenarios with \(\langle k \rangle =5\) in Fig. 6a, \(\langle k \rangle =10\) in Fig. 4a, \(\langle k \rangle =20\) in Fig. 6b, \(\langle k \rangle =30\) in Fig. 6c, and \(\langle k \rangle =40\) in Fig. 6d. These average degrees cover a range of network densities, from highly sparse networks with \(\langle k \rangle =5\) to denser networks with \(\langle k \rangle =40\). Across all the examined average degree scenarios, we observe that our proposed algorithm maintains a high level of accuracy and significantly outperforms the baseline model MSE\(_{\lambda =0}\) without regularization. This is evident from the close correspondence between the minimum mean square error of the true model min MSE\(_\text {true}\) and the approximate model min MSE\(_\text {approx}\) obtained with our method. Moreover, we find the relative improvement compared to the unregularized model generally becomes more substantial for denser graphs with higher \(\langle k \rangle\). For instance, at \(\langle k \rangle =5\) in Fig. 6a, regularized MSE (min MSE\(_\text {approx}\)) is 2–25% of baseline MSE\(_{\lambda =0}\). However, at \(\langle k \rangle =40\) in Fig. 6d, regularized MSE decreases to only \(0.32\%\) of the baseline, representing a larger accuracy gain. This reveals greater overfitting risks in dense networks, further motivating the regularization to constrain complexity. This observation suggests that our method becomes more effective and beneficial as the network connectivity increases and the networks become denser. The greater improvement in accuracy for dense networks can be attributed to the higher risk of overfitting in such scenarios, further motivating the need for regularization to constrain the complexity of the models and prevent overfitting.
So far our experiments have explored the performance of our approach on networks based primarily on the BA model. To demonstrate wider applicability beyond the BA model, we additionally evaluate performance using two other commonly studied network models: SW networks and ER networks. Figure 7 shows the MSE between inferred and true networks on different network types: ER networks (a), and SW networks (b) for observation length \(T=500\). As seen in Fig. 7a, b, our method continues achieving significant accuracy gains over the baseline across both network models. We observe that on both ER and SW networks, the MSE is improved by over \(70\%\) relative to the unregularized inference. Importantly, these generalized gains are achieved without needing to tune the regularization approach to the specific network structure. The consistent benefits verify the broad applicability of our proposed framework beyond reliance on particular topological constraints or connectivity patterns. By automatically adapting the complexity penalty during inference, the benefits persist whether there are highly structured motifs like triangular clustering or entirely random edge formation as in ER graphs. This flexibility highlights the potential to extend the regularization approach to diverse network inference tasks.
Conclusion
In this work, we have proposed and validated an enhanced approach for stochastic network inference from limited timeseries observations. Our method introduces automatic \(l_1\) regularization to constrain overfitting, which is particularly problematic when data are scarce. The algorithm heuristically determines a suitable regularization strength by identifying the transition point between convergence and nonconvergence of the heuristic iterations. This provides a datadriven technique for regularization without requiring manual parameter tuning.
Experiments on simulated sparse networks demonstrated significant performance gains over the stateoftheart method of Lee et al. (2021), especially for small sample sizes. The \(l_1\) regularization is found to result in reduced inference error across varying conditions including observation length, missing data percentages, and network connectivity. Moreover, our approach eliminates the need to manually select a stopping threshold \(\varepsilon\), which was previously required to halt iterations before overfitting. The automatic regularization inherently prevents excess iterations by driving the model toward sparsity. The ability to infer networks from limited, incomplete data with minimal parameter tuning will help enable adoption in realworld settings. Potential applications include reconstructing gene regulatory networks from scarce biological data and learning neural connectivity from partial observations.
Future work can focus on extending the approach to additional network models beyond the binary Ising spin glass tested here. Testing on realworld inference tasks and integrating side information are also worthwhile directions. Overall, this work takes a significant step toward practical and automated inference of complex networks from scarce, noisy data.
Availibility of data and materials
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
References
BachschmidRomano L, Opper M (2014) Inferring hidden states in a random kinetic ising model: replica analysis. J Stat Mech: Theory Exp 2014:P06013
Barabási AL, Albert R (1999) Emergence of scaling in random networks. Science 286:509–512
Battistin C, Hertz J, Tyrcha J, Roudi Y (2015) Belief propagation and replicas for inference and learning in a kinetic ising model with hidden spins. J Stat Mech: Theory Exp 2015:P05021
Bisconti C, Corallo A, Fortunato L, Gentile AA, Massafra A, Pellè P (2015) Reconstruction of a real world social network using the potts model and loopy belief propagation. Front Psychol 6:1698
Campajola C, Lillo F, Tantari D (2019) Inference of the kinetic ising model with heterogeneous missing data. Phys Rev E 99:062138
CresswellClay E, Periwal V (2021) Genomewide covariation in sarscov2. Math Biosci 341:108678. https://doi.org/10.1016/j.mbs.2021.108678
Donner C, Opper M (2017) Inverse ising problem in continuous time: a latent variable approach. Phys Rev E 96:062104. https://doi.org/10.1103/PhysRevE.96.062104
Dunn B, Battistin C (2017) The appropriateness of ignorance in the inverse kinetic ising model. J Phys A: Math Theor 50:124002
Dunn B, Roudi Y (2013) Learning and inference in a nonequilibrium ising model with hidden nodes. Phys Rev E 87:022127
Gemao B, Lai PY et al (2021) Effects of hidden nodes on noisy network dynamics. Phys Rev E 103:062302
Glauber RJ (1963) Timedependent statistics of the ising model. J Math Phys 4:294–307
Han X, Shen Z, Wang WX, Di Z (2015) Robust reconstruction of complex networks from sparse data. Phys Rev Lett 114:028701
Hastie T, Tibshirani R, Friedman JH, Friedman JH (2009) The elements of statistical learning: data mining, inference, and prediction, vol 2. Springer
Hoang DT, Jo J, Periwal V (2019a) Datadriven inference of hidden nodes in networks. Phys Rev E 99:042114. https://doi.org/10.1103/PhysRevE.99.042114
Hoang DT, Song J, Periwal V, Jo J (2019b) Network inference in stochastic systems from neurons to currencies: improved performance at small sample size. Phys Rev E 99:023311. https://doi.org/10.1103/PhysRevE.99.023311
Kossinets G (2006) Effects of missing data in social networks. Soc Netw 28:247–268
Lee S, Periwal V, Jo J (2021) Inference of stochastic time series with missing data. Phys Rev E 104:024119. https://doi.org/10.1103/PhysRevE.104.024119
Li Y, Li Z, Li L (2014) Missing traffic data: comparison of imputation methods. IET Intel Transport Syst 8:51–57
Liao L, Li K, Li K, Yang C, Tian Q (2018) A multiple kernel density clustering algorithm for incomplete datasets in bioinformatics. BMC Syst Biol 12:99–116
Liu Q, Ihler A (2011) Learning scale free networks by reweighted \(l_1\) regularization. In: Proceedings of the fourteenth international conference on artificial intelligence and statistics, JMLR Workshop and Conference Proceedings, pp 40–48
Mazzarisi P, Zaoli S, Campajola C, Lillo F (2020) Tail granger causalities and where to find them: extreme risk spillovers vs spurious linkages. J Econ Dyn Control 121:104022
Mézard M, Sakellariou J (2011) Exact meanfield inference in asymmetric kinetic ising systems. J Stat Mech: Theory Exp 2011:L07001
Mirshahvalad A, Lindholm J, Derlén M, Rosvall M (2012) Significant communities in large sparse networks. PLoS ONE 7:e33721
Newman ME, Strogatz SH, Watts DJ (2001) Random graphs with arbitrary degree distributions and their applications. Phys Rev E 64:026118
Nguyen HC, Zecchina R, Berg J (2017) Inverse statistical problems: from the inverse ising problem to data science. Adv Phys 66:197–261. https://doi.org/10.1080/00018732.2017.1341604
Pearl J (2000) Causal inference without counterfactuals: comment. J Am Stat Assoc 95:428–431
Roudi Y, Dunn B, Hertz J (2015) Multineuronal activity and functional connectivity in cell assemblies. Curr Opin Neurobiol 32:38–44. https://doi.org/10.1016/j.conb.2014.10.011
Roudi Y, Hertz J (2011a) Dynamical tap equations for nonequilibrium ising spin glasses. J Stat Mech: Theory Exp 2011:P03031
Roudi Y, Hertz J (2011b) Mean field theory for nonequilibrium network reconstruction. Phys Rev Lett 106:048702. https://doi.org/10.1103/PhysRevLett.106.048702
Singh A, Humphries MD (2015) Finding communities in sparse networks. Sci Rep 5:8828
Soudry D, Keshri S, Stinson P, Oh MH, Iyengar G, Paninski L (2015) Efficient “shotgun’’ inference of neural connectivity from highly subsampled activity data. PLoS Comput Biol 11:e1004464
Tyrcha J, Hertz J (2014) Network inference with hidden units. Math Biosci Eng 11:149–165
Tyrcha J, Roudi Y, Marsili M, Hertz J (2013) The effect of nonstationarity on models inferred from neural data. J Stat Mech: Theory Exp 2013:P03005. https://doi.org/10.1088/17425468/2013/03/P03005
Watts DJ, Strogatz SH (1998) Collective dynamics of “smallworld’’ networks. Nature 393:440–442
Wu TT, Lange K (2008) Coordinate descent algorithms for lasso penalized regression. Ann Appl Stat
Zdeborová L, Krzakala F (2016) Statistical physics of inference: thresholds and algorithms. Adv Phys 65:453–552. https://doi.org/10.1080/00018732.2016.1211393
Zeng HL, Aurell E, Alava M, Mahmoudi H (2011) Network inference using asynchronously updated kinetic ising model. Phys Rev E 83:041135. https://doi.org/10.1103/PhysRevE.83.041135
Zhang P (2012) Inference of kinetic ising model on sparse graphs. J Stat Phys 148:502–512
Zipkin JR, Schoenberg FP, Coronges K, Bertozzi AL (2016) Pointprocess models of social network interactions: parameter estimation and missing data recovery. Eur J Appl Math 27:502–529
Acknowledgements
The authors acknowledge the use of the IRIDIS High Performance Computing Facility in the completion of this work. ZC acknowledges support from China Scholarships Council (No.201906310134). MB acknowledges support from the Alan Turing Institute (EPSRC grant EP/N510129/1, https://www.turing.ac.uk/) and the Royal Society (grant IES\(\backslash\)R2\(\backslash\)192206, https://royalsociety.org/).
Author information
Authors and Affiliations
Contributions
Conceptualization, ZC, MB and EG; Methodology, ZC, MB and EG; Software, ZC; Validation, MB and EG; Formal analysis, ZC; Investigation, ZC, MB and EG; Resources, ZC, MB and EG; Data curation, ZC; Writingoriginal draft preparation, ZC; Writingreview and editing, ZC, MB and EG; Visualization, ZC; Supervision, MB and EG; Project administration, MB and EG.
Corresponding author
Ethics declarations
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Appendices
Updating of local fields \(H_i(t)\)
The local field, denoted as \(H_{i}(t)\), determines the impact of the current state, \(\{\sigma _k(t)\}_{k=1}^N\), on the predicted future state, \(\sigma _{i}(t+1)\). Here, we examine a scenario where the local field is defined by \(H_{i}(t)=\sum _{j} w_{ij} \sigma _{j}(t)\), focusing on identifying the elements of the weight matrix \(w_{ij}\).
The tendency of the state \(\sigma _{i}(t+1)\) to align with its local field \(H_{i}(t)\) forms the basis of our model. This alignment is quantitatively expressed as
where the model expectation is a function of the probabilities of \(\sigma _{i}(t+1)\) assuming values of \(\pm 1\) given the current state \(\{\sigma _k(t)\}_{k=1}^N\). We observe that the magnitude of the model expectation relative to the actual state, \(\sigma _{i}(t+1)\), is constrained by
To refine the predictive accuracy, we carry out an update to the local field \(H_{i}(t)\) that enhances the alignment of the model expectation with the actual state
resulting in an improved predictive capability as evidenced by the increased magnitude of the model expectation. This update, importantly, not only improves the prediction but can also correct the direction (sign) of the local field \(H_{i}(t)\) if initially incorrect.
Dependence of performance on network sizes N
In Fig. 8, we investigate the impact of different network sizes N on the accuracy of our network inference method. This exploration specifically covers two scenarios: a network size of \(N=20\), illustrated in Fig. 8a, and a network size of \(N=50\), shown in Fig. 8b. In these analyses, we consistently find that the MSE of our approximation, denoted as min MSE\(_\text {approx}\) outperforms the baseline model’s MSE (MSE\(_{\lambda =0}\)) across a spectrum of network size settings. This outcome underscores the superior robustness and reliability of our proposed algorithm in various network configurations.
Comparison between \(l_1\) and \(l_2\) regularization
In Fig. 9, we evaluate the performance of \(l_1\) and \(l_2\) regularization techniques in inferring network structures, particularly within BA networks characterized by a size of \(N=100\) and a connectivity strength coefficient \(g=4\). This evaluation is conducted over an observation length of \(T=500\), with the goal of comparing four distinct MSE metrics: “min MSE\(_\text {true}\)” at optimal \(\lambda\), “l1: min MSE\(_\text {approx}\)” at automatically determined \(\lambda\) calculated by the \(l_1\) regularization, “MSE\(_{\lambda =0}\)” without regularization, and “l2: min MSE\(_\text {approx}\)” at automatically determined \(\lambda\) calculated by the \(l_2\) regularization. The experiments reveal that \(l_1\) regularization can improve the inference accuracy of network structures in most cases compared to the \(l_2\) regularization, especially in the scenarios when a large amount of data is missing. The superiority of \(l_1\) regularization in inferring sparse networks can be attributed to its ability to encourage many coefficients to shrink to zero. On the other hand, \(l_2\) regularization, which penalizes the square of the coefficients, does not inherently promote sparsity in the same way \(l_1\) does. While \(l_2\) regularization can help in reducing overfitting by discouraging large coefficients and thus limiting the model’s complexity, it typically results in models where most coefficients are nonzero but small. This attribute makes \(l_2\) regularization less suited for our purpose.
Nonconvergent behavior under different percentage of missing data
Consistent with Fig. 3a, which showed the impact of varying temperature T, in Fig. 10a, we present a sweep across different values of the regularization parameter \(\lambda\) and examine the resulting inference errors for a fixed observation length T = 500 and varying percentages of missing data \(p = 0.1, 0.2, 0.3, 0.4, 0.5\). As shown in Fig. 10a, we note that the MSE initially decreases as \(\lambda\) increases, reaching a minimum, and then starts increasing again. This behavior is observed for all percentages of missing data. Additionally, in Fig. 10b, we show the corresponding dependence of the number of iterations required for convergence on \(\lambda\), again for varying percentages of missing data p. Here, we set a maximum of 100 iterations, \(Q_{max} = 100\), and iterations exceeding \(Q_{max} = 100\) are considered nonconvergent. As seen in Fig. 10b, the \(\lambda\) value corresponding to the minimum MSE in Fig. 10a aligns closely with the transition point between convergence and nonconvergence for each percentage of missing data. This observation further validates our proposed heuristic.
