Leveraging network representation learning and community detection for analyzing the activity profiles of adolescents
Applied Network Science volume 7, Article number: 27 (2022)
Human mobility analysis plays a crucial role in urban analysis, city planning, epidemic modeling, and even understanding neighborhood effects on individuals’ health. Often, these studies model human mobility in the form of co-location networks. We have recently seen the tremendous success of network representation learning models on several machine learning tasks on graphs. To the best of our knowledge, limited attention has been paid to identifying communities using network representation learning methods specifically for co-location networks. We attempt to address this problem and study user mobility behavior through the communities identified with latent node representations. Specifically, we select several diverse network representation learning models to identify communities from a real-world co-location network. We include both general-purpose representation models that make no assumptions on network modality as well as approaches designed specifically for human mobility analysis. We evaluate these different methods on data collected in the Adolescent Health and Development in Context study. Our experimental analysis reveals that a recently proposed method (LocationTrails) offers a competitive advantage over other methods with respect to its ability to represent and reflect community assignment that is consistent with extant findings regarding neighborhood racial and socio-economic differences in mobility patterns. We also compare the learned activity profiles of individuals by factoring in their residential neighborhoods. Our analysis reveals a significant contrast in the activity profiles of individuals residing in white-dominated versus black-dominated neighborhoods and advantaged versus disadvantaged neighborhoods in a major metropolitan city of United States. We provide a clear rationale for this contrastive pattern through insights from the sociological literature.
The ability to capture the location of individuals using GPS-enabled devices has allowed researchers to analyze human mobility with unprecedented precision. Beyond individual mobility trajectories, data on spatially delimited groups of individuals has provided the opportunity to estimate bipartite, co-location networks where users and locations are treated as nodes, and location visits are treated as edges. These co-location networks, however, do not necessarily indicate direct contact between individuals at specific geographic locations; instead, they capture the potential for shared experiences and exposures. Co-location networks uncover the structure of shared exposure in a collective sense, illuminating the potential for contagion (social or viral), cohesion, and related outcomes such as health and crime (Xi et al. 2020; Sampson et al. 1997).
Recent and emerging research suggests that the extraction of communities (consisting of individuals) from such co-location networks that model human activity spaces can provide important information about the functioning of a city and its neighborhoods (Zhong et al. 2014; He et al. 2020; Fujishima et al. 2020). For instance, understanding the community structure of co-location networks can shed light on systematic patterns of urban racial and socioeconomic segregation in everyday routines beyond those identified by an exclusive focus on residential sorting (Xi et al. 2020). Estimating communities based on shared routines also helps identify indirect or higher-order location exposures that may be relevant for contagion processes (but not necessarily rooted in spatial proximity).
The numerous applications of co-location networks warrant careful consideration of appropriate methods for their construction. One could adopt a structured data collection approach, followed by the Los Angeles Family and Neighborhood Study (Sastry et al. 2006), in which one first samples individuals/households from a region/city and then prompt subjects for the location of typical routine activity destinations such as workplaces, schools, or grocery stores; the co-location network is then constructed based on the locations provided from survey-style instrumentation. An alternative method is to adopt an unstructured approach in which one could provide GPS-enabled devices to the sampled individuals/households from a region/city, record the spatial location of the individual at a short interval, find the stationary locations where the individuals spend a significant time and then construct a co-location network between individuals and stationary locations.
The Adolescent Health and Development in Context (AHDC) study  follows both structured and unstructured data collection approaches to capture individuals’ mobility in Franklin County, Ohio. To collect structured data on mobility, the AHDC study surveys caregivers of adolescents about their location visits and then forms a co-location network (one can denote this network as a coarser-grained co-location network). The unstructured approach is based on the spatial coordinates of adolescents over regular intervals and then forms a co-location network (one can denote this network as a finer-grained co-location network).
In this study, we focus on extracting community structure from the fine-grained co-location network. Since there is no ground truth available, we assess the extent to which alternative approaches to community detection align with previous findings on neighborhood racial and socioeconomic differences in mobility patterns (Xi et al. 2020; Browning et al. 2021b). Our approach for extracting communities relies on computing a meaningful vector representation of each node in the co-location network (for all location and user nodes). These vectors can then be utilized by any off-the-shelf clustering algorithms [such as K-means (Bishop 2006) or Gaussian Mixture Models (Reynolds 2009)] to identify meaningful communities of users and their shared exposure locations. We evaluate the use of several state-of-the-art approaches for computing the representation of each node within the fine-grained AHDC co-location network. These include:
A previous effort by, Xi et al. (2020), that focused on identifying communities from the coarser-grained AHDC co-location network.
Several neural network based models that have recently shown to be highly effective for the learning of node representations from such network data. These include efforts such as DeepWalk (Perozzi et al. 2014), and LINE (Tang et al. 2015b).
A recently proposed low-resource (efficient) neural approach called LocationTrails (Gurukar et al. 2021). Unlike other neural methods, LocationTrails explicitly leverages the sequential ordering of a user’s visits to specific locations that is available in such fine-grained co-location networks.

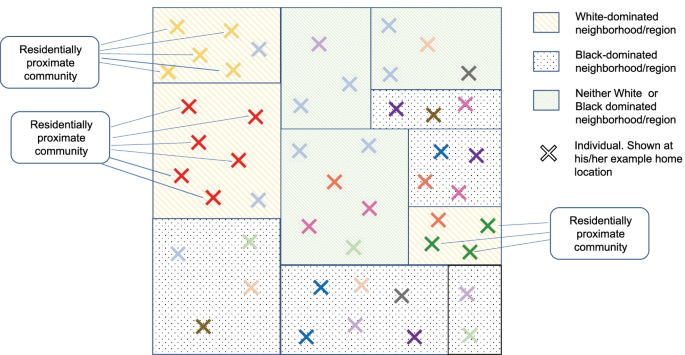

We present a toy example in Fig. 1 that defines the terminology we use to explain our findings. A neighborhood is dominated by a given race if its percent population is higher than 70% (Quillian 2002; DeLuca and Rosenbaum 2003). In Fig. 1, note the presence of residentially proximate communities in the white-dominated neighborhoods and the lack of residentially proximate communities in the black-dominated neighborhoods.
Our key findings can be summarized as follows. First, a qualitative examination of the communities extracted by different methods suggests that the community structures extracted by LocationTrails identify patterns that are consistent with our understanding of urban racial and socioeconomic segregation in everyday routines. Second, among the other neural approaches [DeepWalk (Perozzi et al. 2014) and LINE (Tang et al. 2015b)] appear to offer the strongest performance, although these methods do appear to be biased towards residentially proximate community structures, potentially mischaracterizing the routine activity patterns of more segregated and socioeconomically disadvantaged neighborhoods (Browning et al. 2021b). Third, several important patterns identified by LocationTrails and the other neural models largely agree with the results Xi et al. observed from the coarse-grained AHDC co-location network analysis study (Xi et al. 2020). However, our qualitative analysis suggests that Xi et al. (2020) was less effective on the fine-grained co-location network data, when compared to LocationTrails. Fourth, a quantitative examination of the activity profiles of the individuals residing in neighborhoods with different characteristics (white-dominated vs. black-dominated, advantaged vs. disadvantaged) reveals that individuals who reside in white-dominated neighborhoods are more likely to share the same cluster than their black counterparts. While individuals who reside in black-dominated neighborhoods often do not share the same cluster as they seem to have dissimilar activity profiles.
The rest of the paper is organized as follows. The next section describes the data collection, data cleaning, and formation of the fine-grained co-location network from the AHDC study—an important contribution of this study. The Methods section overviews related work and summarizes the selected methods utilized for our evaluation. The Results section presents the analysis of the selected methods on the AHDC fine-grained co-location network dataset. We present the conclusions and contributions of our work in the Conclusions section.
AHDC activity pattern data
The Adolescent Health and Development in Context (AHDC) study  is an ongoing longitudinal data collection study. The goal of the AHDC study is to explore the relationship between aspects of the social and spatial contexts of everyday routines and the health and wellbeing of urban youth. To that end, the AHDC study collects data on multiple contexts of youth development from a representative sample of 1,347 adolescents (age 11-17 years old) residing within Franklin County (contains the city of Columbus—Ohio’s largest city) using a prospective cohort design. Franklin County is racially and ethnically diverse—White (Non-Hispanic) (62%), Black or African American (Non-Hispanic) (22.9%), Asian (Non-Hispanic) (5.38%), and White (Hispanic) (3.25%) . In terms of social and economic characteristics, the Columbus metropolitan area is representative of the average US metropolitan area . The data collection from youth and their caregivers occurs in two waves (Wave 1 and 2) separated over one year period. In this work, we focus on data collected in Wave 1. Wave 1 data collection took place between April 2014 and July 2016. The data collection design is as follows. The AHDC study first performs an Entrance Survey—the structured data collection approach—with the adolescents and their caregivers. The survey covers a broad range of topics related to demographic and socioeconomic background, household composition, family structure and marital status, employment and income, health, social support, and alcohol/substance use. The entrance survey included a “location generator” (Browning et al. 2021a) in which caregivers and adolescents provided information about the locations of the youth’s everyday routine activities (e.g., school, work, grocery shopping, etc.).
Xi et al. (2020) construct a co-location network from the above mentioned Entrance survey where the reported locations are aggregated to the census block group. The authors (Xi et al. 2020) perform data cleaning based on the missing data and the density of caregivers in a block group. The resultant coarser-grained co-location network consists of 1307 caregivers (out of 1405 caregivers) and has 883 block groups. Census block groups are statistical divisions of census tracts and are generally defined to contain between 600 and 3,000 people (Brown and Barram 1994).
The Entrance Survey of the AHDC study was followed by geographically explicit ecological momentary assessment (GEMA) (Kirchner and Shiffman 2016) for a period of seven days—the unstructured data collection approach. During this period, adolescents carried a study provided GPS-enabled smartphone that collected real-time assessments of locations, activities, and experiences as well as near-continuous Global Positioning System (GPS) coordinate data. The spatial coordinate data were collected through GPS satellites every 30 seconds. However, if no GPS satellite coordinates were collected for a period of 10 minutes or more, location coordinates were recorded from the cell network tower connection every minute to obtain an approximate location.
Next, we describe the data cleaning and construction of the finer-grained co-location network from the unstructured data collection approach.
Deriving finer-grained co-location network from the unstructured activity data
The collected GPS data are subject to error and contain noise (Modsching et al. 2006). We process the collected GPS using the convex hull-based binning algorithm (Shareck et al. 2013) to capture an accurate estimate of the location. The algorithm gives us the stationary and travel periods of the adolescents (Boettner et al. 2019) and the convex hull centroid over the stationary periods GPS coordinates is estimated as the visited locations. The visited locations are then presented to the adolescents on a map using a recall-aided interactive space-time budget application (Boettner et al. 2019). The application has a graphical user interface (GUI) showing Google Maps and has several other data collection functionalities. Using the application, the adolescents in the AHDC study corroborate the estimated visited location and also provide the labels of the location. The collected latitude and longitude values of stationary locations need to be converted to a location id so that we could form a co-location graph between user-ids and location-ids. This conversion process is known as reverse geocoding, and we utilize the OpenStreetMap APIFootnote 1 for this purpose.
The visualization of the constructed co-location network is shown in Fig. 2. In Fig. 2, we observe that there exist several locations (such as schools) commonly visited by most adolescents. We also observe that at the periphery there are few locations (such as a relative’s house) that are visited by a small number of adolescents. The statistics of the constructed fine-grained co-location network are shared in Table 1. We also share the location visits statistics in the table. A trail represents the number of locations visited by adolescents in a day. The mean and mode of the trails are 4.33 and 4, while the histogram of trail lengths is shown in Fig. 3. From the visualization, one can observe that there are certain locations (shown in blue) that were only visited by few adolescents. These locations could be the home of the adolescents, their relative’s house, or local stores that were not visited by other adolescents in the study. We also observe a significant number of locations (such as schools, shopping malls) that were visited by multiple adolescents. The anonymized home locations and activity locations of the adolescents are shown in Fig. 4. Here, the locations are anonymized as follows: given the latitude and longitude of the location, we first identify the block group of the location and then set the home location of the adolescent to be a random point in the block group.
The extent to which activity spaces–the collection of an individual’s routine activity locations–overlap with those of their neighbors or those with similar backgrounds provides important information about the functioning of a city and its neighborhoods. The identification of communities from the co-location network can provide additional insight into the structure of shared urban routines. In this work, we evaluate both network representation learning (NRL) methods (Perozzi et al. 2014; Tang et al. 2015b; Gurukar et al. 2021; Xi et al. 2020; Gao et al. 2018) and standard network science methods (Karypis et al. 1997; Dhillon et al. 2007; Satuluri and Parthasarathy 2009; Barber 2007) to identify such communities. In the case of NRL methods, the first step is to identify a meaningful representation of individuals (adolescents in our co-location networks) as well as that of the routine areas they visit (locations in our co-location network). To compute the representation of nodes within a two-mode co-location network, we draw on exemplars from general-purpose network representation learning and human-mobility network representation learning. In the case of standard network science methods, we select two popular methods that rely on pre-defined metrics to identify communities. We discuss both NRL and network science methods in the next sections.
Network representation learning
The network representation learning (NRL) models aim to learn a representation of nodes such that the similarity of nodes in graph space is approximated by the closeness of nodes in the representation space. One of the initial network representation learning models is Laplacian Eigenmaps (Belkin and Niyogi 2003) which learns node representations by preserving the first-order proximity between the nodes—connected nodes should have node representations with low L2 distance. Inspired by the effectiveness of neural networks, Perozzi et al. (2014) proposed Deepwalk that performs truncated random-walk on the graphs and then applies skip-gram (Mikolov et al. 2013b) objective function on the random-walks to learn the node representations. Node2vec (Grover and Leskovec 2016) proposed an approach to bias the random-walks and then adopt the Deepwalk strategy to learn the node representations. LINE (Tang et al. 2015b) proposes two objective functions that preserve both first-order and second-order proximity—nodes with similar neighbors should have node representations with low L2 distance—for learning the node embeddings. NetMF (Qiu et al. 2018) argues that the skip-gram based models with negative sampling optimization such as Deepwalk (Perozzi et al. 2014), Node2vec (Grover and Leskovec 2016), LINE (Tang et al. 2015b) and PTE (Tang et al. 2015a) are implicitly factorizing matrices formed with graph laplacians. Recently, Huang et al. (2021) provided an analytical framework for random-walk based graph embedding methods and categorizes several existing random-walk based methods.
Given the plethora of network representation learning methods, Gurukar et al. (2019) performed an experimental analysis of the popular network representation learning methods to understand the scientific progress in this field. They found that if one tunes the parameter of the Deepwalk method (Perozzi et al. 2014) it performs in a competitive manner on both node classification and link prediction tasks. Given the competitive nature of Deepwalk, we select it as one of the approaches to learn meaningful representation of individuals and locations. We also select LINE (Tang et al. 2015b) as one of the approaches for representation learning, as it was found to be both efficient (in terms of running time) and effective (in terms of predictive tasks) (Gurukar et al. 2019). We also performed experiments with BiNE method (Gao et al. 2018), a network representation learning method designed for bipartite networks. These results are presented in the Additional file 1 (see section “Cluster Analysis: BiNE”) along with a rationale for its relatively poor performance. The summaries of the selected methods are also presented in the Additional file 1 (see section “Methods summary”).
Human mobility network representation learning
The human mobility network representation learning model focuses on a form of co-location network constructed from the human mobility dataset. These models learn representations such that one can efficiently perform human mobility-related downstream tasks such as location prediction (Yang et al. 2019), location recommendation (Yan et al. 2017), and travel time estimation (Derrow-Pinion et al. 2021). LBSN2vec (Yang et al. 2019) focuses on Location-Based Social Networks to study user mobility and their social relationships using a hypergraph-based random walk approach to learn user and location embeddings. However, such an approach requires the social network of users, which is not always available. Location2vec (Shoji et al. 2018) collects the Geo-tagged tweets to learn the location representation and employ skip-gram model (Mikolov et al. 2013a) on the collected corpus. The representations of Point of Interest (POI) are learned by Yan et al. (Yan et al. 2017) by proposing a novel method of training corpus generation based on augmented spatial contexts for word2vec model (Mikolov et al. 2013a). Note that both Location2vec (Shoji et al. 2018) and the approach by Yan et al. (Yan et al. 2017) focus on only learning representations of locations and not individuals. Hence, we focus on the following two approaches—one based on Latent Dirichlet Allocation (Blei et al. 2003) and another based on the sequence of location visits (LocationTrails)—to learn representations of both individuals and locations. The summaries of these selected approaches are present in the Additional file 1 (see section “Methods summary”).
Clustering representations for community assignment
The learned representations of adolescents can be clustered with any off-the-shelf clustering algorithm. The adolescents belonging to the same cluster are then assigned to the same community. In this work, we present the results with Gaussian Mixture Models (GMMs) (Reynolds 2009) clustering method. However, we have also experimented with other clustering methods such as K-means (Bishop 2006), and Bisecting K-means (Steinbach et al. 2000) and found the results obtained to be consistent with GMMs. GMMs are probabilistic models that assume the data is generated from a mixture of Gaussians with unknown parameters where the parameters are identified with the Expectation-Maximization (EM) algorithm. The output of GMMs is the community-membership probability matrixFootnote 2 that contains the probability of an adolescent i belonging to a cluster (community) k. The adolescent is assigned the community that has the highest probability in the community-membership matrix. We utilize GMMs on the representations learned by Deepwalk, LINE, and LocationTrails. Xi et al. (2020), on the other hand, directly learn the community-membership affiliation probabilities via the Latent Dirichlet process.
Network science methods for community identification
The network science methods for identifying communities in both homogeneous and bipartite networks rely on pre-defined community metrics such as normalized cuts (Shi and Malik 2000; Zha et al. 2001) or ratio cuts (Chan et al. 1994; Billionnet 2010). We consider two popular community identification methods: Metis (Karypis et al. 1997) and Graclus (Dhillon et al. 2007). These methods are multi-level algorithms and consist of three phases: i) coarsening phase in which graph is repeatedly transformed into smaller graphs by combining set of nodes and their corresponding edges, ii) base-clustering phase in which clustering is performed on the coarsest graph. Here, clustering is efficient due to the small size of the coarsest graph and the ability of the coarsest graph to capture the global structure of the graph (Liang et al. 2018), and iii) refinement phase in which identified clusters are propagated to the larger graphs till the clusters are identified for the input graph. We also performed experiments with a network science method BRIM (Barber 2007) that is designed for bipartite networks. However, we found that BRIM performs poorly (like BINE) on our dataset. Hence, we do not include BRIM in our analysis. The readers are encouraged to refer to the papers for the detailed algorithm. We apply these methods to our undirected co-location network and analyze the identified adolescents clusters.
For all the experiments, we tune the parameters of the methods Deepwalk (walk length = [10, 20, 40], number of walks = [40, 80], context window = [3, 5, 10]), LINE (negative samples = [3, 10], number of samples = [5 billion, 10 billion]), LDA (Gibbs: number of iterations = [10,000, 100,000]), Metis (cut objectives=[‘normalized cut’, ‘volume’]), and Graclus (cut objectives=[‘normalized cut’, ‘ratio association’]), and report the best observed results. Note that the mobility pattern related inferences drawn for the methods are consistent across hyper-parameters (more details in the Additional file 1: section “Cluster Analysis: Hyper-parameter results”). We have also included a map of Columbus, Ohio and map of frequently mentioned regions in the Additional file 1 (see Figure 1 and Figure 2) to help the reader locate the neighborhoods referenced in the analysis.
Precise ground truth for our study is not available. We note that the lack of ground truth is a common problem in community discovery literature (see Hennig 2015 for a detailed discussion). Often, the ground truth is ill-defined. Hennig echos this point as “In most cluster analysis literature, however, explanations of what ‘true’ or ‘real’ clusters are, are rather hand-waving”. The deficiencies in the current clustering evaluation are also pointed out by Von Luxburg et al. (2012). They point out that “whether a clustering of a particular data set is good or bad cannot be evaluated without taking into account what we want to do with the clustering once we have it.”. In this work, we want to study human mobility with the help of clustering, hence we rely on existing studies on human mobility (Xi et al. 2020; Browning et al. 2021b) as well as the sociological studies to assess clustering quality (Basta et al. 2010; Sastry et al. 2004; Small and McDermott 2006). We describe the sociological studies in the next section.
Sociological studies on the activity profiles
To access the quality of clustering, we would like to bring forth two sets of sociological findings. The first set of findings is from the “activity space” literature in which individuals’ activity locations (within and beyond the neighborhood) are the focus of measurement. Studies in this literature have found that many activity locations lie outside of the individual’s residential neighborhood unit. For instance, Basta et al. (2010) found that the adolescents spent 70% of the non-home time outside their residential neighborhood. Sastry et al. (2004) found that only 16% of individuals’ routine grocery stores and only 12% of individuals’ places of worship lie in their residential neighborhood. Our own findings from the AHDC study suggest that youth spend about 6% of their waking-time in their neighborhood but not at home, 60% at home, and 34% outside their home neighborhood (Browning et al. 2021b). These studies offer evidence that the clusters of adolescents identified based on their activity locations should not always be residentially proximate—it is not necessary that adolescents who reside in the same neighborhood will share the same cluster, provided they are clustered based on their activity locations.
The second set of findings is drawn from research examining mobility for the purpose of accessing organizational resources.Footnote 3 Small and McDermott (2006) found that as the proportion of blacks in the neighborhood increases, the number of establishments decreases. In analyses of the AHDC data, Browning et al. (2021b) find that segregated, higher poverty neighborhoods had fewer schools present within the neighborhood, indicating that youth from these neighborhoods are more likely to be regularly traveling outside the neighborhood to reach school locations. AHDC data indicate that black youth residing in high proportion black neighborhoods encountered more heterogeneous exposures to neighborhood racial composition than other youth and spend a nontrivial proportion of their time in low proportion black neighborhoods, largely in the context of organizational resource seeking (Browning et al. 2021b). Therefore, we expect that for adolescents residing in black-dominated neighborhoods, the probability of falling in residentially proximate clusters will be lower. Moreover, adolescents who reside in the same black-dominated neighborhood will have a higher probability of not sharing the same cluster, provided they are clustered based on their activity profiles.
Neighborhood nomenclature: We collect demographic information on neighborhoods from 2009-2013 American Community Survey data. A neighborhood is considered to be dominated by ethnicity if its percent population is higher than 70%. A neighborhood is considered advantaged if the poverty index is lower than 20% and is considered disadvantaged if the poverty index is greater than 40% (Jargowsky 2013).
In this section, we evaluate the efficacy of the methods to identify communitiesFootnote 4 on the finer-grained co-location network. Next, we perform experiments to study if the identified communities can help in understanding the neighborhood’s functioning.
In this section, we perform the community analysis of the adolescent representations learned by all the selected representation learning methods. We render the identified adolescent communities on the Columbus map, where each adolescent is represented through their approximate home location. We select the number of communities to be 18—similar to the one reported in Xi et al. (2020)—and also observe the perplexity metric (Blei et al. 2003) value with 18 number of communities to be one of the lowest. The identified communities for Deepwalk, LINE, LocationTrails, LDA (Xi et al. 2020), Metis and Graclus are shown in Figs. 5a, b, 6a, b, 7a, b respectively. Next, we analyze the identified communities from a sociological lens.
Qualitative holistic analysis of results
We observe that in white-dominated neighborhoods the evaluated methods often identify residentially proximate communities (refer Fig. 1). For instance, we observe that all methods identify a community present at Bexley, Ohio (community number: 10, color: blue). Bexley is a white-dominated area (86.5% of its population is white). The median household income of its residents is double than that of residents living in Columbus city. Bexley is also rich in organizational resources and was historically considered a relatively insular community given its spatial embeddedness in a largely lower-income context. The emergence of the Bexley community shows that many of its residents share the same activity profiles, and this might be due to the abundance of organizational resources (an advantaged neighborhood). Moreover, a few white-dominated neighborhoods such as Upper Arlington, Grandview Heights, and Worthington are commonly identified by Deepwalk, LINE, LocationTrails, Metis, and Graclus.
A few of the methods (Deepwalk, LINE, Metis, and Graclus) that rely solely on the graph structure place adolescents in the same community if they reside in the same black-dominated neighborhoods (such as Near East Side (Census Tract 29 and 36, Franklin, OH) and Milo Grogan (Census Tract 15 and 23, Franklin, OH)). This result does not align well with existing sociological studies (Basta et al. 2010; Sastry et al. 2004; Browning et al. 2021b; Small and McDermott 2006). These studies mention that the lack of organizational resources (grocery stores, schools) in black-dominated neighborhoods result in adolescents spending a nontrivial proportion of their time outside of their residential neighborhoods and they encounter more heterogeneous exposure to neighborhood racial composition than other adolescent . This often results in dissimilar activity profiles among adolescents residing in these disadvantaged neighborhoods. Hence, it is surprising that few methods (Deepwalk, LINE, Metis, and Graclus) identify residentially proximate communities in black-dominated neighborhoods. LocationTrails, which relies on the sequence of locations visited by the adolescents, does not identify residentially proximate communities in black-dominated neighborhoods. We present a detailed community analysis of each method in the next few sections.
Community analysis: LocationTrails
The communities identified by LocationTrails on the finer-grained co-location network are consistent with the ones identified by the peer reviewed study done by Xi et al. (2020) on the AHDC coarser-grained co-location network constructed using a structured data collection approach. Specifically, we observe that LocationTrails places adolescents in the same clusters who reside in Grandview Heights (cluster number: 8, color: light green), Upper Arlington (cluster number: 2, color: black), and Worthington (cluster number: 7, color: green). All these regions have more than 90% white residents, and the median household income of the residents in these regions is double that of residents living in Columbus. These communities share similar characteristics as that of Bexley, however, Deepwalk, LINE, and LDA methods are unable to find these communities. For the adolescents living in the black-dominated neighborhoods, LocationTrails place them in different communities. Specifically, the adolescents who reside in Near East Side (Census Tract 29 and 36, Franklin, OH), Milo Grogan (Census Tract 15 and 23, Franklin, OH) are placed in different communities. The median household income of residents in these regions is less than that of residents living in Columbus. The adolescents in these disadvantaged neighborhoods need to travel further, on average, to access organizational resources and have few common activity profiles. Therefore, LocationTrails assigned them to different communities.
Community analysis: Deepwalk and LINE
From Fig. 5a, we observe that Deepwalk and LINE identify communities that are often residentially proximate—adolescents who reside in the same neighborhood often share the same communities. The identified residentially proximate communities are present for most of the neighborhoods (both white-dominated and black-dominated). This result runs counter to expectations in that residentially proximate communities are less likely to occur in high poverty neighborhoods. As mentioned previously, youth from high poverty neighborhoods often spend a nontrivial proportion of their time outside of their residential neighborhoods and encounter more heterogeneous exposure to neighborhood racial composition than other youth (in order to seek organizationally-based resources) (Browning et al. 2021b). This often results in dissimilar activity profiles among youth residing in these disadvantaged neighborhoods. Drilling down on the raw activity profiles of individuals in this community, we find that they do indeed have activity profiles that differ and are quite heterogeneous. The results observed here suggest that LINE and Deepwalk are pre-disposed (biased) to identifying residentially proximate neighborhoods.
The reason both Deepwalk and LINE identify residentially proximate communities even for the segregated high poverty neighborhoods can be explained as follows. Both these methods rely solely on the structure of the graph to learn the node representations. Deepwalk relies on the random walks on the co-location network, while LINE relies on both explicit (first-order proximity) and implicit (second-order proximity) connectivity between nodes to learn the node representations. Hence, if two adolescents residing in the same neighborhood visit few common locations (e.g. local stores) present in that neighborhood, these methods would put a high constraint on learning similar representations of those adolescents, as there exists an implicit link between those adolescents. The clustering method would then assign these two adolescents in the same cluster as they would have similar representations.
Community analysis: LDA
From Fig. 6a, we observe that LDA identifies clusters at Bexley ( cluster number: 10, color: blue ) and Upper Arlington (cluster number: 2, color: black). However, it failed to identify clusters in white-dominated, advantaged neighborhoods that were identified by LocationTrails.
Community analysis: Metis and Graclus
The communities identified by standard network science algorithms Metis (Karypis et al. 1997) and Graclus (Dhillon et al. 2007) are shown in Fig. 7a and b, respectively. We observe that Metis and Graclus identifies clusters that are residentially proximate for both white-dominated and black-dominated neighborhoods. Metis and Graclus clustered adolescents residing in black-dominated neighborhoods such as South Columbus, south of Grandview Heights in the same communities. As mentioned earlier, these clusters are not aligned with the sociological findings mentioned in the section “Sociological studies on the activity profiles”.
To summarize, the above analysis of the identified communities suggests that a method that is cognizant to the sequence of locations visited by the adolescents while learning node representations (LocationTrails Gurukar et al. 2021) is effective in identifying higher-quality communities from the co-location networks.
Quantitative analysis of the communities
We measure the overlap between the identified communities by the methods using Normalized Mutual Information (NMI) (Estévez et al. 2009). From the qualitative analysis, we observe that adolescents who reside in white-dominated neighborhoods, often share the same cluster. This clustering pattern is observed across different methods. In our quantitative analysis, we focus on the adolescents who reside in white-dominated neighborhoods. We then identify their clusters with different methods and present the NMI between the identified clusters in Table 2. A similar analysis for adolescents residing in black-dominated neighborhoods are shown in Table 3. We observe the NMI between clusters identified Deepwalk, LINE, LocationTrails, Metis, and Graclus in the white-dominated neighborhood is relatively high. The relatively high NMI coupled with visual analysis of identified clusters suggest that adolescents who reside in white-dominated neighborhoods often share the same cluster. In black-dominated neighborhoods, the NMI value between clusters identified by Deepwalk, LINE, Metis, and Graclus is relatively higher than NMI between these methods and LocationTrails. The relatively high NMI of Deepwalk, LINE, Metis, and Graclus in black-dominated neighborhoods coupled with visual analysis of identified clusters suggest that these methods are identifying clusters even in black-dominated neighborhoods. As mentioned earlier, this suggestion does not align well with existing sociological studies. We will shortly discuss in the context of neighborhood affinity that further amplifies this point. Note that NMI of LDA is relatively lower in both Tables 2 and 3. The NMI between identified clusters of adolescents residing in all the neighborhoods is shared in the Additional file 1 (see section “Quantitative analysis”).
Quantitative analysis: neighborhood affinity
In this section, we quantitatively analyze the communities present in the neighborhoods. Following the literature (Xi et al. 2020), we consider the census tract as a proxy for neighborhood and compute the percentage of adolescents who reside in a census tract and share the same cluster. The neighborhood affinity of a neighborhood is the probability that two randomly selected adolescents who reside in the same census tract also share the same cluster. Since there are multiple neighborhoods, we report the average neighborhood affinity over all the neighborhoods. While computing the average neighborhood affinity, we filter out the neighborhoods that have fewer than five residents. The average neighborhood affinity scores of different methods are shown in Fig. 8. We also report the average neighborhood affinity scores of the Randomization method to know the expected average neighborhood affinity score under uniform community assignment. In Randomization method, we assign adolescents to communities at random in a uniform manner over 1000 times and then compute the average of average neighborhood affinity score.
From Fig. 8, we observe that the average neighborhood affinity score of the Deepwalk method is the highest, irrespective of the number of communities. LINE also identifies residentially proximate clusters and has the second highest average neighborhood affinity score, irrespective of the number of communities. The high-affinity score of Deepwalk and LINE quantitatively show that they find residentially proximate clusters. LocationTrails affinity score is lower than Deepwalk as LocationTrails places adolescents who reside in black-dominated disadvantaged neighborhoods in different communities. On the other hand, LocationTrails affinity score is higher than LDA, as LocationTrails identifies more clusters with similar characteristics (white-dominated, advantaged neighborhoods). The difference between the average neighborhood affinity score of LDA and Randomization is statistically significant at significance level 0.01 (Z-score \(\ge\) 26.0 for all clusters).
Next, we compare the average neighborhood affinity score across white vs. black dominated neighborhoods and advantage vs. disadvantaged neighborhoods. The results are shown in Figs. 9 and 10. The average neighborhood affinity score is multiplied by 100. We observe that the average neighborhood affinity score of the adolescents living in the white-dominated neighborhood is higher than that of i) black-dominated neighborhoods and ii) all the neighborhoods, for the four representation learning methods (Deepwalk, LINE, LocationTrails, and LDA). We also observe that the average neighborhood affinity score of the adolescents living in the advantaged neighborhood is higher than that of i) disadvantaged neighborhoods and ii) all the neighborhoods, for the same four representation learning methods. This analysis suggests that white adolescents or adolescents residing in advantaged neighborhoods tend to share more similar activity profiles than their black or disadvantaged neighborhood counterparts. The average neighborhood affinity score of black-dominated/disadvantaged neighborhoods is lower than that of all the neighborhoods. This is because adolescents who reside in these neighborhoods are less likely to have common activity patterns, and this non-commonality in activity patterns might be due to a lack of organizational resources in the black-dominated/disadvantaged neighborhoods.
Drilldown analysis of communities: LocationTrails
In this section, we present a drilldown analysis of communities identified by LocationTrails and provide commentary on the activity profiles of adolescents placed in a community. We do not disclose the name of the locations that adolescents visit to preserve their privacy. The information about the types of public and private schools in the United States are provided in these articles [56,57]. The population statistics, economic and political information of Franklin county and the below-mentioned neighborhoods can be found on several web portals [58,59].
We observe that several communities identified by LocationTrails are residentially proximate. Specifically, Communities 0 and 3 (Upper Arlington), 2 and 17 (Clintonville), 6 (Hillard), 7 (Whitehall), 10 and 15 (Bexley), 13 (East of German village), 14 (Worthington), and 16 (Grandview Heights). Communities 0, 3, 6, 10, 14, 15, and 16 are present in white-dominated neighborhoods with rich organizational resources. Whitehall has a more diverse racial composition (43% white and 39% black residents) and is moderately affluent. Adolescents in residentially proximate Community 13 commonly visit one public magnet high school in East of German village and two public parks within 6 miles from East of German village.
We see that Community 0 and 3 both fall in Upper Arlington, but the adolescents in Community 0 are middle school students and commonly visit two middle schools in Upper Arlington while the adolescents in Community 3 are high school students and commonly visit one high school in Upper Arlington. Essentially, LocationTrails is able to distinguish the middle vs. high school adolescents based on their activity profiles even though their home locations lie in the same neighborhood. We also note that community 10 is extremely cohesive and centered in Bexley (students attending the local high school) whereas community 15 is also largely centered in the Bexley area, but it does have a spread of adolescents with neighborhood homes from largely advantaged neighborhoods in the rest of Franklin county. Drilling down, we observe that the rationale for this is largely driven by the fact that many of the students with shared activity profiles in this cluster attend one of several expensive private schools situated in Bexley. We point both of these out (two distinct clusters in Upper Arlington and Bexley) as this type of fine-grained analysis is not immediately visible when examining communities identified by the other methods in our study. Next, we observe that there are a few communities such as Community 5, 8, 11, and 12 in which the home locations of adolescents are spread out over Columbus city. We observe that in these communities, the adolescents often visit schools that have an open enrollment policy and often serve as magnet schools (for STEM, STEAM, and the Arts) or alternative high schools—the policy allows adolescents residing in one school district area to attend schools in another district area. Specifically,
Adolescents in Community 5 commonly visit one arts middle school near Downtown and a public magnet school near Downtown.
Adolescents in Community 8 commonly visit three public magnet high schools (one near Clintonville, one north of North Linden and one in Marion-Franklin).
Adolescents in Community 11 commonly visit one stem school in South Linden and a public-magnet alternative high school in North Linden.
Adolescents in Community 12 commonly visit two public magnet high schools (one between Worthington and Easton and another near downtown) and one public-magnet alternative high school (with intensive arts curriculum).
Finally, we note that community 4 is spread out over Columbus city as the adolescents in those communities share non-school activities such as a popular swimming club, visiting community centers, malls and church.
We focus on the problem of identifying communities in the co-location networks by using latent representation learning models and community detection methods. Our analysis revealed that the network representation learning model, LocationTrails (Gurukar et al. 2021), which relies on the sequence of location visits of adolescents, can identify high-quality communities that are consistent with extant knowledge regarding urban racial and socio-economic differences in neighborhood functioning and activity spaces. We observe that other neural approaches such as Deepwalk (Perozzi et al. 2014) and LINE (Tang et al. 2015b) identify residentially proximate clusters—if the adolescents reside in the same or nearby neighborhoods, these methods would often assign them to the same community.
To study the neighborhood functioning of the city, we compare the activity profiles of individuals through an average neighborhood affinity score—the probability of two adolescents sharing the same cluster given that they reside in the same neighborhood. We then compare the average neighborhood affinity score across neighborhoods with different characteristics. Our analysis reveals that the individuals residing in the white-dominated and advantaged neighborhoods have similar activity profiles. Hence, they are assigned to the same clusters by most of the models. In contrast, individuals residing in black-dominated and disadvantaged neighborhoods are often assigned to different clusters. This is because individuals residing in black-dominated/disadvantaged neighborhoods encounter more heterogeneous exposures to neighborhood racial composition than other individuals and spend a nontrivial proportion of their time in low proportion black/disadvantaged neighborhoods (Browning et al. 2021b), largely in the context of organizational resource seeking, thereby resulting in dissimilar activity profiles.
Availability of data and materials
AHDC data will be deposited to Inter-university Consortium for Political and Social Research (ICPSR)  in publicly available and restricted access forms, beginning in Summer 2022. The location data needed to construct the co-location networks presented in the submission will only be available in the restricted access version of the data. The exact geographic coordinates cannot be released publicly due to concerns of participant privacy and maintenance of data confidentiality. Qualified researchers will be able to submit an application to ICPSR for access.
The clustering output from GMMs is a probability vector—similar to the approach utilized by Xi et al. (2020)—another reason for using GMMs to cluster users in our study.
Organizational resources refers to the establishments which have a physical location and offer services or sells goods essential to day-to-day living.
We use the term community and cluster interchangeably.
Network representation learning
Adolescent Health and Development in Context
Barber MJ (2007) Modularity and community detection in bipartite networks. Phys Rev E 76(6):066102
Basta LA, Richmond TS, Wiebe DJ (2010) Neighborhoods, daily activities, and measuring health risks experienced in urban environments. Soc Sci Med 71(11):1943–1950
Belkin M, Niyogi P (2003) Laplacian eigenmaps for dimensionality reduction and data representation. Neural Comput 15(6):1373–1396
Billionnet A (2010) Solving a cut problem in bipartite graphs by linear programming: application to a forest management problem. Appl Math Model 34(4):1042–1050
Bishop CM (2006) Pattern recognition. Mach Learn 128(9):66
Blei DM, Ng AY, Jordan MI (2003) Latent Dirichlet allocation. J Mach Learn Res 3:993–1022
Boettner B, Browning CR, Calder CA (2019) Feasibility and validity of geographically explicit ecological momentary assessment with recall-aided space-time budgets. J Res Adoles 29(3):627–645
Brown RH, Barram DJ (1994) Geographic areas reference manual
Browning C (2020) Adolescent health and development in context. https://sociology.osu.edu/browning-adolescent-health-and-development-context
Browning CR, Pinchak NP, Calder CA (2021a) Human mobility and crime: theoretical approaches and novel data collection strategies. Annu Rev Criminol 4:99–123
Browning CR, Calder CA, Boettner B, Tarrence J, Khan K, Soller B, Ford JL (2021b) Neighborhoods, activity spaces, and the span of adolescent exposures. Am Sociol Rev 86(2):201–233
Chan PK, Schlag MD, Zien JY (1994) Spectral k-way ratio-cut partitioning and clustering. IEEE Trans Comput Aided Des Integr Circuits Syst 13(9):1088–1096
Data USA: Data USA. (2021) https://datausa.io/
Data USA, Franklin County, OH. (2021) https://datausa.io/profile/geo/franklin-county-oh. Accessed 18 Oct 2021
DeLuca S, Rosenbaum JE (2003) If low-income blacks are given a chance to live in white neighborhoods, will they stay? Examining mobility patterns in a quasi-experimental program with administrative data. Housing Policy Debate 14(3):305–345. https://doi.org/10.1080/10511482.2003.9521479
Derrow-Pinion A, She J, Wong D, Lange O, Hester T, Perez L, Nunkesser M, Lee S, Guo X, Wiltshire B et al (2021) Eta prediction with graph neural networks in google maps. arXiv preprint arXiv:2108.11482
Dhillon IS, Guan Y, Kulis B (2007) Weighted graph cuts without eigenvectors a multilevel approach. IEEE Trans Pattern Anal Mach Intell 29(11):1944–1957
Estévez PA, Tesmer M, Perez CA, Zurada JM (2009) Normalized mutual information feature selection. IEEE Trans Neural Netw 20(2):189–201
Fujishima S, Fujiwara N, Akiyama Y, Shibasaki R, Sakuramachi R (2020) The size distribution of ‘cities’ delineated with a network theory-based method and mobile phone gps data. Int J Econ Theory 16(1):38–50
Gao M, Chen L, He X, Zhou A (2018) Bine: Bipartite network embedding. In: The 41st international ACM SIGIR conference on research & development in information retrieval, pp 715–724
Grand Canyon University: Types of public and private schools to consider in the U.S. (2021) https://www.gcu.edu/blog/teaching-school-administration/public-and-private-schools
Grover A, Leskovec J (2016) node2vec: scalable feature learning for networks. In: Proceedings of the 22nd ACM SIGKDD international conference on knowledge discovery and data mining, pp 855–864
Gurukar S, Vijayan P, Srinivasan A, Bajaj G, Cai C, Keymanesh M, Kumar S, Maneriker P, Mitra A, Patel V et al (2019) Network representation learning: consolidation and renewed bearing. arXiv preprint arXiv:1905.00987
Gurukar S, Parthasarathy S, Ramnath R, Calder C, Moosavi S (2021) Locationtrails: a federated approach to learning location embeddings. In: 2021 IEEE/ACM international conference on advances in social networks analysis and mining (ASONAM)
He M, Glasser J, Pritchard N, Bhamidi S, Kaza N (2020) Demarcating geographic regions using community detection in commuting networks with significant self-loops. PLoS ONE 15(4):0230941
Hennig C (2015) What are the true clusters? Pattern Recognit Lett 64:53–62
Huang Z, Silva A, Singh A (2021) A broader picture of random-walk based graph embedding. In: Proceedings of the 27th ACM SIGKDD conference on knowledge discovery & data mining, pp 685–695
ICPSR: Inter-university Consortium for Political and Social Research. (2022) https://www.icpsr.umich.edu/web/pages/
Jacomy M, Venturini T, Heymann S, Bastian M (2014) Forceatlas2, a continuous graph layout algorithm for handy network visualization designed for the gephi software. PLoS ONE 9(6):98679
Jargowsky PA (2013) Concentration of poverty in the new millennium: changes in prevalence, composition, and location of high-poverty neighborhoods. Technical report, Century Foundation and the Center for Urban Research and Education, New York and Camden, NJ. http://tcf.org/bookstore/detail/concentration-of-poverty-in-the-new-millennium
Karypis G, Kumar V (1997) Metis: a software package for partitioning unstructured graphs, partitioning meshes, and computing fill-reducing orderings of sparse matrices
Kirchner TR, Shiffman S (2016) Spatio-temporal determinants of mental health and well-being: advances in geographically-explicit ecological momentary assessment (gema). Soc Psychiatry Psychiatr Epidemiol 51(9):1211–1223
Liang J, Gurukar S, Parthasarathy S (2018) Mile: a multi-level framework for scalable graph embedding. arXiv preprint arXiv:1802.09612
Mikolov T, Sutskever I, Chen K, Corrado GS, Dean J (2013a) Distributed representations of words and phrases and their compositionality. In: NeurIPS
Mikolov T, Sutskever I, Chen K, Corrado G, Dean J (2013b) Distributed representations of words and phrases and their compositionality. In: NeurIPS’13
Modsching M, Kramer R, ten Hagen K (2006) Field trial on gps accuracy in a medium size city: the influence of built-up. In: 3rd Workshop on positioning, navigation and communication, vol 2006, pp 209–218
Perozzi B, Al-Rfou R, Skiena S (2014) Deepwalk: online learning of social representations. In: Proceedings of the 20th ACM SIGKDD international conference on knowledge discovery and data mining, pp 701–710
Public School Review: a quick guide to U.S. public and private school options. (2021) https://www.publicschoolreview.com/blog/a-quick-guide-to-us-public-and-private-school-options
Qiu J, Dong Y, Ma H, Li J, Wang K, Tang J (2018) Network embedding as matrix factorization: Unifying deepwalk, line, pte, and node2vec. In: WSDM
Quillian L (2002) Why is black-white residential segregation so persistent? Evidence on three theories from migration data. Soc Sci Res 31(2):197–229. https://doi.org/10.1006/ssre.2001.0726 (Accessed 2022-03-29)
Reynolds DA (2009) Gaussian mixture models. Encycl Biom 741:659–663
Sampson RJ, Raudenbush SW, Earls F (1997) Neighborhoods and violent crime: a multilevel study of collective efficacy. Science 277(5328):918–924
Sastry N, Pebley A, Zonta M (2004) Neighborhood definitions and the spatial dimension of daily life In Los Angeles. UCLA CCPR population working papers
Sastry N, Ghosh-Dastidar B, Adams J, Pebley AR (2006) The design of a multilevel survey of children, families, and communities: the Los Angeles family and neighborhood survey. Soc Sci Res 35(4):1000–1024
Satuluri V, Parthasarathy S (2009) Scalable graph clustering using stochastic flows: applications to community discovery. In: Proceedings of the 15th ACM SIGKDD international conference on knowledge discovery and data mining, pp 737–746
Shareck M, Kestens Y, Gauvin L (2013) Examining the spatial congruence between data obtained with a novel activity location questionnaire, continuous gps tracking, and prompted recall surveys. Int J Health Geograph 12(1):1–10
Shi J, Malik J (2000) Normalized cuts and image segmentation. IEEE Trans Pattern Anal Mach Intell 22(8):888–905
Shoji Y, Takahashi K, Dürst MJ, Yamamoto Y, Ohshima H (2018) Location2vec: generating distributed representation of location by using geo-tagged microblog posts. In: International conference on social informatics. Springer, pp 261–270
Small ML, McDermott M (2006) The presence of organizational resources in poor urban neighborhoods: an analysis of average and contextual effects. Soc Forces 84(3):1697–1724
Steinbach M, Karypis G, Kumar V (2000) A comparison of document clustering techniques
Tang J, Qu M, Mei Q (2015a) Pte: predictive text embedding through large-scale heterogeneous text networks. In: Proceedings of the 21th ACM SIGKDD international conference on knowledge discovery and data mining, pp 1165–1174
Tang J, Qu M, Wang M, Zhang M, Yan J, Mei Q (2015b) Line: large-scale information network embedding. In: Proceedings of the 24th international conference on World Wide Web, pp 1067–1077
US Census: Quick facts. (2022) https://www.census.gov/quickfacts
U.S. Census Bureau, Franklin County, OH, QuickFacts. (2021) https://www.census.gov/quickfacts/fact/table/franklincityohio,US/PST045219. Accessed 18 Oct 2021
Von Luxburg U, Williamson RC, Guyon I (2012) Clustering: science or art? In: Proceedings of ICML workshop on unsupervised and transfer learning. JMLR workshop and conference proceedings, pp 65–79
Xi W, Calder CA, Browning CR (2020) Beyond activity space: detecting communities in ecological networks. Ann Am Assoc Geograph 110(6):1787–1806
Yan B et al (2017) From itdl to place2vec: reasoning about place type similarity and relatedness by learning embeddings from augmented spatial contexts. In: SIGSPATIAL
Yang D, Qu B, Yang J, Cudre-Mauroux P (2019) Revisiting user mobility and social relationships in lbsns: a hypergraph embedding approach. In: TheWeb
Zha H, He X, Ding C, Simon H, Gu M (2001) Bipartite graph partitioning and data clustering. In: Proceedings of the tenth international conference on information and knowledge management, pp 25–32
Zhong C, Arisona SM, Huang X, Batty M, Schmitt G (2014) Detecting the dynamics of urban structure through spatial network analysis. Int J Geograph Inf Sci 28(11):2178–2199
We would like to acknowledge Dr. Wenna Xi for sharing the source code Xi et al. (2020). We would like to thank Goonmeet Bajaj for providing valuable feedback on the initial draft.
This research was supported by the National Institute on Drug Abuse (R01DA032371), Eunice Kennedy Shriver National Institute of Child Health and Development (R01HD088545; OSU P2CHD058484; UT Austin P2CHD042849), NSF CNS 2112471, and the William T. Grant Foundation.
Ethics approval and consent to participate
The study design and procedures were approved by the institutional review board at the authors’ university before fieldwork began. Written parental permission and youth assent to participate in the study was obtained by interviewers prior to the beginning of the initial in-home interview.
The authors declare that they have no competing interests.
