Modularity affects the robustness of scale-free model and real-world social networks under betweenness and degree-based node attack

Abstract

In this paper we investigate how the modularity of model and real-world social networks affect their robustness and the efficacy of node attack (removal) strategies based on node degree (ID) and node betweenness (IB). We build Barabasi–Albert model networks with different modularity by a new ad hoc algorithm that rewire links forming networks with community structure. We traced the network robustness using the largest connected component (LCC). We find that when model networks present absent or low modular structure ID strategy is more effective than IB to decrease the LCC. Conversely, in the case the model network present higher modularity, the IB strategy becomes the most effective to fragment the LCC. In addition, networks with higher modularity present a signature of a 1st order percolation transition and a decrease of the LCC with one or several abrupt changes when nodes are removed, for both strategies; differently, networks with non-modular structure or low modularity show a 2nd order percolation transition networks when nodes are removed. Last, we investigated how the modularity of the network structure evaluated by the modularity indicator (Q) affect the network robustness and the efficacy of the attack strategies in 12 real-world social networks. We found that the modularity Q is negatively correlated with the robustness of the real-world social networks for both the node attack strategies, especially for the IB strategy (p-value < 0.001). This result indicates how real-world networks with higher modularity (i.e. with higher community structure) may be more fragile to node attack. The results presented in this paper unveil the role of modularity and community structure for the robustness of networks and may be useful to select the best node attack strategies in network.

Introduction

The study of real-world complex networks has attracted much attention in recent decades because a large number of complex systems in the real-world can be considered as complex networks, such as social (Borgatti et al. 2009; Bellingeri et al. 2020a, 2020b), technological (Albert et al. 1999; Faloutsos et al. 1999), biological (Jeong et al. 2000; Barra and Agliari 2010), ecological complex systems (Bellingeri and Bodini 2013; Bellingeri and Vincenzi 2013). Many real-world networks show a scale-free structure, making them resilient to random node failure (Cohen et al. 2000) but can disintegrate quickly when a small proportion of important nodes are removed (Albert et al. 1999). The network’s robustness, which evaluates the capability of network to hold its functioning under such failures or attacks has drawn extensive attention in recent years (Albert and Barabási 2002; Cohen et al. 2000; Callaway et al. 2000; Iyer et al. 2013; Bellingeri et al. 2015; Bellingeri et al. 2014; Dall’Asta et al. 2006; Nguyen and Nguyen 2018; Wandelt et al. 2018; Bellingeri et al. 2019, 2020a, 2020b). Usually, Monte-Carlo simulation is used to evaluate the network robustness: for random failure, nodes/ links are removed with the same probability (random removal), while for intentional attack, nodes/links are removed according to different structural properties of the network and a robustness measure is then computed during the node/edge removal simulation (Albert et al. 2000; Cohen et al. 2000, 2001; Bellingeri et al. 2020a, 2020b; Lekha and Balakrishnan 2020). To identify the node/edge removal strategy that triggers the greatest amount of damage in the system is also highly important for revealing the links/nodes that act as key players in network functioning with many practical applications (Bellingeri et al. 2020a,2020b). For example, the understanding of how the node/edge removal affects real social systems may predict how the abandoning of individuals affects the information spread in the social network, thus individuating the “influential spreaders” in the network, such as most important scholars or influencers (Ahajjam and Badir 2018; Bellingeri et al. 2020a, 2020b). On the other hand, in social contact network on which a disease can spread, it is critical to understand how node removal through vaccination affects the spread of the disease to efficiently prevent an epidemic (Holme 2004; Wang et al. 2015; Bellingeri et al. 2020a, 2020b).

One of the most important measure of network robustness is the size of the largest connected component (LCC), i.e. the LCC is the highest number of connected nodes in the network (Albert et al. 2000). The LCC gives us a simple interpretation of the system robustness when subjected to node/edge removal accounting the largest functioning part of the network. For example, if the Internet is attacked, all nodes (servers) within the LCC can still transfer information mutually and indicating the largest networked structure still active. Another example, in a social contact network, the LCC represents the highest number of individuals that can be affected by a disease spreading (Bellingeri et al. 2019). For this reason, the most efficient node attack strategy is the one that is able to induce the fastest LCC decrease (Fig. 1). Numerical simulations have shown that attack strategies based on network’s nodes centrality measures can effectively individuating the most important nodes to reduce the size of the LCC (Albert et al. 2000, Cohen et al. 2000, 2001; Callaway et al. 2000; Iyer et al. 2013; Bellingeri and Cassi 2018; Bellingeri et al. 2014; Nguyen and Nguyen 2018; Wandelt et al. 2018; Ghalmane et al. 2019a). In specific, overall findings showed that nodes attack strategies based on betweenness centrality are highly efficient to dismantle the LCC (Iyer et al. 2013; Bellingeri et al. 2014; Sun et al. 2017; Nguyen and Nguyen 2018; Wandelt et al. 2018), especially for real-world networks. However, the difference in the effectiveness varied considerably among real-world networks (Iyer et al. 2013; Bellingeri et al. 2014; Wandelt et al. 2020).

Fig. 1
figure1

Schematic behavior of the size of the LCC as a function of the proportion of remaining nodes p during a node removal process: A LCC shows a continuous 2nd order decreases without abrupt decrease and B LCC shows an abrupt decrease in correspondence of p = pc. The node attack strategy in B is able to dismantle the network with a smaller proportion of removed nodes, i.e. is the most effective to decrease the LCC, thus individuating the most important nodes in network

The mechanism that gives rise to such an abrupt decrease is studied using percolation theory and is a signature of the first-order percolation phase transition (Achlioptas et al. 2009; Riordan and Warnke 2011; Cho et al. 2013). However, the question whether such an abrupt decrease occurs for a certain real-world network under attack remain unclear. This question is of great importance from two aspects: on one hand, if we want to break a network using node removal, we would find strategies that remove nodes that can cause such abrupt and fast decrease in LCC’s size. On the other hand, if we want to protect a network, we must design it in a way that such abrupt decrease should not happen. Since the network robustness must depend on its topology, several studies have investigated the relationship between topological metrics and the robustness of a network.

Iyer et al. (2013) studied robustness of model networks with power-law and exponential degree distribution, with various node clustering coefficient (or node transitivity) level. They found that increasing the clustering coefficient of the network nodes results in decreasing robustness to node attack with the most dramatic effect being displayed for node attack based on their degree and betweenness. The authors also suggested for increasing the robustness, it is necessary to design topological structures with low clustering coefficient as is consistent with the functional requirements of the network. Their simulation on real-world networks also show that the difference in the effectiveness among strategies varied across networks.

Nguyen and Trang Le (2019) studied the Facebook social networks and found those networks with higher modularity Q have lower robustness to node removal. The modularity indicator Q introduced by Newman and Girvan (2004) measures how well a network breaks into communities, (i.e. a community or module in a network is a well-connected group of nodes which have sparser connections with the nodes outside the group). Networks with high modularity Q have dense connections (more links) among the nodes within modules but sparse connections (few links) among nodes from different modules. Therefore, the modularity Q is higher in networks with marked community structure, which are called ‘modular networks’ (Newman and Girvan (2004)).

Using percolation theory, Dong et al. (2018) pointed out that in a modular network, a small fraction of nodes that connect nodes of different modules, called ‘interconnected nodes’, is critical to the robustness of the network. By analyzing the LCC size during node removal process by varying the fraction of interconnected nodes (r) in the network, they found that LCC scale with r by a power-law with universal criticality. This result suggests that modular networks with higher fraction of interconnected nodes (therefore of lower modularity Q, because the fraction of links among nodes in the same module is lower) will result in a lower LCC decrease during node removal and consequently higher network robustness.

Shai et al. (2015) developed both analytical and simulation analyses for evaluating the robustness of random and scale-free model networks with modular structure (Shai et al. 2015). They simulate the attack of interconnected nodes, i.e. nodes that connect to neighbors that are in other modules, and analyze the critical node occupation probability pc, i.e. the fraction of remaining nodes p when a large decrease in LCC occurs, as a function of the number of modules m and the ratio between probabilities for an intra- and inter-module link α.

They found that percolation phase transition falls into two regimes depending on the number of modules m for a fixed α:

  • For m < m the network presents very high modularity and collapses abruptly under node removal as a result of the modules becoming disconnected from each another, while their internal structure is almost unaffected.

  • In contrast, for m > m , the network presents low modularity and therefore, the node attack causes lower damage breaking continuously the entire system without sharp LCC decrease (i.e. 2nd order phase transition). Put another way, m represents the threshold above which the network modular structure vanishes and the network returns to behaving as a non-modular network.

The above studies indicate that network modular structure is a key role in determining its robustness. However, the study of this important structural property on the network’s robustness as well as other dynamic processes is still limited, as pointed out by Cherifi et al (2019). In this work, we analyze empirically how the modularity of scale-free model and real-world social networks affects their robustness and the relative efficacy of different node attack strategies. We introduce a novel algorithm to build model networks tuning their modularity. Using the proposed algorithm, we simulate networks with different levels of modularity Q by changing the ratio of intra-modules links over inter-modules links (κ). We demonstrated this method on the scale-free Barabási–Albert (BA) (Barabási and Albert 1999) model network with different degree density. We found that the attack strategy based on node betweenness, which was found to be the most effective strategy to break the LCC of real-world networks (Wandelt et al. 2018; Nguyen et al. 2019), is the best strategy to disrupt the LCC only when κ is higher than a given value κc, i.e. when the network has high modularity Q. Below, when network has low modularity Q, or even no modular structure, the attack strategy based on node degree is more effective. In addition, the type of the network percolation phase transition when nodes are removed change from a continuous 2nd order (in which LCC has no abrupt decrease) to an abrupt 1st order transition (with abrupt LCC decrease) when κ increases. We also examine the effect of network’s density (i.e. the average number of links per node) and the number of modules on network robustness and found that those parameters affect the network robustness, but not the type of the network percolation phase transition (1st or 2nd order) which only depends on κ. Finally, we study those effects for a variety of real-world social networks and we found that the real-world social networks with higher modularity Q are less robust when subjected to both attack strategies, especially for betweenness-based strategy. In other words, the efficacy of the attack strategy based on nodes betweenness is higher for real-world social networks showing higher modularity Q.

Methods

A network can be represented as a graph G = (V, E), where V = {1, 2, …, N} is the set of N nodes (vertices), and E = {eij | i, jV, i \(\ne\) j} is the set of E links (edges). Networks can be undirected when the links have no specified direction, or directed, in the case links present directionality. Network are unweighted when only the presence-absence of the links is considered, or weighted, in the case some interaction value is associated to the link, i.e. the link weight. Undirected and unweighted networks can be abstracted by an NxN adjacency matrix A where element aij = 1 when there is a link between node i and j and aij = 0 otherwise. In this paper, only undirected and unweighted networks are considered.

Generation of model scale-free network

In order to generate a model scale-free networks, we select the well-known preferential attachment Barabási–Albert (BA) model (Barabási and Albert 1999) with size of N = 10,000 nodes. The BA model starts from a small clique (a completely connected graph) of N0 nodes. At each successive time step, a new node is added and connected to M0 different existing nodes (M0 < N0) with the probability of connect an existing node is proportional to its degree (i.e. the number of links to the node). The network then has a power-law degree distribution P(k) = k−γ with degree exponent γ = 3 (Barabási and Albert 1999). We chose the average node degree \(\left\langle k \right\rangle\) between 2 and 32.

From the BA network we generated modular networks using a new ad hoc algorithm by re-wiring links as following:

  • Each node is assigned randomly to a module ci = {1, 2, …, m} where m is the total number of modules. The number of nodes in each module is approximately N/m.

  • For each link connecting two nodes i and j of different modules ci ≠ cj (inter-modules links), we will rewire it with a probability w (and keep it without rewiring with probability 1 – w) by the following procedure:

    • We randomly select one node between the two ending nodes of the link, says i, and find another node l within the same module of the node i (cl = ci). We then detach the inter-modules link between nodes i and j and create a new intra-module link between nodes i and l. The node l is selected with a probability proportioned to its degree (node with higher degree in the module ci has higher probability of being selected)

    • If some nodes are isolated in the network after rewiring, they will be removed. However, we find that only a negligible proportion of nodes can be isolated after the rewiring.

We show in Appendix A that, as long as N is high enough, this rewiring procedure statistically preserve the BA model node degree distribution (scale-free and degree exponent γ = 3).

Thus, by changing the probability w we can change the ratio κ between the number of intra-module links Lintra (links that connects two nodes from the same module) and inter-modules links Linter (links that connects two nodes of different modules), thus varying the community structure of the network. The relation between κ and w can be derived as following:

  • The number of inter-modules links (Linter) and intra-module links (Lintra) before the rewiring process are \({L}_{inter}=\frac{(m-1)}{m}\frac{N\langle k\rangle }{2}\) and \({L}_{intra}=\frac{1}{m}\frac{N\langle k\rangle }{2}\).

  • After the rewiring process they become Linter=\((1-w)\frac{(m-1)}{m}\frac{N\langle k\rangle }{2}\) and Lintra= \((\frac{1}{m}+w\frac{(m-1)}{m})\frac{N\langle k\rangle }{2}\)

  • The ratio κ between Lintra and Linter becomes:

    $$\kappa =\frac{{L}_{intra}}{{L}_{inter}}=\frac{\left(\frac{1}{m}+w\frac{\left(m-1\right)}{m}\right)\frac{N\langle k\rangle }{2}}{1-w\frac{\left(m-1\right)}{m}\frac{N\langle k\rangle }{2}}$$
    $$=\frac{1+w(m-1)}{(1-w)(m-1)}=\frac{m}{(1-w)(m-1)}-1$$

    which is a monotone function of w when m > 1.

  • We derive α, the ratio between the probability for a given link to be intra-link (pintra) over that for a given link to be inter-link (pinter) as in (Shai et al 2015) by:

    $$\alpha =\frac{{p}_{intra}}{{p}_{inter}} \sim \left(m-1\right)\frac{{L}_{intra}}{{L}_{inter}}=\frac{m}{(1-w)}-(m-1)$$

    which is also a monotone function of w when m > 1.

The monotone change of κ and α as function of w was confirmed with simulation results which are shown in Appendix B.

Thus increasing w, we increase the modularity of the network, i.e. increasing w we emphasize the network community structure. Figure 2 presents example of modular network with m = 5 and different value w, created from the initial network with N = 10,000 and the average degree of \(\left\langle k \right\rangle\) = 8. For each experiment, we simulate 100 model networks and average the results.

Fig. 2
figure2

Visualization of the model for generating scale-free BA modular networks. The modularity of the network increases from (A) to (D). A initial non-modular scale-free BA network of size N = 10,000 with average degree \(\left\langle k \right\rangle\) = 8. BD: Illustration of the increasing modularity effect of w on the obtained modular network divided into m = 5 modules

The node attack strategies

The network generated above will be exposed to two node attack (removal) simulation processes (or node attack strategies) where a p proportion of nodes with lowest centrality measures are kept and q = 1-p proportion of highest centrality measure nodes are removed together with their links:

  • The first attack strategy removes nodes according to their degree, i.e. the number of links to it, as centrality measure and it is called initial degree (ID) node attack strategy (Albert and Barabási 2002; Bellingeri et al. 2014; Wandelt et al. 2018).

  • The second strategy uses a macro-scale network metric, the node betweenneess, which is the number of times that a node appears in the shortest paths among all nodes pairs in the network (Brandes 2001). This method is commonly used to break real-world networks and is called initial betweenneess (IB) node attack strategy (Bellingeri et al. 2014; Wandelt et al. 2018).

In the case of ties, i.e. nodes with equal ranking, we randomly sort the sequence. Since the node attack strategies are partially stochastic process, we average the outcomes over 100 simulations.

The network robustness measures

To measure the robustness of the network under nodes attack we traced the size of first largest connected component 1st LCC and the second 2nd LCC as a function of p. Further, for each attack simulation, we compute a single value defined as the network robustness (R) as done in Bellingeri et al. (2019). The value of R is the average of the normalized sized of the 1st LCC (normalized by the initial number of node N) along the removal process. R can range between two theoretical extremes, R 0 (absolute fragile network) and R1 (absolute robust network). In addition, we identify the critical value of occupation probability pc as the largest value of p where LCC has an abrupt decrease, as shown in Fig. 1B. In the case no abrupt decrease was found (Fig. 1A), we compute pc using the “Molloy-Reed” criterion (Callaway et al. 2000; Cohen et al. 2000), which states that the network loses its overall connectivity when each node in the network has less than two links on average. It translates to the mathematic condition of \(\left\langle {k^{2} } \right\rangle /\left\langle k \right\rangle < \, 2\), where k is the node degree. Thus, the higher are R and the lower pc the more robust is the network under node attack. As a consequence, when comparing the efficacy of the node attack strategies, the higher are R and lower pc, the lower is the efficacy of the strategy to disrupt the LCC. We then denote pcID and pcIB the node occupation probability against ID and IB node attack strategies, respectively; as well as we denote RID and RIB the network robustness against ID and IB node attack strategies, respectively.

Real-world social networks dataset

In addition to model networks, we analyze 12 real-world social networks, in which 8 are networks of Facebook's pages where nodes represent pages of different topics—TV Shows, Politician, Government, Public Figures, Athletes, Company, New sites and Artist—and links are mutual likes between them. The Facebook’s pages data is collected from https://snap.stanford.edu, prepared by (Rozemberczki et al. 2019). Beside, we use two financial networks where nodes represent the US SP500 stocks and links are calculated from the correlation matrix using threshold method (see Nguyen et al. 2019); the co-authorship network of scientists working on network theory and experiment (NetScience) where nodes represent authors and link’s weight represents the number of common papers (Newman 2003; Boccaletti et al. 2006); and the Email network of people in a large European Research Institution (Email) where nodes represent researchers and links indicate that at least one email was sent between two researchers (Leskovec and Faloutsos 2007; Hao Yin et al. 2017).

Table 1 summarizes the following statistics of the real-world social networks::

  • Node degree: is the number of links to the node (Boccaletti et al. 2006). The degree of node i is given by:

    $$k_{i} = \sum\limits_{{j \ne i \in N}} {a_{{ij}} }$$

    where aij=1 in the case there is a link connecting nodes i and j and is 0 otherwise; the term N means the sum is over all nodes in the network.

  • Modularity: The modularity indicator Q calculates how modular is a given division of a network into subnetworks (modules or communities):

    $$Q = \frac{1}{{2L}}\sum\limits_{{i,j}} {\left( {a_{{ij}} - \frac{{k_{i} k_{j} }}{{2L}}} \right)\delta (c_{i} ,c_{j} )}$$

    where L is the number of links, aij is the element of the A adjacency matrix in row i and column j, ki is the degree of i, kj is the degree of j, ci is the module (or community) of i, cj that of j, the sum goes over all i and j pairs of nodes, and δ(x, y) is 1 if x = y and 0 otherwise (Clauset et al. 2004).

  • LCC: the largest connected component (also called ‘giant cluster’) represents the maximum number of connected nodes in the network (Boccaletti et al. 2006; Bellingeri et al. 2020a, 2020b). Considering all the network clusters, i.e. the sub-networks of connected nodes, the LCC can be defined:

    $$LCC = \max _{j} (S_{j} )$$

    where Sj is the size (number of nodes) of the j-th cluster.

  • Diameter: the diameter of the network (D) is the longest shortest path length of all pairs of nodes in the network, also called the longest geodesic (Newman 2013).

  • Transitivity: the transitivity (C) is based on triplets of nodes. A triplet is three nodes that are connected by either two (open triplet) or three (closed triplet) undirected links. The transitivity is the number of closed triplets (or 3-node closed triangle) over the total number of triplets (both open and closed). In formula:

    $$C = \, \frac{{\lambda_{closed} }}{{\lambda_{total} }}$$

    where λclosed is the number of closed triples and λtotal is the number of all possible triples in the network. Transitivity represents the overall probability for the network to have adjacent nodes interconnected, thus making more tightly connected modules (Newman et al. 2002)

  • Link Density: the link density (Density) is number of links divided by the total number of possible links (Boccaletti et al. 2006).

Table 1 Structural statistics of the real-world social networks: nodes (N), links (L), size of the LCC, size of the LCC as % with respect the total number of network nodes, average node degree \(\left\langle k \right\rangle\), diameter (D), transitivity (C), the edge density and the modularity (Q)

Results

Robustness of non-modular scale-free BA network

In Fig. 3 we depict the outcome of a scale-free BA network of size N = 10,000 nodes and average degree \(\left\langle k \right\rangle\) = 4 without rewiring process subjected to ID and IB attack strategies. The average size of the 1st and 2nd LCC was shown as a function of the occupation probability p for each strategy. We found that the 1st LCC decreases continuously under both strategies and the network is completely broken down (i.e. the 1st LCC shrinks to quasi zero) at a critical occupation probability pc (0.62 and 0.56 for ID and IB, respectively). At this transition, we also found that the 2nd LCC has its maximum value as shown in Fig. 3B. Such phase transitions are called ‘continuous phase transitions’ or ‘second-order phase transitions’ and denote robust network (Mnyukh 2013). Interestingly, while overall findings showed that nodes attack strategies based on betweenness centrality are highly efficient for most real-world networks (Bellingeri et al. 2014; Iyer et al, 2013; Nguyen and Nguyen 2018; Wandelt et al. 2018), our results shown different conclusion. For scale-free BA networks without modular structures, the degree-based strategy ID performs better than the betweenness-based strategy IB. On the contrary, for scale-free BA networks with significant modular structures (higher value of parameter w), betweenness-based strategy IB clearly performs better than the degree-based strategy ID. It is therefore arguable that the presence of modular structure in networks is an important factor enhancing the efficacy of betweenneess-based attack strategy for breaking the 1st LCC, as shown in the next sub-section.

Fig. 3
figure3

Simulation result using ID and IB strategies for the non-modular network with N = 10,000 nodes and average degree \(\left\langle k \right\rangle\) = 4 with: A Size of the first largest connected component (1st LCC) and B the second largest connected component (2nd LCC) as a function of the occupation probability p. The result is averaged over 100 simulations

Robustness of modular scale-free BA network

We first present the robustness of the network of different modularity by varying the re-wiring ratio w, then we discuss the robustness of the network with different node average degree \(\left\langle k \right\rangle\) and number of modules m.

Robustness as a function of the modularity

We simulate scale-free BA network of size N = 10,000 nodes with m = 5 modules and average degree \(\left\langle k \right\rangle\) = 4, then applying the rewiring method with increasing w. At first when w is small (and the network presents low modularity), we found that the network is resilient and the pc remains approximately equivalent as with the original non-modular network for both ID and IB attack strategies (Fig. 4). Also, the degree-based strategy ID still performs better than the betweenness-based strategy IB. At this level of modularity, the network still owns a high number of inter-modules links. In consequence, when the attack strategies remove nodes the 1st LCC continuously become smaller but still hold the connection among modules, denoting higher network robustness against node attack.

Fig. 4
figure4

Averaged simulation result for modular networks generated from BA network with N = 10,000, m = 5 and \(\left\langle k \right\rangle\) = 4 with different value of rewiring probability w: Size of the first largest connected component (1st LCC) and the second largest connected component (2nd LCC) as a function of the occupation probability p when attacked by IB (A and C, respectively) and ID (B and D, respectively). In (A), an insert showing 20 single simulations of the network with rewiring probability of w = 0.995 illustrates the abrupt decreases

Only when w is higher than 0.95 the network become fragile and the 1st LCC abruptly decreases at some value of p, as seen in Fig. 4A,B when the network is attacked by the IB and ID strategies, respectively. The abrupt decrease of the 1st LCC is clearly observed if we plot individual simulations as can been seen in the insert graph of Fig. 4A. We observed that the abrupt decrease can occur several times during a simulation and it correspond to the moment in which the node removal triggers the disconnection of a module, thus producing a faster LCC decrease.

This value of w = 0.95 corresponds to the ratio between the number of intra-module links and inter-modules links κc = 23.8 (for m = 5). At this point the connection between modules in network is sparse enough and the removal of critical nodes may break down the global connectivity. We call pc the largest value of p with an abrupt decrease of the 1st LCC, as proposed by (Shai et al. 2015), and show its relationship with w in Fig. 5A. This abrupt decrease happens when a local structure is separated from the 1st LCC (denoting lower network robustness). As a result, the size of the 2nd LCC abruptly increase at pc and gradually decrease afterward (see Fig. 4C,D).

Fig. 5
figure5

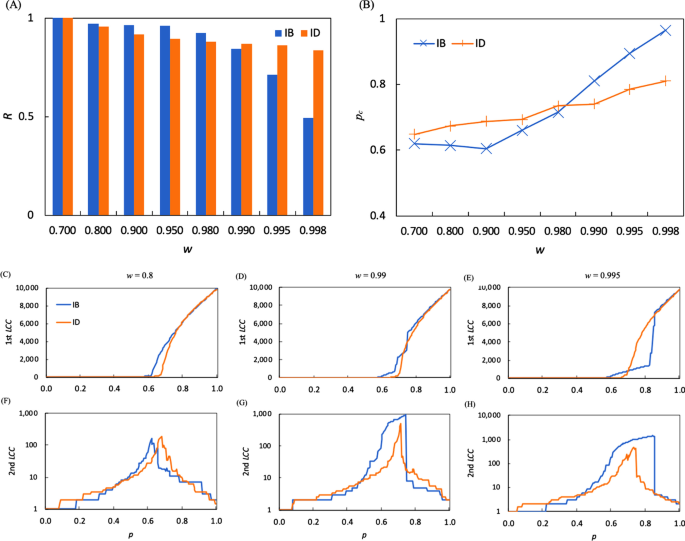

Simulation result for modular networks generated from BA network with N = 10,000, m = 5 and \(\left\langle k \right\rangle\) = 4: A The critical occupation probability pc and B the single value network robustness (R) as a function of the re-wiring ratio w. The trend is clear, when w > 0.98, pcIB becomes higher than pcID and RIB becomes smaller than RID, showing that the network becomes more vulnerable to the betweenness-based strategy than the degree-based strategy. CH Size of the 1st LCC and the 2nd LCC as a function of the occupation probability p with three different value of w: 0.8 (C,F), 0.99 (D,G) and 0.995 (E,H). All results are averaged over 100 simulations

Now we analyze the modular network robustness using the metric R. As can be seen from Fig. 4, all networks become more fragile when w increases for both IB and ID strategies. This is illustrated in Fig. 5A where R was found to be a monotonic decreasing function of w for both IB and ID strategies. We also found that the RIB is higher than the RID when w is small (< 0.98); on the contrary when w is clearly higher than 0.98, RIB become lower than RID showing that the network becomes more vulnerable to the IB strategy than the ID strategy.

For illustration of the relative effectiveness, we plot the performance of the IB and ID strategies at three values of w within the three regimes discussed above, w = 0.8, 0.99 and 0.995 in Fig. 5C,D,E,F,G,H. Clearly, the ID strategy performs better than IB strategy when w = 0.8, approximately equally when w = 0.99, and it is less effective when w = 0.995.

Robustness as a function of network density

Next we examine the effect of the link density (i.e. the average number of links per node) by simulating scale-free BA network of size N = 10,000 nodes, number of modules m = 5 with varying average node degree \(\left\langle k \right\rangle\) from 2 to 16, attacked for both the attack strategies IB and ID. We found that pc decreases as the link density increase (Figs. 6 and 7B,D)—the networks become more robust when nodes have more links. However, the transitions type only depends on the rewiring ratio w and is relatively stable with respect to the average degree \(\left\langle k \right\rangle\) change (Fig. 6). In other words, the ratio of the probability of inter-modules links over the probability of intra-module links α (which is a function of w) is the critical factor to determine the type of the phase transition.

Fig. 6
figure6

Simulation result by IB and ID attack strategies for the modular networks generated from BA network with N = 10,000, m = 5 with different value of rewiring probability w and for different node average degree \(\left\langle k \right\rangle\). Size of the 1st LCC (A, C, E) and the 2nd LCC (B, D, F) as a function of the occupation probability p when attacked by IB for various average node degree \(\left\langle k \right\rangle\). Size of the 1st LCC (G, I, K) and the 2nd LCC (H, J, L) as a function of the occupation probability p when attacked by ID for various average node degree \(\left\langle k \right\rangle\). All results are averaged over 100 simulations

Fig. 7
figure7

Robustness measures of simulation result for the modular networks generated from BA network with N = 10,000, m = 5 with different value of rewiring probability w and for different node average degree \(\left\langle k \right\rangle\): A, C the single value network robustness (R) and B, D the critical occupation probability pc as a function of the re-wiring ratio w for different node average degree \(\left\langle k \right\rangle\) for IB and ID strategies, respectively. All results are averaged over 100 simulations

Robustness as a function of number of modules

Here, we generated scale-free BA network of size N = 10,000 nodes and average degree \(\left\langle k \right\rangle\) = 4 with number of modules m varying from 2 to 20. We run node attack simulation by both attack strategies IB and ID. We found that for IB strategy the pc sharply decreases when w < 0.98 regardless of the number of modules in the network (Fig. 8B). The decrease is somehow smoother for ID strategy. For this reason, the transition type is relatively insensitive to the number of modules m, as we observed for the network density. Moreover, we found that the critical occupation probability pc slightly increases with m, suggesting that the model networks become slightly more fragile when they have more modules (Fig. 8).

Fig. 8
figure8

Robustness measures of simulation result for the modular networks generated from BA network with N = 10,000, \(\left\langle k \right\rangle\) = 4 with different value of rewiring probability w and for different number of modules m in the network: A, C the single value network robustness (R) and B, D the critical occupation probability pc as a function of the re-wiring ratio w for different node average degree \(\left\langle k \right\rangle\) for IB and ID strategies, respectively. All results are averaged over 100 simulations

Robustness and structural properties in real-world networks

In Fig. 9 we present the average size of the 1st and 2nd LCC as a function of the occupation probability p for both IB and ID strategies for the 12 real-world networks. We found that the IB strategy is more effective than ID strategy in 7 out of 12 of the real-world networks. Those networks are supposed to have higher level of modular structure. Of the 5 remaining networks, the ID strategy is more effective than the IB strategy for the Public Figures, Athletes and Company networks, while both strategies are of the same efficacy for News sites and Artist networks.

Fig. 9
figure9

The size of the 1st and 2nd LCC as a function of occupation probability p of 12 real-world networks when attacked by IB and ID strategies

In order to shed light on the relationship between modularity Q, node degree, and the efficacy of the attack strategies, we fit the linear models of the robustness RIB against the modularity Q and the average node degree \(\left\langle k \right\rangle\). In Fig. 10A we show the linear model of the RIB with respect to the modularity Q for our modular model network generated with different w from a BA network of N = 10,000, \(\left\langle k \right\rangle\) = 4 and m = 5. We find a significant trend as RIB decreases when Q increases (p-value = 0.01) with an abrupt decrease when Q is high (about 0.8). Very interesting, in our real-world social networks dataset, we find a similar RIB decrease with modularity Q (Fig. 10E, p-value < 0.001) corroborating the negative relationship between RIB and the modularity Q of the networks. To note, we do not observe the abrupt robustness decrease in the real-world social networks (Fig. 10E). This absence of an abrupt robustness RIB decrease can be due to the fact that real-world networks may vary in other structural properties (for example, links density, transitivity, assortativity, number of modules, etc..), and this structural variability may affect the network response to IB node attack. For this reason, the variability in real-world social networks structure, with many structural factors affecting the network robustness, may prevent the abrupt RIB decrease as a function of the modularity Q that we observe in model networks. In fact, it should be noted that the network’s robustness can be changed without changing the modularity Q. For example, Yang et al. (2015) and Mozafari and Khansari (2019) were able to improve the network’s robustness with links rewiring while preserving the modularity Q.

Fig. 10
figure10

Linear models of the robustness R as a function of the modularity indicator Q (R = α·Q + β) and the average node degree \(\left\langle k \right\rangle\) (R = α ·\(\left\langle k \right\rangle\) + β). Top row: model networks (red points); Bottom row: real-world social networks (blue points). A, C Model networks are generated with N = 10,000, \(\left\langle k \right\rangle\) = 4, m = 5 and with increasing modularity by varying the parameter w. B, D Model networks are generated with N = 10,000, m = 5, w = 0.9 and varying \(\left\langle k \right\rangle\) in the interval (4, 32). Statistical outcomes of the linear model parameters (slope α and intercept β): A RIB versus Q: α = − 0.2, β = 0.35, p-value = 0.01; B RIB versus \(\left\langle k \right\rangle\): α = 0.01, β = 0.14, p-value < 0.001; C RID versus Q: α = − 0.15, β = 0.31, p-value < 0.001; D RID versus \(\left\langle k \right\rangle\): α = 0.01, β = 0.1, p-value < 0.001; E RIB versus Q: α = − 0.26, β = 0.37, p-value = 0.001; F RIB versus \(\left\langle k \right\rangle\): α = 0.004, β = 0.18, p-value = 0.16; G RID versus Q: α = − 0.22, β = 0.36, p-value = 0.035; H RID versus \(\left\langle k \right\rangle\): α = 0.003, β = 0.2, p-value = 0.2

Further, we find a clear RIB and RID increase by increasing the average node degree in our model networks (p-value < 0.001, Fig. 10B,D). This is in agreement with past analyses showing how the network robustness to node removal increases with the linkage density, i.e. the higher the number of links per node, the slower is the network fragmentation under node removal (Albert and Barabási 2002; Iyer et al. 2013).

Differently, we do not find a significant relationship between RIB and RID and \(\left\langle k \right\rangle\) in our real-world social networks dataset (p-value > 0.1, Fig. 10F,H). Even in this case, the variability in real-world networks structure, with many structural factors affecting their robustness, may hide the emergence of a clear relationship between the linkage density measured by the average node degree \(\left\langle k \right\rangle\) and the robustness of the network against node attack.

Discussion and Conclusion

In this work we study the robustness of scale-free model and real-world social networks with different modularity. The scale-free model networks are generated from BA model with a novel method for tuning their modular structure. Using Monte-Carlo simulation we simulate two node attack strategies, IB and ID based on node’s betweenness and degree, respectively. With both attack strategies, we found two types of percolation transitions take place. The 1st type of transition with abrupt decrease happens when the model network has high modularity, representing by κ > κc with κc ~ 23.8 (or equivalently by w ~ 0.98) for both IB and ID attack strategies. Also at and above this critical point, the model network is more fragile under betweenness-based strategy attack: RIB < RID, as found in many real-world complex networks. When κ < κc or when the model network has no modular structure, the network experiences a continuous 2nd order phase transition under both node-attack strategies. Interestingly, under this regime, the network is more robust against the betweenness-based attack strategy IB than the degree-based attack strategy ID, contrary to most of the results on real-world networks.

In addition, our work showed that the ratio κ is the main factor for the relative efficacy between two strategies as well as the type of percolation transition: small κ corresponds to 2nd order continuous phase transition while high κ corresponds to an abrupt percolation transition. Further, we investigate how the modularity affects the robustness of the system against node removal in 12 real-world social networks and find a similar RIB decrease with modularity Q (p-value < 0.001) that we observe in model networks varying the modularity. This result indicates how networks with higher modularity (i.e. with higher community structure) may be more fragile to betweenness-based node attack. At the same, this result shows how the betweenness based node attack (IB) is highly effective when attacking a network with a marked community structure (higher modularity Q). Differently, in the case the network shows very low modularity (or no modularity), the degree-based node attack ID may perform better than IB.

The implication of this work is multiple. Firstly, it helps to understand the role of modularity and community structure for the robustness of networks, and to select the most effective node removal in networks, depending on their modular structure. If a network has high modularity, and one would like to break it, it would be better to adopt the betweenness-based strategy (IB), otherwise one should use the degree-based strategy (ID). Although we have tested two main attack strategies, the IB and ID strategies, the same procedure can be extended to other node attack strategies, especially the one that takes into account the network’s community structure (Magelinski et al. 2021). Inversely, if one found that the betweenness-based strategy is more efficacy than the degree-based strategy, one can infer that this network is highly modular, and vice-versa.

Secondly, model networks of different structures can be tested using the rewiring method we propose in this paper, such as the Erdos–Renyi (ER) random network (Erdos and Renyi 1960; Bollobas 2001), the Watts-Strogatz (WS) small-world network model (Watts and Strogatz 1998), or scale-free networks with different power exponents. These analyses may be useful to find different relationship between the model network community structure and its robustness.

Finally, our novel algorithm which built model networks with tunable modularity, provides a method to study role of community structure for other dynamic processes on networks, such as epidemic spreading process (Salathe and Jones 2010), and the immunization strategy (Gupta et al. 2016, Chakraborty et al. 2016, Kumar et al. 2018, Ghalmane et al. 2019b).

Availability of data and materials

8 networks of Facebook's pages (TV Shows, Politician, Government, Public Figures, Athletes, Company, New sites and Artist) and the Email_EU networks are collected from https://snap.stanford.edu, prepared by Rozemberczki et al. (2019) and Leskovec and Faloutsos (2007). Two financial networks, SP500_1 and SP500_2 are prepared as described in Nguyen et al. (2019) from historical daily close price of the SP500 index download from the website finance.yahoo.com. The final network datasets can be provided upon reasonal request. The NetScience network dataset is download from Newman’s website http://www-personal.umich.edu/~mejn/netdata/.

Abbreviations

ID :

The node degree-based attack strategy

IB :

The node betweenneess-based attack

LCC :

The largest connected component

Q :

The network modularity

BA :

The Barabási–Albert model

L intra :

The number of intra-module links

L inter :

The number of inter-modules links

p intr :

The probability for a given link to be intra-link

p inter :

The probability for a given link to be inter-link

1st LCC :

The first largest connected component (is also the LCC)

2nd LCC :

The second largest connected component

D :

The diameter of the network

C :

The network transitivity (clustering coefficient)

RID :

The network robustness under ID attack

RIB :

The network robustness under IB attack

p:

The network node occupation probability

pc :

The critical value of occupation probability p where the transition occurs
