Appraising discrepancies and similarities in semantic networks using concept-centered subnetworks

Abstract

This article proposes an approach to compare semantic networks using concept-centered sub-networks. A concept-centered sub-network is defined as an induced network whose vertex set consists of the given concept (ego) and all its adjacent concepts (alters) and whose link set consists of all the links between the ego and alters (including alter-alter links). By looking at the vertex and link overlap indices of concept-centered networks we infer semantic similarity of the underlying concepts. We cross-evaluate the semantic similarity by close-reading textual contexts from which networks are derived. We illustrate the approach on written and interview texts from an ethnographic study of flood management practice in England.

Introduction

Text can be represented as a semantic network, with vertices being words and links being counts of word co-occurrences within a given distance between words. Research in cultural sociology often views semantic networks as a model of knowledge/culture underpinning the production of text (Carley 1986; Carley and Newell 1994; Lee and Marin 2015). This allows researchers to infer knowledge structure using the tools of network analysis (Abbott et al. 2015; Roth and Cointet 2010). Currently, an issue of particular interest is how different knowledge/culture systems (for instance institutional-field and local knowledge, see Basov et al. 2019) interplay with each other. The present paper proposes an approach to examine this interplay at the meso-level of particular concepts (word lemmas) which gain different meanings across different knowledge/culture systems.

We draw on a new text dataset on professional and local flood management knowledge collected during one of this paper’s authors ethnographic fieldwork in England. Flood management in England as a knowledge domain provides an apt example because, until recently, it exclusively relied on institutionalized professional knowledge. In recent decades, however, flood management has become more sensitive to “local knowledges” and started seeking ways to engage local actors (McEwen and Jones 2012; Nye et al. 2011; Wehn et al. 2015). Becoming stakeholders in flood risk management, local communities/activists are expected to adhere to professional knowledge and language. They, however, rarely take professional knowledge at “face value”, but rather creatively reuse it to fit local context (Nye et al. 2011; Wehn et al. 2015). Our data comes from one such flood-prone area where flood management agencies and local community groups collaborate to manage flood risks. To examine which professional concepts are used by local actors, we represent professional and local knowledge as separate semantic networks and then compare sub-networks centered on the concepts that are shared across professional and local semantic networks.

The paper is organized as follows. In the next section, we introduce the idea of concept-centered sub-networks and lay out reasons why researchers might better understand semantic networks focusing on their concept-centered components. Then, we describe our two-step analytical approach, first by showing how to find potentially interesting concept-centered sub-networks and then how to highlight their similarities and differences. We illustrate the approach using English flood management data. We conclude by discussing the main results and outlining future work prospects.

Semantic and concept-centered networks

A semantic network, like any other network, is defined as a couple of sets \(G=(V, E)\). V lists all vertices, and \(E \in V \times V\) lists all connected pairs of vertices. A network can also be defined by an adjacency matrix M of dimension \(|V| \times |V|\) where entry \(m_{ij}\) indicates the presence of a link between vertices i and j. In the most simple case M is a binary and symmetric matrix: \(m_{ji}=m_{ij} \in \{0, 1\}\). Semantic networks, however, can include co-occurrence counts, in which case entries of their adjacency matrices are not binary but positive integers, \(m_{ij} \in {\mathbb {N}}\). Researchers nonetheless often binarize such co-occurrence matrices by using some threshold value, \(\tau\), \((m_{ij} \ge \tau \rightarrow m_{ij} = 1) \wedge (m_{ij} < \tau \rightarrow m_{ij} = 0)\) (Dianati 2016; Cantwell et al. 2020).

The typical case we address here consists in comparing semantic networks associated with professional vs. local knowledge. There exist many ways to compare networks, however, we argue that semantic networks specifically may be better understood by comparing different substructures they consist of (e.g. network motifs) (Choobdar et al. 2012; Pržulj 2007; Milo et al. 2002). We further argue that comparison of knowledge systems can be narrowed down to the use of particular concepts, which at the level of semantic networks corresponds to concept-centered sub-networks. For example, knowing that the concept “flood” is linked to different concepts in professional and local semantic networksFootnote 1 may hint at the fact that flood has different meanings in professional and local knowledge systems.

Thus, in practice, we compare concept-centered networks by appraising the similarities of their vertex and link sets. We define a concept-centered network as follows. For a given actor a and given concept c the concept-centered network \(C_{a,c} = \{V_{a,c}, E_{a,c}\}\) is an induced network whose vertex set \(V_{a,c}\) consists of the given concept (ego) and its adjacent concepts (alters) and whose link set \(E_{a,c}\) consists of all links in E between pairs of vertices in \(V_{a,c}\).

We measure similarity using vertex and link overlap indices, which generally indicate how many shared elements two sets have relative to the cardinality of the smaller set. We use this index instead of the more common Jaccard index because in practice local actors draw upon professional knowledge, not the other way around. In other words, we are examining the part of concepts and linkages in professional knowledge that local actors draw on when adjusting professional knowledge to their specific local perspectiveFootnote 2. We further exclude the ego concept and ego-incident links in the computation of indices because keeping them induces a lower bound. While this lower bound is somewhat negligible for the vertex overlap, it can be substantial for the link overlap. We denote as \(V^{*}_{a,c}\) and \(E^*_{a,c}\) the vertex and link sets that exclude ego and ego-incident links. Focusing on the c-centered semantic networks of actors a and \(a'\), and denoting the overlap index of two sets X and Y as:

$$\begin{aligned} \omega (X,Y) = \displaystyle \frac{|X \cap Y |}{\min (1, |X|,|Y|)} \end{aligned}$$

we define their vertex overlap index as \(\omega (V^*_{a,c}, V^*_{a',c})\), and their link overlap index as \(\omega (E^{*}_{a,c}, E^{*}_{a',c})\). The denominator of the overlap index definition guarantees consistence in case the central concept c has no alter, producing an overlap of 0 by construction (this corresponds to trivial concept connection configurations which we are nonetheless generally not interested in).

Along with the analytical approach we also propose a visualization approach to highlight similarities and discrepancies between two concept-centered networks. We first combine concept-centered sub-networks into a “union” network by gathering all vertices and links. The union graph helps to position vertices and keep these positions in the visualization of each network separately. We also assign a double weight to links shared by both actors: this plays a functional role as the force-directed layout makes vertices incident to shared links more attracted to each other. This not only puts pairs of concepts that are connected for both actors closer to each other, but also spatially separates them from concepts that are not, thus further highlighting commonalities and discrepancies between networks.

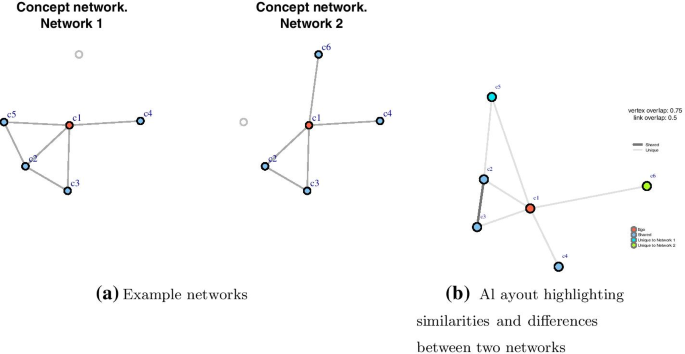

Fig. 1
figure1

Semantic networks of actors a and \(a'\) centered around concept c1. Both networks share concepts c2, c3 and c4 (excluding c1), which makes for a vertex overlap index of 3/4 as the minimum vertex size is 4. The link overlap index is 1/2, as one alter-alter link is shared (between c2 and c3) and the minimum link set size is 2

Figure 1 illustrates this idea. Suppose we have a pair of actors and their respective concept-centered networks (1a). The ego-concept in both networks is c1. The first actor connects c1 to c2, c3, c4, and c5; the second actor does not connect c1 to c5, but to c6. Thus, the vertex overlap index between these concept-centered networks is 0.75 (3 shared vertices out of 4 vertices). Besides, there is a difference in the alter-alter links: while both actors connect c2 and c3, only the first actor connects c2 and c5. Therefore, the link overlap similarity between them is 0.5 (1 shared alter-alter link out of 2).

The visual representation we are proposing is presented in Fig. 1b: shared links between concepts tend to clump together near ego because their weight is double, which results in larger “attraction power” of links to these concepts in terms of Fruchterman-Reingold layout. Along the same logic, non-shared concepts are such that by construction no links may be shared across actors, thus the corresponding links pointing to such concepts have lower weights—which, in turn, repeals them farther away from ego. Furthermore, concepts connected with shared links appear closer to each other than those connected by non-shared links, again, because uniqueness of the latter links makes their weight lower. In addition, concepts linked with the “shared core”, even if they and their links are not shared (like c5) are placed closer to ego than “lone-standing” non-shared concepts (like c6).

In what follows we apply the two-stage approach described above to compare concepts across semantic networks and discuss some particularly interesting concept-centered comparisons.

Data description

Our data come from an ethnographic study focusing on two local flood management groups located in the County of Shropshire, England. Professional knowledge is represented with a collection of documents issued by flood management agencies and authorities (around 316,000 words in total). Local knowledge is represented with semi-structured interviews with 15 members of the two local flood groups (LFG)—local activist groups involved in flood risk management in two villages. We denote these groups as LFG1 and LFG2, respectively. The interviews comprise 186,000 words in total, with the average word number per interview being around 13,000.

Note that we represent professional knowledge with one network (further, “professional network”). This reflects a sort of “universality” of professional knowledge, as we assume that the content of official documents should reflect some general consensus among professionals. For locals, on the other hand, we allow each interviewee to have their own semantic network. We do so because we are interested in looking at how particular local actors borrow concepts from professional knowledge. We denote local networks with lowercase a’s followed by a number (e.g., a1 or a2).

We produce semantic networks from texts as follows. First, raw texts are tokenized and part-of-speech (POS) tagged using the UDpipe package (Wijffels 2019): we convert words into lemmas and combine lemmas with their POS tags to produce unique concept identifiers (e.g., “flood(v)” as the verb and “flood(n)” as the noun), which we refer to as concepts in this paper. Research assistants have manually inspected the corpus checking for machine-missed stopwords (usually numbers e.g., “60s”), transcribed artefacts of oral speech (e.g., “aha”, “eh”), set phrases (“bear mind”, “couple time”), incorrectly recognized words, informants’ real names, and the same words that have different spelling. All such instances have been replaced with either correct versions or a generic placeholder.

We count co-occurrences using the sliding window approach: concepts count as co-occurred every time they appear within 8-concept vicinity from each other, unless separated by a full stop mark. This yields weighted co-occurrence networks. We then filter these networks from all non-nouns, non-verbs, non-adjectives as well as from trivial verbs (e.g., “do” or “make”), leaving only vertices related to adjectives, nouns, and non-trivial verbs. We take this step to (a) reduce the amount of information to process and (b) to focus on informative parts of speech. Finally, we binarize co-occurrence counts using the threshold of 2 for both professional and local networks, that is we link all the pairs of concepts which co-occurred at least 2 times (see next section for a discussion). The total number of links in the resulting professional network is 58,947, while in the local networks it is 300, on average. The mean degree for the professional network is about 30, while the average mean degree for local networks is 2,69. Table 1 summarizes features of local and professional networks.

Table 1 Local and professional networks summary statistics

On the choice of binarization threshold value

Figure 2 shows mean degrees of different professional networks against threshold values used to produce them, while Fig. 3 juxtaposes various professional network specifications with the local networks in terms of their mean degree and density. The threshold value clearly affects topology of the network and, therefore, should have an impact on the chances of professional and local concept-centered networks to overlap. It is therefore important to ground the choice of binarization threshold.

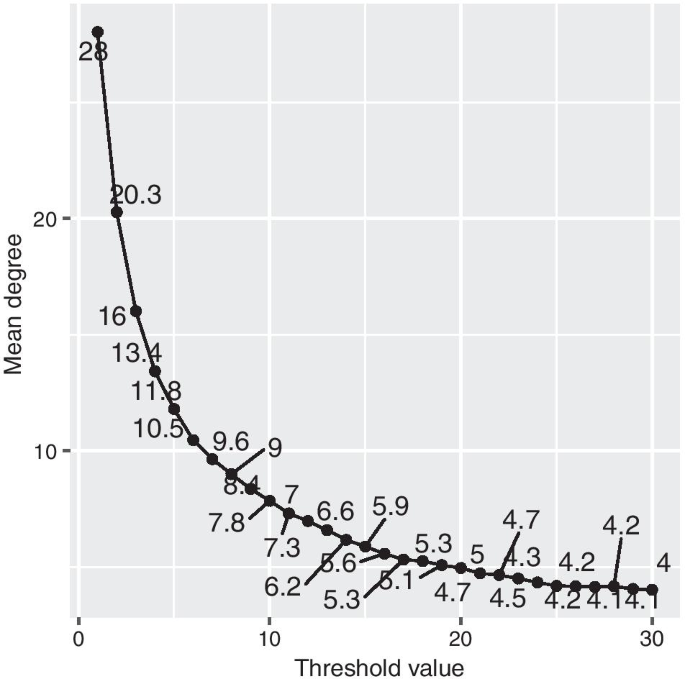

Fig. 2
figure2

Mean degree of the professional network as a function of the threshold value

Fig. 3
figure3

Summary on professional and local networks. Numbers in professional networks indicate the threshold value used to produce the network

In this paper, we choose to work with the same threshold for both professional and local networks. The reason is twofold: first, it lowers the number of parameters that we as researchers use to process and possibly alter the raw network data. Second, the justification of the threshold depends on the interpretation of co-occurrences in general. On the one hand, higher co-occurrence counts may be induced by the larger size of the professional corpus in comparison with the local corpus. On the other hand, higher co-occurrence counts may be due to a higher density of linkages between concepts in professional vs. local networks because for instance professional knowledge is more elaborated. If we assume that both can be the case, a correctly chosen threshold would be able to both preserve the higher connectivity of professional knowledge networks and reduce the potential bias introduced by using corpora of different sizes to define professional semantic network and various semantic networks of each local actor.

Let us consider a hypothetical situation in which the professional network strictly comprises all local networks, which is actually quite realistic especially in terms of links. In other words, local networks are all sub-networks of the professional network. Two simple scenarios are possible. First scenario, professional corpuses cover a much broader set of topics than are covered by locals: the discrepancy in text size simply reflects the fact that many more issues are being addressed by experts and that only a fraction of the expert data deals with issues that are present in the local data. In that case, we argue that the expert network centered around discourses mentioning a given issue should be directly comparable with the local network centered around that same issue. Second scenario, professional corpuses cover the same set of topics but in much denser manner: the discrepancy in text size reflects the utterance by professional of more sentences around the same topics, and thus a richer set of connections for these same topics. In that case, the same threshold should also apply to professional and local semantic networks. In the first scenario, the difference in network mean degrees would reflect the breadth of professional knowledge as opposed to the specificity and particularity of local knowledge; in the second one, the difference reflects the higher density of professional linkages—in both cases and in terms of network representation, this implies symmetric thresholding (i.e., if we use 2 for locals, we should use 2 for professionals), because we would otherwise lose the peculiarities of concept usage in professional knowledge.

By contrast, choosing a higher threshold for professional network than for local ones would filter away a great deal of structure to the point that some concepts in the local networks may erroneously appear to be more richly connected to their alters than in the professional network. This would additionally conflict with our initial assumption that locals draw on professional knowledge. While it may well be the case that some concepts are more elaborated in the local knowledge than in the professional one, we decided to leave this option for further research and focus instead on the assumption of inclusion of local networks into professional ones.

Illustration

We apply our approach to find and examine concepts local actor a9 shares with professionals. We inspect concepts based on their similarity profile, because we want to understand what it means for two semantic networks to share concepts in terms of those concepts’ alters. Comparing concepts, we take the following steps:

  1. 1.

    First, we create a list of common concepts: those concepts that both the professional and local actors use.

  2. 2.

    For each common concept c, we extract its immediate alters in professional and in local network. This yields concept-centered networks: \(C_{{\rm{pro}},c}\) and \(C_{{\rm{loc}},c}\)

  3. 3.

    We calculate two metrics characterising similarity between the two concept-centered networks: vertex overlap and link overlap indices

Figure 4 shows vertex and link overlaps for the top 15% of the most central concepts in the local network a9. Let us examine two of them—management(n) and plan(n). The concept “management” is interesting because it yields the highest similarity scores in both vertex and link overlaps. In other words, local actor a9 expresses the same associations to this concept as professionals do, both in terms of the composition of alters and the links between them. The concept “plan”, on the other hand, has relatively high link overlap but stands out with a relatively low vertex overlap score.

Fig. 4
figure4

Top 15% of the most central concepts for local actor a9 along with their vertex and link similarities to professionals

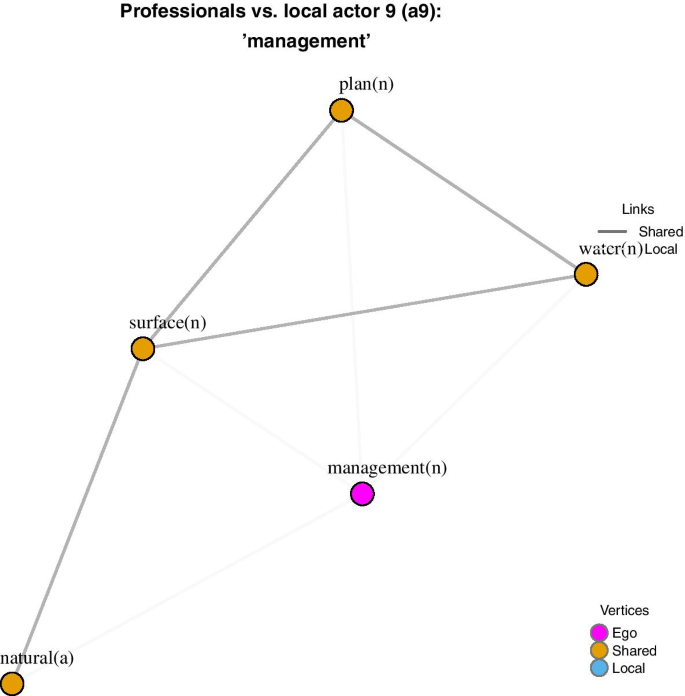

Fig. 5
figure5

Professionals versus local actor a9: “management”. Suffixes after the concept’s name show its part or speech: (n) noun, (v) verb, (a) adjective. For display purposes, only shared and local-specific concepts are shown. In case of “management”, the professional network contains 641 other concepts, while local actor’s network has only 3

Concept “management”

Shared link “flood-management”. Figure 5 displays the use of the concept management in the professional and a local networks. Let us start with a particular part of this cluster, the link “flood-management”. The concept management often appears both in official documents and in interviews with locals and, indeed, is likely to play a pivotal role in both professional and local knowledge. There is a general understanding shared by both locals and professionals that floods cannot be totally eliminated and, therefore, should be properly managed to minimize their adverse impacts on people and the local economy.

I would say planning the most cost-effective solution for flood management surely that’s the one isn’t it? Nobody wants the flood but it will always come back to cost benefit of course so it’s most cost-effective benefit for flood management that’s close to the aim isn’t it? (local actor a9)

Shared clique “management-surface-plan-water”. Professionals often use surface water management plan concepts to refer to an official document that coordinates and lead local management practice, with a special aim to minimize flood risk to properties:

In 2007 Telford & Wrekin Council were successful in a bid to create a surface water management plan under DEFRA’s Integrated Urban Drainage pilot studies. The project was driven by the need to gain a better understanding of the surface water environment within its borough with a view to reducing the risk of flooding to existing and new properties through the development control process (professional text)

The local actor, meanwhile, points out that surface water management plan is the main source of knowledge about the last flooding that many locals experienced themselves:

Most what I find with most documents related to flooding they’re actually historical reports like the surface water management plan, the neighborhood plan, there may have been a report on the Priorslee balancing lake. (local actor a9)

Examining the use of “management” in both professional texts and local actor’s interview shows that similarities in concept-centered networks correspond to similarities of this concept’s meanings in verbal expressions. In other words, close reading helps confirming that comparing concept-centered networks at the level of vertex and link overlap indices corresponds to actual similarity of the usage.

Concept “plan”

Figure 6 shows the use of the concept plan in professional and local networks. Plan is indeed one of the core concepts in professional knowledge, in particular, plan is embedded into a clique with four other concepts some of which also appear in local actor’s network: surface-water-flood. Meanwhile, we can also see that in the local network plan has several unique alters, most notably inside the triad plan-neighborhood-connection which does not appear in the professional network.

Fig. 6
figure6

Professionals versus local actor a9: “plan”. For display purposes, only shared and local-specific concepts are shown. The professional network contains 480 other concepts linked with “plan”

Shared link: plan-flood. “Plan” is another common concept in flood management vocabulary for professionals and locals alike. Professionals and locals use the concept “plan” when referring to documents that coordinate various stakeholders’ flood management activities. Although both the locals and professionals share the idea of a document-driven approach to flood management, in practice they may refer to different levels of planning. For example, professionals most often refer to “flood risk management plans”—regional-level documents that orchestrate activities of stakeholders. In professional semantic network this is captured by the “surface-water-management-plan” cluster of concepts. The regional level plan, however, does not directly relate to the locals. In fact, when speaking about plans, local actor refers to a “neighborhood plan”—a local document that regulates local development to protect the local drainage system from overload. This results in concepts “plan” and “neighborhood” being linked in the local network, yet never appearing next to each other in the professional network. Quotations below illustrate this difference in scale for professionals and local actor a9.

Flood risk management plans (FRMP) describe the risk of flooding from rivers, the sea, surface water, groundwater and reservoirs. FRMPs set out how risk management authorities will work together and with communities to manage flood and coastal risk over the next 6 years [...] Each EU member country must produce FRMPs as set out in the EU Floods Directive 2007. (professional texts)

I suppose... the other one [issue] which isn’t, perhaps, as major [a problem] but it [is] certainly significant for [the village], is the local developers. The planning permissions are granted on the understanding that certain flood mitigation steps will be taken... Developers are only allowed to develop in line with the neighborhood plan. (local actor a9)

Additionally, the actor sometimes uses the concept neighborhood plan referring to some other local initiatives not even related to floods. The link to the concept connection indicates such use:

there was a very useful group which was called Shifnal Forward that actually brought all the community groups together with a purpose of a neighborhood plan of improving the railway connection to Birmingham, Wolverhampton and Shrewsbury for commuters business and various things like that (local actor a9)

Dependence on the threshold

We mentioned earlier that threshold value affects network topology. In this section we explore this dependence. As a vehicle for the discussion, we use the concept group. In general, concept group has a very elaborated meaning in professional texts. There is, however, one aspect of meaning that locals and professionals share: group often refers to action or community groups of local people involved in risk management and representing local communities. This fact is clear when we look at professional network specification at the threshold of 2: the vertex group is connected both to the vertex community and to the vertex action (Fig. 7). Besides these two, the shared core of concepts around group also includes name of the local flood action group, flood, and partnership.

Fig. 7
figure7

The professional network is based on threshold value 2. For display purposes, only shared and local-specific concepts are shown

Such intersection, in general, reflects one of the key ideas in current flood risk management in England: working in partnership with local activist groups. In fact, the very concepts flood action group or community action group have been coined and put forward by an NGO—the National Flood Forum—and local authorities. Locals, in general, appropriate such designation because their groups often have been established with the help of the National Flood Forum.

Continued support of community groups and forums as well as looking to broaden their understanding of surface water flooding (professional text)

Try to have action group meetings at regular intervals (the multi-agency meetings will be less than the action group meetings) in that way the problems are kept to the fore even when flooding is the furthest thing on people’s minds (professional text)

More specifically, cluster LFG1-flood-partnership-group refers to a particular community flood group (the one that we studied). In fact, this is its official name: LFG1 flood partnership group proposed by the National Flood Forum.

At the threshold value of 15 (Fig. 8), the concept group retains only 3 concepts shared both by professionals and the local actor: partnership, flood, and community. The meaning of the concept group seems to be less specific for professionals, since the raised threshold filters the concept LFG1 from their network. The reason may be that professionals use flood and group to denote any group in general, e.g. local groups of beneficiaries, working groups, etc. Manual check of professional texts featuring group-partnership co-occurrence without any reference to the research site LFG1 supports this intuition:

Coastal groups’ partnerships between maritime local authorities, the Environment Agency, and other key stakeholders develop SMPs and work together to implement them. (professional text)

Fig. 8
figure8

The professional network is based on threshold value 15. For display purposes, only shared and local-specific concepts are shown

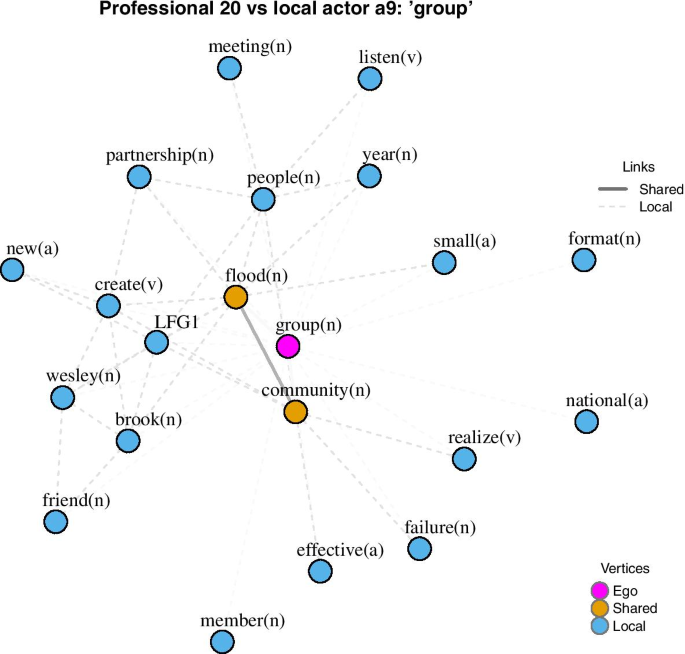

Fig. 9
figure9

The professional network is based on threshold value 25. For display purposes, only shared and local-specific concepts are shown

Finally, when the threshold is raised to 20 (Fig. 9), professional network retains only the cluster group-flood-community. The alters of this cluster also suggest very general use of the concept group, as if referring to broad categories of people or stakeholders.

There are three groups of people who form the primary beneficiaries of flood risk reduction through the provision of SuDS. (professional text)

[...]to develop a strategic approach to drainage and flood management and receive reports from specific working groups and where applicable to inform other related working groups such as the Local Resilience Forum. (professional text)

In general, different threshold values reveal different levels of abstraction used by professionals. When the threshold is low (2) we can see a lot of dyads and clusters referring to particular groups of people. As the threshold value increases, however, meanings become more general.

This simple exercise shows us that while what appears to be similar depends on the network construction protocol, the resulting variability still poses an interpretable material. Looking into how network pruning results in varying linkages between concepts sheds light on meaning structures and levels of abstraction employed by actors producing the text.

One straightforward implication here is that sensitivity analysis with pruning thresholds should become a necessary analytical routine for semantic networks. Besides that, however, we would argue that the value of working with a set of thresholds can go beyond a simple robustness check: we could also meaningfully interpret thresholds as levels of abstraction in text. As excerpts from professional documents above indicate, the same dyad (e.g. flood-group) can both refer to very specific and concrete groups, like LFG1 local action groups or to general categories like groups of people benefiting from flood management. Observing that the intersection between professional and local networks gradually narrows down from a dense and wide clique-like cluster to a single cluster provides insight into basic semantic dyads that, so to say, “pave the way” from professional to local knowledge.

Comparing professional network with other local networks

Let us now repeat the procedure of looking for similar concept-centered networks for all the remaining local actors. Figure 10 compares local actors’ networks against professional network based on the threshold of 2. Each panel presents top 10% of the most central concepts in a local actor’s network, positioned by their vertex and link overlap scores. For illustrative purposes, we examine the concept property for actor f and concept flood for actor n.

Fig. 10
figure10

Professional network with threshold of 2 compared with local networks

Concept “property”

Figure 11 displays professional network and a local actor a14’s network centered on the concept property. Shared part of alter-concepts include clusters property-risk-identify and property-affect-flood-people. The local actor has one unique concept: adjective right. Let us examine some parts of these clusters closer.

Fig. 11
figure11

The usage of the noun “property” in the professional and local actor a14’s network

Fig. 12
figure12

The usage of the verb “to flood” in the professional and local actor a7’s network

Shared: dyad “property-people”. Shared dyad “property-people” hints at a tendency prevalent both in local and professional discourse that associates people with their property. For example, the local actor a14 puts it:

So obviously there [were] inconvenience to the people that have flooded So you can’t get in there to work. Like us we lost everything. So we literally couldn’t go to work . We lost our vehicles . We were homeless so the knock-on effect of that was that because 87 people, 87 properties were affected. (local actor a14)

Professional texts also quite clearly state that protecting people means protecting their property.

Risk management authorities carefully prioritise maintenance activities to sections of rivers and the coast that provide the most benefit to people and property. (local actor a14)

Shared: dyad “property-risk”. Given that people are associated with their property, it is not surprising that both the local actor and professionals tend to bring in the concept risk when talking about property. For example, the local actor evaluates money received to mitigate flood damage in terms of properties at risk:

we were very fortunate that in January 2015 exactly 12 months after the money which the RFCC and the Environmental Agency wanted to give us according to the surface water management plan.. 87 properties were at risk.. in a 1-in-100 plus 30% climate change ADP so we got £520 000 pounds. (local actor a14)

Meanwhile professionals describe floods in terms of risks they pose to properties.

This increase in flood water is believed to have increased flood levels at the junction of Meadow Road and High Street thereby increasing the risk and impacts of flooding to the properties at this location. (professional text)

Shared: dyad “property-identify”. Professionals and locals are both concerned with identifying properties at risk. Professional texts tend to use the verb identify speaking about zones in which properties reside.

Although the majority of Albrighton is identified as low risk of fluvial flooding. It must be identified that certain on Woodland Close and one property along Worthington Drive have been identified in Flood Zones 2 and 3. (professional text)

The local actor, on the other hand, uses identify in a slightly different tone. First, he wants to identify properties vulnerable to floods because the number of properties at risk affects the funding their group receives from the county Council:

It might be that we have PLRs on seven the ones that are at higher risk one in a five but we did a Shropshire Council instigated a threshold survey to identify how many properties were at risk. So they sent out all these letters even to my neighbor’s all up on the top of the hill. So it was done.. I’m telling you this about the threshold survey because that identify.. So the number of properties that are that could be affected affects the funding. (local actor a14)

On top of that, he emphasizes that it is important that officials identify right properties, meaning properties that are identified as vulnerable by locals:

So when Shropshire council did this threshold survey we wanted them to do it to the right properties .. to the properties that we identified to them. (local actor a14)

Concept “flood(v)”

Figure 12 displays the verb to flood for professionals and the local actor n. As always, we display only shared concepts and concepts unique to the local actor because of the large number of concepts linked with the verb flood in the professional network. We can see that while professionals and the local, indeed, share a lot of concepts linked with flood, the local actor has his unique links.

Shared: “flood-property”. The shared core of concepts is not surprising and well fits general concerns about floods that professionals and locals share. Properties can get flooded and the use of the verb is almost identical for the local actor and professionals:

no properties were identified as being flooded due to the LFG1 Brook overtopping its banks. (professional text)

Woodland Close flooded on the 26s no properties affected. (local actor a7)

Note, however, that professional texts do not use the concept house, while for the local actor property and house are synonyms.

Non-shared: “flood-chinese”. The local actor’s network features many isolated concepts linked with the verb flood. One of them, the adjective chinese provides a curious detail on how local actors apprehend floods and its causes. Looking into interviews reveals that chinese refers to a Chinese restaurant, a potential location of a “natural stream” suspected to contribute to the recent flood in LFG2:

flooded again about 4–5 months ago from that same .. it flooded the cottage next to the Chinese restaurant .. it just came up and flooded so there’s a question mark about that area it all comes back to the fact that we can’t stop you connecting this housing development to it .. they have a right ... We know that there is another one somewhere [source of flooding] and we feel it hitting the concrete but where is the water going now. Now we do know an instance where if flooded what we know is a Chinese take away shop it flooded we now find that there is a stream at the back of that shop a natural stream. (local activist)

Comparing concepts within research locales

The last analytical step we perform is comparing concepts in their vertex and link overlaps between actors within research locales, i.e., LFG1 and LFG2. For example Fig. 13 shows median vertex and link overlaps for 18 concepts that all actors in LFG1 use. The size of the point reflects the associated variability—the sum of interquartile ranges for the concept’s vertex and link overlaps. We may observe, for example, that both the concepts of property and flood, in general, have the same meaning for local actors as for professionals. The lower variability associated with the flood, however, suggests stronger consensus on the concept usage. Higher variability of the property, on the other hand, suggests that actors tend to differ in what aspects of property they discuss, thought these differences still more or less reside within the range of meanings provided in the professional texts.

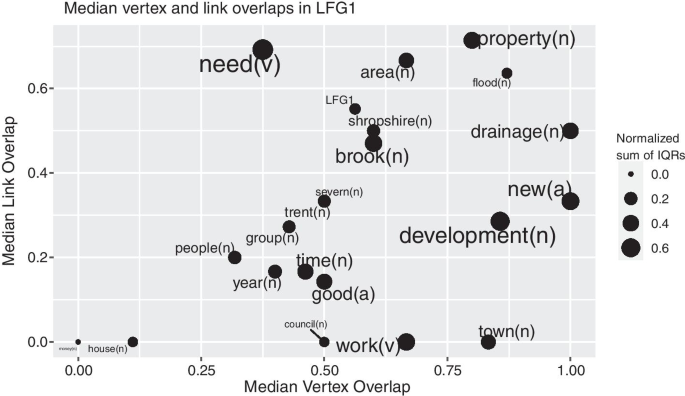

Fig. 13
figure13

Median vertex and link overlaps for the actors’ in LFG1. The size of the dot reflects the variability in the concept’s vertex and link overlaps in this location

Fig. 14
figure14

Median vertex and link overlaps for the actors’ in LFG2. The size of the dot reflects the variability in the concept’s vertex and link overlaps in this location

The concept money, yielding zero vertex and link overlap indices, on the other hand, suggests that meaning of this concept for local actors is different from that for professionals.

Figure 14 shows the same distribution for LFG2. It is notable that the the number of shared concepts in LFG2 is lower than that in LFG1. We speculate that this might be because LFG1 was founded several years earlier than LFG2, so the difference in the pool of shared concepts perhaps reflects difference in the time spent to build these pools.

Comparing aggregates of local networks with the professional network can be an avenue for the future research, as it allows us to evaluate to what degree a whole union network of local knowledge is aligned with the professional network. For example, if we unite all the local networks from LFG1 site, we may observe that the concept of “management” yields the highest vertex and link similarity indices, paralleling that of the local actor 9 we discussed earlier (Fig. 15). However, if we examine the concept of “management” yielding the highest vertex and link overlap indices, we may observe that local actors in LFG1 collectively add to the idea of ‘management” their own concepts as shown in Fig. 16.

Fig. 15
figure15

Top 50 most connected concepts for the total local network of LFG1. The concept of “management” yields the highest vertex and link overlaps

Fig. 16
figure16

Top 50 most connected concepts for the total local network of LFG1. The concept of “management” yields the highest vertex and link overlaps

Concluding remarks

This paper proposed a two-step concept-centered approach to compare semantic networks, where one network serves as a “golden standard” from which the other network selectively pulls semantic links. At the first step, we mapped all the shared concepts onto a two-dimensional space of overlap similarities of their alters and of links connecting these alters. The joint distribution of these indices highlighted concepts which potentially can give insight into selective appropriation of professional knowledge by local actors. At the second step, we visually inspect chosen concepts using a customized version of the Fruchterman-Reingold layout (Fruchterman and Reingold 1991), spatially separating shared and non-shared concepts.

We argued that while network comparison can happen at any level of analysis, in the case of semantic networks it is sensible to start with concept-centered networks. We suggest that researchers may gain deeper insight into how semantic networks emerge using the productive juxtaposition of quantitative and qualitative perspectives that this vantage brings together.

Finally, we want to discuss the shortcomings of the paper and the prospects of future research. Since we propose a method to compare networks, hypotheses testing is, unfortunately, out of scope. We only show the utility of the method. Future research may apply the method to answer questions like “How do the meanings of the same terms in one knowledge system differ from those in another?” or “Do expert knowledge terms gain contest-specific meanings in local knowledge systems?”

From a technical side, we realize that the issue of threshold value needs to be addressed more principally, so it would be insightful to work with several symmetric thresholds for both professional and local networks. This implies that instead of working with one single network threshold researchers should embrace multiple network versions and explicitly incorporate this uncertainty into analysis. Finally, when analyzing shared and unique concepts across networks it deems necessary to look for qualitative explanations as to why local networks feature a lot of “singleton” vertices: concepts linked with the ego-concept but not with other alters.

Availability of data and materials

Not applicable. The interviews have been collected under condition that the data will not be shared with third parties.

Notes

  1. 1.

    That is, the concept tends to co-occur with different other concepts in professional and local texts.

  2. 2.

    The size of local semantic network is generally smaller than that of professionals, mostly due to different corpus sizes, which, in turn, is due to locals demonstrating less elaborate verbalised knowledge of the subject.
